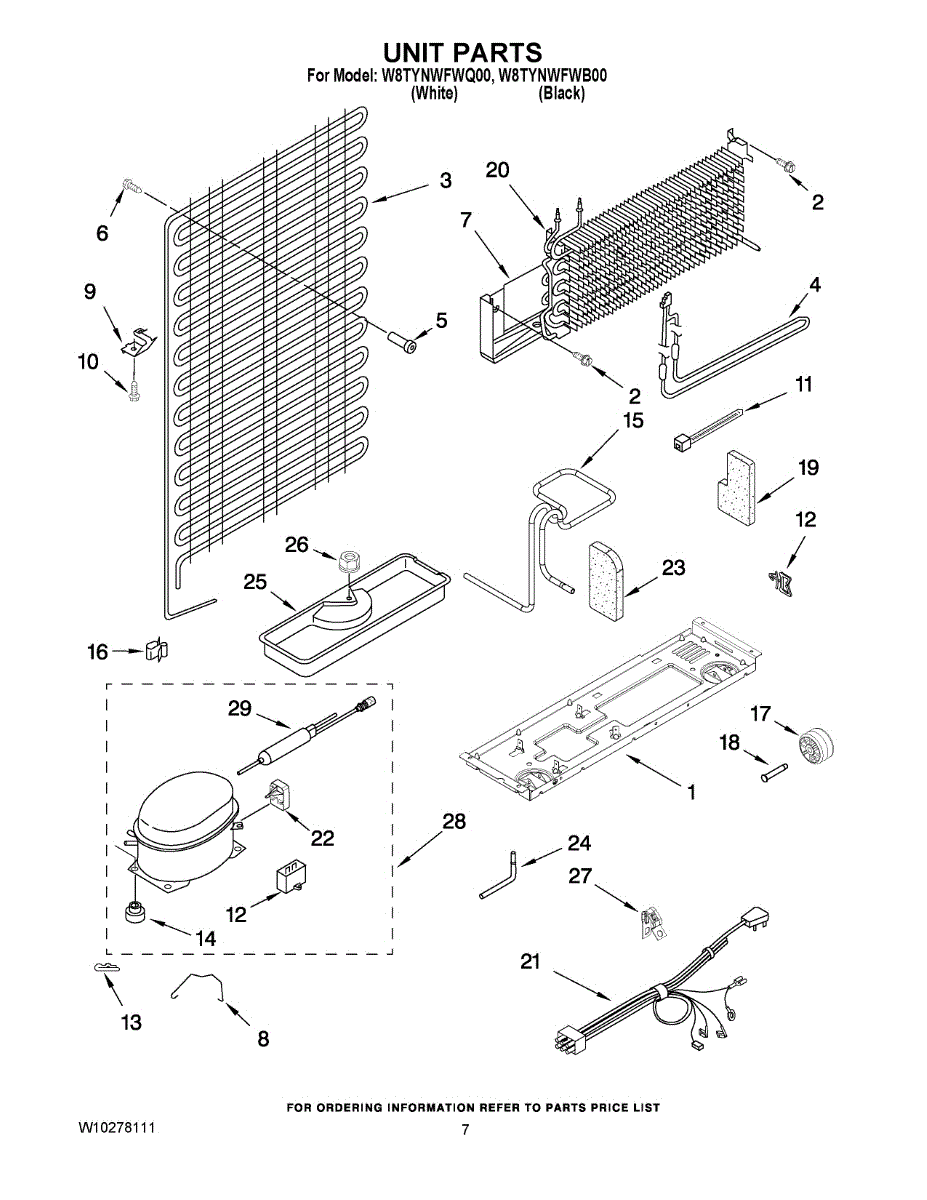

Parts for Whirlpool W8TYNWFWB00: 04 - Unit Parts

This refrigerator support bracket provides structural stability for internal components. Replace if cracked, broken, or missing to restore proper support.

Size: 8-18 x 1/2 inch.

Refrigerator not cooling properly? This condenser assembly transfers heat from the refrigeration system. Direct replacement for bent or corroded condensers.

Fix freezer icing and blocked vents with this defrost heater. Melts frost buildup on evaporator coils during defrost cycle. 30-minute DIY repair.

Secures the compressor to the refrigerator frame. Replace if strap is cracked, broken, or missing to properly mount and stabilize the compressor unit.

Secures trim, panels, and assemblies to prevent rattling and keep parts aligned. Replace when original clip breaks or goes missing. Verify fit with your model.

Size: 8-18 x 1/2 inch.

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Protective seal grommet for hoses, tubes, or wires passing through refrigerator cabinet. Replaces cracked, worn, or missing grommets to prevent leaks.

This refrigerator roller supports the unit's weight and enables smooth movement for positioning and cleaning. Replace when wheels crack or roll roughly.

Rivet for refrigerators. Secures components and panels inside the cabinet. Replace if rivet is loose, missing, or broken during repair work.

Fix water leaking on the floor or cooling issues with this refrigerator evaporator assembly. Located behind the freezer back panel. Moderate repair.

Wire harness that connects electrical components inside your refrigerator. Replace if wires are frayed, connectors are damaged, or harness is missing.

Fixes refrigerator not cooling or compressor not running. This start relay and overload kit restores cooling when the compressor fails to start. DIY repair.

Fix a warm refrigerator and freezer or loud rattling noise during operation. This compressor repairs cooling failures from sealed system issues.

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

Refrigerator not cooling properly? A clogged filter drier prevents proper refrigerant flow. Requires professional installation due to sealed system.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/4 inch.
