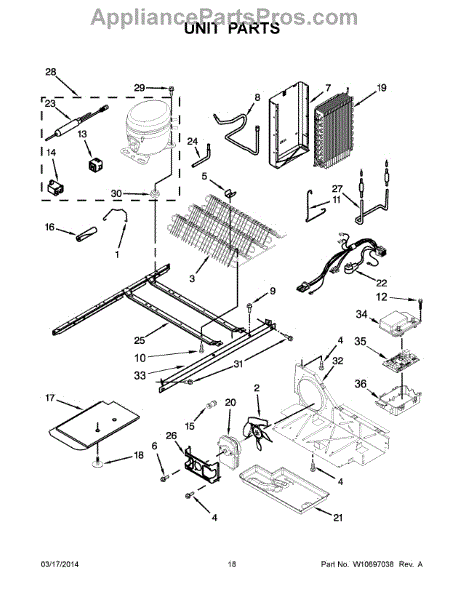

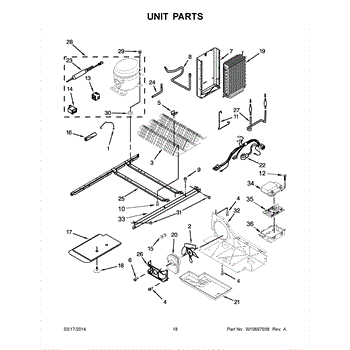

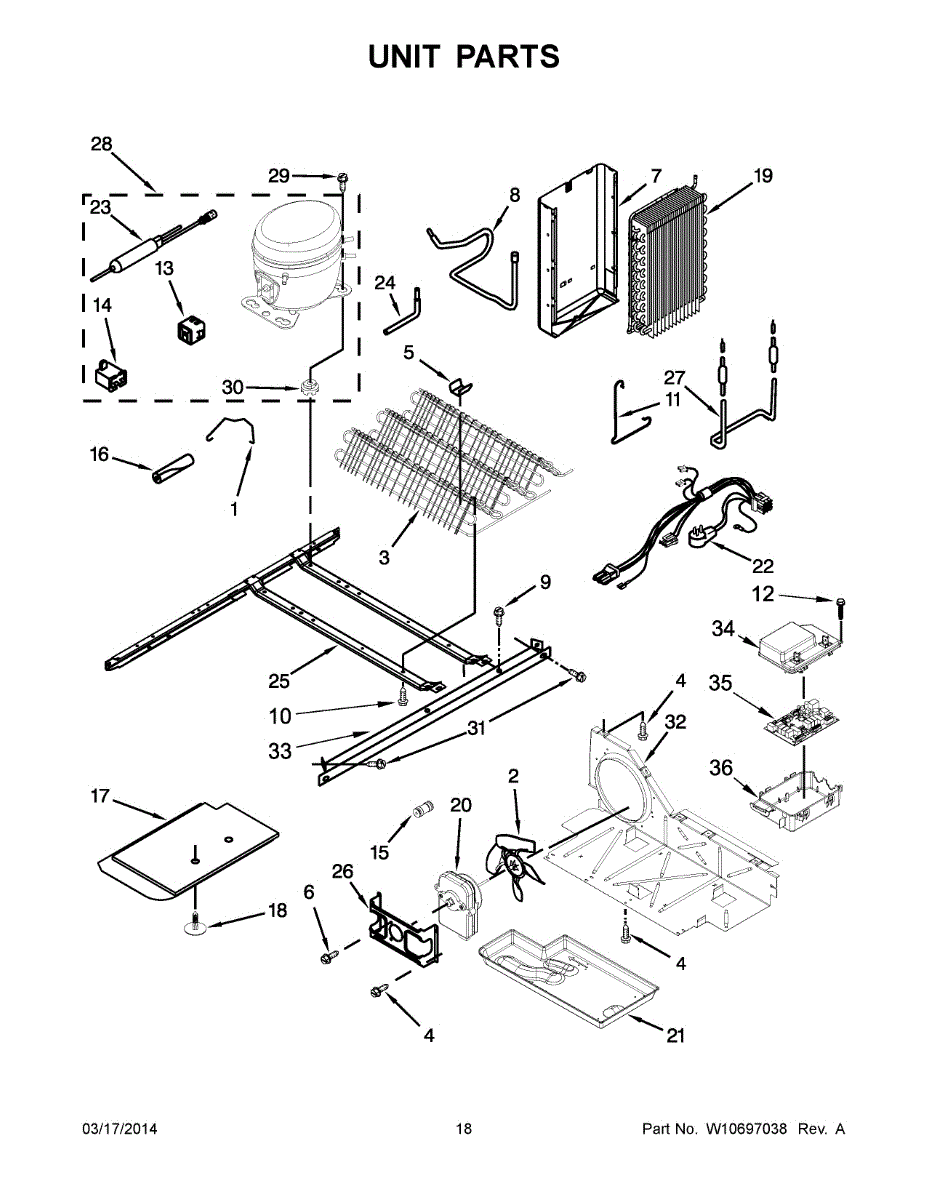

Parts for Maytag MSF25D4MDE01: 10 - Unit Parts

This is a replacement screw designed to work with a wide range of household appliances. It is used for many purposes in these appliances, from holding body panels together to securing electronics into control boards. However, screws are subject to damage through corrosion, impact, and improper installation/removal. In most cases, the primary damage to this screw is through corrosion – it may become rusted or corroded in place, depending on the appliance and the maintenance provided during its lifespan. The screw may also be stripped or rounded due to improper removal or installation. If the screw is damaged, lost, or corroded in place, it will need to be replaced. In most cases, removal will require nothing more than a Phillips head screwdriver or the appropriately sized socket with a ratchet. However, if the screw is damaged, it may require a tap set to remove it from its mounting location. Note that this is a genuine OEM replacement screw made from durable, high-quality metal, and is sold individually. It fits Whirlpool, Maytag, Roper, Estate, Amana, Crosley, and Thermador appliances. It is used in over 150 machines, ranging from washers and dryers to air conditioners.

This is a replacement mounting screw used to secure appliance panels and small components. It provides a correct-fit fastener to restore secure attachment and eliminate rattles or loose parts. What it does:

• Secures trim, panels, brackets, or small assemblies to prevent movement and vibration
• Restores proper alignment when a worn or missing screw causes loose parts or noise
• Works as a direct-replacement fastener where the OEM screw specification is required

• One replacement screw

• Use the correct driver bit to avoid stripping the head; do not overtighten
• Disconnect power and follow appliance safety guidelines when accessing internal components
• If the original mounting hole or threads are damaged, repair or replace the mounting hardware before reinstalling

This is a replacement 1/4-20 threaded screw used to secure appliance components and panels. It restores proper fastening where a matching screw is missing, loose, or stripped and helps stop rattling or misalignment. What it does:

• Secures panels, brackets, and assemblies to maintain proper alignment and reduce vibration
• Replaces missing or damaged fasteners that cause loose or rattling parts
• Works wherever a 1/4-20 threaded screw is specified by the manufacturer
• Simple mechanical fastener—no electrical or calibration changes required

• Disconnect power to the appliance before servicing to avoid injury
• Use the matching driver and thread engagement; do not overtighten to prevent stripping
• Verify screw length and head type match the original before installing
• If threads are damaged, repair or replace the mating component rather than forcing the screw

This replacement clip secures the defrost heater to the evaporator so the heater stays in proper contact and defrosts frost buildup efficiently. Durable, OEM-style retention clip designed for refrigerators. What it does

• Secures the defrost heater to the evaporator assembly to ensure consistent defrost cycles
• Prevents the heater from shifting or coming loose, which can cause frost buildup or interrupted defrosting
• Helps maintain proper contact for efficient heat transfer during defrost
• Small, inexpensive part that can prevent larger ice/frost-related issues

• Disconnect power to the appliance before accessing the evaporator compartment.
• Handle the evaporator fins and heater element carefully to avoid damage.
• Typically installs with basic hand tools; replace any damaged or corroded clips.

The Compressor Start Device is an OEM part for Whirlpool refrigerators. It is responsible for starting the compressor, which is crucial for the refrigeration cycle. The start device provides the necessary electrical current to initiate the compressor's operation, ensuring that the refrigerator maintains the proper cooling temperature.

You should replace the compressor start device if it becomes faulty. Causes of a bad start device can include electrical failures, wear and tear from regular use, or damage from power surges. A malfunctioning start device can prevent the compressor from starting, leading to cooling issues in the refrigerator.

Symptoms of a bad compressor start device include:

• The refrigerator not cooling properly or at all
• The compressor not running or making a clicking sound as it tries to start
• Unusual noises coming from the compressor area
• The refrigerator cycling on and off frequently

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Run Capacitor is an OEM part for Whirlpool refrigerators. It is an electronic component that assists in powering the refrigerator's compressor motor. The capacitor functions to provide an electrical boost needed to start the compressor running smoothly during each cooling cycle.

Causes of a bad capacitor can include deterioration of dielectric material over many years of operation or accidental moisture penetration into the capacitor case.

Symptoms of a bad capacitor include:

• The refrigerator compressor failing to turn on/refrigeration cycles not operating
• Loud humming noises coming from behind the refrigerator
• Erratic cooling performance and fluctuating interior temperatures

This OEM part is also compatible with KitchenAid, Jenn-Air, Admiral, and Kenmore refrigerator models.

This evaporator assembly circulates refrigerant and removes heat inside the freezer section to enable proper cooling and frost control. Replaces a damaged or corroded evaporator to restore normal temperature performance. What it does:

• Holds refrigerant and transfers heat so the freezer evaporates moisture and cools the compartment.
• Commonly used when frost builds up, freezer runs warm, or cooling is intermittent.
• Works with the sealed refrigeration system and defrost components to maintain proper cold temperatures.
• Designed to match OEM fit and function for compatible refrigerators.

• System evacuation, recharge, and leak testing are required after installation.
• Disconnect power before servicing to avoid electrical shock and appliance damage.
• Inspect related defrost and sealing components during replacement.

The Condenser Fan Motor is an OEM replacement part for Whirlpool refrigerators. Located inside the machine compartment, it powers the condenser fan needed for heat exchange.

Causes involve standard motor degradation from prolonged usage. Excess dirt buildup over time may also hinder adequate blade movement.

Symptoms of a faulty condenser fan motor include:

• Inability to adequately cool interior compartments
• The refrigerator runs continuously with the exterior surface staying hot
• Grinding or buzzing noises emanating from the refrigerator's rear
• Visible condenser fan blades stalled or rotating slowly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

The Evaporator Drip Tray is an OEM replacement part for Whirlpool refrigerators.

Causes of a bad drip tray can include cracks developing in the plastic over time. Mineral deposits may also accumulate, reducing the tray's drainage functionality.

Symptoms of a bad Evaporator Drip Tray include:

• Water leaks or overflow detected inside the freezer base
• Potential freezing or short circuits from excess pooled moisture
• Inability to effectively direct condensate away from coils
• Promotes conditions for mold or odor development

This OEM Whirlpool part is also compatible with Maytag, KitchenAid and some Kenmore models.

This condenser fan motor bracket secures the condenser fan motor to the appliance chassis, keeping the cooling fan stable so it can move air across the condenser for proper cooling performance and prevent wobble or contact. What it does:

• Holds the condenser fan motor in the correct position so the fan blades clear surrounding components.
• Stabilizes the motor to reduce vibration and noise caused by a loose or damaged mount.
• Helps maintain proper condenser airflow to avoid overheating or reduced cooling.
• Can be replaced when the original bracket is bent, cracked, or broken and no longer supports the motor.

• Disconnect power before starting any repair to avoid electric shock.
• Verify motor and fan assembly alignment when reinstalling the bracket; secure mounting hardware snugly but do not overtighten.
• Inspect related fasteners and fan components for wear and replace as needed.

The Heater is an OEM part for Whirlpool refrigerators. This part prevents frost buildup by heating the evaporator coils during the defrost cycle. This part ensures that air flows freely over the coils, improving the efficiency of the cooling system and maintaining the refrigerator at the optimal temperature.

Causes of a bad heater can include electrical failures, such as a blown fuse or a faulty wiring connection, or physical damage to the heater element itself.

Symptoms of a bad Heater include:

• Frost buildup on the evaporator coils
• The refrigerator and freezer not maintaining the desired temperatures
• Increased energy consumption as the refrigerator works harder to cool
• Unusual noises from the refrigerator as the fan hits frost buildup

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise

8 x 1/12

This air baffle directs airflow inside the appliance to help maintain proper ventilation and consistent operation. Replacing a worn or damaged baffle restores correct airflow routing and can reduce noise or uneven performance. What it does

• Guides internal airflow to support proper ventilation and component cooling
• Helps prevent turbulence that can cause noise during operation
• Supports even performance by keeping airflow directed where the OEM design intended
• Commonly replaced when cracked, warped, or missing

• Turn power (and gas, if applicable) off before beginning any repair
• Access may require removing panels or the drum/inner cavity
• Inspect surrounding mounting tabs and fasteners; replace any damaged hardware

This replacement housing is the main cabinet-style enclosure that supports and protects the appliance's internal components, helping maintain proper alignment and structural integrity. Use it to restore secure mounting and reduce vibration from a damaged or cracked enclosure. What it does:

• Replaces a cracked, broken, or deformed housing that can allow components to shift or rub
• Restores proper alignment for internal assemblies to reduce noise and vibration
• Provides a secure mounting surface for panels, controls, or internal parts
• Helps maintain safe, stable operation by protecting internal wiring and components

• One replacement housing

• Disconnect power and water before starting any repair
• Take photos of the original assembly to aid reassembly; keep fasteners and clips organized
• Use appropriate hand tools; avoid forcing panels—check for hidden clips or screws

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.

Size: 1/4 inch.
