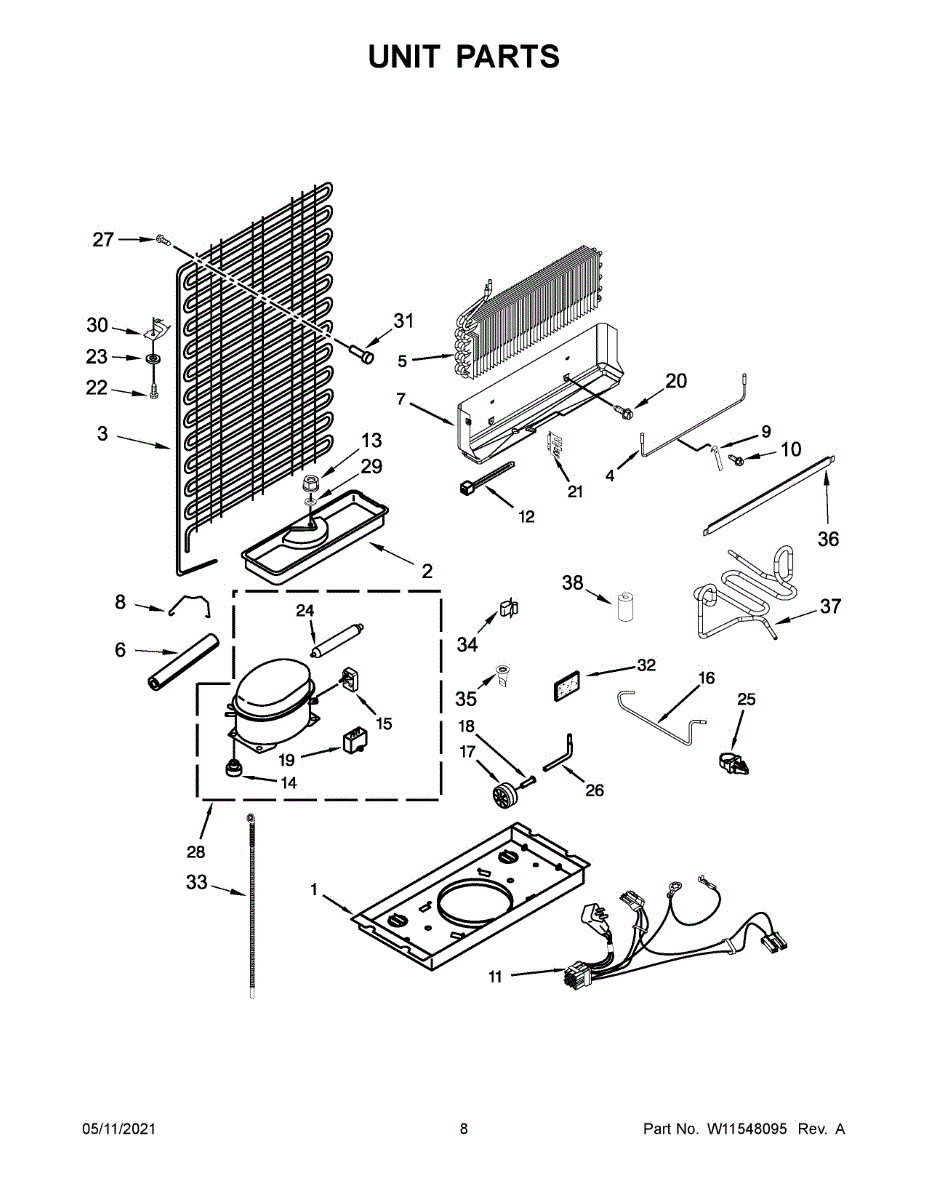

Parts for Whirlpool WRT314TFDB02: Unit Parts

This evaporator tray collects and channels defrost and condensation water away from the refrigerator evaporator, helping prevent leaks and ice buildup so the cooling system runs cleanly and reliably. What it does:

• Captures defrost and condensation water from the evaporator coil
• Directs water to the drain system to avoid pooling inside the cabinet
• Helps reduce ice buildup around the evaporator area
• Supports normal defrost operation and prevents water-related leaks or odors

• Disconnect power to the appliance before replacing parts to avoid electrical shock.
• Remove food and shelving as needed for safe access to the evaporator area.
• Inspect surrounding seals and drain tube for clogs or damage while replacing the tray.
• Handle carefully to avoid damaging delicate evaporator fins or nearby components.

This formed condenser assembly moves heat away from the refrigeration system to help your appliance maintain proper cooling. A direct-fit replacement when the original condenser is bent, corroded, or no longer transferring heat effectively. What it does:

• Provides the metal pathway for refrigerant to release heat from the system
• Helps maintain proper compressor and cooling performance
• Replace if coils are dented, crushed, corroded, or blocking airflow
• Address symptoms like higher-than-normal internal temperatures or increased compressor run time

• Disconnect power to the appliance before starting any service
• Handle edges carefully; condenser fins and tubing can be sharp and easily damaged
• If refrigerant lines must be opened or brazed, perform the service
• Fit and mounting hardware before installation; follow OEM diagram for proper routing

The Heater is an OEM part for Whirlpool refrigerators. It safely provides heat inside the refrigerator compartment to prevent food from freezing and helps maintain proper temperature levels.

Causes of a bad heater can include dust buildup or mineral deposits over time that cause decreased efficiency, burning out of heating elements due to prolonged use, or damage from moisture or liquid spills inside the refrigerator.

Symptoms of a bad heater include:

• Inability to maintain proper refrigeration temperatures
• Higher energy usage as the compressor runs excessively
• Frost or ice buildup inside the refrigerator
• A burnt smell emitting from the heater area

This Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Evaporator is an OEM part for Whirlpool refrigerators. As the main heat exchange component, it plays a vital role in removing heat from the refrigerator compartments to maintain proper cooling performance.

Causes of a bad evaporator can include bent fin coils inhibiting airflow, cracked or damaged tubing preventing proper refrigerant circulation, or debris buildup obstructing heat transfer.

Symptoms of a bad evaporator are:

• Inability to maintain set temperatures inside compartments
• Frost or condensation accumulating quicker than normal
• Unusual noises or vibrations from the refrigeration system
• Refrigerant leaks requiring high pressure service

This genuine Whirlpool evaporator coil is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerators.

This wire assembly (Piranha) restores factory electrical connections for affected appliance circuits, helping re-establish reliable power and signal routing. It replaces damaged or worn harnesses to reduce intermittent or failed component operation. What it does:

• Replaces a damaged or frayed wire harness that supplies power and signals to appliance components
• Restores proper connector-to-connector electrical paths to fix intermittent power or control issues
• Ensures correct routing and secure connections used by the original design
• Helps address symptoms such as components not powering on, intermittent operation, or visible wiring damage

• Disconnect appliance power (unplug or shut off breaker) before starting any work
• Handle connectors gently and confirm secure, fully seated connections during reassembly
• Route the harness following original clips and channels; avoid contact with moving or hot parts

This grommet is a small protective seal used where a hose, tube, wire, or component passes through or mounts to the appliance cabinet. It cushions the connection and helps prevent leaks, vibration, and wear for reliable operation.

• Provides a snug barrier between parts and metal openings to protect hoses, tubes, and wiring
• Helps seal against moisture to reduce seepage
• Dampens vibration and rattling noises
• Replace if cracked, hardened, missing, or no longer stays seated; symptoms may include drips at a pass-through, buzzing/rattling, or a loose fit

• Disconnect power; shut off water supply if applicable
• Access the grommet location and note orientation/routing
• Remove the old grommet and clean the opening
• Press the new grommet fully into place; reassemble and test for leaks/noise

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Size: 8-18 x 1/2 inch.

A small retainer clip that secures panels, hoses or wiring to keep components in place and reduce noise from loose parts. Replacing a worn or broken clip restores proper fit and helps prevent intermittent contact or rattling. What it does

• Secures trim, panels, hoses or wire harnesses to mounting points to prevent movement.
• Keeps components aligned so switches and seals engage correctly.
• Stops rattling or vibrating noises caused by loose parts.
• Helps prevent abrasion or chafing of wires and hoses by holding them away from edges.

• Install by snapping or sliding the clip into the factory mounting slot; use needle-nose pliers if needed.
• Power off and unplug the appliance before accessing internal parts.
• Inspect surrounding mounts and mating tabs for damage; replace if worn for a secure fit.
• If removal is difficult, apply a small amount of penetrating lubricant and work carefully to avoid breaking adjacent plastic.

This retaining clip secures trim, panels or small assemblies to keep parts aligned and prevent rattling. It's a simple replacement that restores a snug, stable fit where the original clip has broken or gone missing. What it does:

• Holds plastic or metal trim and panels in place to prevent gaps and movement
• Restores proper alignment and reduces vibration or rattling noises
• Keeps assembled components from shifting during normal use
• Useful when a damaged or missing clip causes loose or sagging parts

• One retaining clip

• Disconnect power and/or water to the appliance before beginning any repair
• Use needle-nose pliers or a flat screwdriver to remove the old clip and snap the replacement into place
• Verify the clip is fully seated and the panel/trim is secure before returning the appliance to service
• If the original clip required additional fasteners, retain and reuse them as needed

This insul-sound deadening pad reduces vibration and noise by dampening panels and components in laundry and kitchen appliances. It's a small adhesive-backed sound/isolation pad used where noise or rattles transfer through metal surfaces. What it does

• Dampens rattles and reduces structure-borne noise from panels, cabinets and housings.
• Helps isolate vibrating components from appliance chassis to lower perceived sound.
• Commonly applied behind control panels, cabinet walls or on motor mounts to cut vibration transmission.
• Useful when worn, detached or hardened factory pads allow increased noise.

• One insul-sound deadening pad

• Disconnect power before servicing an appliance to avoid shock or injury.
• Clean and dry mounting surface; press pad firmly to ensure adhesive contact.
• Replace only in the original location; do not cover vents or moving parts.
• If adhesive is weak, use OEM-approved adhesive; avoid solvents that may damage finishes.

This drain tube directs defrost/condensate water from the appliance's drain outlet into the drain pan, helping prevent water from pooling inside the cabinet or leaking onto the floor for reliable, mess-free operation. What it does:

• Channels defrost/condensate water from the drain outlet to the pan
• Helps prevent interior leaks, puddles beneath the unit, and ice at the drain
• Restores proper drainage when the original tube is cracked, misshapen, or clogged
• Addresses symptoms like water under drawers/shelves or musty odors from standing water

• 1 drain tube

• Disconnect power and pull the unit forward for rear access; turn off water supply if applicable
• Remove the old tube and clear any debris/ice from the drain opening
• Fully seat the new tube on the drain outlet and position the outlet over the pan, following original routing
• Test by pouring a small amount of warm water into the drain to ensure proper flow and no leaks

This rubber grommet provides a tidy, protective seal where hoses, wires, or shafts pass through the appliance cabinet—helping prevent chafing, reduce vibration noise, and maintain proper sealing around openings. What it does:

• Cushions and protects wiring or hoses from rubbing against metal edges
• Helps maintain a seal to reduce water or air bypass where fitted
• Dampens vibration and reduces related noise at the penetration point
• Keeps openings finished and helps prevent further component wear

• Disconnect power (and water for washers) before starting any repair
• Inspect the mounting area for sharp edges or damage; replace if surrounding parts are compromised
• Push the grommet into the opening and seat evenly; do not stretch excessively
