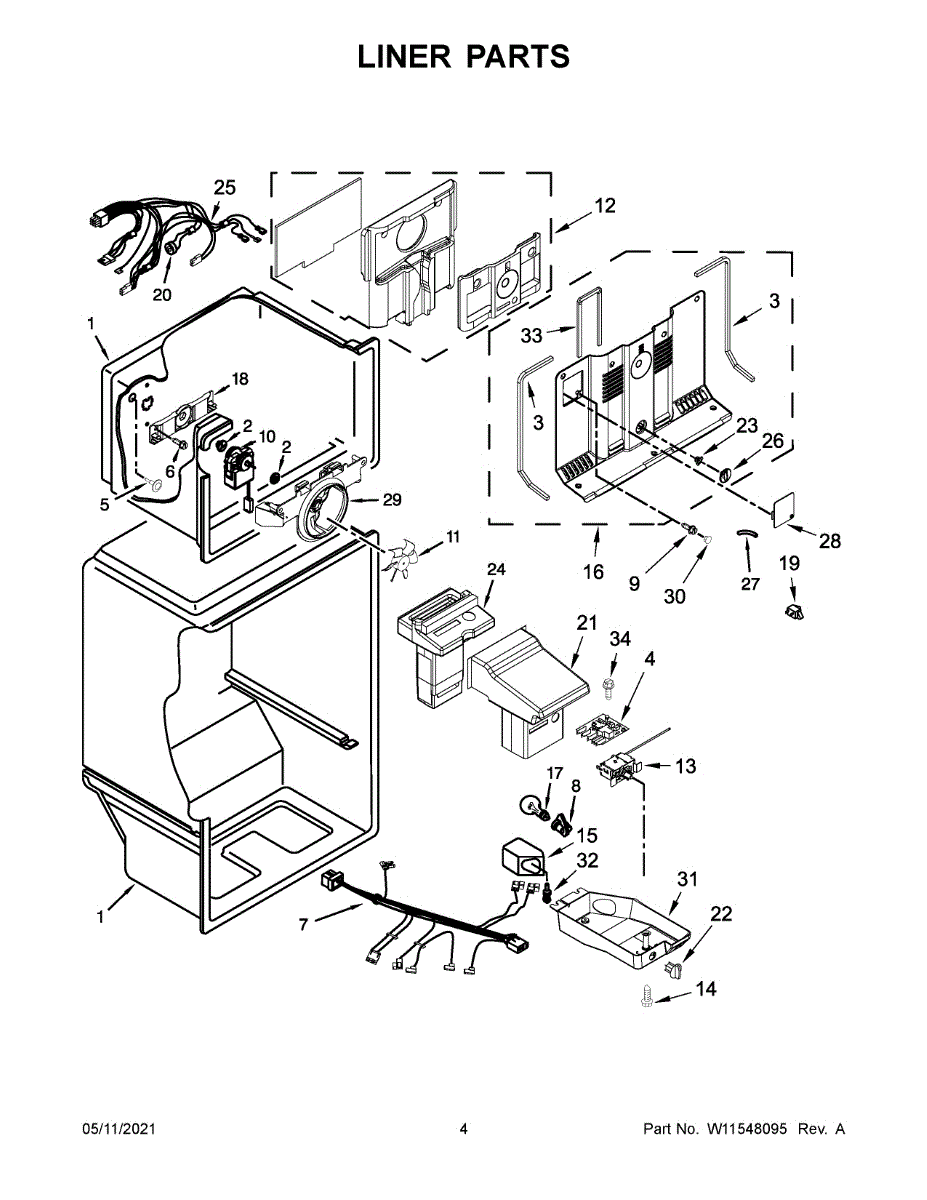

Parts for Whirlpool WRT314TFDB02: Liner Parts

This rubber grommet cushions and secures a refrigerator fan motor, isolating vibration to help reduce noise and keep the fan properly aligned in its mount.

• Provides a snug, vibration-dampening seat for the fan motor shaft or mounting stud
• Helps prevent rattling, buzzing, or humming sounds from a loose fan mount
• Maintains proper fan alignment to avoid blade contact with shrouds or brackets
• Replaces aged, cracked, or compressed rubber that can lead to increased vibration

• Disconnect power before service; wear cut-resistant gloves
• Access the fan assembly (rear or evaporator section), support the motor, and remove the old grommet
• Press the new grommet fully into the bracket or housing; transfer any spacers as originally configured
• Reinstall the motor and verify the fan blade spins freely with no contact before restoring power

This refrigerator door gasket creates an airtight seal around the door to help keep cold in and moisture out, preserving food freshness and improving cooling efficiency. What it does:

• Seals the refrigerator door to prevent warm air entry and cold air loss
• Helps reduce frost buildup and condensation inside the refrigerator
• Can improve temperature stability and reduce run time when the seal is compromised
• Addresses symptoms such as visible gaps around the door, warm spots, or excess frost

• One refrigerator door gasket

• Inspect door frame for damage or debris and clean sealing surface before installing
• Warm the gasket slightly to make positioning easier; avoid open flames or excessive heat
• Work around the door edges to seat the gasket evenly; some fasteners or retainer channels may need to be adjusted

The Defrost Control Board is an OEM part for Whirlpool refrigerators. This board manages the defrost cycle by controlling the defrost heater and monitoring the freezer's temperature.

Causes of a bad defrost control board can include electrical issues, wear from continuous use, or damage from power surges.

Symptoms of a bad defrost control board include:

• Excessive frost buildup in the freezer compartment
• The refrigerator not cooling properly
• The defrost heater not activating
• The refrigerator running continuously without cycling off

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This hole plug covers an unused opening in the appliance cabinet. It restores a clean, finished look and helps keep spills, dust, and moisture out of internal components.

• Seals an unused hole in the cabinet for a tidy, finished appearance
• Helps protect internal parts from liquids, dust, and humidity
• Covers sharp or unfinished edges around open holes
• Common signs it's needed: missing/broken cap, exposed hole, or a plug that won't stay seated

• Disconnect power and, if applicable, shut off gas/water before starting.
• Remove the old plug; access from the front or from behind the panel as needed.
• Align and press the new plug firmly into the opening until fully seated and flush.
• If panel removal is required for access, handle sheet metal carefully and reinstall all fasteners.

The Evaporator Motor is an OEM part for Whirlpool refrigerators. It plays a critical role in circulating air over the refrigerator's evaporator coils to cool the air inside the fridge and freezer compartments. This circulation helps maintain the desired temperature settings, ensuring that food is kept at optimal freshness.

Includes wire harness. If your fan motor does not have an incorporated wire harness, you will need part number- WPW10188389

Causes of a bad Evaporator Motor can include motor burnout due to continuous operation, electrical failures, or mechanical wear from prolonged use.

Symptoms of a bad Evaporator Motor include:

• The refrigerator or freezer not cooling adequately
• Unusual noises coming from the refrigerator indicating motor distress
• The motor running hot or not running at all

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Evaporator Fan Blade is an OEM part for Whirlpool refrigerators. It is designed to circulate air over the evaporator coils, ensuring efficient cooling throughout the refrigerator and freezer compartments. The fan blade helps maintain an even temperature, contributing to the appliance's overall performance.

Causes of a bad fan blade can include wear and tear over time, ice buildup interfering with the blade, or physical damage from accidental impact or obstruction by debris.

Symptoms of a bad evaporator fan blade include:

• Unusual noises such as rattling or scraping
• Inconsistent or insufficient cooling in the refrigerator or freezer
• The refrigerator running longer than usual
• Visible damage or warping of the fan blade

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This air duct directs heated air from the dryer drum to the exhaust path, helping maintain proper airflow and drying performance. Replace a damaged or cracked duct to restore safe venting and reduce heat loss. What it does:

• Channels warm, moist air from the dryer drum to the exhaust system
• Keeps airflow directed to the vent to help clothes dry evenly
• Prevents internal air leaks that can lower drying efficiency
• Can help reduce unusual odors or hot spots caused by damaged ducting

• Disconnect power (and gas, if applicable) before servicing the dryer
• Remove the dryer top or rear access panel as needed to reach the duct
• Check adjoining seals and vent hoses for wear; replace if damaged for best performance

The Refrigerator Thermostat is an OEM replacement part for Whirlpool refrigerators. This part monitors and maintains the temperature inside the appliance.

Causes typically relate to normal component degradation over extended use.

Symptoms of a faulty thermostat can include:

• ineffective or fluctuating interior conditions
• higher than normal energy usage
• intermittent compressor cycling
• potentially complete cooling loss in extreme cases

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This is a 8-15 x 2.00 in. hex washer head, self-locking screw used to secure appliance panels and components. It provides a durable, vibration-resistant fastener that helps keep parts aligned and stable. What it does:

• Fastens and secures panels, brackets, or assemblies to the appliance frame
• Self-locking design helps resist loosening from vibration or thermal cycling
• Hex washer head gives a larger bearing surface to prevent pull-through on thin materials
• Commonly replaced when screws are missing, stripped, or causing loose/rattling parts

• Use the correct driver/socket to avoid rounding the hex head
• Tighten until snug; avoid over-torquing which can strip threads or damage components
• Disconnect power and follow appliance safety procedures before working inside the unit
• Replace any stripped or damaged mating hardware for secure fastening

This light lens is the replacement dome cover that protects and diffuses the refrigerator interior light, restoring even illumination and preventing direct bulb contact. It replaces cracked, yellowed or missing lenses. What it does

• Protects the interior light bulb from spills and contact
• Diffuses and softens the light for even illumination inside the compartment
• Stops rattling or loose cover noise when the original lens is broken or warped
• Helps prevent food or debris from hitting the bulb and causing premature failure

• One light lens (dome cover)

• Disconnect power to the appliance before beginning any work
• Typically installs by snapping into the light housing or fastening with one or two screws—retain mounting hardware if present
• Handle carefully to avoid cracking; replace if warped, chipped, or yellowed

This replacement light bulb restores clear, dependable illumination so you can easily see inside your appliance and check status at a glance. Replacing a burned-out or dim lamp improves visibility, convenience, and day-to-day safety.

• Provides light when the door opens or the light switch is turned on
• Helps you view contents and monitor progress without guesswork
• Addresses no-light, dim, or flickering conditions
• Installs in the designated light socket on compatible models

• Disconnect power to the appliance before servicing
• Allow the bulb and surrounding area to cool completely
• Handle glass with a clean cloth or gloves; skin oils can shorten bulb life
• Install gently without overtightening; use only the type/rating specified for your model

This mounting bracket secures internal components in place to keep your appliance stable and operating quietly. It replaces a worn, bent, or broken bracket to restore proper alignment and prevent loose or rattling parts. What it does:

• Provides a stable mounting point for panels, assemblies, or hardware
• Keeps connected components aligned to prevent rubbing or vibration
• Stops noises caused by loose or shifting internal parts
• Restores proper fit when an old bracket is bent, cracked, or missing

• Install with appliance unplugged or power disconnected to avoid shock
• Verify bracket orientation using the appliance's service diagram before fastening
• Use appropriate screws/fasteners and torque to avoid stripping or distortion

The Bimetal Defrost Thermostat is an OEM part for Whirlpool refrigerators. This thermostat plays a key role in the defrost system, helping to regulate the temperature within the freezer to prevent frost buildup on the evaporator coils. By activating the defrost heater, it ensures the coils remain ice-free and the refrigerator operates efficiently. The thermostat operates within a range of 20F (closing temperature) to 50F (opening temperature).

Causes of a bad defrost thermostat can include electrical faults, exposure to constant temperature fluctuations, or wear and tear over time. When the thermostat fails, it can result in frost accumulation, impacting the cooling efficiency.

Symptoms of a bad bimetal defrost thermostat include:

• Frost buildup in the freezer
• The refrigerator running continuously or not cycling properly
• Inconsistent freezer temperatures
• Water leaks inside the refrigerator

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This air duct is the molded channel that directs airflow within the appliance cabinet. Replacing a cracked or warped duct restores proper circulation so the system can maintain designed temperatures and performance across compartments.

• Routes air between sections to support consistent temperature control
• Helps prevent air leaks and bypass that reduce airflow
• Common signs of failure: broken tabs, cracks, warped plastic, or a loose fit
• Symptoms can include weak airflow at vents, temperature fluctuations, or moisture/frost near openings

• Disconnect power and, if applicable, shut off water before servicing
• Remove any panels/shelves to access the duct; retain fasteners and note seal orientation
• Transfer any reusable foam seals or clips from the original part, seat the duct fully, and secure without overtightening

Color: white. It measures about 1 inch in diameter.

This electronic control board manages the appliance's user interface and cycle controls, restoring responsive buttons, accurate cycle selection, and timed operation. Replacing a faulty board fixes control and timing issues without replacing the entire console. What it does:

• Controls the front-panel buttons, touchpad signals, and cycle selection logic
• Sends start/stop and timing commands to motors, valves, and heaters
• Resolves intermittent operation or incorrect cycle behavior when board failure is confirmed

• One electronic control board

• Disconnect power at the source before inspecting or replacing the control to avoid shock
• Handle the board by the edges and avoid contact with components to prevent electrostatic damage
• Reassemble the console panels in the original order

The Diffuser is an OEM part for Whirlpool refrigerators. Located inside the refrigerator compartment, it helps distribute cool air evenly throughout. With perforated passageways, the diffuser facilitates balanced airflow from the evaporator and ensures proper temperature regulation in all refrigerator shelves and bins.

Causes of a bad diffuser can include cracks or breaks from repeated impact or heavy loads, or blockages caused by accumulated dirt and debris over time.

Symptoms include:

• Hot or cold spots within the refrigerator
• Food spoilage from temperature fluctuations
• Condensation or frosting on internal surfaces
• Reduced cooling efficiency

This OEM Whirlpool replacement diffuser restores optimized interior air circulation. It is compatible with models by Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, and select Kenmore designs.

This replacement air damper regulates and directs airflow inside the appliance or through its vent path. Replacing a broken or stuck damper helps restore proper air movement and reduces performance issues caused by a jammed or missing flap. What it does:

• Opens and closes to control airflow in the duct or air channel
• Helps maintain proper ventilation or temperature, depending on the appliance design
• Reduces backflow/drafts or uneven airflow
• Common symptoms: poor air movement, rattling/whistling near the vent, drafts, or performance imbalance due to a stuck or broken flap

• 1 air damper

• Disconnect power before servicing; isolate ducting if applicable
• Access the damper location; note orientation of the flap and any seals/gaskets
• Remove the old damper; install the new one with the flap moving freely in the correct direction
• Reassemble and test airflow; seal any duct joints per manufacturer guidance

The Thermostat Tube Shield is an OEM part for Whirlpool refrigerators. It functions as a barrier that covers and insulates the temperature control thermostat capillary tube. This shield ensures accurate temperature sensing and regulation by protecting the capillary tube from physical damage and external temperature influences.

Over time, the thermostat tube shield can become worn out or damaged due to factors like regular wear and tear, accidental impact, or environmental conditions such as humidity and temperature fluctuations.

Symptoms of a bad thermostat tube shield include:

• Inconsistent or inaccurate refrigerator temperatures
• The refrigerator running continuously or cycling on and off frequently
• Visible damage or wear to the shield
• Difficulty in maintaining the desired temperature settings

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement cover restores the appliance's protective outer trim that shields internal controls and wiring from dirt and damage, keeping the unit looking finished and functioning safely. It fits where the original plastic or metal cover was mounted. What it does

• Protects control board, switches, and wiring from dust, moisture and accidental contact
• Helps keep the appliance appearance neat by covering mounting points and fasteners
• Prevents loose debris from entering internal components that can cause faults
• Common symptom: cracked, broken or missing cover exposing internal parts

• One replacement cover as shown

• Disconnect power to the appliance before beginning any work
• Remove required panels or bezels to access mounting screws
• Use appropriate hand tools; avoid over-tightening fasteners
• Inspect wiring and connectors before reassembly

This burner orifice meters the gas delivered to a burner so you get a stable, properly sized flame. Replacing a clogged or damaged orifice helps restore quick ignition, consistent flame quality, and even heating on gas appliances.

• Meters gas flow from the valve to the burner for correct flame size and shape
• Helps maintain efficient, even heating and clean combustion
• Wear or blockage may show as delayed or no ignition, weak/uneven flame, or yellow tipping
• Can reduce popping or flare-ups caused by improper gas metering

• Shut off gas supply and disconnect power before servicing
• Remove the old orifice with the proper wrench/nut driver; install the new one snugly—do not overtighten
• After reassembly, leak-check connections and verify flame; adjust air shutter only if specified by the service manual

This door gasket is a flexible replacement seal that restores a refrigerator or freezer door's airtight closure to help maintain proper temperature and reduce energy loss. It replaces a worn, torn, or compressed seal for better cooling performance. What it does:

• Seals the door edge to keep cold air in and warm air out
• Helps prevent frost or ice buildup by maintaining a tight seal
• Reduces condensation and moisture leaks around the door
• Can improve cooling consistency and reduce compressor run-time when the original seal is failing

• One replacement door gasket

• Turn off power to the appliance or unplug before beginning work
• Remove the old gasket and clean the channel or flange before installing the new seal
• Seat the gasket fully into the channel, starting from one corner and working around the door; use gentle pressure to avoid tearing
• If the gasket is stiff, warm it slightly for easier installation; avoid open flame or excessive heat

This is a replacement screw used to secure appliance panels and components. It restores proper fit and prevents loose parts that cause vibration, rattling, or misalignment for a tighter, safer assembly. What it does:

• Secures covers, trim, brackets, or control panels to the appliance frame
• Keeps components aligned to prevent rattling and movement during operation
• Replaces stripped, missing, or damaged fasteners that compromise fit
• Helps restore structural stability for normal operation

• Disconnect power and turn off water supply before beginning any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Hand-start the screw and tighten until snug; avoid over-tightening which can crack plastic or strip threads
• If threads are damaged, replace with correct OEM fastener.
