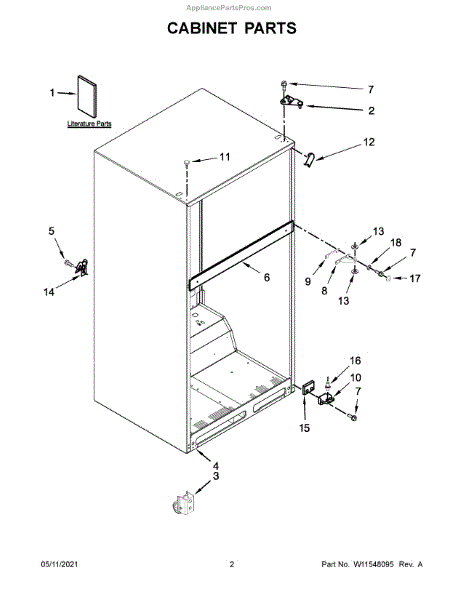

Parts for Whirlpool WRT314TFDB02: Cabinet Parts

The Leveling Leg is an OEM part for Whirlpool refrigerators. This adjustable leg ensures your refrigerator is level. A level refrigerator ensures that doors seal properly, minimizing energy consumption and preventing uneven cooling or frost buildup.

Causes of damage to the leveling leg can range from normal wear and tear, corrosion from moisture exposure, or physical damage during moving or cleaning processes. It's also possible for the leg to become stiff or seized, making adjustment difficult.

Symptoms of a bad Leveling Leg include:

• The refrigerator wobbles or is unstable when doors are opened or closed.
• Difficulty in aligning the refrigerator doors due to the appliance not being level.
• Increased operational noise or vibrations, especially when the compressor turns on, indicating the refrigerator is not sitting evenly.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 8-18 x 1/2 inch.

This is the center hinge for the refrigerator doors. It supports and aligns the doors at the midpoint so they open smoothly and seal properly, helping maintain temperatures and reliable day-to-day operation.

• Provides the middle pivot point between the upper and lower doors
• Keeps door alignment and spacing correct for a tight gasket seal
• Common symptoms: door sagging or rubbing, squeaking/grinding, door not closing or popping open, uneven gaps
• Replace if the hinge bracket or pin is bent, worn, or corroded

• Disconnect power and clear items from the doors before starting
• Support the doors; a second person is recommended when removing hinge screws
• Note the order of any shims/spacers or washers and transfer them to the new hinge
• After installation, align doors and verify full gasket contact all around

Due to manufacturer changes, if D shaft hinge pin is needed use part number WP2325483.

Color: Black

Color: Black

Color: White

This bottom hinge shim installs at the refrigerator's lower door hinge to fine-tune door height and alignment. Replacing a worn or missing shim can help restore smooth closing and an even, reliable gasket seal.

• Spaces the door at the lower hinge to set proper height and alignment
• Helps reduce door sagging or rubbing against the cabinet or other door
• Can help the door gasket seal evenly to minimize warm-air leaks

• Disconnect power and, if applicable, shut off the water supply
• Remove items from the door and support the door to prevent strain
• Loosen/remove lower hinge hardware and place the shim in the original location/orientation
• Reassemble, check alignment, and verify even gasket contact around the door

A replacement hinge pin that secures and guides the appliance door hinge so the door opens, closes and stays aligned. Installs quickly to restore correct door pivot and reduce sag or binding. What it does

• Acts as the pivot point for the door hinge so the door swings smoothly.
• Restores proper door alignment to prevent gaps or doors that won't latch fully.
• Stops noisy or rough door movement caused by a worn or bent pin.
• Helps maintain seal performance by keeping the door flush with the cabinet.

• Disconnect power to the appliance and remove any items from the door area before starting.
• Support the door while removing/installing the pin to avoid damage or injury.
• Use appropriate hand tools and keep track of any retainers or fasteners removed.

Color: Black

Color: White

This small fastener washer fits under a bolt or nut inside your washing machine, distributing clamping force and protecting surfaces. Replacing a worn or missing washer restores a secure fit and helps reduce vibration, rattling, and premature wear.

• Distributes load evenly under a bolt or nut to prevent damage and loosening
• Helps maintain correct spacing and alignment within the assembly
• Reduces metal-on-metal wear at the mounting point
• Can help address looseness, rattling/metallic noises, and excessive vibration

• Disconnect power and shut off water before servicing
• Note the original washer's position and orientation before removal
• Inspect the bolt/nut and mating surfaces; replace any damaged hardware
• Tighten to manufacturer guidance; avoid overtightening
