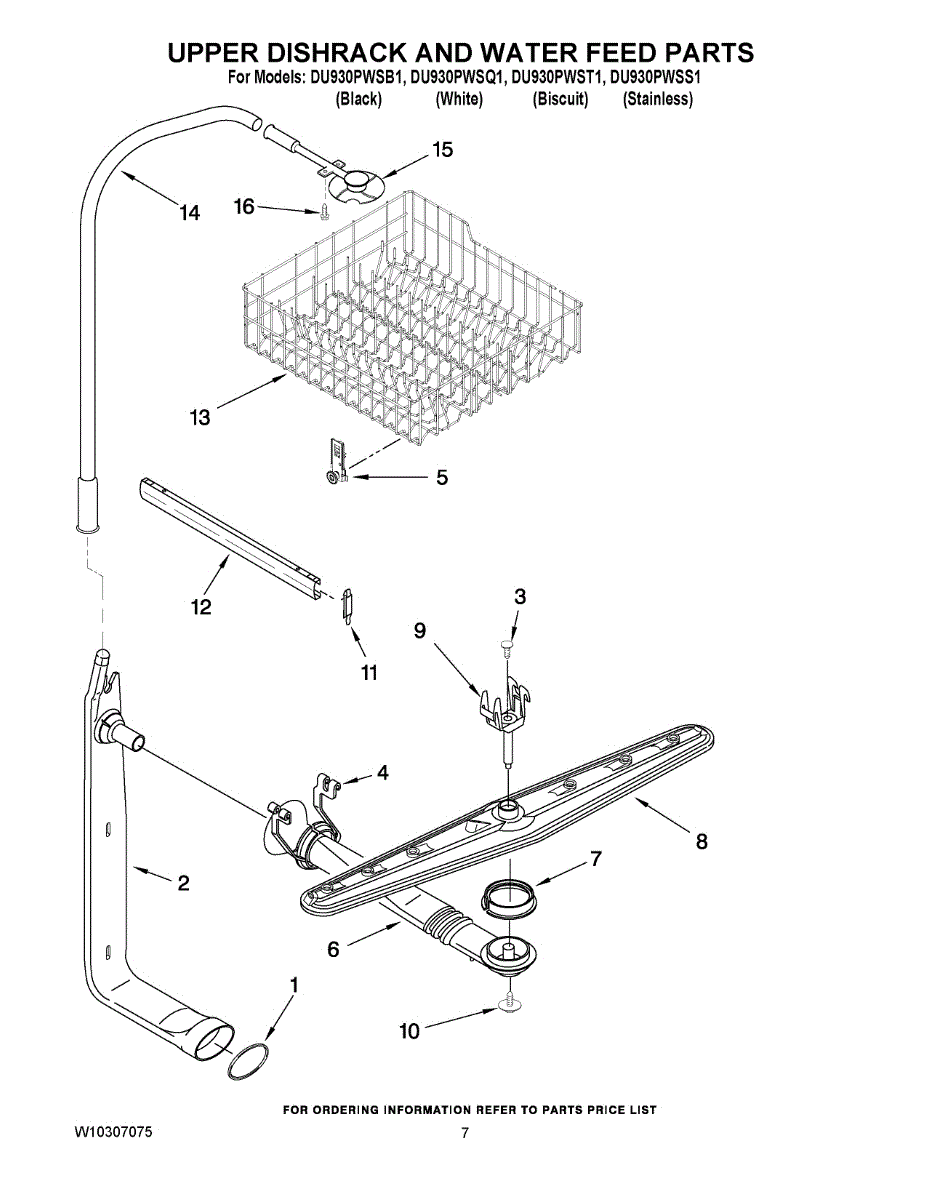

Parts for Whirlpool DU930PWSB1: 05 - Upper Dishrack And Water Feed Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Water supply tube for dishwashers. Connects water inlet to spray system. Replace if tube is cracked, leaking, kinked, or damaged during service.

Decorative cap that conceals exposed screw heads on dishwasher panels, console, or cabinet. Replace missing, cracked, or damaged covers for a clean finish.

Secures the dishwasher's water inlet tube in position, preventing movement and strain on fittings. Replace if cracked, broken, or missing to restore support.

Replace cracked or broken dishwasher rack roller axle assemblies. Installs on upper or lower dish racks to restore smooth gliding. Includes clips.

Supplies water to the spray arm in your dishwasher. Replace if cracked, damaged, melted, or leaking. Installs between the manifold and upper spray arm.

Ring bearing supports spray arm rotation in dishwashers. Mounts at spray arm base to allow free spinning. Replace if cracked, worn, or missing.

Upper spray arm with heatseal for dishwashers. Mounts to the upper rack manifold to distribute water during the wash cycle. Replace if cracked or worn.

Secures the spray arm to the dishwasher rack, allowing proper rotation during wash cycles. Replace if cracked, broken, or missing to restore spray arm.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

The Screw is an OEM part for Whirlpool dishwashers. It secures the spray arm to the dishwasher, ensuring it rotates properly to distribute water evenly throughout the dishwasher during cleaning cycles.

Common causes of a faulty spray arm screw include wear and tear from regular use, corrosion from exposure to water and detergents, or damage from improper installation or removal.

Symptoms of a bad spray arm screw include:

• The spray arm not rotating or functioning correctly
• Loose or wobbly spray arm
• Unusual noises coming from the spray arm during operation
• Poor cleaning performance due to inadequate water distribution

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Replaces cracked, broken, or missing dishwasher rack stop clips. Secures upper or lower dishrack to track rail, preventing rack from sliding out too far.

The Upper Dishrack Rail is an OEM replacement part for Whirlpool dishwashers. It guides upper racks in and out for easy access to dishes.

Causes of faulty rails can include worn rollers, broken clips, or stress cracks in modules after repeated cycles.

Symptoms of a bad upper dishrack rail include:

• Difficulty inserting or removing the upper rack smoothly
• Off-track movement that impacts washing coverage
• Detached ends or segments that compromise stability

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This dishrack replaces a damaged, rusted, or warped rack to restore smooth loading and secure support for dishes. A solid rack keeps items upright for better spray coverage, cleaner results, and helps prevent rust transfer and chipping.

• Holds and organizes plates, bowls, and cookware for proper spacing and spray access
• Provides stable support to reduce tipping and breakage during wash cycles
• Replaces racks with rust, broken wires, or bent/missing tines
• Can help resolve issues like rust marks on dishes and loading difficulties

• Disconnect power at the breaker before servicing
• Open the door; slide the old rack out—on some models, release rack stops to remove
• Transfer any reusable accessories from the old rack to the new rack if applicable
• Wear cut-resistant gloves; set the new rack on the rails and verify smooth movement and proper door closure

Third level wash arm assembly for dishwashers. Installs on upper feed tube in top rack area. Replace if disc is cracked, washer is missing, or assembly won't stay on shaft.

This is a genuine replacement screw used to secure components and panels on compatible Whirlpool appliances, restoring a firm, vibration-free fit. It replaces worn or missing fasteners to help keep parts aligned and stable. What it does

• Secures panels, brackets, or internal components to prevent shifting or rattling
• Replaces stripped, rusted, or missing screws that cause loose parts or noise
• Helps maintain proper alignment of mounted components for safe operation
• Useful when reassembling repair work or after removing parts for service

• One replacement screw

• Use the matching screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread damage
• Disconnect power before servicing electrical appliances; follow OEM safety guidance
• If screw threads or holes are damaged, replace both screw and mating hardware as needed

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
