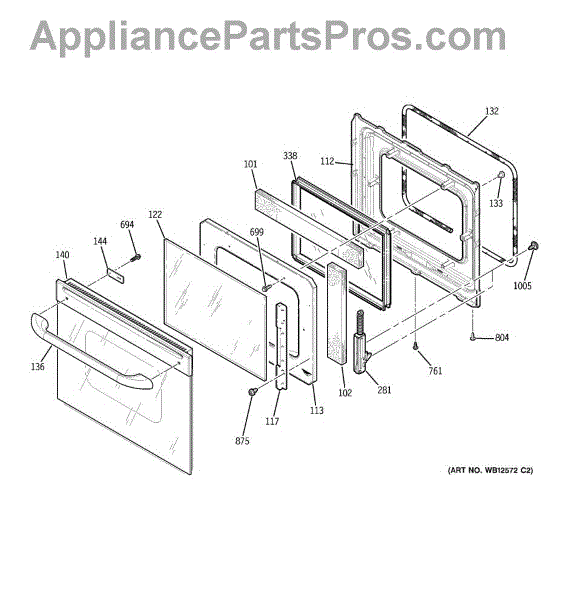

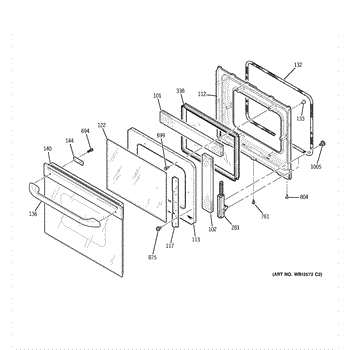

Parts for Ge JKP28BF4BB: 05 - Upper Door Parts

This top oven door insulation replaces the upper thermal liner inside the oven door to help retain heat and improve oven temperature stability for more even cooking. It restores proper door insulation where the original is missing or damaged. What it does:

• Replaces the top section of the oven door insulation to reduce heat loss through the door
• Helps maintain oven temperature for more consistent baking and roasting
• Reduces exterior door heat and minimizes risk of hot spots on the door surface
• Addresses symptoms like excessive oven heat loss, longer preheat times, or a noticeably thin/damaged door interior

• One top oven door insulation piece

• Disconnect power to the appliance and allow the oven and door to cool completely before starting
• Install requires removing the oven door and some fasteners—handle glass and clips carefully to avoid damage
• Wear gloves to protect from sharp edges and insulation fibers
• Verify proper fit and seal after installation

This gasket seals the upper oven door to the front frame to keep heat inside the cavity for stable baking and safer, more efficient operation. Replace a worn seal to stop heat leaks and improve temperature consistency.

• Provides a heat-resistant seal around the upper oven door perimeter
• Helps the oven preheat faster and hold the set temperature
• Reduces heat and steam escaping at the door edges
• Common signs of wear: fraying or tears, flattened/hardened sections, visible gaps, longer preheat or uneven baking

• Disconnect power and allow the oven to cool completely before starting.
• Open the door and carefully pull the old gasket from the retainers around the frame.
• Press the new gasket evenly into the retainers without stretching; align corners and ensure the ends meet cleanly.
• Close the door to confirm uniform contact around the seal before heating.

This foam tape seals and cushions the oven door assembly to reduce vibration and help keep the door glass and inner components stable. It restores proper spacing and helps reduce rattling or light air leaks around the door. What it does:

• Provides a soft, compressible seal between the door and frame to reduce noise and movement
• Cushions and protects glass and trim from contact and vibration
• Helps limit minor air leakage that can allow heat or odors to escape
• Commonly used when door trim or glass is loose, rattling, or shows visible gaps

• One adhesive-backed foam tape strip

• Clean and dry mating surfaces before applying to ensure good adhesive contact
• Measure and trim to fit; press firmly along the full length for proper adhesion
• Replace only with the same style of tape—do not use electrical or non-heat-rated foam in high-temperature areas
• Disconnect power/cool the appliance before working on the door assembly to avoid burns or injury

This rubber door bumper cushions and stabilizes the appliance door, reducing noise and preventing metal-to-metal contact for smoother closing and improved door alignment. It restores proper fit where worn or missing bumpers cause rattling or uneven shut. What it does:

• Cushions the door to absorb impact and reduce slamming or rattling
• Helps keep the door flush and aligned for a better seal
• Prevents chipping or wear where the door contacts the frame
• Commonly replaced when bumpers are missing, cracked, or flattened

• One door bumper

• Disconnect power to the appliance before beginning any work
• Usually pushes into a hole or snaps into a retainer; simple hand tools may be sufficient
• If access is limited you may need to open or remove the door — your model's service instructions
• Replace with identical style/location bumpers to maintain proper alignment

A small rubber door bumper that cushions the contact point between the appliance door and cabinet to reduce noise, prevent chipping, and help the door close smoothly. Simple replacement restores quiet operation and protects finishes. What it does:

• Cushions the door edge to stop metal-on-metal or door-on-cabinet contact
• Helps the door sit and close more evenly to reduce misalignment symptoms
• Reduces banging, rattling, and scraping noises when the door closes
• Prevents wear and cosmetic damage at the door contact point

• Inspect the door/cabinet contact area to locate the bumper before replacing
• Most installations press the bumper into a hole or recess; use steady, even pressure to seat it
• If the old bumper is glued or fastened, remove residue and check the mounting method in your parts diagram
• Turn off power to the appliance before working near electrical components or wiring

This is a replacement over-the-range microwave door assembly that restores the door's fit and appearance while maintaining proper latching and heat shielding. Installs in place of a damaged or cracked door to help the microwave operate safely. What it does:

• Replaces a damaged, cracked or bent microwave door to restore proper closure and latch engagement
• Reinstates the exterior finish and viewing window so you can check cooking without opening the door
• Helps maintain the oven's heat containment and prevents steam or smoke from escaping
• Recommended when the door frame, glass or latch mechanism are visibly broken or the door won't close securely

• Disconnect power to the microwave and follow manufacturer service instructions before beginning any work
• Handle glass components carefully and wear gloves to prevent cuts
• Typical installation requires removing the microwave trim and fastening the door assembly with screws; retain original hardware when possible

The Window Pack Assembly is an OEM part for GE ranges. This part allows you to monitor your food while it cooks without opening the door and letting heat escape. The assembly ensures clear visibility and helps maintain the oven's internal temperature for consistent cooking results.

Causes of a bad window pack can include accidental impacts, thermal stress from repeated heating and cooling cycles, or manufacturing defects.

Symptoms of a bad window pack assembly include:

• Cracks or breaks in the glass
• Fogging or condensation between the glass layers
• Difficulty in seeing through the window
• Heat escaping from the door area

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This hex-washer-head screw secures appliance components and panels. The correct 10-16 thread, 1-inch length fastener restores a tight, factory fit when an original screw is missing, stripped, or corroded.

• Fastens brackets, shields, trim, or panels to the appliance chassis
• Helps resolve rattling, gaps, or loose parts caused by a missing/damaged screw
• 10-16 thread with 1-inch length matches factory hardware for specified locations
• Hex-washer head provides solid tool engagement and distributes load to protect surfaces

• Disconnect power before servicing; if working on a gas appliance, also shut off the gas supply
• Support the part being secured and align holes before tightening
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing
• Replace any additional missing screws in the same area for uniform support

ST10-16 X 7/16"

This factory screw secures components within your appliance, keeping panels, brackets, and other parts tight and aligned. Replacing a missing or stripped screw helps eliminate rattles and restores a solid, properly mounted assembly.

• Fastens appliance components to frames, brackets, or cooktop/oven structures
• Replaces missing, rusted, or stripped hardware
• Helps address loose or rattling panels and misaligned trim
• Restores a secure fit after service or cleaning

• Disconnect power; if gas, shut off the gas supply. Allow the appliance to cool completely
• Match the screw to its original location and length for proper fit
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping metal or plastic

This replacement screw secures appliance panels and components to restore proper fit and prevent rattling or movement. Use it to replace a missing or stripped fastener for a snug, durable connection. What it does:

• Secures trim, panels, brackets, or internal components in place
• Restores proper alignment and reduces vibration or noise
• Replaces missing, worn, or damaged screws that cause loose parts
• Compatible with the original mounting point and fastening method

• Turn off power and unplug the appliance before starting any repair
• Use the correct driver to avoid stripping the head; match thread engagement fully
• If threads are damaged, inspect the mating part and replace or repair as needed

Package of 12

Black. 8-18 AB HXW 3/8

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment
