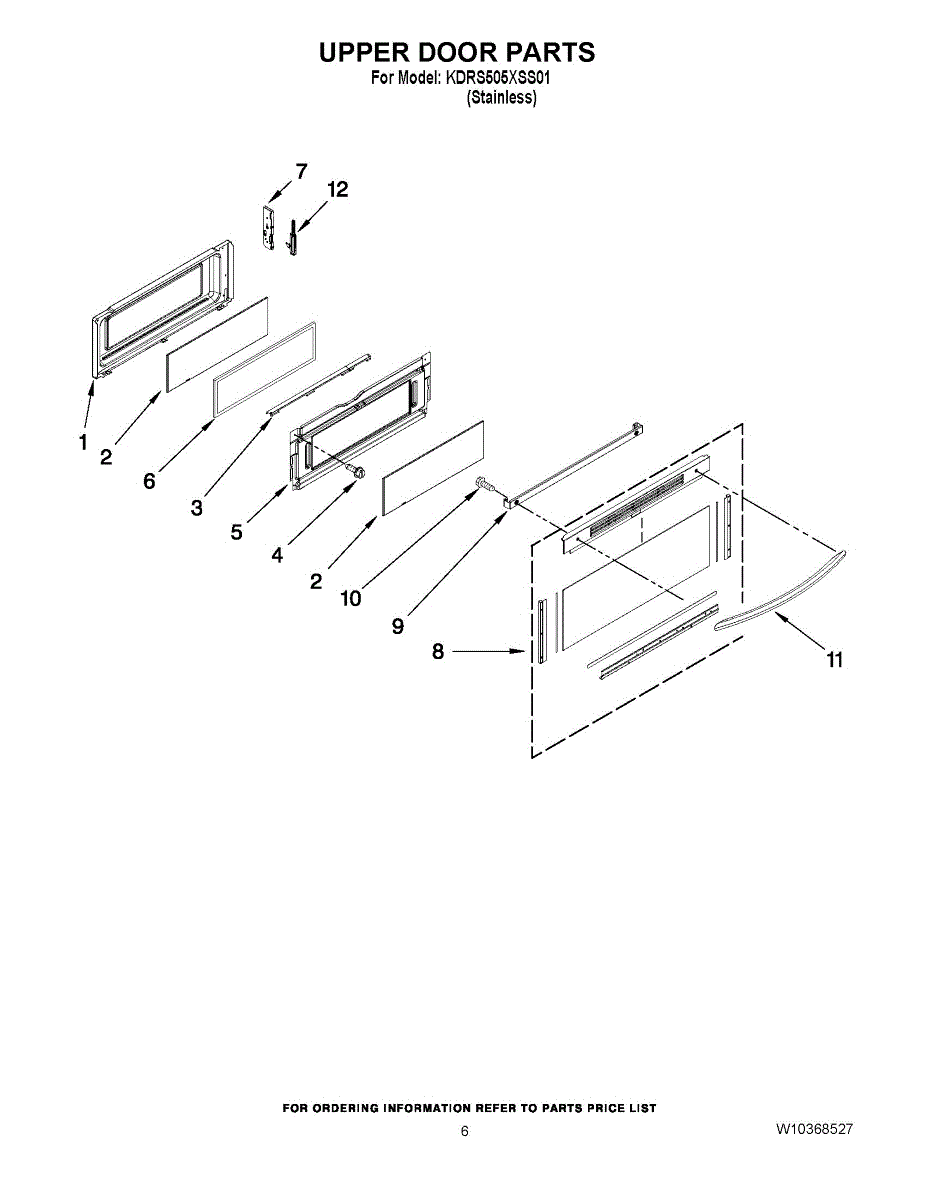

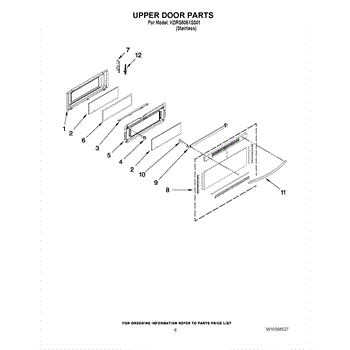

Parts for Kitchenaid KDRS505XSS01: 05 - Upper Door Parts

Replacement door glass for ovens and ranges. Restores clear viewing window when original is cracked, shattered, or damaged. Fits between door panels.

Upper door frame glass for oven door window. Replaces cracked, fogged, or broken upper glass section. Restores clear viewing of cooking progress.

This 8-32 x 3/8 screw secures panels, brackets, and internal components in your appliance so everything stays aligned and tight. Replace worn or missing hardware to restore a solid, rattle-free fit and safe operation.

• Fastens components to frames, brackets, or panels
• Helps reduce vibration, rattling, and misalignment
• Replaces missing, stripped, or corroded screws
• Correct 8-32 machine thread for tapped holes in compatible assemblies

• Disconnect power before servicing; shut off gas or water if applicable
• Start threads by hand to avoid cross-threading
• Tighten snugly without overtightening to prevent stripping

If your oven loses heat or runs longer than normal, this door insulation restores the thermal seal. Moderately easy repair for most DIYers.

Mounts to the range frame to anchor the door hinge arm. Replace if cracked, bent, or worn to restore proper door alignment and smooth operation.

Color: Stainless

Mounting bracket secures range components to the frame or chassis. Replace if bracket is bent, cracked, broken, or missing to restore proper support.

A factory screw with 8-32 machine threads used to secure brackets, panels, and internal components where specified. Restores a solid, factory fit when the original fastener is missing, stripped, or corroded. What it does:

• Provides the specified 8-32 machine-thread fastening for OEM components
• Helps prevent looseness, vibration, or rattling from a missing/damaged screw
• Replaces screws with worn heads or stripped threads to enable proper tightening
• Supports correct reassembly during part replacement or service

• 1 screw

• Disconnect power; shut off water and/or gas before servicing
• Match the new screw to the original for thread and length before installing
• Start threads by hand to avoid cross-threading; tighten until snug
• Do not overtighten into plastic or thin metal; replace damaged inserts/clips if found

• Thread size: 8-32 (machine)

This is a stainless steel door handle for a wall oven or microwave. It mounts to the exterior of the door and provides a grip for opening and closing. Replace this handle if it is cracked, loose, or broken, making it difficult to safely open or close the appliance door.
