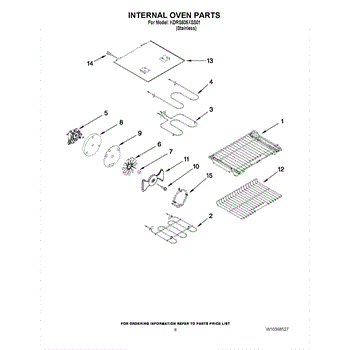

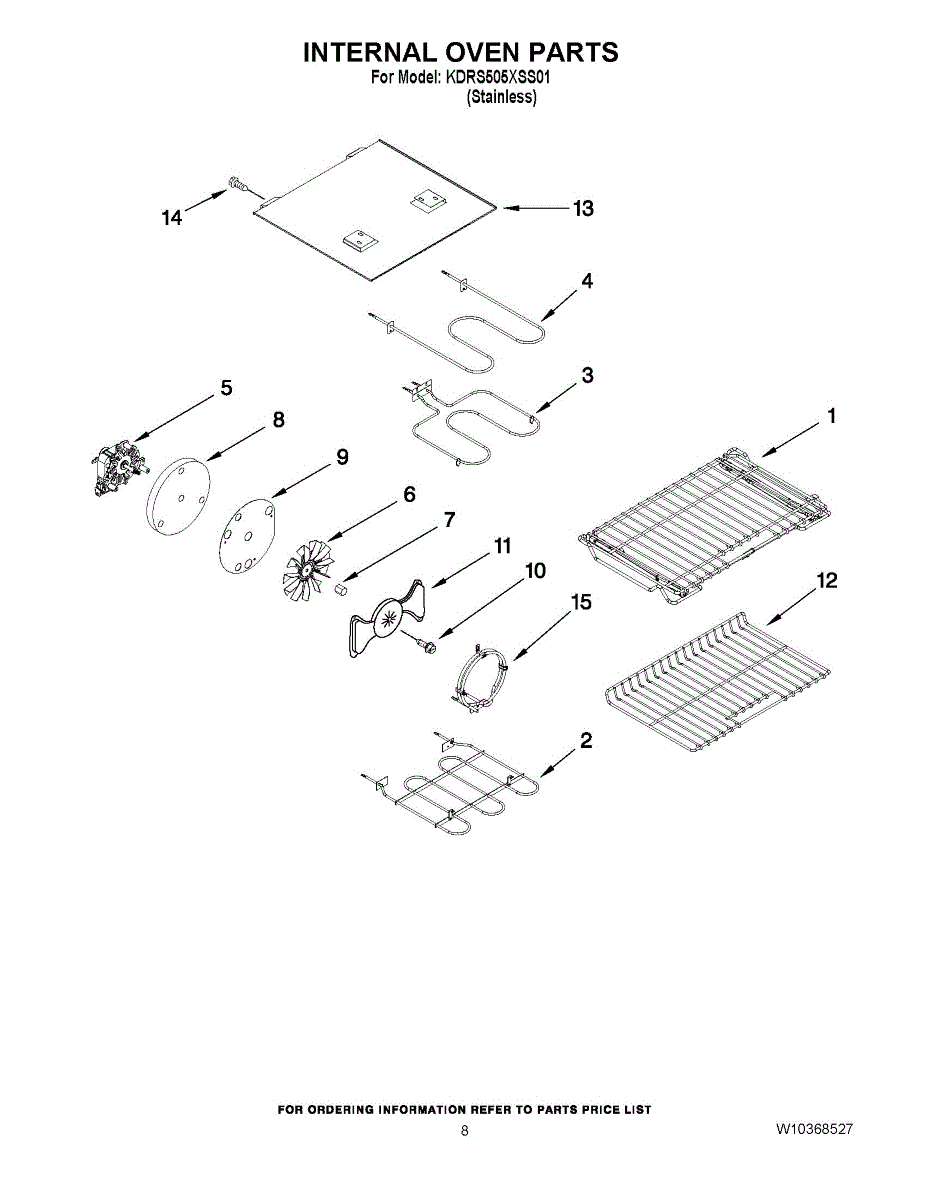

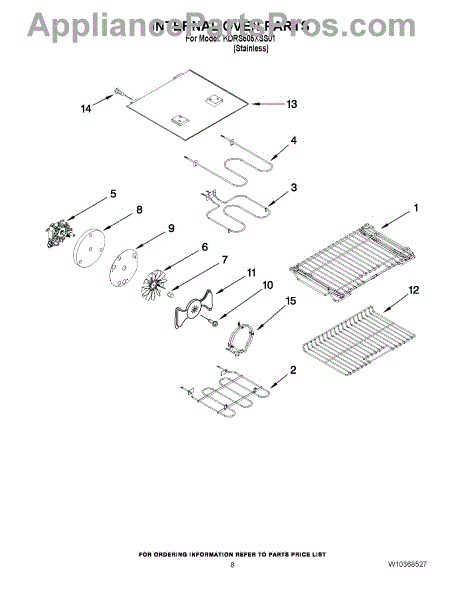

Parts for Kitchenaid KDRS505XSS01: 07 - Internal Oven Parts

Metal shelf that slides into your oven cavity to hold cookware during baking. Replace if rack is rusted, warped, bent, or damaged from high-heat use over time.

Fix an oven that won't broil or heat from the top with this upper broil element. Restores browning and searing performance. Simple DIY repair.

Oven not heating or baking unevenly? This lower bake element restores bottom heat for proper baking and roasting. Direct fit replacement part.

Broiler not heating or browning food? This broil element provides direct heat for finishing and browning. Moderate DIY repair for most home ranges.

Range not cooking evenly or convection fan not working? This convection fan motor circulates air for even heating. Includes blade and bracket.

Fix rattling or noisy oven fan with this convection fan blade. Restores proper airflow for even baking temperatures. Mounts directly on motor shaft.

Replaces worn or damaged insulation on your range oven door. Installs between door panels to improve heat retention and reduce noise.

Mounting bracket for electric and gas ranges. Secures components in place. Replace if bracket is bent, cracked, or missing for proper installation.

Heating element not working? This mounting screw securely fastens the heating element in place. A simple DIY repair that takes about 20 minutes to complete.

Replace your warped, discolored, or damaged oven rack. This steel rack installs inside the oven cavity to support cookware during baking and roasting.

Replacement heat shield that protects your range oven cavity and nearby components from extreme heat. Replace if cracked, warped, or missing. 1-piece design.

A shoulder screw that secures appliance components and provides a precise pivot or spacer point. Replaces a missing or worn screw to restore alignment, reduce rattling, and keep panels and assemblies securely in place. What it does:

• Provides a fixed-diameter shoulder for pivots, spacers, or mounting points in assemblies.
• Holds panels and moving components at the correct distance to prevent binding or friction.
• A missing or worn shoulder screw can cause misalignment, rattling, or loose parts during operation.
• Used where a smooth-bearing surface and controlled clearance are required between parts.

• Disconnect power to the appliance (unplug or shut off breaker) before servicing.
• Handle small fasteners carefully to avoid dropping into assemblies; magnetic pickup tools can help.
• Start threads by hand to avoid cross-threading; tighten snugly but avoid overtightening.

This is a circular heating element located at the rear wall of the oven cavity that works with the convection fan to circulate hot air for even cooking. It provides the heat source specifically for convection baking and roasting modes. Replace this element if convection cooking is uneven, the oven fails to reach proper temperature in convection mode, or if the element shows visible damage such as blistering or breaks.
