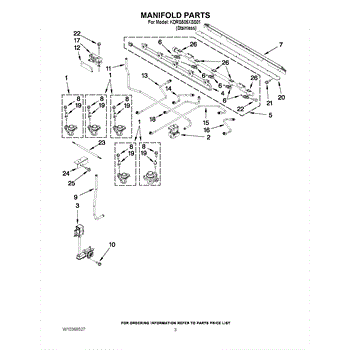

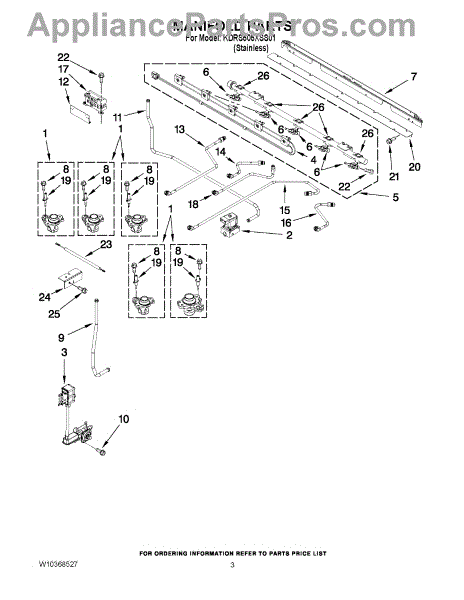

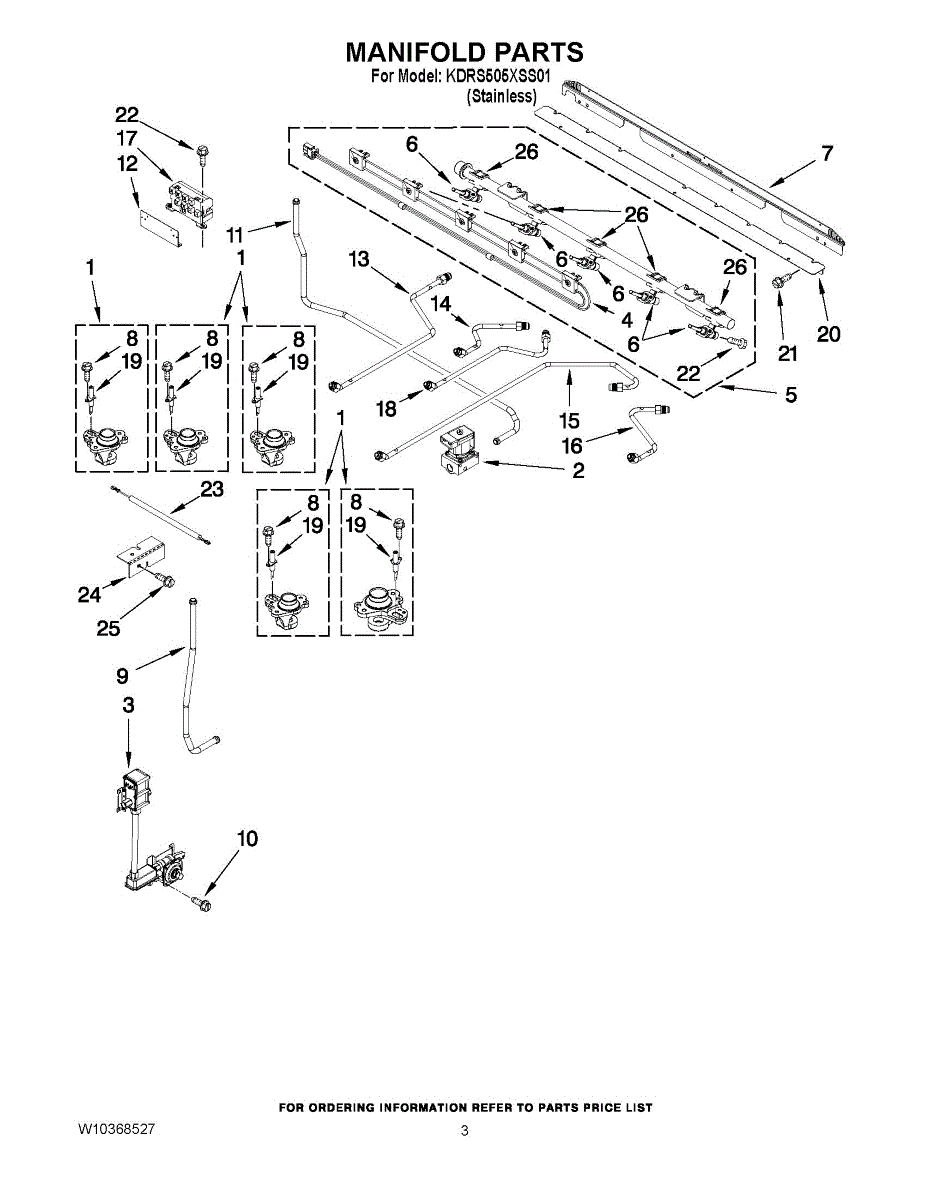

Parts for Kitchenaid KDRS505XSS01: 03 - Manifold Parts

This Holder ORF is a small mounting retainer used to secure internal components so parts stay aligned and stable during normal appliance operation. Replacing a damaged or missing holder prevents loose parts and rattling. What it does:

• Secures and positions a specific internal component or assembly
• Keeps parts aligned to prevent rubbing, vibration, or noise
• Restores proper fit where the original retainer is cracked, bent, or missing
• Helps maintain reliable operation by holding components in place

• Disconnect power (and gas, if applicable) before servicing the appliance
• Inspect adjacent parts and fasteners for wear; replace any damaged hardware
• Use basic hand tools; avoid over-tightening which can crack the retainer

G4 orifice holder secures the gas orifice to the burner tube, keeping the orifice aligned for reliable ignition and a consistent flame. Replaces a damaged or worn holder to help restore proper burner flame behavior. What it does:

• Holds and positions the gas orifice in the burner tube for correct flame pattern and stability.
• Ensures consistent ignition and steady flame when the burner is operating normally.
• Common symptom indicators: burner won't light reliably, flame is weak or uneven, or burner performance is inconsistent.

• Turn off the appliance power and shut off the gas supply before beginning work.
• Inspect the orifice and burner tube for debris and proper alignment during installation.
• Tighten fasteners snugly but avoid overtightening; ensure the orifice is properly seated and oriented.
• After installation, check for correct ignition and perform a gas-leak check.

This center orifice holder secures the gas orifice for the center burner, restoring proper alignment and stable gas flow for reliable ignition and even flame performance. Fits the center burner assembly on compatible gas ranges. What it does:

• Holds the center burner orifice in place so the orifice stays aligned with the burner
• Helps maintain consistent gas flow for steady flame and reliable ignition
• Can correct symptoms such as weak or uneven center-burner flame or difficulty igniting the center burner
• Works with the burner assembly to ensure proper burner-to-orifice positioning

• Turn off the appliance and shut off gas supply before beginning any service
• Remove the burner grate and cap, then replace the orifice holder in the center burner assembly
• Reassemble burner components and restore gas; check for correct ignition and even flame

This orifice holder secures and positions the gas orifice at the burner, helping restore correct gas flow and consistent flame performance for compatible gas cooktop/range burners. Use it to replace cracked, warped, or missing holders. What it does:

• Holds the burner orifice in the proper position for accurate gas metering
• Helps maintain a steady burner flame and reliable ignition
• Replaces damaged or worn holders that can cause weak or inconsistent flames
• Works with surface burners and orifice assemblies where this holder is specified

• Turn off gas supply and unplug the appliance before servicing.
• Remove burner components and replace the holder with the matching OEM part.
• Inspect the orifice and surrounding tubing for damage; tighten fittings per manufacturer guidance.

This is the wiring harness that links key components such as the water inlet valve and switches. Replacing a damaged harness restores proper electrical connections so the appliance fills and runs reliably without intermittent power losses.

• Carries power and signals between the valve and related switches
• Helps resolve issues like no fill, intermittent operation, or cycling failures
• Corrects symptoms from burned, brittle, or broken wires/connectors
• Restores safe, stable connections after heat or vibration damage

• Disconnect power and shut off water supply before servicing
• Take photos of existing connections to ensure correct routing
• Inspect mating terminals for heat damage or corrosion before reassembly
• Do not force connectors; seat fully until they click or fit snugly

This manifold assembly routes the appliance's gas supply to the burner control valves, restoring safe, consistent distribution when the original tube is cracked, corroded, or leaking. It helps ensure even flame performance across multiple burners. What it does:

• Distributes gas from the inlet to multiple burner valves
• Provides mounting/connection points for valves and tubing
• Replaces assemblies that are bent, cracked, or leaking
• Common symptoms: multiple burners with weak/no flame, gas odor near the manifold, visible corrosion or damage

• 1 manifold assembly

• Disconnect power and shut off the gas supply before servicing; allow the appliance to cool
• Photograph tubing and valve orientation to aid reassembly
• Support fittings with two wrenches; use only manufacturer-approved thread sealant where specified
• After installation, restore gas and leak-test all joints with an approved bubble solution before use

This surface burner valve regulates gas flow to a single top burner on your range or cooktop. Replacing a worn valve restores smooth flame control and reliable shutoff for consistent, safe cooking performance.

• Controls gas delivery from the manifold to one surface burner
• Opens/closes with the control knob to ignite and adjust flame height
• Works with the burner's igniter to light and maintain the flame
• Common symptoms: burner won't light, low or uneven flame, flame won't adjust, or a knob that's stiff or spins without control
• Each valve serves one burner position

• Disconnect power, shut off gas supply, and allow the appliance to cool before service
• Note tubing orientation; support the manifold when loosening or tightening fittings
• Use gas-rated thread sealant only if originally used; tighten and check all joints with an approved leak-detection solution
• Restore gas/power and verify proper ignition and flame adjustment on all burners

The Burner Valve is an OEM replacement part for  Whirlpool gas cooktops and ranges. Each burner valve controls the flow of gas to its corresponding surface burner element.

Causes of a bad burner valve can include wear and degradation of internal mechanisms from years of continuous heating cycles. Mineral or debris buildup restricting gas flow is also possible.

Symptoms of a bad Burner Valve include:

• Inability to ignite or control individual burners
• Unstable, weak, or over-sized flames that cannot be adjusted
• Gas leaks detected around the valve area
• Premature failure if burners cannot be turned off properly

This OEM Whirlpool part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Valve is an OEM part for Whirlpool gas ranges. It plays an important safety role in controlling the flow of gas fuel to the range's burners.

Causes of a bad gas valve can include wear and tear over extended use, mineral deposits clogging the valve's small passages, or physical damage affecting its precision-controlled mechanisms.

Symptoms of a faulty gas valve include:

• Burners that will not light or that light unpredictably
• Inability to adjust burner flames properly
• Gas odors detecting around the range

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas models.

This range screw is an OEM replacement part sourced directly from the manufacturer for gas stove burners. These screws attach the ignitor to the burner. Screws may corrode and rust during everyday use. Spills and accidents on the range top may leak down to the screws and cause them to become worn. Screws are not considered part of the ignitor kit or burner kit and will need to be purchased separately. If the screws appear rusty or corroded while replacing the ignitor, it is beneficial to replace them. It is a good idea to purchase the screws at the same time as the parts are purchased so that they are available when needed. A Phillips head screwdriver is necessary to remove and replace the old screws. Make sure the power and gas are disconnected before installing the new screws.This screw is made of silver metal and is a Phillips head screw that is sold individually. Verify the number of screws needed before ordering. This screw is designed for use in gas ranges manufactured by Whirlpool, KitchenAid, Roper, Estate, Inglis, Maytag, Amana, Jenn-Air, and Crosley.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Spark module that controls the ignition sequence for gas range surface burners, producing the spark needed to light burners. Replacing a faulty module restores proper sparking and helps eliminate persistent clicking or no-ignite conditions. What it does:

• Generates high-voltage sparks to the burner igniters so gas burners light reliably; failure can cause burners not to ignite.
• Directs spark timing for individual surface burners; symptoms of failure include continuous clicking, intermittent sparks, or one or more burners failing to light.
• Works with the range's ignition system to coordinate spark and valve operation; does not include igniters or valves.

• Disconnect electrical power (and gas supply where applicable) before beginning any repairs.
• Photograph wiring connections before removal to ensure correct reconnection; reconnect wires to matching terminals.
• Use the exact OEM part number and replace with the same module to ensure proper fit and operation.

This surface ignitor is the replacement spark electrode that provides the spark to light a gas cooktop or range burner. Replacing a failed ignitor restores reliable ignition and helps get burners lighting again. What it does:

• Produces the high-voltage spark that ignites gas at the surface burner
• Replaces cracked, glazed, or non-sparking electrodes that prevent ignition
• Addresses symptoms such as no spark, weak or intermittent sparking, or burners that won't light
• Works with standard surface burner assemblies to restore normal ignition

• One surface ignitor (spark electrode)

• Disconnect electrical power and shut off the gas supply before starting work
• Handle the ceramic electrode carefully; avoid touching or striking the ceramic tip
• Ensure all wiring connections are secure and routed clear of heat sources
• After installation, test each burner for proper spark and ignition before returning the appliance to regular use

This surface burner spark igniter creates the electric arc that lights the gas flame on your cooktop or range. Replacing a worn or cracked electrode restores reliable ignition and helps resolve hard-to-light burners and intermittent sparking.

• Provides a high-voltage spark at the surface burner to ignite gas
• Mounts to the orifice holder beneath the burner head
• Failure symptoms include burner not lighting, needing a match, or intermittent/weak spark
• Common issues: chipped/cracked ceramic insulator or damaged terminal/lead

• Disconnect power and shut off the gas supply before servicing
• Allow the appliance to cool; remove grates, burner caps, and heads to access the orifice holder
• Transfer the ignition lead, install the new electrode, and route the wire away from heat and sharp edges
• Ensure the tip is positioned near the burner as designed; verify spark and ignition before reassembly

The Screw is an OEM part for Whirlpool appliances. This specific screw is used in various locations within Whirlpool appliances, securing components and ensuring the stability and proper alignment of parts. It is designed to fit precisely and maintain a firm hold, contributing to the overall functionality and safety of the appliance.

Over time, screws can become worn or stripped due to regular use, corrosion, or over-tightening.

Causes of a bad screw include wear and tear, exposure to moisture leading to rust, and over-tightening which can strip the threads.

Symptoms of a bad screw include:

• Loose or wobbly components
• Misalignment of parts
• Noise due to vibrating or loose parts
• Difficulty in securing or removing the screw

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This orifice spud is the small gas jet used in LP conversion kits to regulate propane flow to a burner, helping restore correct flame size and combustion after converting to liquid propane. It's a direct-fit component for affected burners. What it does:

• Replaces the burner jet that meters propane for safe, consistent flame
• Restores proper flame height and prevents oversized or sooting flames after LP conversion
• Helps burners light reliably and maintain even heat
• Works as part of an approved LP conversion to match appliance fuel type

• Turn off gas supply and power before starting any gas appliance service
• Use the correct orifice size and follow the appliance LP conversion instructions or service manual
• Hand-tighten and then torque per manufacturer spec if provided; avoid overtightening
