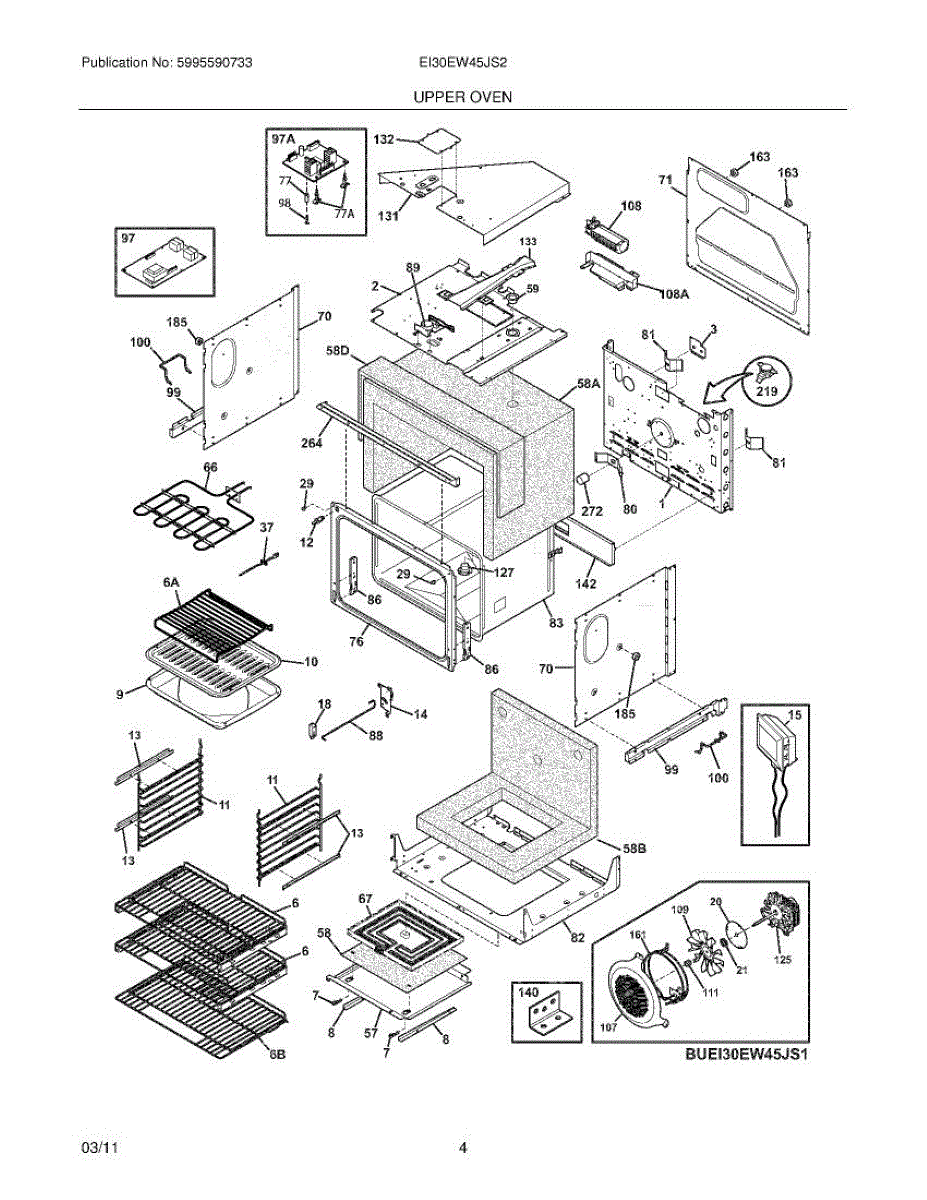

Parts for Electrolux EI30EW45JS2: 05 - Upper Oven Parts

This broiler insert is the oven pan insert that sits under the broiler burner to catch drips and help direct heat for even browning. It restores a stable cooking surface and keeps the broiler area cleaner. What it does:

• Holds food and catches grease and drips during broiling to prevent mess and flare-ups
• Directs heat from the broiler for consistent browning and searing
• Replaces damaged, warped, or corroded inserts that cause uneven cooking
• Helps prevent food from falling into the burner area

• One broiler insert

• Disconnect power to the appliance and allow the oven to cool completely before servicing
• Remove oven racks and slide the old insert out; position the new insert so it seats securely in the broiler cavity
• Wear heat-resistant gloves when testing the broiler after installation and inspect for proper fit before use
• Do not modify the part; use only as designed for the oven broiler assembly

This control-panel switch restores reliable on/off control of a selected function on your range or wall oven. Replacing a worn or intermittent switch helps ensure the appliance responds consistently when you toggle that function.

• Directs power to the associated circuit when switched on or off
• Common symptoms: function won't turn on/off, intermittent operation, or the switch feels loose/sticks
• Helps restore positive, consistent control from the backguard/control panel

• Disconnect power at the breaker before servicing
• Access the switch from the control panel/backguard; retain screws/clips
• Label/photograph wire positions and transfer leads one at a time to the new switch
• Ensure firm terminal connections, reassemble, restore power, and test operation

This small replacement spacer positions and secures appliance components to maintain correct alignment and fit. Installing the spacer restores proper panel spacing and reduces vibration where a worn or missing spacer causes looseness or rubbing. What it does:

• Maintains the correct gap between panels, trim, or assemblies to ensure parts fit flush
• Keeps components aligned to prevent rubbing, binding, or uneven wear
• Helps reduce vibration and rattling caused by a missing or damaged spacer
• Preserves original part spacing for reliable operation of the surrounding components

• Disconnect power to the appliance before any service to avoid shock or injury
• Remove any trim or fasteners that block access; keep track of screws and small parts
• Match the new spacer's orientation to the original; do not force parts into place

The Temperature Sensor is an OEM part for Frigidaire ovens. It monitors and helps regulate the oven's internal temperature, ensuring consistent cooking results by accurately detecting temperature changes. This sensor is crucial for the oven's control system to maintain the desired cooking temperature.

Symptoms of a bad Temperature Sensor include:

• Inaccurate oven temperature readings,
• Oven not heating to the set temperature,
• Oven overheating,
• Frequent temperature fluctuations during use.

Causes of a sensor failure can include prolonged exposure to high temperatures, electrical surges, or a breakdown of the sensor's components due to normal wear and tear.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This radiant surface element restores heat to a smooth-top cooking zone on glass-ceramic ranges. Replace a failed element to bring back consistent, controllable heat for everyday simmering, sautéing, and boiling.

• Provides radiant heat beneath the glass cooktop for one burner zone
• Typical symptoms: burner won't heat, heats only partially, or shows visible hot spots/burn marks
• Helps correct slow-to-heat or uneven cooking performance from a failed element
• Often tests open (no continuity) when the internal coil is burned out

• Disconnect power at the breaker before servicing; elements operate on high voltage
• Lift and support the glass cooktop carefully to avoid cracking the glass
• Note and transfer wires one at a time to the new element; match terminals precisely
• Ensure the element sits level in its brackets and that wires aren't pinched before reassembly

The Bake Element is an OEM component for Frigidaire wall ovens. It is an integrated heating coil that generates heat through electric resistance when powered. Located near the bottom of the oven cavity, the bake element facilitates heating for various cooking functions like baking, roasting, or warming. This element measures approximately 13 x 11 inches.

Symptoms of a bad bake element include:

• Oven failing to reach or maintain desired cooking temperatures
• Bake cycles taking excessively long periods of time
• Hot or cold spots developing inside oven cavities
• Error codes appearing related to upper heating issues

Causes can be cracks in ceramic sheathing allowing arcing, or mineral deposits coating coils over extended use impeding heat transfer.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This electronic control board regulates the refrigerator's functions and user interface, restoring reliable operation when the original board fails. Replacing a faulty board can stop erratic behavior and restore normal temperature and display control. What it does:

• Manages compressor, fan, defrost and other timed cycles to maintain proper cooling
• Processes user inputs and controls the display/LEDs
• Can stop erratic cycling, unresponsive controls, or incorrect temperature behavior
• Helps resume normal operation when the original board is damaged by power surges or component failure

• Disconnect power to the appliance before starting any work
• Handle the board by the edges and avoid static discharge; use an anti-static wrist strap if available
• Confirm connectors match and seat fully; do not force plugs

This oven control board manages the electronic clock/timer and controls bake and broil functions. Replacing a failed board restores accurate temperature control, display, and keypad responsiveness so your range or wall oven heats and operates reliably again.

• Directs power to bake and broil elements based on user settings and oven sensor feedback
• Common symptoms: oven won't start or won't heat; temperatures are erratic or inaccurate
• Display is blank, dim, frozen, or keypad buttons are unresponsive
• Repeated fault/error codes or beeping from the control; intermittent cycling or shutdown

• Disconnect power at the breaker or fuse box before servicing; verify no voltage is present
• Use anti-static precautions and handle the board by the edges
• Photograph/label wiring; move connectors one at a time to the same locations on the new board; reuse original mounting hardware
• Restore power, set the clock, and run a short bake test to confirm proper operation

This access panel cover secures and protects internal components behind an appliance opening, keeping parts safe from dust and preventing accidental contact. It restores the appliance's finished appearance and helps maintain proper airflow around covered areas. What it does:

• Shields wiring and components from dirt, dust and accidental contact
• Helps prevent small items from entering service areas
• Restores a clean, finished look to the appliance exterior or interior
• Supports safe airflow patterns when installed as intended

• One replacement cover

• Disconnect power before servicing; follow all safety guidelines for your appliance
• Typically secures with screws or clips—retain original fasteners or use OEM replacements
• Align cover to mounting points and fasten evenly to avoid gaps or stress

Evaporator fan motor that circulates cold air over the evaporator coil to help maintain even refrigerator temperatures. Replacing a failing motor restores airflow, reduces warm spots and frost buildup, and cuts down on excessive fan noise. What it does:

• Spins the evaporator fan blade to move cold air through the evaporator and into the cabinet.
• Promotes even cooling to prevent warm zones and food spoilage.
• Stops or reduces abnormal noises caused by a worn or seized motor.
• Helps prevent frost accumulation linked to poor airflow.

• Disconnect power to the appliance before beginning any repair.
• Handle the motor and fan blade carefully; ensure the fan blade is seated properly on the shaft.
• Remove evaporator/fan housing panels and retain screws and clips for reassembly; verify wiring connectors match before reconnecting.

This replacement fan blade mounts to the appliance's fan motor to move air as designed. Installing a new blade restores proper airflow and helps reduce vibration or noise caused by bent, cracked, or worn fins. What it does

• Attaches to the fan motor shaft to move air through the cavity or across internal components
• Supports even air circulation or cooling performance, depending on model
• Helps resolve issues such as loud scraping/whirring, vibration/wobble, weak airflow, or visible blade damage

• One fan blade

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Access the fan assembly from the rear panel or inside the oven behind the fan cover (varies by model); wear gloves—edges can be sharp
• Note blade orientation/rotation and securely reinstall using the original fastener(s)
• Hand-spin the blade to ensure clearance and free movement before reassembly and testing

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

This convection fan motor powers the fan that circulates heated air during convection cooking, helping your appliance maintain even temperatures and consistent results. Replacing a weak or noisy motor restores proper airflow and quieter operation.

• Drives the convection fan to move hot air throughout the cooking cavity
• Promotes even heat distribution for baking and roasting in Convection modes
• Activates when the control calls for convection airflow
• Common symptoms: fan not spinning, intermittent or slow operation, rattling or squealing noises, uneven cooking

• Disconnect power and allow the appliance to cool completely. Microwaves can retain dangerous high voltage even when unplugged.
• Access the motor behind the rear or interior fan cover per your model's design.
• Note wire positions; transfer the existing fan blade and any mounting hardware to the new motor if required.
• Ensure the fan spins freely before reassembly; restore power and test a Convection cycle.

This oven heating element replaces a failed bake element to restore even, reliable oven heat for baking and roasting. It's a direct-replacement style part that heats the oven cavity when the bake function is used. What it does

• Heats the oven cavity during bake cycles so food cooks evenly
• Commonly used when the oven won't reach or hold baking temperatures
• Can fail visibly (broken or burned) or electrically (open circuit)
• Works with the oven's temperature control to maintain set temperature

• Disconnect power at the breaker before starting any repair to avoid shock.
• Handle the element carefully; connectors and terminals can be fragile.
• Confirm wire terminal fit and secure mounting; replace only with the correct OEM-style element.

This spacer positions and supports components to maintain proper alignment and clearance in the appliance. It prevents rubbing and ensures panels or parts sit correctly for reliable operation. What it does:

• Keeps panels, brackets or assemblies spaced correctly to prevent contact and wear
• Restores proper alignment to reduce vibration, noise or rubbing symptoms
• Maintains clearance for airflow or moving parts where specified
• Provides a stable mounting point for adjacent components

• One spacer

• Install in the location shown in the service diagram and secure with the original fasteners
• Disconnect power to the appliance before beginning service to avoid shock or injury
• If the original spacer shows damage or distortion, replace it to restore correct fit

The Thermal Fuse is an OEM part for Frigidaire ovens and ranges. It acts as a safety device that cuts off power to the appliance if it overheats, preventing potential damage or fire hazards. This fuse ensures that the oven operates within safe temperature limits by shutting down the electrical circuit when necessary.

Causes of a bad thermal fuse can include prolonged exposure to high temperatures, electrical surges, or a malfunctioning oven component that causes overheating. These issues can compromise the integrity of the fuse, rendering it ineffective.

Symptoms of a bad thermal fuse include:

• The oven not heating up
• The oven shutting off unexpectedly during use
• No power to the oven

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This electrical wire harness routes power and signals between components to restore reliable electrical connections inside the appliance. It replaces a damaged or worn harness to stop intermittent operation or loss of power. What it does:

• Carries power and control signals between internal components and the main control
• Restores operation when broken, chafed, or disconnected wires cause intermittent power or no power
• Helps eliminate arcing, erratic behavior, or failures caused by damaged wiring
• Matches OEM wiring colors and connector plugs for correct re-connection

• One electrical wire harness assembly

• Disconnect all power (unplug or shut off breaker) before inspecting or replacing the harness
• Replace with the exact harness and route wires following the original routing to avoid pinch points and heat exposure
• Ensure all connectors are fully seated and any locking tabs are engaged
• If you see melted insulation, burning smell, or damaged terminals, inspect nearby components and fuses for related damage

Specs: 8 x 0.750

This oven rack lubricant helps reduce binding and friction so oven racks slide smoothly for easier loading and repositioning. It's formulated for use on oven rack glides and rollers to restore consistent movement and reduce noise. What it does:

• Lubricates rack slides and rollers to improve rack movement and prevent sticking
• Helps quiet squeaks or grinding when moving oven racks
• Protects metal contact points from wear caused by friction
• Restores smooth operation after heavy use or buildup interferes with sliding

• Allow the oven to cool completely before applying lubricant
• Use a small amount on the glide surfaces or rollers only; avoid contact with oven racks' cooking surfaces or cookware
• Follow OEM instructions if available and test movement before heating the oven
• Wear disposable gloves and clean any excess from visible surfaces

This is a #8 screw, 0.500 inch long, used to secure panels and components in appliances. It provides a correct-fit fastener for repairs where the original #8 x 1/2" screw was required, restoring proper assembly and stability. What it does:

• Fastens trim, panels, brackets and small components where a #8 x 1/2" screw is specified
• Holds parts securely to prevent rattling, gaps or loose panels
• Replaces worn, stripped or missing screws to restore proper fit
• Appropriate for common interior and exterior appliance mounting points

• Use the correct screwdriver (typically Phillips) and avoid over-tightening to prevent strip or damage
• Disconnect power and follow appliance manufacturer safety instructions when accessing internal parts

This appliance screw fastens panels, brackets, and other components inside the unit. Replace a missing, rusty, or stripped fastener to restore a secure fit and help prevent rattles, misalignment, or premature wear.

• Secures appliance components such as panels, brackets, and covers
• Restores proper fit when an original screw is missing or stripped
• Helps reduce vibration and noise from loose parts
• Common signs: loose or misaligned parts, rattling, or a missing screw

• Disconnect power before servicing
• Match the new screw to the original for size and thread before installing
• Hand-start threads to avoid cross-threading; do not overtighten
• Reuse any original washers or clips if they were used with the old screw

This spacer sets the correct gap between mating parts in your appliance's assembly, preventing rubbing and misalignment. Replace a missing or worn spacer to restore a solid fit, reduce noise, and protect surrounding components.

• Maintains proper spacing between components for correct alignment and operation
• Reduces metal-to-metal contact, squeaks, and premature wear
• Helps fasteners and panels seat securely
• Typical symptoms when failed: loose or rattling parts, uneven gaps, or visible wear marks

• Disconnect power; for gas models, shut off the gas. Allow the appliance to cool completely.
• Access the assembly per your model's diagram; note the original orientation/stack-up before removal.
• Reuse original fasteners if serviceable; hand-start threads and tighten snugly to avoid damaging the spacer.
• Verify alignment and clearances before fully reassembling. Quantity and location vary by model.

This oven light bulb illuminates the interior of your range or wall oven. Replace a burned-out bulb to restore clear visibility while cooking, checking doneness through the window, and cleaning.

• Provides interior illumination when the oven light is activated
• Common fix for no oven light, dim or flickering light, or a failed bulb
• Helps you monitor food without opening the door

• Disconnect power at the breaker or unplug the appliance before servicing
• Allow the oven to cool completely to avoid burns
• Remove the lens/cover if present; replace the bulb per your model's socket; do not overtighten
• Restore power and test; if the light still doesn't work, inspect the socket and switch
