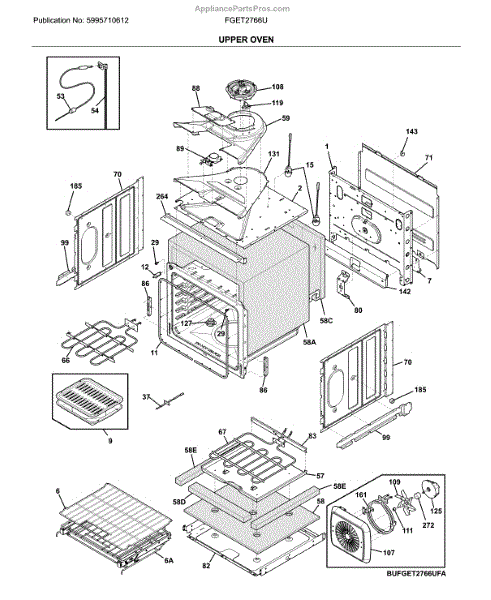

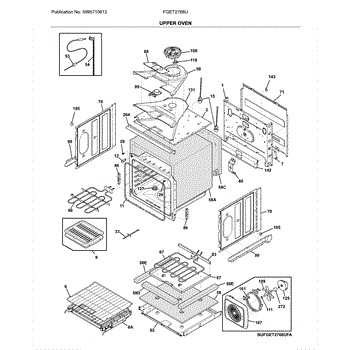

Parts for Frigidaire FGET2766UDA: Upper Oven Parts

The Broiler Pan Assembly is an OEM part for Frigidaire ranges and ovens. This part includes both the broiler pan and the grill rack, designed to catch drippings and promote even cooking when broiling foods.  This assembly includes pan and insert.

Causes of a bad broiler pan assembly can include wear and tear from regular use, warping or rusting due to high temperatures, or damage from improper cleaning methods.

Symptoms of a bad Broiler Pan Assembly include:

• Visible warping or rust on the pan or rack
• Difficulty in cleaning due to persistent stains or damage
• Uneven cooking results when broiling
• The pan or rack no longer fitting securely in the oven

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This flexible door seal replaces a worn or damaged refrigerator door gasket to help restore a tight door closure and reduce air leaks. It fits into the door channel to help maintain proper cooling and reduce frost buildup. What it does

• Creates a compressible barrier between the door and cabinet to keep cold air in and warm air out
• Helps stop common symptoms like visible gaps at the door edge, excess frost/ice buildup in the compartment, and unstable interior temperatures
• Reduces strain on the compressor caused by air leaks and helps maintain consistent cooling
• Restores the appliance's intended seal when the original gasket is torn, stretched, or hardened

• One door seal

• Disconnect power to the appliance before starting and work on a cool, empty compartment
• Remove the old gasket fully and clean the channel or flange to ensure the new seal seats properly
• Press the new gasket evenly into the door channel; some models require gradual warming or light trimming for a perfect fit

This replacement switch restores reliable control of a selected function by opening or closing an electrical circuit inside your appliance. When the original switch wears out, buttons may stop responding or features may not activate consistently.

• Opens/closes an electrical circuit when the button/actuator is engaged
• Routes power or sends a signal to the control or component
• Common symptoms: no response when pressed, intermittent operation, or function won't start
• May show signs of heat damage, loose terminals, or inconsistent "click" feel

• Disconnect power at the breaker before servicing
• Photograph or label wire positions to ensure correct transfer to the new switch
• Move wires one at a time; fully seat connectors on the correct terminals
• Reassemble, restore power, and test the function activated by the switch

The Range Lamp Assembly is an OEM part for Frigidaire stoves and ranges. It consists of the halogen light bulb, lens cover, and wiring harness necessary to illuminate the oven cavity. This lamp assembly provides light to the cooking and baking space, making it easier to view food and monitor cooking progress.

Symptoms of a bad range lamp assembly include:

• The oven light not turning on at all
• Dim, flickering, or intermittent light
• Burned out or blown light bulb
• Cracks or damage to the lens cover

Causes of failure can be a burned out light bulb, broken wiring, or damage from impact or heat over time.

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This small replacement spacer positions and secures appliance components to maintain correct alignment and fit. Installing the spacer restores proper panel spacing and reduces vibration where a worn or missing spacer causes looseness or rubbing. What it does:

• Maintains the correct gap between panels, trim, or assemblies to ensure parts fit flush
• Keeps components aligned to prevent rubbing, binding, or uneven wear
• Helps reduce vibration and rattling caused by a missing or damaged spacer
• Preserves original part spacing for reliable operation of the surrounding components

• Disconnect power to the appliance before any service to avoid shock or injury
• Remove any trim or fasteners that block access; keep track of screws and small parts
• Match the new spacer's orientation to the original; do not force parts into place

The Temperature Sensor is an OEM part for Frigidaire ovens. It monitors and helps regulate the oven's internal temperature, ensuring consistent cooking results by accurately detecting temperature changes. This sensor is crucial for the oven's control system to maintain the desired cooking temperature.

Symptoms of a bad Temperature Sensor include:

• Inaccurate oven temperature readings,
• Oven not heating to the set temperature,
• Oven overheating,
• Frequent temperature fluctuations during use.

Causes of a sensor failure can include prolonged exposure to high temperatures, electrical surges, or a breakdown of the sensor's components due to normal wear and tear.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This evaporator fan motor circulates cold air inside the refrigerator compartment to maintain even cooling and proper airflow. Replaces a failed or noisy fan motor to restore consistent temperature distribution. What it does:

• Spins the evaporator fan blade to move air across the evaporator coils and throughout the fresh-food compartment
• Helps prevent uneven cooling, warm spots, and excessive frost buildup when operating correctly
• Reduces or eliminates grinding, rattling, or humming caused by a worn or failing motor
• Works as part of the refrigerator's airflow system to support normal compressor and defrost operation

• One evaporator fan motor (single unit as shown)

• Disconnect power before servicing to avoid shock or injury
• Access typically requires removing interior panels; handle evaporator fins and wiring with care
• Verify fan blade clearance and secure electrical connectors before restoring power

This motor assembly is the factory-style replacement motor used to restore proper operation and movement in compatible Frigidaire appliances. It replaces a worn or failed motor to help your appliance run smoothly. What it does:

• Drives the appliance component it mounts to, restoring normal mechanical movement
• Stops symptoms like a non-spinning drum, no airflow, or loss of expected mechanical operation
• Helps eliminate intermittent starting, humming, or overheating related to failed motors
• Matches OEM fit and function when the motor assembly is the correct part for your model

• For experienced DIYers only; disconnect power before starting any repair
• Inspect mounting hardware, wiring harness, and connectors for damage and replace if needed
• Follow factory service manual steps for alignment, torque, and routing to avoid interference

This replacement fan blade mounts to the appliance's fan motor to move air as designed. Installing a new blade restores proper airflow and helps reduce vibration or noise caused by bent, cracked, or worn fins. What it does

• Attaches to the fan motor shaft to move air through the cavity or across internal components
• Supports even air circulation or cooling performance, depending on model
• Helps resolve issues such as loud scraping/whirring, vibration/wobble, weak airflow, or visible blade damage

• One fan blade

• Disconnect power at the breaker and allow the appliance to cool completely before servicing
• Access the fan assembly from the rear panel or inside the oven behind the fan cover (varies by model); wear gloves—edges can be sharp
• Note blade orientation/rotation and securely reinstall using the original fastener(s)
• Hand-spin the blade to ensure clearance and free movement before reassembly and testing

This is a nut that is used in many microwave ovens. It is typically used to hold interior fan in place. A nut is a fastener that is used to hold two items together or keep one component secure against a surface. Use and time can cause the nut to become stripped, damaged, or broken. If the nut is broken, it will no longer hold the fan in the right location. The nut will need to be replaced.Before replacing this part, the microwave should be unplugged. Open the refrigerator door and remove the cover that goes over the fan. The nut can then be removed using a nut driver. Replace the other parts before using the appliance.This nut is used in microwave ovens manufactured by Crosley, Electrolux, Frigidaire, and Kenmore. It is sold as a single part. This is an authentic OEM replacement part is sourced directly from the manufacturer.

The Thermostat is an OEM replacement part for Frigidaire ranges. It monitors the oven's temperature and cuts power if temperatures surpass safe levels. The high-limit thermostat allows protection against overheating.

Causes of a bad thermostat include wear and tear over time, damage due to exposure to extreme heat, or malfunctioning electronic components.

Symptoms of a bad thermostat include:

• Oven does not start at all.
• Excessive temperature fluctuations
• Risk of overheating as thermostat fails to shut off gas or electric coils
• Smoking or burning smells from the oven

This genuine Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore gas ranges.

A replacement evaporator fan motor that circulates cold air across the evaporator and through the fresh food and freezer compartments to help maintain even temperatures and consistent cooling performance. What it does:

• Powers the evaporator fan to move cold air through the refrigerator and freezer.
• Restores airflow when a failed fan motor causes uneven cooling or warm spots.
• Stops continuous frost build-up on the evaporator caused by poor or no airflow.
• Eliminates loud grinding, buzzing, or rattling noises coming from the freezer area.

• Disconnect power to the appliance before attempting any repair to avoid electrical shock.
• Access typically requires removing interior panels or the evaporator cover; keep track of screws and clips.
• Handle the fan blade carefully and test operation after restoring power.

This Tube Assembly routes water inside the refrigerator to the dispenser and ice-maker, restoring proper water flow and preventing leaks when the original line is damaged. Reliable replacement for delivery and fill connections. What it does:

• Transports water from the inlet to the ice maker/dispenser assembly
• Replaces cracked, kinked, or leaking tubing that causes puddles or low water flow
• Helps restore normal ice production and dispenser operation when the tube is the fault
• Matches OEM routing and connector types for correct fit and seal

• One tube assembly as shown

• Disconnect power and shut off the water supply before starting
• Remove ice maker or access panel as needed to reach routing; follow OEM service instructions
• Inspect fittings and replace any damaged clamps or seals; avoid kinking the new tube
• After installation, turn on water, check for leaks, and run dispenser/ice cycles to confirm proper flow

This spacer positions and supports components to maintain proper alignment and clearance in the appliance. It prevents rubbing and ensures panels or parts sit correctly for reliable operation. What it does:

• Keeps panels, brackets or assemblies spaced correctly to prevent contact and wear
• Restores proper alignment to reduce vibration, noise or rubbing symptoms
• Maintains clearance for airflow or moving parts where specified
• Provides a stable mounting point for adjacent components

• One spacer

• Install in the location shown in the service diagram and secure with the original fasteners
• Disconnect power to the appliance before beginning service to avoid shock or injury
• If the original spacer shows damage or distortion, replace it to restore correct fit

Replacement water-line tube that routes water inside the refrigerator to the ice maker or dispenser, helping restore proper water flow and reduce leaks. Designed to match factory routing so the line fits and seals correctly at the connections. What it does:

• Carries water from the cabinet valve to the ice maker or dispenser.
• Restores normal dispenser flow and ice production when the tube is cracked, pinched, or clogged.
• Helps stop visible leaks or pooling caused by damaged or misrouted tubing.
• Matches factory bends for correct routing and clearance behind panels.

• Disconnect power and shut off the water supply before starting any work.
• Remove shelves or panels as needed for access; watch for sharp edges.
• Check and replace any worn clamps or fittings; tighten connections and test for leaks with water on before reassembling.

This mounting bracket secures internal panels or components to the appliance frame, restoring stable support and alignment for proper operation. Use when a bracket is bent, broken or missing to reduce rattling and keep parts positioned correctly. What it does:

• Anchors panels or components to the cabinet/frame to prevent movement and vibration
• Restores proper alignment of doors, panels or internal assemblies
• Stops rattling or buzzing caused by loose or damaged support hardware
• Helps maintain safe clearance between parts and wiring or moving components

• Disconnect power to the appliance before starting any repair
• Basic hand tools typically required; follow OEM instructions for correct fastener locations
• Inspect adjacent fasteners and mounting surfaces; replace any damaged screws or clips
• If bracket is corroded or severely deformed, replace rather than re-bend to ensure proper fit

This is a replacement mounting screw used to secure the appliance power/control board, restoring a solid electrical board connection and preventing vibration or loose contacts. Ideal for repairs where the original screw is missing or damaged. What it does:

• Fastens the power/control board to the appliance chassis to keep connections stable
• Helps prevent board movement that can cause intermittent electrical issues or noise
• Restores proper mounting after service or component replacement

• Turn off and unplug the appliance before starting any repair
• Use appropriate screwdriver and avoid over-tightening to prevent board or thread damage
• Wear eye protection and keep small parts away from children and pets

Replacement screw that secures panels, trim and internal components in compatible appliances. Restores proper fit and helps reduce rattling or loose parts when the original fastener is missing, worn, or damaged. What it does:

• Fastens panels, brackets, trim pieces and small component assemblies to the appliance frame
• Helps eliminate noise and vibration caused by loose or missing fasteners
• Replaces stripped, corroded or missing screws to restore secure mounting
• Matches OEM fit when the identical screw is required for proper alignment

• Disconnect power to the appliance before starting any repair
• Use the correct driver size to avoid cam-out or damage to the screw head
• Do not overtighten; overtightening can strip threads or crack plastic parts

This replacement light bulb restores bright, dependable illumination inside your oven so you can monitor cooking without opening the door. Swap it in when the oven light is out, very dim, or flickers during use. What it does:

• Illuminates the oven cavity in a range or wall oven
• Lets you check food without opening the door and losing heat
• Common fix for no light, dim light, or intermittent flickering
• Replaces a burned-out/broken bulb as the first step in troubleshooting

• One light bulb

• Disconnect power at the breaker or unplug the appliance; allow the oven to cool completely.
• Remove the light cover/lens per your model; handle glass components carefully.
• Install the new bulb securely; avoid touching the glass with bare hands—use a clean cloth or gloves.
• Reinstall the cover, restore power, and test the oven light.

The Screw is an OEM part for Frigidaire ranges and ovens. This part is designed to securely fasten various parts of the appliance, ensuring stability and durability.

Over time, screws can become loose due to the expansion and contraction of materials with temperature changes. Regular use and the occasional necessary removal for repairs or cleaning can also wear down the threads, making them less effective.

Symptoms of a bad Screw (Chrome) include:

• Loose or wobbly components that should be securely fastened.
• Difficulty in securing parts due to stripped or damaged screw threads.
• Visible corrosion or deterioration of the screw.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Size: 8-18 x 0.5 inch. Color: Chrome.
