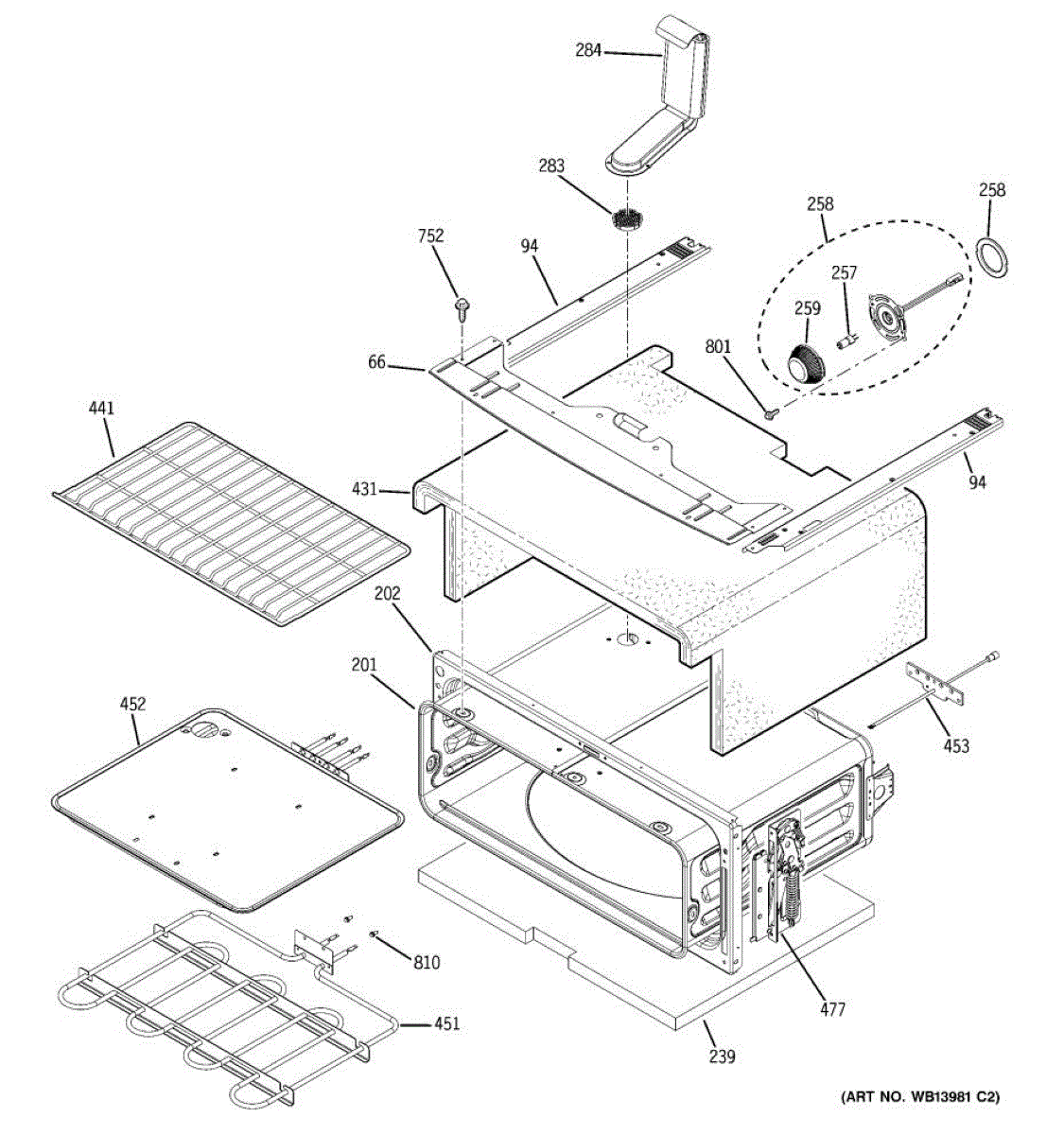

Parts for Ge PB970KM3CC: 03 - Upper Oven Parts

The Lamp Halogen is an OEM part for GE ovens. It illuminates the oven interior, allowing you to clearly see the food while it cooks. This light is particularly useful for monitoring the progress of your baking or roasting without opening the oven door and losing heat.

Causes of a bad halogen lamp can include regular wear and tear, electrical surges, or damage from high temperatures. Over time, the filament within the halogen lamp can degrade, leading to a loss of illumination.

Symptoms of a bad halogen lamp include:

• The oven light not turning on
• Flickering light inside the oven
• Dim illumination that affects visibility
• The light bulb appearing dark or burned out

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven rack is a replacement chrome wire shelf that supports cookware and bakeware inside the oven, restoring proper airflow and cooking position. It slides into the oven's rack rails and provides a stable surface for pans and trays. What it does

• Replaces a missing, bent, or damaged oven rack so cookware sits level during baking and roasting
• Restores proper rack spacing and airflow for even cooking
• Allows trays and pans to slide in and out smoothly when rack rails are intact
• Helps prevent cookware from tipping or sliding during use

• One chrome oven rack

• No tools typically required; slide rack into the oven's existing rack guides until it seats securely
• Inspect rack rails for damage or buildup and clean before installing to ensure smooth operation
• Use oven mitts or heat-resistant gloves when removing or installing racks in a hot oven
• Do not modify the rack; replace if bent or warped

This bake element is the lower oven heating element that produces the heat needed for bake cycles, restoring oven temperature and consistent cooking performance when the original element is damaged or not heating. What it does:

• Heats the oven cavity during bake cycles to maintain set temperatures for baking and roasting.
• Restores heating when a burned, broken or visibly damaged element causes little or no heat.
• Helps correct uneven cooking or longer-than-normal preheat times when caused by a faulty element.
• Direct-fit replacement designed to mount in the oven's lower cavity and connect to existing wiring.

• Disconnect power to the appliance at the circuit breaker before starting any work.
• Allow the oven to cool completely and remove oven racks before accessing the element.
• Replace the element mounting screws and wire terminals exactly as removed; ensure tight, secure connections.

The Temperature Sensor is an OEM part for GE ovens. It plays a role in monitoring and regulating the oven's internal temperature, ensuring accurate heating and cooking performance. This sensor works by detecting the temperature inside the oven cavity and communicating with the main control board to maintain the set temperature throughout the cooking process.

Causes of a bad Temperature Sensor can include exposure to extreme temperatures leading to sensor failure, wear and tear over time, or damage from oven cleaning agents or spills that may affect its functionality.

Symptoms of a bad Temperature Sensor include:

• Oven not reaching the set temperature.
• Overheating or underheating, leading to unevenly cooked food.
• Frequent error messages from the oven's electronic control.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement mounting screw is used in cooking appliances to fasten components securely. It restores a tight, rattle-free fit so panels, brackets, or burner-related parts stay properly aligned during everyday use.

• Secures appliance components to the chassis or assembly
• Replaces a missing, stripped, or corroded screw
• Helps resolve loose panels, wobbling parts, or vibration noises
• Supports proper alignment of mounted parts

• Disconnect power at the breaker; for gas units, also shut off gas supply
• Allow the appliance to cool completely before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly without overtightening; replace damaged threads or hardware as needed

ST10-16 X 7/16"

This replacement screw secures appliance components so panels, brackets, and assemblies stay tight and aligned. Replace stripped or missing hardware to eliminate rattles and keep your unit assembled safely and correctly.

• Fastens panels, brackets, or components to the appliance frame
• Restores a secure fit when the original screw is lost, stripped, or corroded
• Helps prevent vibration noise and movement during operation
• Supports proper alignment of trim and assemblies

• Disconnect power; for gas units, also shut off the gas supply
• Use the correct driver to avoid stripping the head; do not overtighten
• Inspect and address damaged mating threads, clips, or brackets before reinstalling
• Refer to your model's parts diagram to confirm location and quantity
