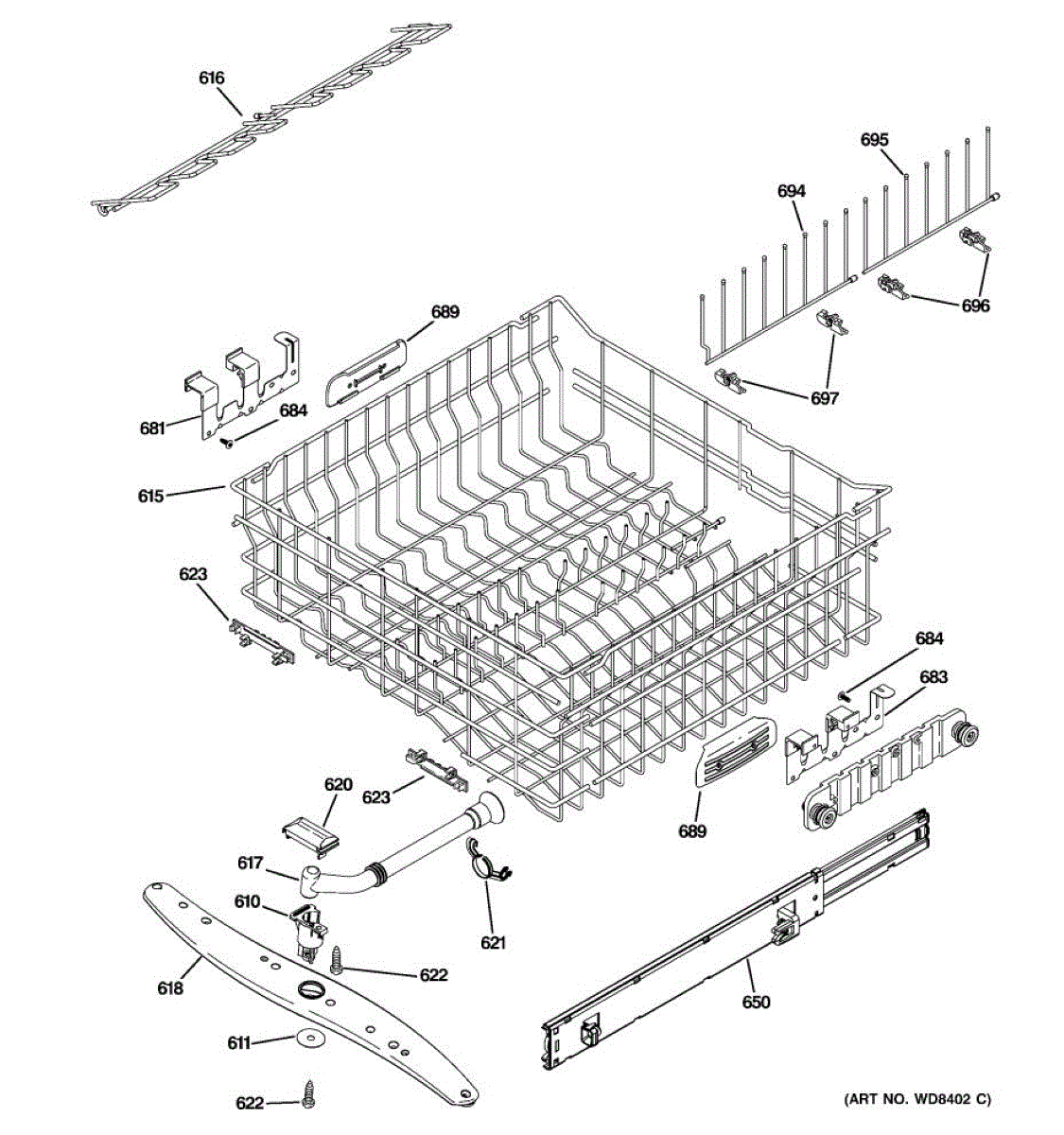

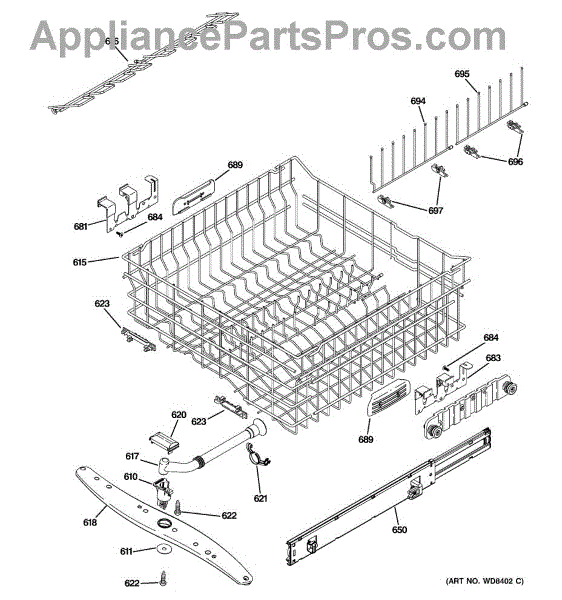

Parts for Ge CDWT980V00SS: 03 - Upper Rack Assembly Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Specs: B-16 HXW 1/2 SS

Routes water from the pump to the middle spray arm in your dishwasher. Replace if cracked, clogged, or leaking to restore proper water delivery to the rack.

This middle spray arm assembly mounts at the center wash level and distributes pressurized water across both racks. Replacing a damaged or clogged arm restores even spray coverage and helps resolve weak cleaning performance, especially on the upper rack.

• Directs and disperses wash water from the mid-level for thorough coverage
• Rotates to spray dishes on both racks when unobstructed
• Helps when dishes come out dirty, the top rack isn't getting clean, or the arm is cracked/clogged
• Restores proper spray pattern and circulation

• Disconnect power and water supply before servicing the dishwasher
• Open the dishwasher; remove the upper rack if needed. Release the retainer and pull the old mid-level arm off its hub/tube
• Align and press the new arm onto the hub until secure; it spins freely
• Run a test cycle to normal spray and rotation

This middle spray arm bracket secures the mid-level spray arm to the upper rack, keeping it centered and aligned so it spins freely and delivers even spray coverage for reliable cleaning performance.

• Supports and stabilizes the middle spray arm beneath the upper rack
• Maintains proper clearance for smooth rotation and spray pattern
• Replace if cracked, warped, or worn
• Common symptoms: middle arm falls off or won't spin, wobbles, scraping noises, or poor cleaning on the upper rack

• Disconnect power to the dishwasher before servicing
• Slide out the upper rack; release tabs or fasteners to remove the old bracket
• Transfer the spray arm to the new bracket and snap or secure it in place
• Spin the arm by hand to ensure free rotation before running a cycle

Secures the middle water feed tube to the upper rack in your dishwasher. Replace if cracked, broken, or missing to keep the conduit properly aligned.

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Replacement finger indexer for dishwasher dishrack. Installs on the left side to guide and separate dishes. Replace if cracked, broken, or missing.

Replacement finger indexer for dishwasher dishrack. Installs on the right side to secure and guide dish rack movement. Order if broken or missing.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Left-hand lever rack assembly for dishwashers. Installs on the rack mechanism to restore proper lever engagement. Replace if cracked, broken, or worn.

Right-hand lever rack assembly for dishwashers. Replaces worn or broken lever support components. Restores smooth lever movement and secure latch operation.

Specs: 8-18 b por 1/2 ss

This hex washer-head screw is used in dishwashers to secure panels, brackets, and other hardware. Replacing a missing or corroded fastener restores a tight, stable installation and helps stop looseness or vibration during cycles.

• Fastens dishwasher panels, brackets, trim, or mounts to the cabinet/frame
• Replaces lost or stripped hardware after service or installation
• Helps address loose or rattling panels and minor misalignment
• Stainless steel construction per OEM spec for moisture-prone environments

• Disconnect power and water supply before servicing the dishwasher
• Wear gloves; sheet metal edges can be sharp
• Start threads by hand to avoid cross-threading; tighten with an appropriate driver
• Do not overtighten, especially when threading into plastic

Dishwasher rack tine clip. Used to hold the tines in place within the rack. Color: gray. Measures about 1 inch wide by 1 inch high by 1-1/2 inches deep.

Small clip that secures the tine row insert to your dishwasher rack. Replace if broken, cracked, or missing to keep dishes upright during wash cycles.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
