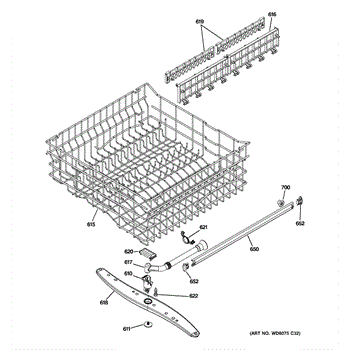

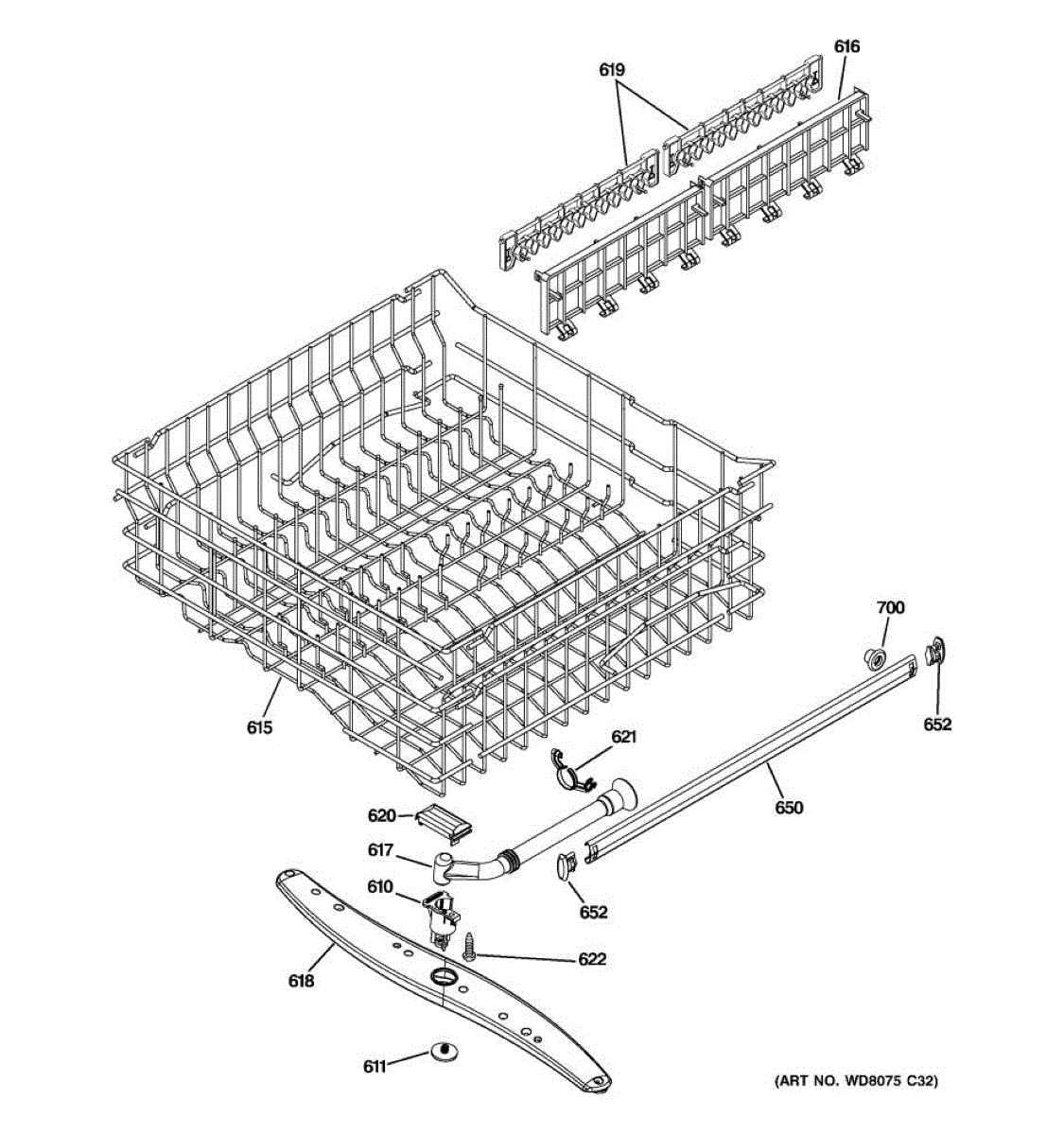

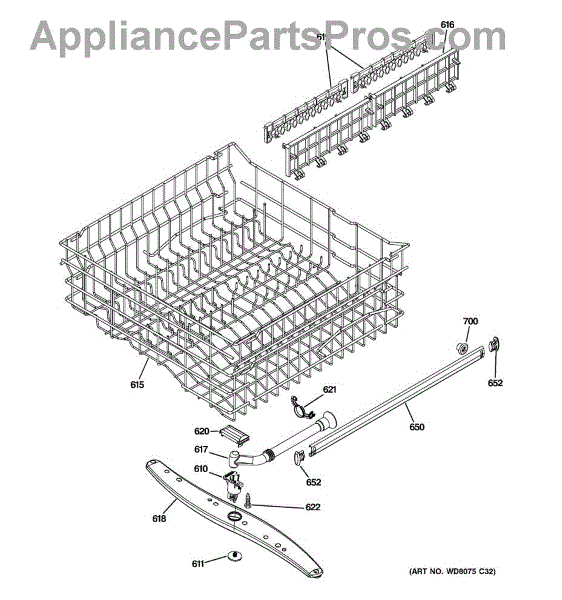

Parts for Ge GLD5666V15SS: 03 - Upper Rack Assembly Parts

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

Dishes not getting clean in the upper rack? A worn middle spray arm hub prevents proper rotation and water distribution. DIY fix in 15 minutes.

Specs: B-16 HXW 1/2 SS

Multi-purpose shelf for dishwasher interior. Replaces broken, cracked, or missing shelves. Adds versatile storage space for small items during wash cycles.

Routes water from the pump to the middle spray arm in your dishwasher. Replace if cracked, clogged, or leaking to restore proper water delivery to the rack.

This middle spray arm assembly mounts at the center wash level and distributes pressurized water across both racks. Replacing a damaged or clogged arm restores even spray coverage and helps resolve weak cleaning performance, especially on the upper rack.

• Directs and disperses wash water from the mid-level for thorough coverage
• Rotates to spray dishes on both racks when unobstructed
• Helps when dishes come out dirty, the top rack isn't getting clean, or the arm is cracked/clogged
• Restores proper spray pattern and circulation

• Disconnect power and water supply before servicing the dishwasher
• Open the dishwasher; remove the upper rack if needed. Release the retainer and pull the old mid-level arm off its hub/tube
• Align and press the new arm onto the hub until secure; it spins freely
• Run a test cycle to normal spray and rotation

Secures wine glasses and goblets in your dishwasher rack. Replace broken, cracked, or missing stemware clips to prevent tipping during wash cycles.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.

This middle spray arm bracket secures the mid-level spray arm to the upper rack, keeping it centered and aligned so it spins freely and delivers even spray coverage for reliable cleaning performance.

• Supports and stabilizes the middle spray arm

Secures the middle water feed tube to the upper rack in your dishwasher. Replace if cracked, broken, or missing to keep the conduit properly aligned.

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration

Snaps onto the dishwasher rack rail to prevent the rack from sliding off the track. Replace if cracked, broken, or missing to restore secure movement.

Removes residue, odor-causing soils, and food particles from dishwasher tub and gasket. Use monthly to eliminate unwanted odors and maintain peak performance.
