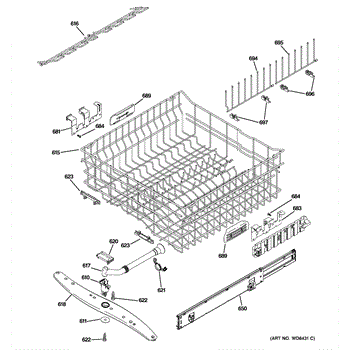

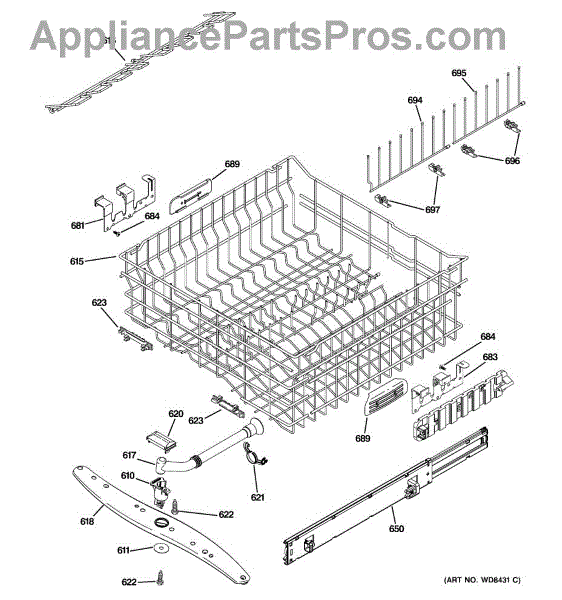

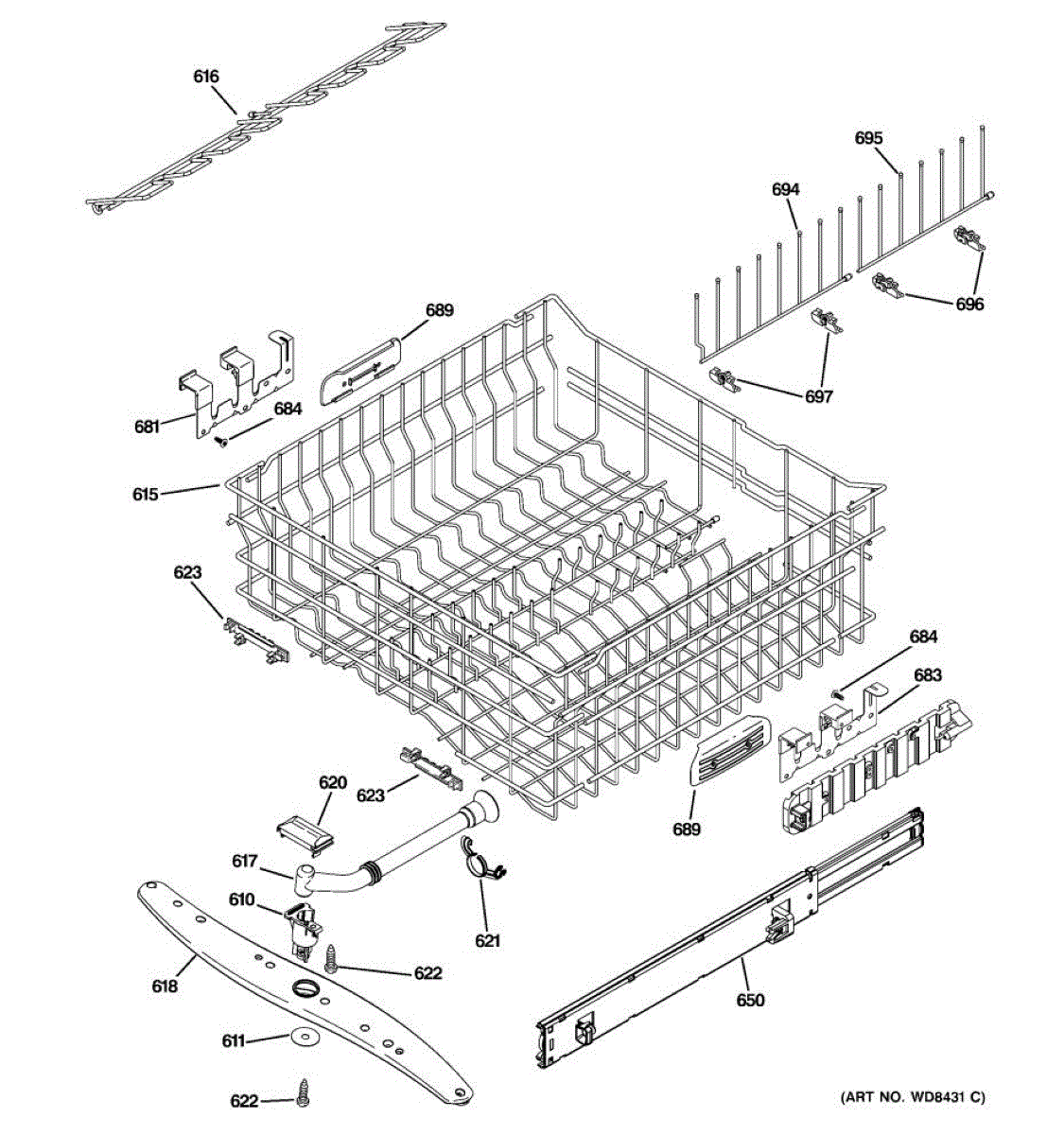

Parts for Ge ZBD7920V50SS: 03 - Upper Rack Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This middle spray arm hub secures the dishwasher's middle spray arm to the feed tube and lets it spin smoothly, helping deliver even spray coverage so dishes in the upper rack area get properly cleaned.

• Connects the middle spray arm to the water feed/manifold and serves as its rotating center
• Keeps the arm aligned so jets can distribute water evenly
• Wear or cracks can cause the arm to wobble, fall off, bind, or stop spinning
• Symptoms include poor cleaning on the upper rack and unusual noise from the arm area

• Disconnect power and water supply before servicing
• Remove the middle spray arm per your model's design and note its orientation
• Transfer and reuse any original screws, clips, or washers; install the new hub without overtightening
• Spin the arm by hand to ensure free movement before running a brief test cycle

Specs: B-16 HXW 1/2 SS

This mid-spray conduit routes wash water from the circulation system to the middle spray arm, delivering consistent coverage to the center rack. Replacing a cracked or clogged conduit can restore washing performance and help prevent leaks inside the tub.

• Directs wash water from the pump to the mid-level spray arm
• Maintains proper flow for the middle wash zone and spray arm rotation
• A damaged or obstructed conduit can cause poor cleaning on upper racks or weak/erratic spray
• Cracks, broken tabs, or loose sealing can lead to leaks from the rear of the tub

• Disconnect power and water; wear gloves to protect hands
• Remove rack(s) as needed, release rear-wall fasteners/clips, and detach the conduit from its connections
• Align and fully seat the new conduit at all docking points until tabs lock securely
• Run a short test cycle to check for leaks and proper spray operation

This middle spray arm bracket secures the mid-level spray arm to the upper rack, keeping it centered and aligned so it spins freely and delivers even spray coverage for reliable cleaning performance.

• Supports and stabilizes the middle spray arm beneath the upper rack
• Maintains proper clearance for smooth rotation and spray pattern
• Replace if cracked, warped, or worn
• Common symptoms: middle arm falls off or won't spin, wobbles, scraping noises, or poor cleaning on the upper rack

• Disconnect power to the dishwasher before servicing
• Slide out the upper rack; release tabs or fasteners to remove the old bracket
• Transfer the spray arm to the new bracket and snap or secure it in place
• Spin the arm by hand to ensure free rotation before running a cycle

This middle conduit carrier secures the dishwasher's water feed tube so it stays aligned as the rack moves. Replacing a cracked or missing carrier helps restore reliable spray delivery and consistent cleaning performance.

• Secures and guides the middle water conduit/feed tube on the rack
• Keeps the conduit aligned with the rear water port for consistent spray
• Helps prevent rack binding or rattling from a loose feed tube
• Helps with weak spray or poor cleaning on the upper rack when the carrier is damaged

• Disconnect power and turn off water before servicing
• Pull the rack forward; release the old carrier's tabs or fastener and detach from the feed tube
• Snap or fasten the new carrier in place; ensure the conduit seats fully at the rear port
• Verify smooth rack travel and run a brief test cycle to check operation

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

Left hand side

Right hand side

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This left-hand lever rack assembly restores proper lever engagement and movement on compatible GE appliances, helping racks or lever-linked mechanisms operate smoothly and reliably. What it does:

• Replaces a damaged or worn left-hand lever rack that no longer secures or guides the lever mechanism
• Restores proper engagement and stable movement for the affected rack or lever
• Helps fix symptoms like slipping, sticking, or misaligned lever/rack operation
• Matches OEM fit and form to maintain original function and alignment

• Disconnect power before attempting any repair; unplug or switch off the breaker.
• Basic hand tools are typically required; follow the appliance service manual for exact disassembly steps.
• Handle plastic parts carefully to avoid damage; verify proper seating and alignment before reassembly.

This right-hand lever rack assembly replaces a worn or broken lever support to restore smooth lever movement and secure latch operation. It rebuilds the mechanical linkage that guides and transmits lever motion for proper door/control function. What it does

• Guides and supports the right-hand lever so the latch or actuator moves smoothly
• Transfers lever motion to the latch/door mechanism for reliable closing and opening
• Restores proper alignment when a cracked or bent rack causes sticking or mis-engagement
• Can reduce binding, clicking, or intermittent latch failures related to a damaged rack

• One right-hand lever rack assembly

• Disconnect power before starting any repair
• Access typically requires removing the appropriate front or access panel; use basic hand tools
• Handle plastic components carefully to avoid damage; do not force parts into place
• Refer to manufacturer instructions for torque, alignment, and reassembly steps

Specs: 8-18 b por 1/2 ss

Dishwasher rack tine clip. Used to hold the tines in place within the rack. Color: gray. Measures about 1 inch wide by 1 inch high by 1-1/2 inches deep.

The comb retainer is the small clip that secures the rack comb/tine row to your dishwasher's rack. It keeps the insert firmly in place so dishes stay upright and wash effectively without the tines coming loose.

• Locks the rack comb/tine insert onto the rack wires to prevent shifting
• Helps keep plates, lids, and cookware upright during cycles
• Restores stability when the original retainer is cracked, worn, or missing
• Common symptoms: comb/tine row loosens or falls off, dishes tip over, or you notice rattling in the rack

• Unplug the dishwasher and shut off the water supply before servicing
• Pull out the rack and note the retainer's orientation for reference
• Release and remove the damaged retainer; align and snap the new retainer securely onto the comb and rack wire
• Confirm the comb/tine row is firmly attached and the rack moves freely before running a cycle
