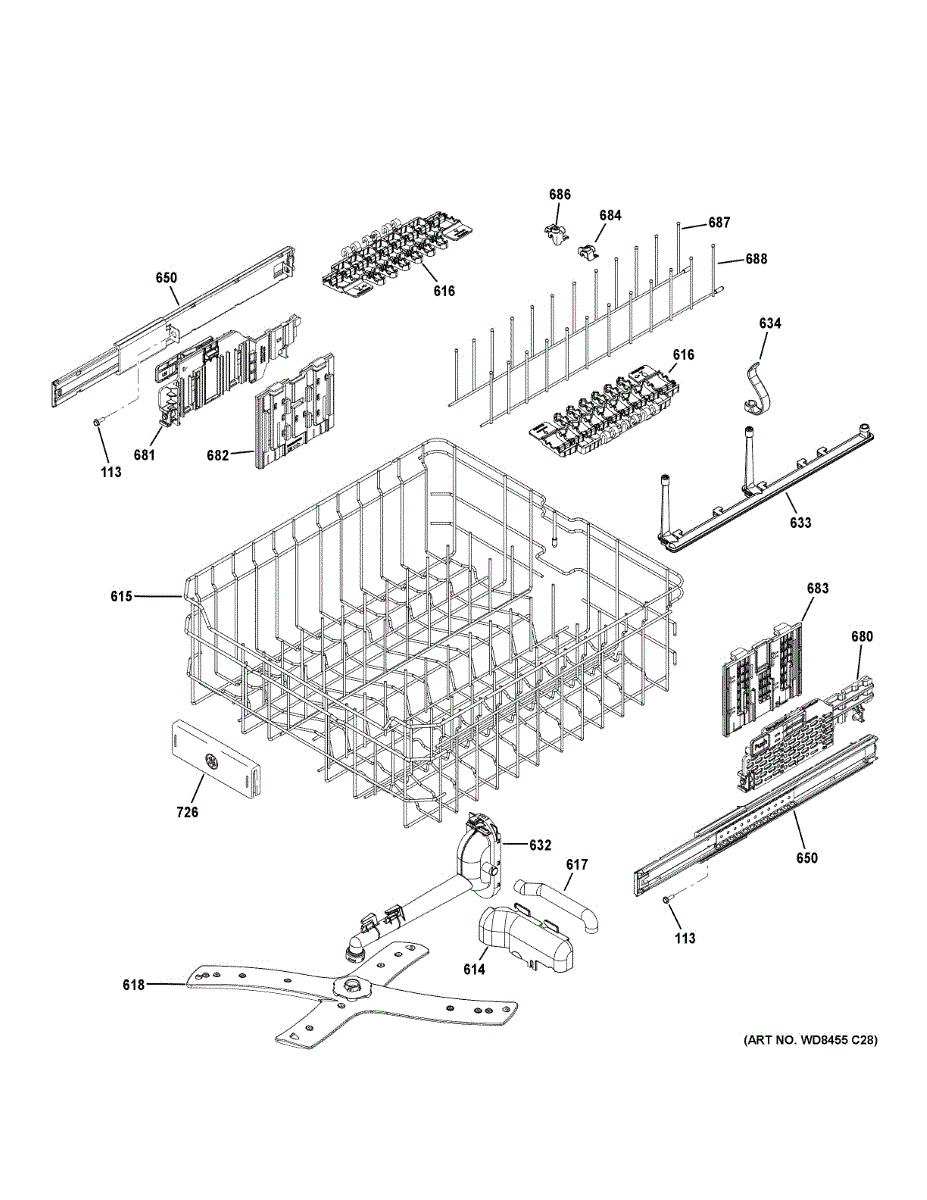

Parts for Ge PDF820SGJ4BB: Upper Rack Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The screw is an OEM replacement component for GE dishwashers. It is used to securely fasten parts inside the dishwasher tub assembly.

Causes of a damaged or defective screw usually involve wear from continuous mechanical stresses and vibration during dishwasher usage. Loose parts affect machine balance and performance.

Symptoms of a compromised screw placement include:

• Noises or abnormal sounds coming from inside the tub
• Intermittent error codes related to moving components
• Detached or misaligned spray arms or filters
• Insecure tub fixtures that can be jarred with normal operation

This GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Bottle Hose Cover is an OEM replacement part for GE dishwashers. It refers to the protective plastic sheath that sleeves the circulation hose carrying water between the appliance and sink. Subject to prolonged exposure to heat and chemicals, the hose cover material can degrade.

Causes of a bad bottle hose cover include:

• Brittle or cracking vinyl from chemical deterioration over time
• Loose fit or sliding off the hose allowing kinks or sharp bends to form
• Holes or gaps exposing the underlying tubing to potential punctures

Symptoms of a failed hose cover include:

• Water leaks at connections if tubing is unprotected
• Restricted water flow due to crimped tubing from improper routing
• Unsightly tubing detracting from the overall aesthetic

This GE replacement part is also compatible with some Hotpoint and RCA models.

This upper rack is a direct-fit replacement that restores the top-level dish storage area and allows safe, secure loading of cups, glasses and small bowls. It brings back proper rack support and organization for everyday dishwasher use. What it does:

• Supports cups, glasses and small dishes on the top rack to improve loading capacity and wash coverage
• Restores smooth sliding and proper alignment of the upper rack assembly
• Helps prevent items from tipping or blocking spray arms when the rack is installed correctly
• Addresses common symptoms like sagging, broken rack supports or bent rails that interfere with rack movement

• 1 upper rack

• Disconnect power and water to the dishwasher before servicing
• Remove the old rack by sliding it out and detaching any end caps or stops; install the replacement by aligning and sliding onto the existing track/rollers
• Keep all original rollers, end caps and supports; replace damaged hardware as needed
• After installation, run an empty quick wash to ensure proper fit and smooth operation

This replacement hose feeds the Bottle Jets/Bottle Blaster feature on compatible dishwashers. It carries wash water to the jet manifold so tall, narrow items receive targeted spray and helps prevent leaks from a cracked or brittle line. What it does:

• Routes wash water to the Bottle Jets/Bottle Blaster manifold for targeted cleaning
• Maintains a sealed path so jets can spray inside bottles and other narrow containers
• Common symptoms: leaks at the hose or connections, weak/no bottle-jet spray, visible cracks, kinks, or a loose hose
• Helps restore bottle-jet performance when the original hose is damaged

• 1 hose

• Disconnect power at the breaker and shut off the water supply before servicing
• Pull the dishwasher forward and/or remove rack components as needed to access both hose ends
• Transfer/secure clamps, fully seat the hose on each barb, and route it to avoid kinks or rubbing
• Reassemble and run a short test cycle while checking all connections for leaks

The Middle Spray Arm Assembly is an OEM replacement part for GE dishwashers. It is responsible for distributing water and detergent during the wash cycle for thorough cleaning of your dishes. This part delivers a strong and consistent spray of water to effectively remove food particles and stains from your dishes.

Symptoms of a faulty mid spray arm assembly include:

• Inadequate cleaning of dishes
• Visible food particles or residue after the wash cycle
• Reduced water pressure during the wash cycle

A bad mid spray arm assembly can occur due to wear and tear over time, clogging from debris or mineral deposits, or physical damage. If you notice poor cleaning results, reduced water pressure, or the spray arm not spinning properly, it may be time to replace the old or damaged mid spray arm assembly with this genuine OEM part.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


The Mid Conduit Blaster is the mid-level water outlet in your dishwasher's wash system. It directs pressurized water through the middle conduit, helping deliver consistent spray to the middle rack for reliable cleaning performance.

• Directs wash water into the mid-level conduit and spray system
• Helps maintain proper pressure and spray coverage for middle-rack cleaning
• Damage or clogging can lead to weak spray, poor cleaning on the middle/upper racks, or unusual noise
• Replace if cracked, missing, or leaking at the conduit connection

• Disconnect power and shut off the water supply before servicing
• Pull out racks as needed to access the mid-level conduit
• Release locking tabs or fastener, remove the old outlet, and seat the new one fully in the correct orientation
• Restore power and water, then run a short cycle to check spray action and for leaks

This bottle blaster assembly supplies targeted wash water to the dishwasher's Bottle Jets to clean tall, narrow items like baby and sports bottles. Replace a damaged or clogged assembly to restore focused spray and top-rack cleaning performance. What it does:

• Routes wash water to the bottle jet nozzles for concentrated cleaning inside bottles and narrow openings
• Helps improve cleaning on items positioned over the Bottle Jets
• Failure symptoms include no spray from the bottle jets, poor upper-rack cleaning, leaks near the jet area, or visible cracks/damage

• 1 bottle blaster assembly

• Disconnect power and shut off water to the dishwasher before servicing
• Access the bottle jet area; release retaining clips/fasteners and note hose routing and connection points
• Transfer any reusable clips or seals from the original assembly if needed
• Fully seat connections; run a short cycle to check for leaks and proper jet spray

The Bottle washer clip is an OEM part for GE dishwashers. Located on the upper rack, it secures slender items like baby bottles, utensils, and cups in an upright position for optimal cleaning.

Causes of a bad bottle washer clip include wear and tear over time which leads to cracking or breaking of the plastic. Accidental mishandling during loading could also damage it.

Symptoms include:

• Bottles and other items falling over during the wash
• Inability to stand items up securely
• Missing or broken plastic clips

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Upper Dishrack Rail is an OEM part for GE dishwashers. It supports the upper dishrack, allowing it to slide in and out smoothly for easy loading and unloading of dishes. This rail ensures that the dishrack remains stable and functions correctly during the wash cycle.

You should replace the upper dishrack rail if it becomes damaged or worn out. Over time, the rail can suffer from wear and tear due to the constant movement of the dishrack. Accidental impacts or bending can also compromise the integrity of the rail, leading to improper function.

Symptoms of a bad upper dishrack rail include:

• The upper dishrack not sliding in and out smoothly
• The dishrack becoming unstable or falling off the track
• Visible damage or bending of the rail
• Increased noise during the operation of the dishwasher

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Upper Rack Bracket Assembly is an OEM replacement part for  GE dishwashers. It is located inside the dishwasher tub and functions to securely mount the upper dish rack. It allows for adjustable height positioning and prevents rack movement during washing.

Causes of a bad upper rack bracket assembly can include cracks or breaks in the mounting points, stripped screw holes allowing rack sway, or deformities preventing proper seating.

Symptoms of a bad upper rack bracket assembly include:

• Loosening or detaching of the upper rack during the cycle
• Restricted rack adjustment or inability to set desired height
• Noise or vibration from an unsecured rack vibrating against the tub

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

The Upper Rack Bracket Assembly is an OEM replacement part for GE dishwashers. It is located inside the dishwasher tub and functions to securely mount the upper dish rack. It allows for adjustable height positioning and prevents rack movement during washing.

Causes of a bad upper rack bracket assembly can include cracks or breaks in the mounting points, stripped screw holes allowing rack sway, or deformities preventing proper seating.

Symptoms of a bad upper rack bracket assembly include:

• Loosening or detaching of the upper rack during the cycle
• Restricted rack adjustment or inability to set desired height
• Noise or vibration from an unsecured rack vibrating against the tub

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

A fixed mounting bracket that secures and stabilizes a component or panel in place, helping prevent movement and vibration for reliable appliance operation. Simple, durable replacement for worn or damaged brackets. What it does:

• Holds a panel, trim, or assembly securely to the appliance frame
• Keeps parts aligned to prevent rubbing, rattling, or misfit
• Restores proper support when an original bracket is bent, cracked, or broken
• Helps reduce noise caused by loose or unstable components

• Disconnect power (and water if applicable) before starting work
• Use the factory fasteners or equivalent-size screws to secure the bracket
• Inspect mating surfaces and hardware for damage; replace any stripped screws

This fixed dishrack bracket secures one end of a rack component (such as a fold-down tine row), keeping it anchored during wash cycles. Replace a cracked or missing bracket to restore stable support and reliable rack function.

• Anchors a rack component to the dishrack in a fixed position
• Helps keep dividers/tines aligned so dishes stay upright
• Replaces a broken, worn, or missing bracket
• Symptoms may include loose or collapsing tines, dishes tipping, or visible bracket damage

• Unload and extend the rack; remove the rack if needed for access
• Release the locking tabs/clips and remove the damaged bracket
• Align the new bracket and snap/slide it fully into place until it locks
• Verify a secure fit and smooth rack movement; wear gloves to protect hands
• Some racks use both fixed and adjustable brackets—confirm the side you need before ordering

This fold-down tine clip secures the collapsible tine row on the rack, helping hold dishes in place and letting the tines lock upright or fold flat for flexible loading. Replace a broken or missing clip to restore proper rack function.

• Attaches a fold-down tine row to the rack's wire frame so it pivots properly
• Helps the tines stay upright or lay flat as designed for flexible loading
• Can help resolve a loose or detached tine row and dishes tipping during cycles
• Common signs include a cracked, warped, or missing clip and tines that won't stay in position

• Disconnect power and shut off water before servicing
• Pull out the rack; remove it from the tub if needed for better access
• Note the original clip's orientation and location on the rack wires
• Snap the new clip fully into place and verify smooth fold-up/lay-flat action before use

This clip secures the fold-down tine row to the flat rack in your dishwasher, keeping the section stable during loading and washing. Replace a broken or missing clip to stop collapsing tines and restore smooth rack function. What it does:

• Holds the fold-down tine assembly to the rack wire
• Helps tines stay upright or folded as intended
• Addresses a loose, wobbly, or collapsing tine row
• Common replacement when the original clip cracks or goes missing
• Reduces rattling caused by an unstable tine section

• Disconnect power at the breaker before servicing.
• Remove the rack to access the clip location.
• Note orientation; snap the new clip onto the rack wire/tine bar until fully seated.
• The tine row moves smoothly and locks as intended before reinstalling the rack.

This coated upper FDT assembly is a direct replacement for the appliance's upper FDT structure, restoring worn or damaged upper components for reliable operation. It helps maintain alignment and reduces wear-related issues. What it does:

• Replaces the appliance's upper FDT assembly to restore proper fit and support.
• Provides the coated surface that helps protect mating parts from wear and abrasion.
• Helps correct symptoms such as rubbing or scraping noises, misalignment of the upper housing, and visible wear or damage.
• Restores the intended clearance and contact surfaces for smoother operation.

• One coated upper FDT assembly.

• Disconnect power to the appliance before starting any repair.
• Handle the coated surfaces with care to avoid scratching or damaging the finish.
• Retain and reuse existing mounting hardware unless replacement hardware is explicitly required.

This upper rack fold-down tine assembly replaces worn or rusted tines on your dishwasher's top rack. It restores secure, adjustable support so cups, bowls, and small items stay upright and protected during the wash.

• Provides adjustable rows of coated tines on the upper rack to hold items in place
• Folds flat to make room for larger dishes when needed
• Helps prevent tipping, chipping, and poor cleaning from items falling over
• Common signs: broken or missing tines, peeling coating and rust, items not staying upright on the upper rack

• Disconnect power to the dishwasher before servicing
• Pull the upper rack forward; release end stops to remove the rack if needed
• Unclip and remove the old fold-down tine assembly; align and snap the new assembly onto the rack wires in the same position
• Verify the tines fold and lock properly before running a cycle

A replacement rack cover handle for the dishwasher upper rack that restores a secure grip and smooth rack operation. Replaces a cracked, broken or missing handle so you can load and unload dishes more easily. What it does

• Attaches to the front of the upper rack to provide a handle for pulling the rack in and out.
• Restores proper alignment and prevents the rack cover from snagging when loading dishes.
• Replaces a handle that is cracked, loose, or broken and reduces the risk of cuts from sharp plastic edges.
• Helps maintain normal rack movement and prevents accidental rack drops.

• One rack cover handle.

• Disconnect power to the dishwasher before servicing to avoid electrical hazard.
• Empty the rack and remove any clips or stops as needed to access the handle mounting points.
• Requires basic hand tools (screwdriver or nut driver) to remove and install fasteners; keep track of any small clips or screws.
• Test rack movement after installation and do not overtighten fasteners to avoid cracking the replacement part.
