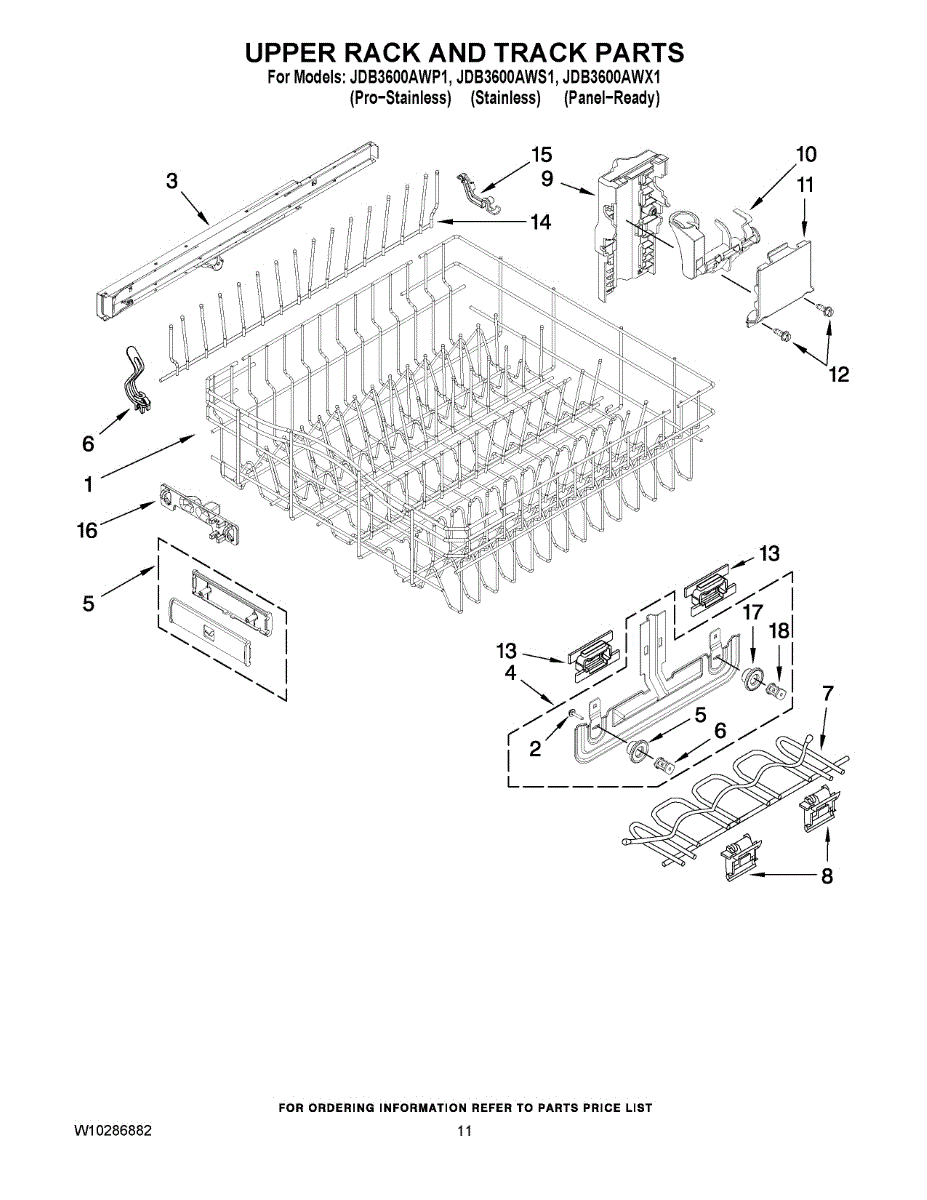

Parts for Maytag JDB3600AWS1: 09 - Upper Rack And Track Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This upper rack assembly restores the top loading area of your dishwasher and provides stable, organized support for glasses, cups and small dishes in an onyx black finish. Replaces a cracked, bent or missing upper rack. What it does

• Holds and secures cups, glasses and small dishes on the dishwasher's top rack
• Replaces damaged or warped racks that cause items to tip or nest
• Restores proper sliding and alignment if the upper rack catches or rides unevenly
• Matches onyx black interior finishes for a consistent look

• Disconnect power to the appliance before servicing
• May require removal of the lower rack and simple fasteners to slide the upper rack into place
• Handle carefully to avoid scratching the finish or bending rack tines

This replacement screw fastens appliance components such as panels, brackets, or trim. Use it to replace a missing, stripped, or rusty fastener and restore a secure, rattle-free fit in your appliance assemblies.

• Secures panels, brackets, or hardware to maintain proper alignment
• Helps eliminate vibration, rattling, or loose-feeling parts
• Replaces fasteners that are missing, corroded, or cross-threaded
• Typical signs you need it: loose handle or panel, gaps, or hardware that won't stay tight

• Disconnect power (and shut off gas, if applicable) before servicing
• Match thread type and length to the original fastener for proper fit
• Start threads by hand to avoid cross-threading; do not overtighten
• Reuse any original washers or clips if present

This rack track assembly guides the dishrack as it slides in and out, keeping it aligned and stable. Replacing a worn or broken track restores smooth rack movement and helps prevent derailing and uneven loading.

• Supports and guides the rack for smooth sliding action
• Maintains rack alignment to prevent wobbling or tipping
• Replaces cracked, warped, or broken rack tracks
• Common symptoms: rack binds, won't extend fully, falls off/derails, or sits unevenly

• Disconnect power to the appliance before servicing
• Pull the rack forward and release any rack end stops per your model
• Remove the old track, position the new track, and fully engage mounting tabs/clips
• Reinstall stops and verify the rack slides smoothly

This upper dishrack track mounts to the dishwasher tub wall and provides a smooth glide path for the rack rollers. Replacing a damaged track restores easy in-and-out movement and helps keep the upper rack aligned and secure.

• Guides and supports the upper dishrack as it slides in and out
• Maintains rack alignment to prevent binding or derailing
• Typical failure signs: rack jams or falls off, rough/squeaky travel, visible cracks or breaks in the track
• Can keep the rack from fully sliding in, making the door harder to close

• Disconnect power and turn off the water supply before servicing
• Remove the upper rack by releasing the end caps/stops
• Unfasten the old track from the tub (screws/clips), then position and secure the new track
• Reinstall the rack and end caps; verify smooth rack travel before restoring power and water

This genuine OEM adjuster helps set and fine-tune an appliance's alignment so doors close correctly and the cabinet sits level. It restores stable operation and reduces rocking or vibration caused by an uneven appliance surface. What it does:

• Provides a threaded adjustment point to raise, lower, or support an appliance corner or panel
• Helps correct uneven cabinets, tilted doors, or appliances that rock or vibrate during use
• Restores proper door alignment and sealing when misalignment is caused by height/level issues
• Works as the appliance's mechanical support where an adjustable foot or bracket is used

• Always disconnect power (and water, if applicable) before servicing the appliance
• Support the appliance securely before making height adjustments or removing/installing the adjuster
• Use appropriate hand tools; avoid excessive force that could damage threads or mounting points

Small clip that secures panels, trim or small components to keep parts properly seated and reduce rattling. Replacing a worn or broken clip helps restore fit and stops noise from loose assemblies. What it does:

• Secures trim, panels or small assemblies so parts stay aligned and stable
• Prevents vibration and rattling caused by loose or damaged fasteners
• Helps hold seals or wiring in place where used as a retainer
• Restores proper fit of the affected panel or component after failure

• Disconnect power to the appliance before servicing and work with dry hands
• Remove or loosen adjacent trim or panels as needed to access the clip location
• Note clip orientation, then press or snap the replacement clip into place until fully seated
• Reassemble panels and test appliance operation to confirm the repair

This cup shelf attaches to the upper rack and flips down to hold small cups, lids, and utensils securely during the wash. It helps organize the rack and improves cleaning by keeping lightweight items in place.

• Provides a stable surface for small cups and accessories on the upper rack
• Flips up when not in use to free rack space
• Helps prevent small items from being tossed by spray action
• Commonly replaced when cracked, warped, or missing

• Unplug the appliance or turn off power and water before service
• Open the dishwasher, lower the upper rack, and locate the mounting points
• Align and snap the cup shelf onto the rack tines or brackets
• Ensure it pivots smoothly and locks in the up/down positions before use

This adjuster kit is an OEM replacement part for Whirlpool dishwashers. Constructed of durable gray plastic and metal, this kit measures approximately 12 inches wide and 6.5 inches tall.

Symptoms of needing an Adjuster Kit include:

• Excessive vibrations or shaking during operation
• The appliance appearing unlevel or tilted
• Difficulty in opening or closing doors or drawers
• Increased noise levels or banging sounds

Causes of a bad or worn-out adjuster kit can include normal wear and tear over time, accidental impacts or mishandling, or improper installation or leveling during the initial setup.

This Kit Includes:

• (2) adjuster arms
• (2) adjuster actuators
• (2) gray adjuster covers
• (2) gray adjuster housings
• (4) screws
• Instruction sheet

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This adjuster kit is an OEM replacement part for Whirlpool dishwashers. Constructed of durable gray plastic and metal, this kit measures approximately 12 inches wide and 6.5 inches tall.

Symptoms of needing an Adjuster Kit include:

• Excessive vibrations or shaking during operation
• The appliance appearing unlevel or tilted
• Difficulty in opening or closing doors or drawers
• Increased noise levels or banging sounds

Causes of a bad or worn-out adjuster kit can include normal wear and tear over time, accidental impacts or mishandling, or improper installation or leveling during the initial setup.

This Kit Includes:

• (2) adjuster arms
• (2) adjuster actuators
• (2) gray adjuster covers
• (2) gray adjuster housings
• (4) screws
• Instruction sheet

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cover is a factory replacement access panel that protects internal components and restores the appliance's finished appearance. It keeps wiring and controls shielded from dust and accidental contact for safer, longer-lasting operation. What it does:

• Shields internal wiring, controls, and components from dust, debris and accidental contact
• Keeps small parts and fasteners secured inside the appliance cabinet
• Restores the appliance's finished exterior where the original cover was damaged or missing
• Helps maintain proper airflow routing and component spacing when installed correctly

• Disconnect power to the appliance before beginning any service to avoid shock or injury.
• Verify the cover orientation and fastener locations before securing; use OEM screws where specified.
• Handle with care to avoid scratching or bending the cover; ensure tabs snap fully into place.
• Inspect for damage and secure any loose parts before installing the cover.

Quantity of ONE. Size: 8-18 x 5/8 inch. (#8 screw, 18 threads per inch, 5/8 inch long)

This positioner aligns and secures its mating component in the correct location inside your appliance. Replacing a cracked, worn, or missing positioner restores proper fit so the assembly stays put and operates as designed.

• Holds the related part in the proper position and orientation
• Prevents shifting, sagging, or rattling during use
• Supports smooth adjustment or movement where applicable
• Common symptoms: loose or misaligned component, difficulty adjusting or seating the piece, visible cracks, or a missing clip

• Disconnect power; also shut off gas or water if your appliance uses these utilities
• Note the original orientation and take photos before removal
• Transfer any reused hardware and fully seat tabs/slots to avoid damage
• Wear cut-resistant gloves and check alignment after reassembly

This dishwasher rack tine row replaces a damaged or missing row so plates, lids, and shallow pans stand upright during the wash. Restores stable loading and spacing to help items stay put and get consistent spray coverage.

• Creates vertical dividers on the rack to hold dishes upright and separated
• Helps maintain spacing for effective spray coverage and drying
• Common symptoms of failure: bent or broken tines, row won't stay secured, or missing section
• When worn, dishes can tip over, reduce capacity, or cleaning performance may suffer

• Power off the dishwasher; wear gloves to avoid sharp edges
• Slide out and remove the affected rack for easier access
• Release locking tabs or clips to remove the old row; transfer any reusable end clips or retainers
• Snap the new tine row securely into place and reinstall the rack

This upper rack pivot clip secures the rack pivot/tine assembly so the dishwasher's upper rack stays aligned and operates smoothly. Replaces a broken or missing clip to restore proper rack positioning and movement. What it does

• Secures the upper rack pivot/tine so the rack stays level and engages the track
• Prevents the rack from slipping, sagging, or detaching when pulled
• Helps the rack slide smoothly in and out without catching
• Useful when the original clip is cracked, worn, or missing

• Disconnect power to the appliance before starting any repair
• Typically accessed from the side of the dishwasher; basic hand tools may be required
• Handle the small plastic clip carefully — it can snap if over-stressed

The Upper Dishrack Wheel is an OEM part for Whirlpool dishwashers. It is designed to allow the upper dishrack to slide in and out smoothly during loading and unloading. This wheel attaches to the dishrack and runs along the tracks inside the dishwasher, ensuring stable and easy movement.

You should replace the upper dishrack wheel if it becomes worn out or damaged. Causes of a bad dishrack wheel can include regular wear and tear from frequent use, damage from overloading the rack, or breaking due to impacts. These issues can hinder the dishrack’s movement, making it difficult to access the upper rack.

Symptoms of a bad upper dishrack wheel include:

• The upper dishrack not sliding smoothly or becoming stuck
• Uneven or lopsided dishrack positioning
• Noise or grinding sounds when moving the dishrack
• The wheel appearing cracked, broken, or missing

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Adjuster Axle is an OEM part for Whirlpool dishwashers. It plays a crucial role in the height adjustment mechanism of the upper rack, allowing users to customize the rack's position to accommodate different dish sizes. This axle ensures that the adjustment is smooth and stable, providing flexibility in the dishwasher's loading capacity.

You should replace the adjuster axle if it becomes worn out or damaged. Causes of a bad adjuster axle can include wear from frequent adjustments, breakage from overloading the rack, or damage from mishandling.

Symptoms of a bad adjuster axle include:

• Difficulty in adjusting the height of the upper rack
• The rack not staying in the desired position
• Unusual movement or instability of the rack
• The adjuster mechanism not functioning properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
