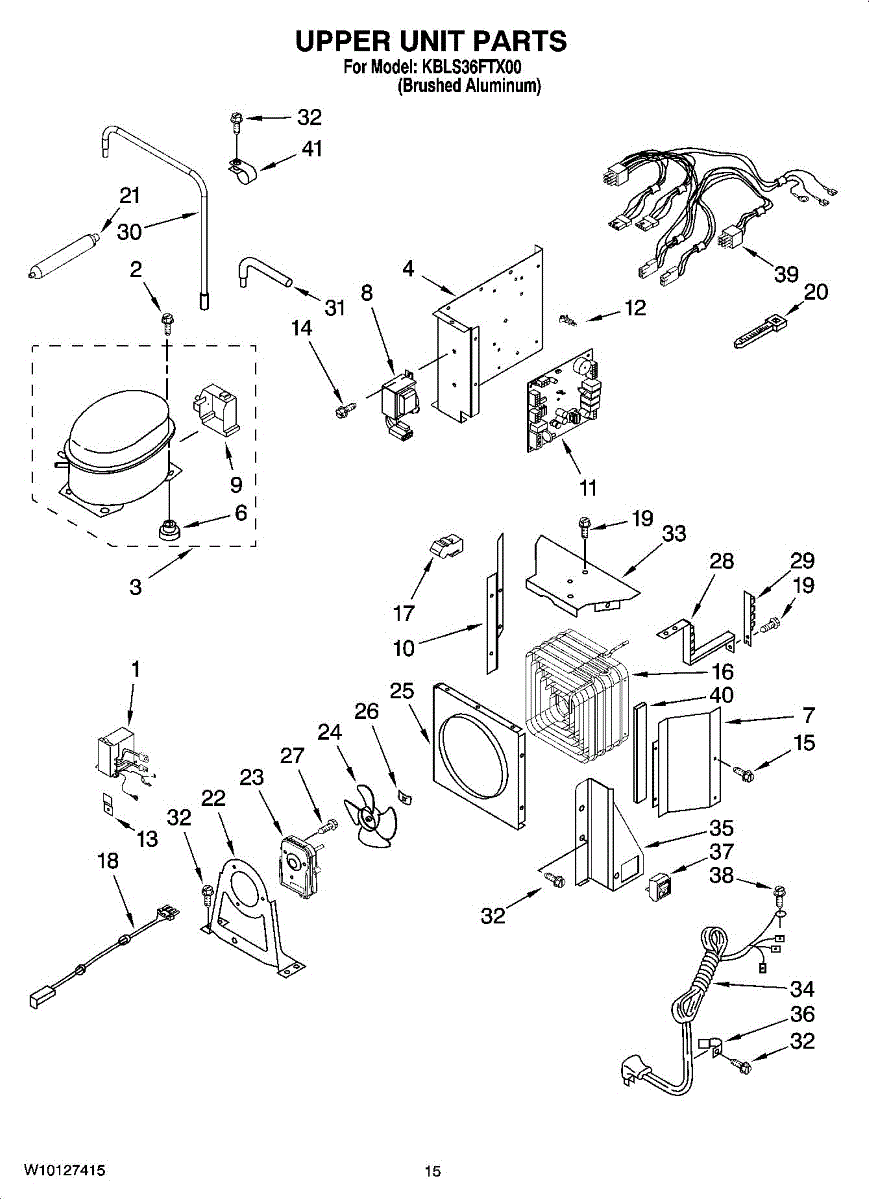

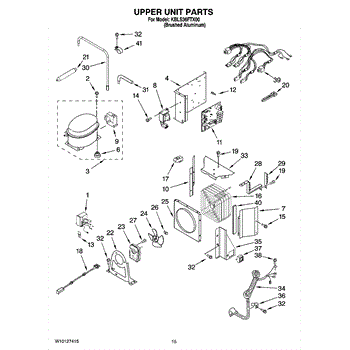

Parts for Kitchenaid KBLS36FTX00: 09 - Upper Unit Parts

Reduces contaminants for cleaner, better-tasting water and ice. Replace every 6 months or when indicator light activates. Verify fit by model number.

Fix a refrigerator that won't cool or has inconsistent temperatures with this inverter control board. Moderate DIY repair with step-by-step video guide.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

If your refrigerator isn't cooling or runs constantly, the compressor may have failed. This critical component circulates refrigerant through the system.

Rubber grommet kit that mounts and cushions the compressor. Replace worn, cracked, or damaged grommets to restore proper support and isolation.

Protects the terminal block on your refrigerator compressor by shielding electrical connections. Replace if cracked, broken, or missing for safety.

Plastic spacer that mounts between refrigerator door panels or hinges. Replace if cracked, broken, or missing to restore proper door alignment.

Mounting bracket that secures the inverter box inside your refrigerator. Replace if cracked, bent, or missing to properly support the inverter assembly.

Replacement 8-18 thread screw for securing panels, brackets, and trim on appliances. Replace worn, stripped, or missing screws to keep components aligned.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

If your refrigerator runs constantly or doesn't cool properly, a clogged or damaged condenser coil may be the cause. This part restores heat dissipation.

Size: 8-32 x .312 inch.

Refrigerator not cooling properly? A clogged filter drier prevents proper refrigerant flow. Requires professional installation due to sealed system.

Fix hot refrigerator walls or a non-spinning condenser fan. This motor drives airflow across coils to remove heat. Easy DIY install in 1-2 hours.

The Nut is an OEM replacement part for Whirlpool refrigerators. This small yet essential component is used to secure various parts of the refrigerator, such as shelves, panels, or brackets, ensuring stability and proper alignment. Its durable design ensures reliable performance in the demanding environment of a refrigerator.

Causes of a bad or missing Nut can include wear over time, accidental stripping of threads, or loss during maintenance or repairs. A damaged or missing nut can lead to loose components and reduced functionality.

Symptoms of a bad or missing Nut include:

• Loose or wobbly shelves, brackets, or panels
• Difficulty keeping refrigerator components securely in place
• Rattling or unusual noises during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Mounting screw for refrigerator assembly and component installation. Replace missing, stripped, or damaged screws to secure panels, shelves, or hardware.

Replace the water supply tube in your refrigerator. This tube delivers water to the dispenser and ice maker. Order a new tube if yours is cracked or leaking.

This replacement water fill tube routes water to the appliance's dispenser/ice system so you get proper fill and reduced leaks. It restores reliable water delivery when the original tube is cracked or clogged. What it does:

• Directs water from the supply to the dispenser or ice/water mechanism
• Prevents leaks when intact and properly secured
• Helps ensure consistent water flow for ice makers and dispensers
• Worn or damaged tubes can cause pooling, low water delivery, or intermittent filling

• One replacement water fill tube

• Turn off the appliance power and water supply before starting work
• Inspect fittings and seals; replace clamps or gaskets if worn
• Slide tube into place and secure with the original or new clamps for a leak-free connection

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Replacement power cord for refrigerators. Installs at the rear panel to supply electricity. Order if your cord is crushed, damaged, or frayed.

Refrigerator won't turn on or stays running constantly? This power disconnect switch controls main power to your unit. Easy DIY replacement fix.

Screw: 8-16 x 3/8 inch.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.
