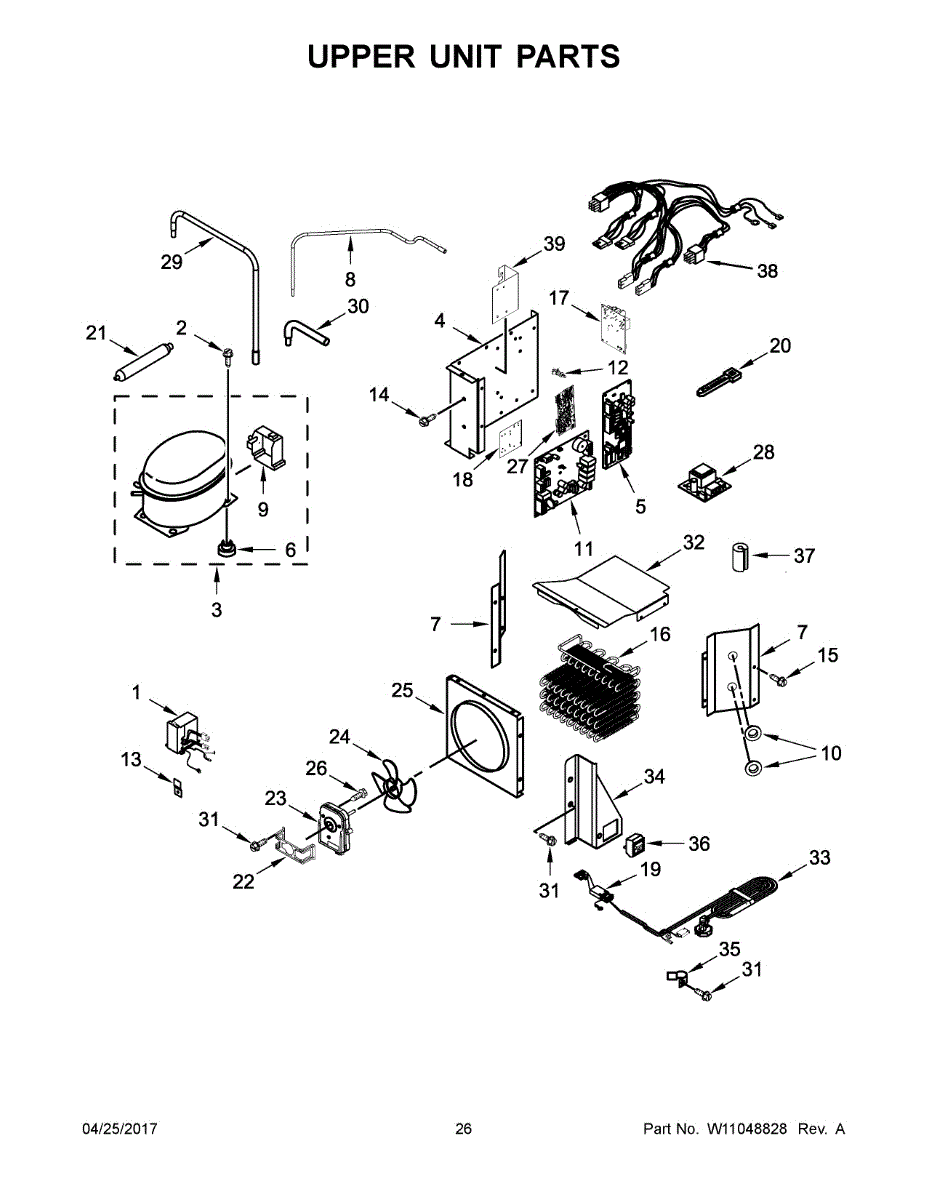

Parts for Kitchenaid KBSD618ESS01: 14 - Upper Unit Parts

The Invrtr-box is an OEM part for Whirlpool refrigerators. It is responsible for housing and protecting the electrical components that regulate cooling performance and energy efficiency.

Causes of a bad Invrtr-box can include failure or malfunction of the electrical components inside due to normal wear and tear over time, or exposure to humidity, moisture, or other environmental factors inside the refrigerator.

Symptoms of a bad Invrtr-box include:

• Inconsistent temperatures in the refrigerator and freezer sections
• The refrigerator not cooling properly or intermittently not running
• Strange smells coming from the electrical components
•  Error codes displayed on the control panel

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This compressor mounting grommet kit replaces worn or damaged rubber mounts that secure the compressor and reduce vibration. Restoring proper mounts helps cut down on compressor noise and prevents movement-related wear. What it does:

• Cushions and isolates the compressor to reduce vibration and rattling noise
• Keeps the compressor secured to its mounting bracket during operation
• Helps prevent stress and wear on mounting hardware and tubing
• Addresses symptoms like excessive vibration, banging, or unusual compressor noise

• Disconnect power to the appliance before beginning any repairs
• Support the compressor while removing and installing mounts to prevent strain or shifting
• Use appropriate hand tools and avoid over-tightening fasteners that can compress or damage grommets

This electronic control board is the refrigerator's central control module, coordinating cooling and defrost functions for stable temperatures. Replacing a failing board helps restore proper operation of the compressor, fans, and related circuits.

• Regulates cooling by switching the compressor and fans based on sensor input
• Controls and times the automatic defrost cycle to prevent frost buildup
• Supplies logic and power to temperature controls and indicators
• Can cause no-cool, intermittent cooling, constant running, or unresponsive controls when faulty

• Disconnect power to the refrigerator before servicing
• Handle the board by the edges and use ESD protection if available
• Photograph/label connectors and transfer wiring one at a time
• Some models require control setup or calibration—follow the appliance's service instructions

This compressor mounting grommet kit replaces worn or damaged rubber mounts that secure the compressor and reduce vibration. Restoring proper mounts helps cut down on compressor noise and prevents movement-related wear. What it does:

• Cushions and isolates the compressor to reduce vibration and rattling noise
• Keeps the compressor secured to its mounting bracket during operation
• Helps prevent stress and wear on mounting hardware and tubing
• Addresses symptoms like excessive vibration, banging, or unusual compressor noise

• Disconnect power to the appliance before beginning any repairs
• Support the compressor while removing and installing mounts to prevent strain or shifting
• Use appropriate hand tools and avoid over-tightening fasteners that can compress or damage grommets

This terminal cover protects the appliance's power terminal block by shielding live connections and reducing the risk of accidental contact. It restores a missing or damaged cover so the terminal area is safer and neater. What it does:

• Shields the terminal block to help prevent accidental contact with live electrical connections.
• Helps contain and hide the power cord connection for a cleaner appearance.
• Used when the original cover is cracked, broken, missing, or shows signs of arcing or heat damage.
• Supports safe service access by covering exposed terminals during normal operation.

• Disconnect power at the breaker or unplug the appliance before servicing to avoid shock or injury.
• Access the terminal area; ensure terminals are cool and dry before handling.
• Align cover over the terminal block and secure according to the OEM design; replace any damaged fasteners with correct OEM parts.
• If you see burn marks, melted insulation, or loose terminals, replace or repair the affected wiring/terminal block before installing the cover.

This electronic control board is the main printed circuit board that manages the appliance's functions and user commands, restoring proper cycle selection and electronic control when the original board fails. What it does:

• Receives input from the user interface and directs motors, valves, and timers to run selected cycles.
• Replaces a faulty or unresponsive control that causes no display, unresponsive buttons, or cycles that won't start/advance.
• Helps resolve intermittent or erratic operation caused by damaged or corroded circuitry.
• Works with the appliance's sensors and actuators to maintain programmed cycle sequences.

• One electronic control board (main control PCB) as pictured.

• Disconnect power to the appliance before beginning any work to avoid electrical shock.
• Handle the board by the edges and avoid touching contacts to prevent electrostatic damage.
• Some models require removal of panels or control console; for access.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

This condenser coil assembly removes heat from the refrigerant so your refrigerator can cool properly. Replacing a damaged or clogged condenser restores efficient heat transfer and helps the compressor run less frequently. What it does:

• Condenses refrigerant from gas to liquid to release heat from the cooling system
• Promotes proper airflow across the condenser fins for efficient cooling
• Helps prevent excessive compressor runtime and temperature rise in the cabinet
• Commonly replaced when the coil is bent, punctured, clogged, or leaking

• One condenser coil assembly

• Disconnect power to the appliance before starting any repair
• Handle fins and tubing carefully; sharp edges and refrigerant lines can be present
• May require removal of grill/panels and basic hand tools; refer to factory service instructions

The Power Control Board is an OEM component for Whirlpool refrigerators. It is an essential electronic component responsible for monitoring and regulating power distribution throughout the entire unit. The power control board controls components such as cooling fans, compressors, lights, ice makers, and more.

Symptoms of a bad power control board include:

• Lights, fans, or other components failing to turn on
• Inability to adjust temperature settings
• Constant tripping of circuit breakers
• Error codes displayed that cannot be cleared

Causes of failure include moisture damage, component breakdown over time, or power surges that can fry circuitry.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerator models.

The Condenser Fan Motor is an OEM replacement part for Whirlpool refrigerators. Located inside the machine compartment, it powers the condenser fan needed for heat exchange.

Causes involve standard motor degradation from prolonged usage. Excess dirt buildup over time may also hinder adequate blade movement.

Symptoms of a faulty condenser fan motor include:

• Inability to adequately cool interior compartments
• The refrigerator runs continuously with the exterior surface staying hot
• Grinding or buzzing noises emanating from the refrigerator's rear
• Visible condenser fan blades stalled or rotating slowly

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air, and some Kenmore models.

This condenser fan blade mounts to the fan motor and pulls air across the condenser coil and compressor. Replacing a cracked or warped blade restores airflow so your refrigerator cools efficiently and the compressor runs at a safe temperature.

• Circulates air through the condenser coil and over the compressor to remove heat
• Helps maintain cooling performance and stable system pressures
• Common symptoms: weak or no airflow at the rear/base, rattling or scraping noises, wobble/vibration, visible cracks or missing fins, warmer-than-normal compartments or hot cabinet sides
• Works with the condenser fan motor and shroud; typically replaced when the hub is stripped or the blade is damaged

• Disconnect power and pull the refrigerator out; remove the rear access cover near the compressor
• Note blade orientation and depth on the motor shaft before removal
• Pull the old blade straight off; press the new blade onto the shaft until fully seated and ensure it spins freely with proper shroud clearance
• Reinstall the cover, restore power, and verify strong, quiet airflow

This is a replacement mounting screw used to secure appliance panels and small components. It provides a correct-fit fastener to restore secure attachment and eliminate rattles or loose parts. What it does:

• Secures trim, panels, brackets, or small assemblies to prevent movement and vibration
• Restores proper alignment when a worn or missing screw causes loose parts or noise
• Works as a direct-replacement fastener where the OEM screw specification is required

• One replacement screw

• Use the correct driver bit to avoid stripping the head; do not overtighten
• Disconnect power and follow appliance safety guidelines when accessing internal components
• If the original mounting hole or threads are damaged, repair or replace the mounting hardware before reinstalling

This electronic power supply board converts incoming AC power to the low-voltage DC used by the refrigerator's controls and components. Replacing a failed board restores stable power to the UI, fans, lights, and cooling functions.

• Converts line voltage to regulated low-voltage DC for control electronics
• Distributes power to the main control, display, sensors, fans, and valve/relay circuits
• Common signs include a blank or non-responsive control panel, no interior lights or dispenser, intermittent power/clicking, or the unit not running even though the outlet has power
• Failures may follow electrical surges or shorted loads

• Disconnect power at the breaker or unplug before servicing; capacitors may hold a charge
• Use ESD protection and handle the board by its edges
• Photograph/label all connectors; transfer wires one by one and ensure full seating
• Mount securely and inspect for pinched/shorted wires before restoring power

This replacement water fill tube routes water to the appliance's dispenser/ice system so you get proper fill and reduced leaks. It restores reliable water delivery when the original tube is cracked or clogged. What it does:

• Directs water from the supply to the dispenser or ice/water mechanism
• Prevents leaks when intact and properly secured
• Helps ensure consistent water flow for ice makers and dispensers
• Worn or damaged tubes can cause pooling, low water delivery, or intermittent filling

• One replacement water fill tube

• Turn off the appliance power and water supply before starting work
• Inspect fittings and seals; replace clamps or gaskets if worn
• Slide tube into place and secure with the original or new clamps for a leak-free connection

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This replacement power cord restores electrical connection to the appliance, providing a safe and reliable feed when the original cord is damaged or worn. It's a direct-fit wiring component meant for like-for-like replacement. What it does:

• Delivers AC power from the wall outlet to the appliance so it can operate.
• Replaces cords that are frayed, cut, melted, scorched, or have exposed wiring.
• Helps stop intermittent power, arcing at the plug, or appliances that won't power on due to cord damage.
• Works with the appliance's factory power inlet and strain-relief system when installed correctly.

• One replacement power cord.

• Always disconnect power at the breaker and unplug the appliance before installing.
• Match this cord to the appliance's original cord and connect using the existing terminals or connector; do not splice or alter wires.
• Use the proper strain relief and secure the cord to prevent pulling or chafing.

This Power Disconnect Switch is the refrigerator's on/off service switch. It interrupts incoming power when actuated, allowing safe servicing or resetting of the unit without unplugging it and helping prevent unintended operation when access panels are open. What it does:

• Interrupts electrical power to the unit when switched off or tripped
• Provides a dedicated service disconnect for safe maintenance and resets
• Common symptoms: no power, intermittent shutdowns, or the unit won't stay on unless the switch is held/positioned
• Visual clues: broken actuator or heat-discolored/loose terminals

• Power disconnect switch only

• Disconnect power at the breaker before servicing
• Access the switch location; on many built-in units it's behind the top grille or control panel
• Move wires one at a time to the new switch to maintain correct orientation
• Restore power and verify the switch cleanly turns the unit on and off

This rubber grommet provides a tidy, protective seal where hoses, wires, or shafts pass through the appliance cabinet—helping prevent chafing, reduce vibration noise, and maintain proper sealing around openings. What it does:

• Cushions and protects wiring or hoses from rubbing against metal edges
• Helps maintain a seal to reduce water or air bypass where fitted
• Dampens vibration and reduces related noise at the penetration point
• Keeps openings finished and helps prevent further component wear

• Disconnect power (and water for washers) before starting any repair
• Inspect the mounting area for sharp edges or damage; replace if surrounding parts are compromised
• Push the grommet into the opening and seat evenly; do not stretch excessively

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.

Size: 3/16 inch.

Size: 1/4 inch.
