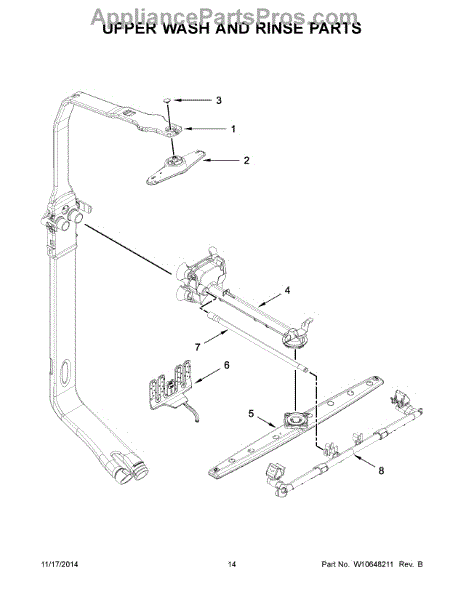

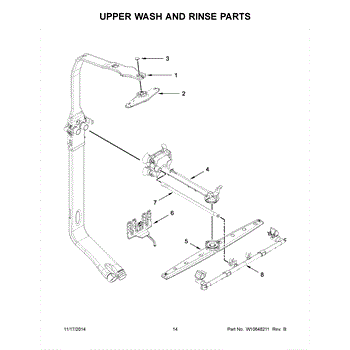

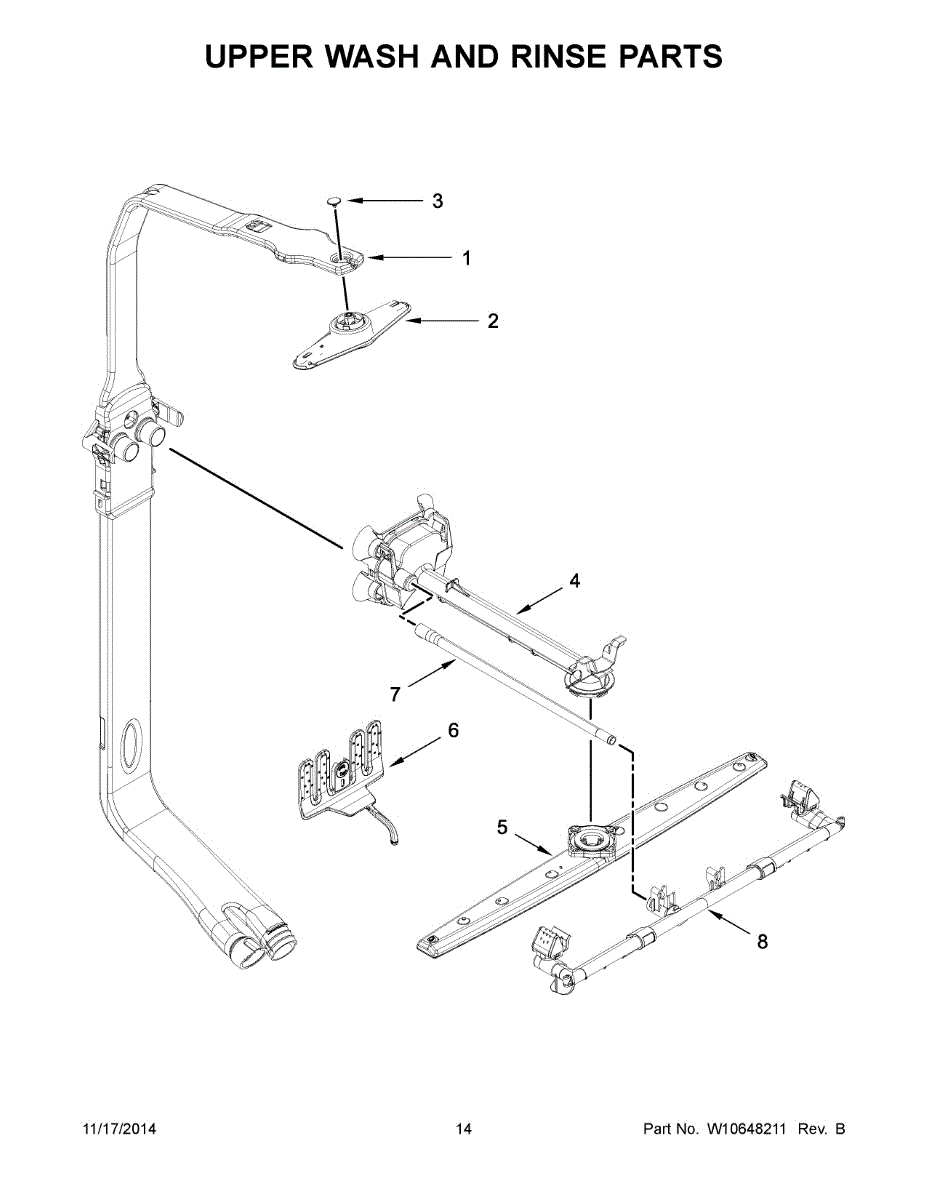

Parts for Kitchenaid KDTE704DWH0: 08 - Upper Wash And Rinse Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Water supply tube connects dishwasher pump to spray arms. Replace if cracked, melted, deteriorated, or has holes causing leaks during wash cycles.

Replaces broken, cracked, or missing upper spray arm in your dishwasher. Distributes water to clean dishes in the upper rack during wash cycles.

The Retainer is an OEM replacement part for Whirlpool built-in dishwashers. It is a plastic clip located within the lower wash arm assembly. This retainer securely holds the pivot hub bearing and ensures smooth oscillation of the lower wash arm during cycles.

Causes of retainer failure commonly relate to plastic material degradation from regular heat and chemical exposures over many uses. Crack propagation weakens the clips ability to precisely position bearing elements.

Symptoms of an inadequate retainer may include:

• Grinding or scraping noises coming from the wash arm area
• Restricted movement or binding of the lower spray arm assembly
• Potential loose wash arm parts that could interrupt spray patterns

This OEM Whirlpool replacement is also compatible with KitchenAid, Maytag, and some Sears/Kenmore dishwashers.

This manifold channels wash water to the dishwasher's spray system for full coverage. Replacing a cracked or warped manifold restores proper water flow and wash performance while helping prevent leaks at the feed connection.

• Directs recirculated water from the pump to the spray arms/feed tube
• Maintains a sealed path to keep spray pressure consistent
• Damage can cause poor cleaning, weak spray, unusual noise, or internal leaks
• Cracks or broken tabs can leave spray arms misaligned or not spinning

• Disconnect power and turn off the water supply before servicing
• Open the tub; remove the lower rack and spray arm as needed for access
• Transfer any seals/O-rings or clips from the old part; seat all connections fully
• Run a short test cycle and check for leaks before reassembling

Replace your dishwasher's broken, cracked, or clogged spray arm. This rotating water distribution arm installs on the rack and ensures proper spray coverage.

Replacement tube for your dishwasher's internal plumbing system. Needed when the original tube is cracked, broken, or leaking. Restores proper fit.

Fix low water pressure or poor spray arm performance with this dishwasher water manifold. Distributes water to spray arms for effective cleaning.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
