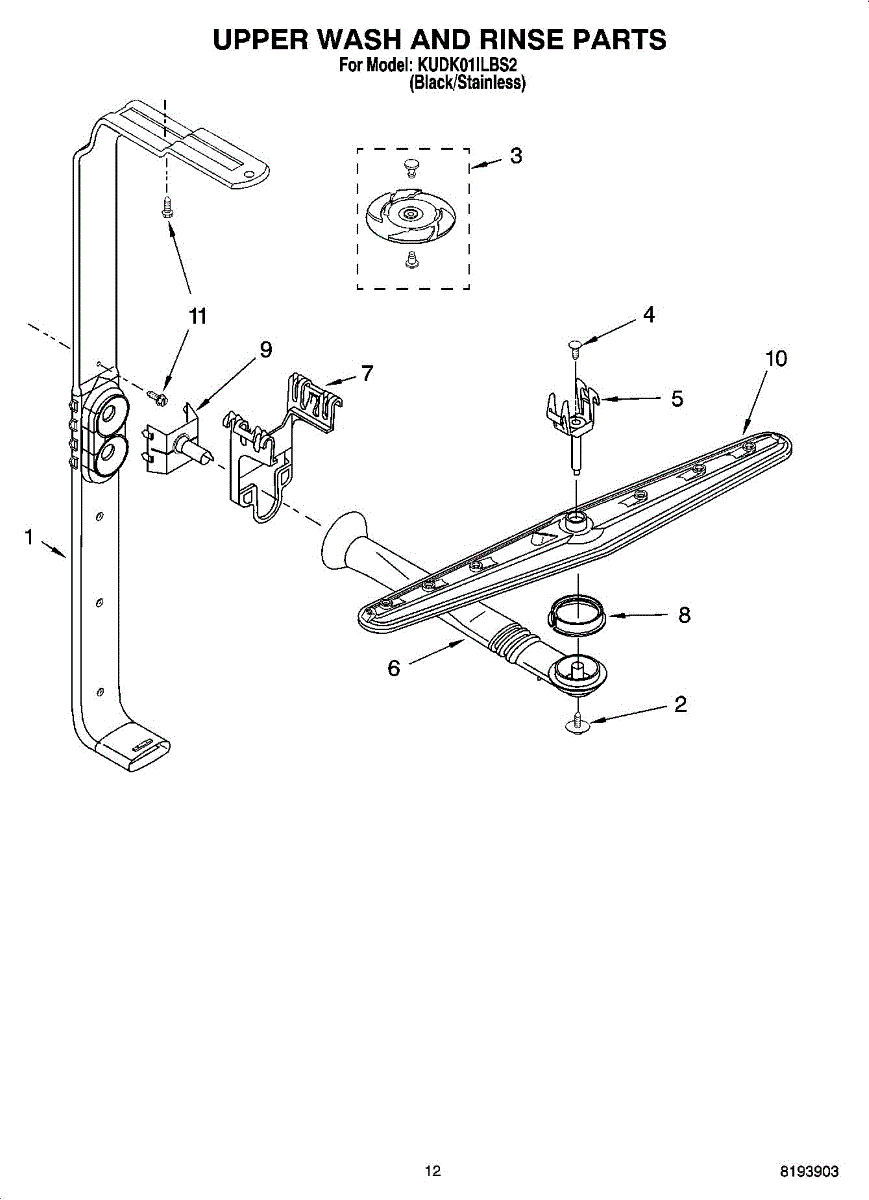

Parts for Kitchenaid KUDK01ILBS2: 10 - Upper Wash And Rinse Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

The Screw is an OEM part for Whirlpool dishwashers. It secures the spray arm to the dishwasher, ensuring it rotates properly to distribute water evenly throughout the dishwasher during cleaning cycles.

Common causes of a faulty spray arm screw include wear and tear from regular use, corrosion from exposure to water and detergents, or damage from improper installation or removal.

Symptoms of a bad spray arm screw include:

• The spray arm not rotating or functioning correctly
• Loose or wobbly spray arm
• Unusual noises coming from the spray arm during operation
• Poor cleaning performance due to inadequate water distribution

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Rotating spray component that snaps into the upper rack area. Replace if the spinner fell off, the retainer pin broke, or the connection is worn and won't stay in place.

The Retainer is an OEM replacement part for Whirlpool built-in dishwashers. It is a plastic clip located within the lower wash arm assembly. This retainer securely holds the pivot hub bearing and ensures smooth oscillation of the lower wash arm during cycles.

Causes of retainer failure commonly relate to plastic material degradation from regular heat and chemical exposures over many uses. Crack propagation weakens the clips ability to precisely position bearing elements.

Symptoms of an inadequate retainer may include:

• Grinding or scraping noises coming from the wash arm area
• Restricted movement or binding of the lower spray arm assembly
• Potential loose wash arm parts that could interrupt spray patterns

This OEM Whirlpool replacement is also compatible with KitchenAid, Maytag, and some Sears/Kenmore dishwashers.

Secures the upper spray arm assembly in the dishwasher tub. Replace if cracked, broken, or worn causing the spray arm to droop or become misaligned.

This spray arm kit includes the upper rack spray arm and related components that distribute water to clean dishes in the top section of your dishwasher. The rotating arm ensures even water coverage across all dishes and utensils. Install this kit if your upper rack dishes aren't getting clean or the spray arm is cracked or clogged.

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

This bracket mounts inside the dishwasher tub and supports the middle spray arm manifold tube, holding it securely in position. It ensures the spray arm tube stays aligned so water is properly distributed during the wash cycle. Replace this bracket if the middle spray arm wobbles, falls out of place, or if dishes on the upper rack are not getting clean due to poor water coverage.

Creates a watertight seal between the spray arm and water supply tube. Replace if you notice leaking or poor spray performance during wash cycles.

Top rack spray arm that rotates to distribute water across upper dishes. Replace if cracked, broken, or not spinning freely to restore water coverage.

8-16 thread screw secures panels, brackets, and trim inside refrigerators, dishwashers, and ice makers. Replace if missing, stripped, or damaged.
