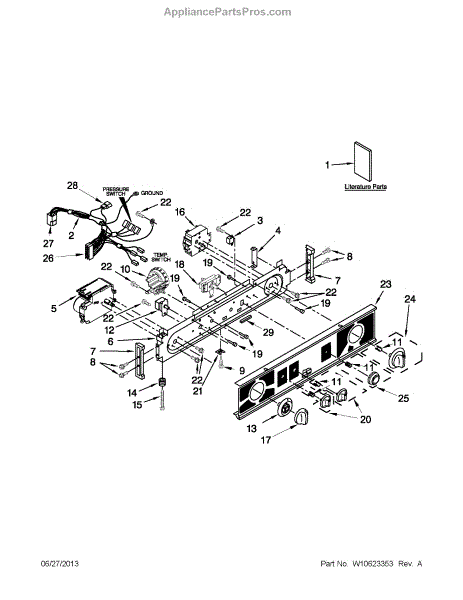

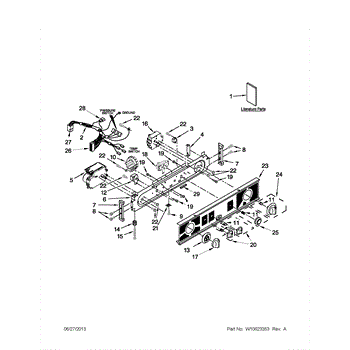

Parts for Kenmore 110.9875279B (1109875279B, 110 9875279B): Washer / Dryer Control Panel Parts

This wire harness assembly routes power and signals between controls and components to restore electrical connection and appliance function. It replaces a damaged or worn harness to help recover intermittent or lost circuits. What it does:

• Carries power and control signals between console, motor, sensors and other appliance components
• Restores connectivity when wires are frayed, pinched or connectors are corroded
• Can stop intermittent operation, no-power conditions, or absent control responses caused by harness faults
• Maintains factory routing and connector fit for reliable electrical contact

• Disconnect power (unplug appliance or turn off breaker) before inspecting or replacing the harness
• Compare connector shapes and wire colors to ensure correct replacement before installing
• Route harness along original clips and channels; avoid sharp edges, heat sources and pinch points
• Secure connectors firmly; if terminals or connectors are damaged, replace them rather than reusing compromised parts

This replacement buzzer assembly restores audible alerts and beeps for cycle status, touchpad feedback, and error notifications so you won't miss completed cycles or warning signals. It fits into the appliance's control area and connects to the existing wiring. What it does

• Produces audible beeps for cycle end, timer alerts, and control-pad feedback
• Signals fault codes and warnings so problems are noticeable
• Replaces a buzzer that is silent, weak, or intermittent
• Works with the existing control harness and mounting location

• One buzzer assembly

• Disconnect power to the appliance before servicing to avoid shock
• Handle control board and wiring gently; avoid bending pins or pulling on wires
• Test function before reassembling trim or panels

This console lock secures the appliance control console and helps prevent accidental changes to settings. It replaces a worn or broken console latch so the control panel stays closed and functions as intended. What it does:

• Secures the control console or access panel to prevent unintended opening
• Restores a solid latch action when the existing lock is loose, broken, or missing
• Helps prevent accidental button presses or changes to selected cycles
• Fits into the control console area and engages with the console catch mechanism

• One console lock assembly

• Disconnect power to the appliance before attempting any repair
• Removal typically requires access to the control console—refer to your model-specific service manual
• Handle plastic tabs and clips carefully to avoid breakage during removal and installation

This mechanical timer controls the sequence and duration of wash, rinse, and spin cycles in your washer. Replacing a worn timer restores consistent cycle advancement and proper power distribution to the motor, pump, and water inlet valves. What it does

• Coordinates and powers components through wash, rinse, and spin in the correct order and timing
• Advances automatically through the selected cycle after you set the knob
• Common symptoms of a failing timer: cycle won't advance or stops mid-cycle; timer knob doesn't move; intermittent agitation or spin

• Timer assembly

• Disconnect power before servicing
• Open the control console; remove the old timer and note its orientation
• Transfer wire connectors to the new timer one at a time to maintain placement, then secure the timer
• Reassemble the console, ensure the shaft engages the knob/dial, restore power, and run a short test cycle

This endcap is a direct-fit replacement housing end cap that helps protect and support adjacent components, keeping internal parts aligned and reducing wear. It restores proper fit and function where a damaged or missing endcap causes noise or misalignment. What it does

• Covers and protects the end of the housing to prevent debris entry and reduce component wear
• Helps maintain correct alignment of internal parts to minimize vibration and noise
• Replaces cracked, broken, or worn endcaps that can allow movement or rubbing
• Useful when visible damage or play is present at the housing edge

• Disconnect power (and water if applicable) before beginning any repair
• Basic disassembly of the appliance's housing or access panel is usually required; keep fasteners organized
• Inspect surrounding seals, gaskets, and mounting tabs for damage and replace if needed

This water level pressure switch senses tub fill height and tells the washer when to stop filling—helping prevent overfilling and ensuring correct wash cycles. Replaces a failed or intermittent level switch for proper water sensing. What it does:

• Detects water level via an air pressure line and signals the control board to stop or continue filling
• Restores proper fill and drain logic when the washer overfills, underfills, or stops mid-cycle
• Commonly replaces switches that cause erratic fill behavior, long fill times, or no fill
• Works as the electronic input for the machine to choose correct cycle water amounts

• Disconnect power before servicing to avoid shock or machine damage
• Handle gently; avoid damaging terminals or the attached air hose
• Confirm air hose is properly seated and free of kinks or blockages during reassembly

The Clip is an OEM part for Whirlpool dryers. This part secures the control knob to the dryer’s control panel, ensuring it remains firmly attached and functions correctly. The clip helps provide stability and precise control over the dryer settings.

Causes of a bad clip can include regular wear and tear, accidental damage during use, or stress from frequent adjustments.

Symptoms of a bad clip include:

• Knob becoming loose or falling off
• Difficulty turning the knob to adjust settings
• Knob not staying securely in place
• Knob wobbling or feeling unstable

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is the replacement spring used in the console lock assembly to restore proper tension and movement in the control lock mechanism. It helps the lock return to its resting position so the console control operates correctly. What it does:

• Provides tension for the console/keyboard lock mechanism so buttons and switches return properly
• Restores correct movement of the lock actuator to engage and release the console lock
• Can resolve symptoms such as a stuck or unresponsive console lock or buttons that don't spring back
• Small part that is part of the overall console lock assembly function

• One spring for the console lock assembly

• Disconnect power (unplug or trip breaker) before servicing the appliance
• Access requires removing the console or control panel—keep track of screws and orientation
• Handle carefully; small spring can be difficult to seat, consider using needle-nose pliers or a magnetic pickup tool

This console lock screw secures the appliance control console or console lock assembly to the cabinet, keeping controls fastened and aligned for reliable operation. Simple replacement for loose or missing console hardware. What it does:

• Fastens the console/console lock assembly to the appliance cabinet or control housing
• Restores a secure, rattle-free console and proper panel alignment
• Used when a screw is missing, stripped, or damaged and the console feels loose
• Small hardware solution that prevents further wear to console trim and components

• Disconnect power to the appliance before beginning any repair to avoid electrical shock
• Use the correct screwdriver or driver bit to avoid stripping the screw head
• Thread the screw in carefully and snug—do not over-tighten to prevent damage to threads or plastic parts
• Inspect the mounting hole and replace or repair as needed before installing

This 4-cycle timer controls and sequences a dryer's timed cycles, restoring reliable cycle selection and progression. It replaces a worn or non-responsive timer to help the dryer advance through timed drying, cool-down, and end-of-cycle steps. What it does:

• Rotates through the dryer's timed cycles and positions to engage the appropriate heating and motor circuits
• Restores cycle advancement when the dial won't turn or the timer won't advance
• Helps resolve intermittent or no-power-to-certain-cycle issues when timer contacts wear
• Works with mechanical selector systems that rely on the timer to switch circuits

• 1 4-cycle timer assembly

• Disconnect power before starting; this part requires access behind the dryer control panel
• May require removal of the control console or backing panel; keep track of all fasteners and wire locations
• Handle wiring harness connectors gently; match wire locations during reassembly

This knob insert is the small piece that snaps into a control knob. It restores a clean, finished look when the original insert is cracked, discolored, loose, or missing.

• Provides the insert for a control knob to replace a worn or missing piece
• Snaps in for a secure, factory-style fit
• Helps keep dust and debris out of the knob cavity
• Typical symptoms: knob center missing, insert cracked, loose, or discolored

• Disconnect power before servicing the control panel
• If needed, pull the knob straight off the shaft to access the insert
• Gently pry out the old insert; avoid metal tools that can mar the finish
• Align tabs and press the new insert flush until it clicks into place

This push-to-start switch activates the cycle when you press the start button or knob. Replacing a worn switch restores reliable starts and eliminates intermittent, no-response issues when starting your appliance.

• Momentarily closes the start circuit to energize the motor/control when pressed
• If defective, symptoms include no start, starts only while the button is held, or intermittent operation
• Restores consistent response to the start button/knob

• Disconnect power before servicing; also shut off gas supply
• Access the control/console area to reach the switch behind the start button/knob
• Note wire positions or take a photo; move wires to the new switch one at a time
• Secure the switch, align the knob with the shaft, reassemble, and test

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This console clip secures the appliance control console or control panel to the cabinet, restoring a snug, stable fit and stopping rattles or loose movement. Durable plastic clip designed to replace a broken or worn fastener. What it does:

• Holds the control console in place to prevent sagging or separation from the cabinet
• Stops rattling or vibration noise caused by a loose console
• Restores proper alignment for buttons and switches on the control panel
• Replaces a cracked, worn, or missing mounting clip

• One console mounting clip (1 each)

• Disconnect power before attempting any service to avoid shock or injury
• Remove the console or access panel per your model's service instructions to reach the clip
• Pry out the damaged clip carefully and snap the new clip into the factory mounting boss until it seats
• Handle plastic parts gently to avoid cracking; before reassembling

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
