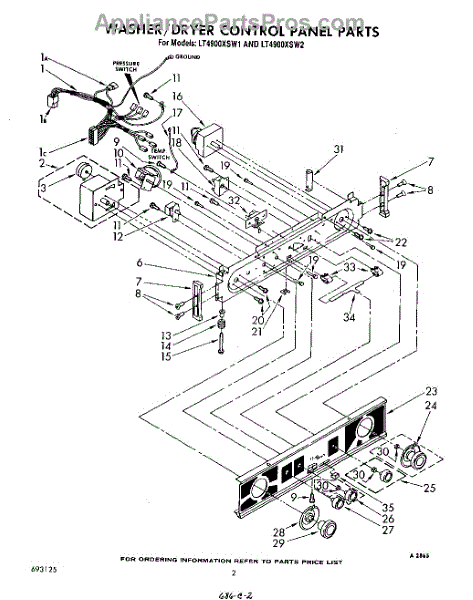

Parts for Whirlpool LT4900XSW1: 02 - Washer / Dryer Control Panel Parts

This mechanical cycle timer for top-load washers sequences the machine through wash, rinse, and spin by sending power to each component at the right time, restoring proper cycle advancement when the original timer sticks or stalls.

• Advances the washer through fill, wash, drain, rinse, and spin stages
• Distributes power to the motor, pump, and water valves at the correct times
• Common failure symptoms: cycle won't advance, stops mid-cycle, timer knob doesn't move, or steps are skipped
• Restores consistent, selectable cycle timing and operation

• Disconnect power and turn off water supply before servicing
• Access the timer through the control console; note wire locations and transfer one at a time
• Secure the new timer with existing hardware; reinstall the existing knob/dial onto the timer shaft
• After reassembly, run a short cycle to ensure the timer advances through each stage

Size: 8-18 x 3/4 inch.

This is a replacement side trim screw that secures the refrigerator side trim/finish panel, restoring a snug fit and finished appearance. Designed to match the original factory fit and finish on compatible Whirlpool units. What it does:

• Fastens the side trim/finish panel so the exterior trim sits flush and secure
• Helps stop rattling, shifting, or gaps caused by loose or missing trim screws
• Matches factory color and head style to keep a consistent exterior look
• Small hardware piece used in multiple trim/assembly locations

• One side trim screw (black)

• Use the matching screwdriver or bit to avoid stripping the screw head
• Tighten until snug; avoid over-torquing which can crack trim or strip threads
• Turn power off and remove any nearby panels if needed for safe access
• Replace all to ensure even fit

10 - 16 x 1/2

This replacement sleeve is a small shaft bushing that helps the drum/shaft rotate smoothly and keeps moving parts aligned to reduce wear and noise. It restores proper fit where a worn sleeve causes rubbing or play. What it does:

• Acts as a bearing surface between the shaft and housing to reduce friction
• Helps prevent metal-on-metal contact that can cause squeaks or scraping noises
• Restores correct alignment to reduce wobble or uneven drum movement
• Protects surrounding seals and components from premature wear

• One sleeve

• Disconnect power before starting and follow the appliance service manual for disassembly steps
• Inspect adjacent parts (shaft, bearings, seals) and replace if worn to ensure long-term performance
• Use proper tools and keep track of fasteners; some disassembly of the drum or cabinet may be required

This is the replacement spring used in the console lock assembly to restore proper tension and movement in the control lock mechanism. It helps the lock return to its resting position so the console control operates correctly. What it does:

• Provides tension for the console/keyboard lock mechanism so buttons and switches return properly
• Restores correct movement of the lock actuator to engage and release the console lock
• Can resolve symptoms such as a stuck or unresponsive console lock or buttons that don't spring back
• Small part that is part of the overall console lock assembly function

• One spring for the console lock assembly

• Disconnect power (unplug or trip breaker) before servicing the appliance
• Access requires removing the console or control panel—keep track of screws and orientation
• Handle carefully; small spring can be difficult to seat, consider using needle-nose pliers or a magnetic pickup tool

This screw-washer assembly secures panels, brackets, and other appliance components. The integrated washer spreads load and resists loosening, so replacing a worn or missing fastener restores a tight, reliable fit and helps eliminate rattles.

• Provides fastening with a built-in washer for even clamping and retention
• Replaces missing, stripped, or corroded hardware
• Helps address loose panels/handles and vibration or rattle noises
• Supports proper alignment of covers, brackets, and trim

• Disconnect power and shut off water or gas (as applicable) before servicing
• Match to the original fastener; location and quantity in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten with the correct driver
• Do not overtighten; replace other severely rusted or damaged fasteners in the same area

This console clip secures the appliance control console or control panel to the cabinet, restoring a snug, stable fit and stopping rattles or loose movement. Durable plastic clip designed to replace a broken or worn fastener. What it does:

• Holds the control console in place to prevent sagging or separation from the cabinet
• Stops rattling or vibration noise caused by a loose console
• Restores proper alignment for buttons and switches on the control panel
• Replaces a cracked, worn, or missing mounting clip

• One console mounting clip (1 each)

• Disconnect power before attempting any service to avoid shock or injury
• Remove the console or access panel per your model's service instructions to reach the clip
• Pry out the damaged clip carefully and snap the new clip into the factory mounting boss until it seats
• Handle plastic parts gently to avoid cracking; before reassembling

This console lock secures the appliance control console and helps prevent accidental changes to settings. It replaces a worn or broken console latch so the control panel stays closed and functions as intended. What it does:

• Secures the control console or access panel to prevent unintended opening
• Restores a solid latch action when the existing lock is loose, broken, or missing
• Helps prevent accidental button presses or changes to selected cycles
• Fits into the control console area and engages with the console catch mechanism

• One console lock assembly

• Disconnect power to the appliance before attempting any repair
• Removal typically requires access to the control console—refer to your model-specific service manual
• Handle plastic tabs and clips carefully to avoid breakage during removal and installation

The Natural Gas Limiter is an OEM replacement part for Whirlpool dryers. Located where the gas supply connects, it regulates safe flow levels to fuel burners during heating cycles. Precise control prevents over-firing issues.

Symptoms of a faulty limiter include:

• Dryer not achieving proper temperatures or taking too long
• Yellow flames indicating abnormal gas-to-air ratios
• Fault codes showing problems with gas valve readings

Causes can range from debris accumulation reducing gas flow to mechanical wear of linkage components. This replacement restores optimized operation.

This OEM replacement part is compatible with select KitchenAid and Maytag brand models.
