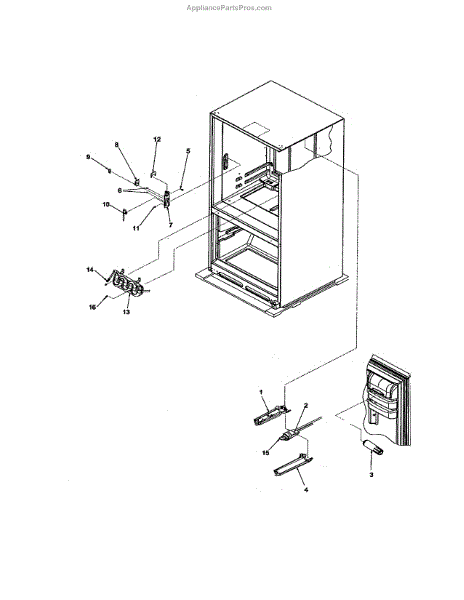

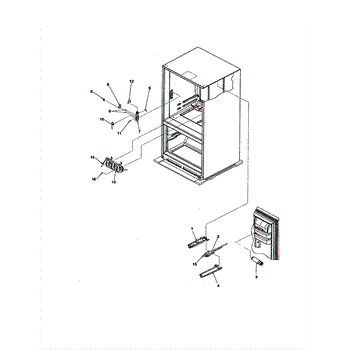

Parts for Kenmore 596.73503203 (59673503203, 596 73503203): Water Dispenser / Filter Parts

The Water Filter Backing Plate is an OEM part for Whirlpool refrigerators. It supports and secures the water filter, ensuring it stays in place and functions correctly to provide clean, filtered water.

Over time, the backing plate can become damaged due to regular use, exposure to moisture, or physical impact. A compromised backing plate can lead to improper positioning of the water filter, potentially causing leaks or reduced filtration efficiency.

Symptoms of a bad Water Filter Backing Plate include:

• Water filter not fitting securely or properly
• Leaks around the water filter area
• Reduced water flow or filtration issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Filter Cover is an OEM part for Whirlpool refrigerators. This cover encases and protects the water filter, ensuring it remains secure and clean while also blending seamlessly with the refrigerator's interior design.

You should replace the water filter cover if it becomes damaged or fails to secure the filter properly. Common causes of a bad water filter cover include physical damage from accidental impact, wear and tear from regular use, or warping due to temperature fluctuations.

Symptoms of a bad water filter cover include:

• Cracks or visible damage to the cover
• Difficulty securing the water filter
• The cover not fitting properly or coming loose
• Leaks around the water filter area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

This replacement cover restores the outer housing and protects internal components while keeping the appliance looking finished. It fits where the original outer panel or housing cover was damaged or missing. What it does:

• Shields internal parts from dust, debris and accidental contact
• Provides a finished appearance and helps reduce vibration noise
• Keeps wiring and controls enclosed to maintain safe operation
• Prevents loose panels or gaps that can catch on clothing or items

• Disconnect power to the appliance before starting any work
• Use basic hand tools; support the appliance panel to avoid drops or damage
• Watch for sharp edges and take care when removing the old cover

This limit switch monitors a set condition and opens or closes its contacts when that limit is reached. Replacing a failed switch restores proper safety cutoff and consistent operation of the appliance's heating or movement system. What it does:

• Senses a limit condition at its mounting point (such as temperature or travel/position, depending on model)
• Changes state at a defined threshold to protect components and wiring
• Interrupts power to heat or motor circuits, or signals a control to respond
• Common failure signs: no heat or shuts down early, runs continuously, won't start, or intermittent operation

• 1 limit switch

• Disconnect power to the appliance before servicing
• Note wire positions; transfer connectors one at a time or take a photo for reference
• Reinstall in the original orientation so the actuator or sensing surface contacts the correct area
• Address root causes (blocked airflow, binding mechanisms, shorted components) to prevent repeat failures

This drawer slide guide helps align and support a refrigerator/freezer drawer so it opens and closes smoothly and stays on track. Replacing a worn or broken guide restores proper drawer movement and prevents binding or misalignment. What it does:

• Guides the drawer along its track to ensure smooth, even movement
• Prevents the drawer from tipping, sticking, or coming off the rails
• Keeps contents properly supported when opening or closing the drawer
• Helps reduce noise and uneven wear caused by a damaged guide

• One drawer guide

• Disconnect power to the appliance before starting any repair
• Remove the drawer or bin to access the guide; note orientation for reassembly
• This guide typically snaps or screws into place—use basic hand tools as needed
• Test drawer operation after installation; if movement is still restricted, inspect the track and adjacent guides

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

• Reduced or no ice production
• Leaking water from the refrigerator
• Visible cracks or damage to the water line
• Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This small plastic waterline clip secures the refrigerator/dishwasher water tube to the cabinet or frame to keep the line routed and stable. It prevents the waterline from shifting or rubbing against components. What it does:

• Holds the water supply tube in place to prevent chafing and movement
• Helps keep the waterline aligned so fittings stay seated and leak risk is reduced
• Stops rattling or vibration noise caused by loose tubing
• Commonly used where the waterline passes through panels or along the appliance frame

• One waterline clip

• Disconnect power and shut off the water supply before servicing
• Typically snaps onto a flange or frame and the tubing pushes into the clip—no special tools required
• Inspect tubing and fittings for damage when replacing the clip; replace any compromised tubing or seals
• If access is limited, remove the necessary trim or panel per your model's service instructions

A replacement water reservoir that stores and routes water for the refrigerator dispenser and ice system, restoring proper water flow and stopping leaks from a damaged or cracked reservoir. What it does

• Holds and directs water to the dispenser and ice maker assembly.
• Replaces cracked, damaged or leaking tanks that can cause pooling or drips inside the cabinet.
• Restores proper fill to the ice maker and consistent dispenser flow when the original reservoir is faulty.
• Helps prevent water damage and reduces the chance of contamination from a compromised reservoir.

• Disconnect power and shut off the water supply before any repair.
• Remove interior panels or shelving as required to access the reservoir; follow OEM disassembly steps.
• Handle the reservoir carefully to avoid new cracks; check seals and gaskets during reassembly.

The Water Line Union is an OEM part for Whirlpool refrigerators. It connects sections of the water line, ensuring a secure and leak-proof connection that facilitates the proper flow of water to the ice maker and water dispenser.

Causes of a bad water line union can include wear and tear from prolonged use, exposure to fluctuating temperatures, or physical damage from handling.

Symptoms of a bad water line union include:

• Leaks or water pooling around the refrigerator
• Reduced water flow to the dispenser or ice maker
• Water line disconnections
• Visible cracks or damage on the union

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing
