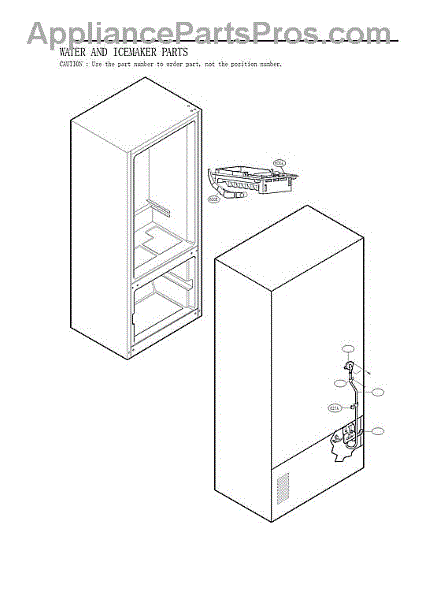

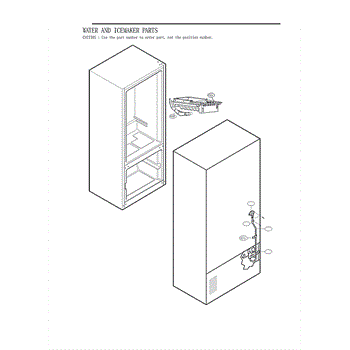

Parts for Lg LFC28768SB/02: Water & Icemaker Parts

This is a replacement screw designed to secure appliance components where the original customized fastener is required. It restores proper fit and stability for panels, brackets, or assemblies that use this specific fastener. What it does:

• Replaces a missing, stripped, or damaged customized screw to restore secure attachment of parts.
• Helps eliminate rattling, loose panels, or misaligned assemblies caused by a faulty fastener.
• Matches the OEM mounting point to maintain correct part alignment and function.
• Suitable where the appliance design calls for this specific customized screw type.

• Turn off and unplug the appliance before servicing to avoid shock or injury.
• Use the correct screwdriver or bit to avoid stripping the screw head; do not force.
• Keep track of small parts during disassembly and reassembly; work on a stable surface.
• If threads are damaged or the mounting hole is stripped, inspect the mating component for repair before installing the new screw.

This mounting screw secures panels and small components on compatible LG appliances, restoring fit and stability for loose or rattling parts. A simple replacement that helps prevent further wear and noise from unsecured pieces. What it does

• Fastens trim, panels, brackets or small assemblies to the appliance chassis
• Restores secure fit when original screws are missing, stripped or damaged
• Helps eliminate rattling, vibration noise and misaligned panels
• Works where the original factory screw has corroded or worn

• One mounting screw

• Turn power off and disconnect the appliance before beginning any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Replace with the correct OEM screw rather than forcing

The Handle Mounting Stud is an OEM replacement part for LG refrigerator doors. It provides a sturdy mounting point for the door handle assembly. Reliable handle connection and support is crucial for dependable door function and access.

Causes of a faulty stud can include damage from excess weight or impact over time rendering the stud loose or unstable.

Symptoms of a bad stud include:

• Loose or sagging door handle
• Difficulty opening and closing the refrigerator door
• Potential for the handle to detach completely
• Safety concerns if the handle connection fails

This OEM LG replacement stud is also compatible with Sears/Kenmore models.

This rear door handle replaces a worn or damaged handle on compatible LG appliances, restoring a secure grip and smooth opening. It's a direct-fit exterior handle that keeps the appliance door operating and looking right. What it does

• Provides a secure gripping point to open and close the appliance door
• Replaces cracked, loose, or broken rear handle hardware
• Restores correct alignment and feel when the door is operated
• Helps prevent further damage to the door edge from makeshift handles

• Power off and unplug the appliance before starting work; remove food or shelves as needed for access
• Keep fasteners and mounting clips; transfer original hardware unless new hardware is explicitly included
• Test door operation and alignment after installation; tighten fasteners evenly to avoid stress

Replacement drain tube assembly that directs wastewater from the appliance tub to the drain pump, restoring proper drainage and helping reduce leaks. Use when the original tube is cracked, kinked, clogged, or visibly leaking. What it does

• Channels wastewater from the tub to the drain/pump for normal draining.
• Maintains a sealed path to help prevent water leaks under or around the appliance.
• Replace when you see pooling water, slow or no drain, or visible damage to the tube.
• Works as the fluid conduit; does not include clamps or pump.

• Disconnect power and water supply before beginning any service.
• Route the tube along the original path and secure with existing clamps or the correct replacement fasteners.
• Avoid kinks, sharp bends, and contact with sharp edges to prevent leaks or premature wear.
• After installation, restore power/water and run a short drain cycle; check all connections for leaks.

This adjustable leveling leg assembly supports and stabilizes your appliance by threading into the base frame. Replacing a worn or missing leg helps you level the unit for smoother, quieter operation on uneven floors.

• Provides height adjustment to level the appliance and distribute weight evenly
• Helps prevent rocking, wobbling, and excess vibration or rattling
• Can improve door alignment and smooth opening/closing when the cabinet is properly leveled
• Useful when a leg is missing, damaged, or threads are stripped

• Disconnect power; if applicable, shut off the water supply
• Use a helper to safely brace or tip the unit; protect flooring when accessing the leg
• Unthread the old leg and hand-thread the new one; tighten as needed
• Adjust front-to-back and side-to-side until stable; all legs bear weight evenly

The Roller Assembly is an OEM part for LG refrigerators. It comprises the set of rollers that suspends and aids the smooth gliding of refrigerator shelves. The rollers are designed with precision bearings to withstand the weight of shelf loads and years of use while providing quiet and frictionless movement.

Causes of a bad roller assembly include worn-out or damaged rollers due to heavy usage over time, or shelf loads that are too excessive.

Symptoms of a bad roller assembly are:

• Shelves that do not easily slide in and out
• Grinding or squeaking noises emanating from the shelf tracks
• Shelves that get stuck or do not smoothly glide

This OEM LG part is also compatible with Sears/Kenmore. Replace yours today and restore like-new shelf functionality to your refrigerator.


The Freezer Tray Roller is an OEM part for LG refrigerators. It is a dual roller wheel assembly located at the rear wall of the freezer compartment. The roller aids sliding shelf movement by reducing friction between trays and the liner wall.

Causes of a bad freezer tray roller include cracks, flat spots, or separated roller pieces from wear over years of use.

Symptoms of a bad tray roller are:

• Difficulty sliding shelves smoothly in and out of position
• Excessive force required to access stored items
• Noisy operation or rattling noises within the freezer

This genuine LG OEM replacement part is also compatible with some Kenmore models.

This drawer tray assembly replaces a damaged or worn storage drawer, restoring a secure shelf and smooth operation. It provides a direct-fit replacement that holds food and items safely in the appliance. What it does:

• Replaces a cracked, warped, or broken drawer tray so items sit level and secure
• Restores proper sliding and support when the drawer sticks, jams, or falls out
• Replaces trays with broken mounting tabs or rails that prevent correct seating
• Helps prevent spills and keeps contents contained when the drawer is opened

• One drawer tray assembly

• Remove contents and existing drawer before installing; align mounting tabs and slide into place
• Inspect rear and side guides for damage and clean tracks before installing the new tray
• Use care not to overtighten any fasteners; replace any broken clips or supports as needed
• If the appliance has electrical components nearby, unplug the appliance or disconnect power before working

The Drawer Tray Assembly is an OEM replacement part for LG refrigerators. This is a lower freezer drawer.

Causes of a bad tray assembly can include wear and tear over time, damage from overloading or improper use of the drawer, or issues with its sliding operation mechanism.

Symptoms of a bad tray assembly include:

• The drawer not sliding smoothly or getting stuck
• Difficulty opening or closing the drawer fully
• Noisy operation
• Leaks or ice buildup from a damaged seal

This OEM LG part is also compatible with some Sears/Kenmore model refrigerators.

This drawer tray assembly replaces a damaged tray so the drawer aligns and slides correctly again. It restores safe support for stored items and keeps your refrigerator organized and easy to use.

• Supports and contains items within the drawer area
• Provides the structure/glide surface for smooth opening and closing
• Helps the drawer sit level and close fully for proper sealing and airflow
• Common symptoms: cracks, broken tabs, warping, sticking or misaligned drawer, drawer coming off track

• Disconnect power and remove contents from the affected section
• Pull the drawer straight out; remove any shelves that obstruct access
• Align the new tray with the tracks/tabs and seat it fully until engaged
• Wear gloves and handle plastic carefully to avoid damage

This refrigerator shelf assembly restores a sturdy, level storage surface in the refrigerator compartment. Replace a cracked, bowed, or missing shelf to keep food organized and safely supported.

• Provides a stable surface for containers and food in the refrigerator section
• Replaces a damaged, warped, or missing shelf assembly
• Helps prevent spills and tipping by restoring proper support
• Common symptoms: cracked/shattered shelf, broken frame tabs, shelf won't sit level or stay in place

• Disconnect power before servicing
• Remove items and lift out the old shelf carefully; retain any reusable parts specific to your model
• Wear cut-resistant gloves and handle the new shelf with care
• Ensure the shelf is fully seated in the side rails/tabs and level before loading

This refrigerator shelf assembly restores a sturdy, level storage surface in the refrigerator compartment. Replace a cracked, bowed, or missing shelf to keep food organized and safely supported.

• Provides a stable surface for containers and food in the refrigerator section
• Replaces a damaged, warped, or missing shelf assembly
• Helps prevent spills and tipping by restoring proper support
• Common symptoms: cracked/shattered shelf, broken frame tabs, shelf won't sit level or stay in place

• Disconnect power before servicing
• Remove items and lift out the old shelf carefully; retain any reusable parts specific to your model
• Wear cut-resistant gloves and handle the new shelf with care
• Ensure the shelf is fully seated in the side rails/tabs and level before loading

This refrigerator shelf assembly restores a sturdy, level storage surface in the refrigerator compartment. Replace a cracked, bowed, or missing shelf to keep food organized and safely supported.

• Provides a stable surface for containers and food in the refrigerator section
• Replaces a damaged, warped, or missing shelf assembly
• Helps prevent spills and tipping by restoring proper support
• Common symptoms: cracked/shattered shelf, broken frame tabs, shelf won't sit level or stay in place

• Disconnect power before servicing
• Remove items and lift out the old shelf carefully; retain any reusable parts specific to your model
• Wear cut-resistant gloves and handle the new shelf with care
• Ensure the shelf is fully seated in the side rails/tabs and level before loading

The Glass Shelf is an OEM part for LG refrigerators. It provides a durable surface for organizing and displaying items inside the refrigerator and freezer compartments.

Causes of a faulty shelf can include chips or cracks developing from repeated loading and unloading of items over time. Temperature fluctuations may also cause warping.

Symptoms of a problematic glass shelf include:

• Sagging or bowing that prevents proper fitting
• Breaks or weak spots that compromise strength
• Difficulty removing or replacing the shelf

This OEM LG part is also compatible with some Kenmore models.

This rail guide assembly restores smooth, stable sliding for a refrigerator/freezer drawer or shelf drawer, helping the drawer track properly and reducing rubbing or sticking during use. What it does:

• Replaces a worn or damaged drawer slide rail to restore proper alignment and smooth movement
• Helps stop drawers from sticking, binding, scraping, or falling out of track
• Supports the drawer weight and guides it in and out evenly
• Reduces noise caused by misaligned or worn rails

• Disconnect power (and water, if applicable) before servicing the appliance
• Remove the drawer or shelving to access the rail; retain fasteners for reuse unless new ones are provided
• Inspect matching rail on the opposite side; replace both sides if both show wear for best performance

This tray assembly replaces the right-side Fresh Room tray in your refrigerator. It restores sturdy, level storage in the pantry/deli area so items stay organized and the drawer fits and slides as intended. What it does:

• Provides the support surface for the Fresh Room/pantry section
• Seats and aligns the matching drawer/cover for smooth operation
• Replaces cracked, warped, or missing tray to restore proper fit
• Common symptoms: broken tabs, tray won't stay in place, drawer misalignment, unstable or tipping items

• 1 right-side Fresh Room tray assembly

• Empty the compartment; lift and tilt out the damaged tray from its supports
• Inspect side guides/rails; ensure mounting points are intact before installing
• Align the new tray with the right-side guides and slide/press fully into place
• Handle carefully to avoid stressing plastic; wear gloves for protection

Note: Right Side Drawer

Note: Left Side Drawer

This TV cover assembly replaces a damaged or missing rear cabinet panel to restore the set's enclosure and protect internal components. It helps maintain proper airflow and keeps circuitry and wiring shielded from dust and impact. What it does:

• Replaces a cracked, dented, or warped rear TV cabinet panel
• Protects internal electronics, boards, and wiring from dust and accidental contact
• Helps maintain proper ventilation pathways and chassis alignment
• Restores cosmetic appearance of the TV's rear housing

• One TV cover assembly

• Refer to the TV's service manual for disassembly/reassembly instructions and correct screw locations
• Power off and unplug the TV before beginning any repair; allow components to discharge
• Handle internal components and the cover carefully to avoid damage to boards, cables, and connectors

This guide assembly is a chassis alignment and support piece that helps hold and position internal TV components for proper fit and operation. Replacing a damaged guide restores secure mounting and reduces panel or board movement. What it does:

• Secures and aligns internal TV modules or boards to the cabinet
• Prevents rubbing, vibration noise, and intermittent contact from loose parts
• Helps keep the display and internal assemblies correctly spaced for reliable operation
• Useful when cracked, warped, or broken guides cause misalignment or rattling

• One guide assembly as shown

• Unplug the TV and remove power/antenna cables before starting
• Ground yourself to protect against static-sensitive components
• Use original screws and fasteners; inspect adjacent tabs and mounts for damage during installation

This rail guide assembly replaces a worn or broken slide rail that supports smooth movement of a drawer or component. Restores proper alignment and helps the drawer glide quietly and evenly. What it does:

• Guides and supports the drawer or sliding component along its track.
• Replaces damaged or bent rail sections that cause sticking or uneven movement.
• Reduces scraping, grinding, or noisy operation from a faulty guide.
• Helps restore proper alignment to prevent binding or partial closure.

• One rail guide assembly.

• Disconnect power (and water if applicable) and follow appliance-specific disassembly steps before replacing the rail.
• Basic hand tools are typically required; avoid forcing components to prevent breakage.
• Keep fasteners and any removed parts organized for reassembly.

This guide assembly is a factory-style mounting guide used in TV chassis to position and support internal components, helping maintain correct alignment and stable operation during use and service. What it does:

• Provides a mounting and alignment point for internal TV components to keep assemblies stable
• Helps maintain proper spacing between parts to prevent rubbing, misalignment, or rattling noises
• Can restore correct fit where a damaged or worn guide causes loose panels or shifting components
• Useful when repairing or replacing adjacent parts that rely on the guide for proper positioning

• Guide assembly

• Disconnect power and remove the TV from its wall mount or stand before servicing
• Handle the panel and internal boards carefully to avoid damage; use non-marring tools
• Keep track of all screws and grounding hardware removed during disassembly for reassembly

This rail guide assembly restores smooth, reliable drawer movement by guiding and supporting the slide rail. Replaces a worn or broken guide so freezer/refrigerator drawers open and close without sticking or falling off track. What it does

• Guides the drawer slide rail and keeps the drawer aligned during operation
• Helps stop drawers from binding, sticking, or coming off the rail
• Reduces scraping, grinding, or noisy sliding caused by damaged guides
• Restores proper drawer support so contents remain stable while opening and closing

• Disconnect power before working inside the appliance and remove food, drawers and shelves that block access.
• Remove the old guide and install the new guide using the original mounting screws; match the correct side/orientation before fastening.
• Use common hand tools; avoid forcing parts—if the rail is bent or damaged, replace the rail as well.

This rail guide assembly supports and guides a refrigerator drawer as it opens and closes. Replacing a worn or damaged rail restores smooth sliding, proper alignment, and reliable closure to help maintain a consistent seal and temperature.

• Provides the sliding track that supports the drawer under load
• Keeps the drawer level and aligned within the cabinet
• Helps the drawer close fully for a proper gasket/door seal
• Common symptoms: drawer sticks or binds, tilts or sags, won't close completely, noisy/grinding movement, visible cracks or wear

• Disconnect power and empty the drawer before starting
• Remove the drawer/bin and front panel to access the rail
• Unfasten and remove the damaged rail; transfer any reusable clips/brackets from the original if applicable
• Secure the new rail, reinstall the drawer, and verify smooth travel and full closure

Restore a tight seal on your freezer by replacing a worn gasket. A fresh, pliable gasket keeps cold air in, limits frost and moisture around the door, and helps your freezer maintain stable, food-safe temperatures.

• Creates the air-tight seal between the freezer door and cabinet frame
• Helps maintain correct freezer temperature and energy efficiency
• Reduces frost/ice buildup and condensation near the door opening
• Symptoms include tears, warping, gaps, excessive frost, or the door not closing flush

• Disconnect power before servicing
• Warm the gasket in hot tap water or with low heat to improve flexibility
• Clean and dry the door channel; press the gasket fully into the retainer, starting at the corners
• Close the door and check the seal all around; adjust as needed and allow time for the gasket to conform

This Hinge Cover Assembly protects and conceals the door hinge area, restoring a clean appearance and preventing dirt or loose clothing from catching in the hinge. Fits where a cosmetic or protective hinge cover is needed. What it does:

• Covers the door hinge to shield moving hardware from debris and reduce pinching hazards
• Restores a finished look to a damaged or missing hinge area
• Helps keep lint, dust and small objects away from the hinge mechanism
• Can reduce noise caused by exposed hinge components when intact

• One Hinge Cover Assembly as shown

• Intended for drop-in replacement; follow your appliance's service manual for disassembly steps
• Disconnect power and water before starting any repair
• Handle plastic parts carefully to avoid cracking; use appropriate fasteners and torque per OEM guidance
• If hinge or mounting hardware is damaged, replace those components before installing the cover

This hinge cover is a cosmetic trim piece that protects and conceals the door hinge area, restoring a finished look and preventing debris buildup. It helps keep the hinge mechanism covered for safer operation and appearance. What it does:

• Covers and protects the door hinge assembly from dirt and accidental contact
• Restores the appliance's finished appearance when original cover is cracked or missing
• Helps reduce snagging on clothing or linens near the hinge area
• Commonly replaced when hinge cover is visibly broken, loose, or missing

• One hinge cover

• Disconnect power and follow manufacturer safety guidelines before starting any repair
• You may need to open or partially remove the door to access the hinge cover; support the door to avoid stress on the hinge
• Use appropriate hand tools (screwdriver, trim tools) and avoid forcing the cover into place
• If the hinge or mounting hardware is damaged, replace those parts separately; only the hinge cover is included

This name plate is the exterior emblem that mounts to the appliance's front panel. It replaces a missing, cracked, or faded badge to restore a clean, factory look and cover the designated trim area.

• Attaches to the outer panel to display brand/series identification
• Restores a finished appearance where the original emblem sits
• Direct replacement for a lost, damaged, or worn badge
• Typical symptoms: missing emblem, loose or broken tabs, peeling, or discoloration

• Disconnect power before servicing the appliance
• Carefully remove the old emblem; release any tabs from behind or peel away remaining adhesive
• Clean and dry the mounting surface; remove all residue for best fit
• Align with the recess/holes and press evenly until fully seated

Left side

The Door Gasket Assembly is an OEM part for LG refrigerators. This part creates a tight seal around the refrigerator door, preventing warm air from entering and cool air from escaping.

Causes of a bad door gasket assembly can include regular wear and tear, damage from frequent door openings and closings, or exposure to temperature fluctuations that degrade the material.

Symptoms of a bad door gasket assembly include:

• Visible cracks, tears, or deformities in the gasket
• The refrigerator door not closing properly
• Increased condensation or frost buildup inside the refrigerator
• Higher energy bills due to the refrigerator working harder to maintain temperature

This OEM LG part is also compatible with some Kenmore models.

The Mullion Flipper Assembly is an OEM part for LG refrigerators. This assembly, located between the refrigerator doors, helps seal the space between the doors when they are closed, improving energy efficiency by preventing cold air from escaping.

Causes of a bad mullion flipper assembly can include wear and tear over time, damage from frequent opening and closing of the doors, or issues with the hinges and connectors that secure it in place. A damaged or malfunctioning mullion flipper can lead to temperature inconsistencies and increased energy usage.

Symptoms of a bad mullion flipper assembly include:

• Visible damage or wear on the assembly
• Cold air escaping from between the refrigerator doors
• Increased frost buildup inside the refrigerator
• Higher energy bills due to the appliance working harder to maintain temperature

This OEM LG part is also compatible with Sears/Kenmore models.

The Refrigerator Door Bin is an OEM replacement part for LG refrigerators. This bin is designed to provide convenient storage on the refrigerator door, allowing easy access to frequently used items like condiments, beverages, and snacks. Its durable design ensures a secure fit and long-lasting performance.

Over time, door bins can crack, warp, or break due to heavy loads, accidental impacts, or general wear and tear. Damage to the bin can reduce its storage capacity and stability.

Symptoms of a bad refrigerator door bin include:

• Cracks or breaks in the plastic structure
• Difficulty fitting the bin securely into the door slots
• Reduced ability to hold items without sagging or falling
• Items spilling or shifting due to instability

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

The Door Basket Assembly is an OEM part for LG refrigerators. It is designed to fit snugly in the door, providing additional storage space for items such as jars, bottles, and other condiments. This basket helps organize and maximize the available space in the refrigerator, making items more accessible and easy to find.

Symptoms of a bad Door Basket Assembly include:

• Cracking or breaking, which can reduce storage capacity and lead to spills,
• The basket becoming loose or failing to stay attached to the door,
• Difficulty in inserting or removing the basket due to warping or damage.

Causes of door basket assembly failure often involve overloading beyond recommended weights, frequent and rough handling, or environmental factors such as exposure to extreme temperatures or moisture.

This OEM LG part is also compatible with Sears/Kenmore.

This stopper assembly cushions and limits the door travel to prevent slamming and ensure correct door alignment. It restores smooth, controlled closing and helps reduce noise and wear on the door hinge area. What it does:

• Absorbs door impact to prevent hard slams and reduce noise
• Keeps the door from overtravel for consistent alignment
• Helps protect hinge and cabinet edges from damage
• Restores proper door closing feel when worn or broken

• One stopper assembly as shown

• Disconnect power and empty door area before starting repairs
• Access may require removing door trim or inner panel
• Use basic hand tools; avoid forcing the part into place to prevent damage

This hinge cam fits the door hinge and provides the lift/settle action that helps the door open and close smoothly. Replacing a worn cam can reduce clicking and restore consistent door movement and alignment.

• Provides cam action at the hinge for smooth door travel
• Helps the door seat closed and maintain alignment
• Common symptoms include clicking/knocking at the hinge, rough or uneven door movement, or slight door sag
• Visual wear such as flat spots or grooves on the cam is a typical failure sign

• Disconnect power to the appliance before servicing
• Support the door to prevent injury; remove hinge cover and hardware as needed
• Note the cam's orientation and any washers/spacers and transfer them to the new part
• After installation, verify door operation and gasket alignment; adjust hinge if needed

The Door closer is an OEM part for LG refrigerators, this part prevents the refrigerator door from swinging open too widely. By limiting the door's range of motion, the Door Stop ensures that the door opens smoothly and safely, contributing to the longevity of the appliance and maintaining the aesthetic integrity of your kitchen space.

Causes of a bad Door closer can stem from physical damage, wear and tear over time, or loosening of the component due to repeated use.

Symptoms of a bad Door closer include:

• The refrigerator door swinging open too far
• Damage or marks on adjacent walls or furniture from the door hitting them
• Increased wear on the refrigerator's hinges due to uncontrolled door movement

This OEM LG part is also compatible with some Kenmore models.

This slide rail is a replacement drawer guide that restores smooth, stable drawer movement and helps prevent binding or sagging. Designed to match the OEM fit so drawers open and close reliably. What it does:

• Guides and supports the appliance drawer for smooth sliding motion
• Replaces worn or damaged rails that cause sticking, sticking intermittently, or uneven travel
• Helps prevent drawer tilt or sag when loaded
• Restores proper alignment for secure closing

• Disconnect power to the appliance before beginning any work
• Remove the drawer per your model's service instructions to access the rail
• Use basic hand tools (screwdriver/driver) to remove and replace the rail; keep fasteners for reuse
• Align the rail carefully, slide the drawer to test operation, and verify smooth movement before returning the appliance to service

This slide rail supports and guides a drawer, bin, or rack so it can glide smoothly in and out of the appliance. Replacing a worn or broken rail restores alignment and easy operation while preventing binding or derailment. What it does:

• Provides the track surface for a drawer, bin, or rack to slide on
• Keeps the sliding assembly aligned and level during travel
• Worn rails can crack, warp, or lose mounting tabs over time
• Symptoms include sticking, rough travel, derailment, uneven drawer/rack, or difficulty fully opening/closing

• 1 slide rail

• Disconnect power before servicing; shut off the water supply
• Remove the drawer/rack and any end caps or stops per your model's instructions
• Position and secure the new rail using the original fasteners; transfer any reusable stops
• Reinstall and test for smooth, even travel; inspect the companion rail and rollers/wheels for wear

This connector assembly secures and drives the freezer drawer bar so the drawer opens and closes smoothly. Replaces a worn or broken bar/gear assembly to restore proper drawer movement and alignment. What it does:

• Transfers drawer motion to the slide mechanism so the freezer drawer glides correctly
• Replaces worn or stripped gears that cause slipping, grinding, or uneven movement
• Secures the drawer bar to the internal slide/track to prevent misalignment or sagging
• Useful when a drawer won't open/close smoothly, catches, or rattles during operation

• Disconnect power before servicing and remove stored items from the drawer
• Generally replaces with basic hand tools; support the drawer while detaching and installing the assembly
• Inspect surrounding slide components for wear and replace if needed for reliable operation

This spanner is the specialized hand tool used to turn and hold slotted nuts, collars, or fittings on compatible appliances, making service and adjustments easier and safer. It gives a secure grip for loosening or tightening components without damaging surrounding parts. What it does:

• Fits and turns slotted or notched appliance fasteners and collars commonly used in assemblies
• Helps hold a component steady while you loosen or tighten the mating fastener
• Reduces slippage and tool marks compared with pliers or improvised tools
• Useful during maintenance tasks such as removing retaining rings, collars, or adjustable fittings

• One spanner tool

• Disconnect power and/or gas and follow all safety precautions before servicing appliances
• Use the correct size spanner engagement to avoid slipping or rounding the fastener
• Apply steady force; do not use cheater bars or excessive torque unless specified by the manufacturer

The Flapper Door Spring is an OEM part for LG refrigerators, designed for the ice dispenser's flapper door mechanism. This spring plays a role in ensuring the flapper door opens and closes properly, providing a tight seal when the ice dispenser is not in use.

Over time, the flapper door spring can lose tension or break due to fatigue or corrosion, leading to issues with the flapper door's operation.

Symptoms of a bad Flapper Door Spring include:

• The flapper door on the ice dispenser fails to close completely
• Ice or frost buildup around the dispenser area
• Difficulty dispensing ice
• Increased energy consumption as the refrigerator works harder to maintain its set temperature

This OEM LG part is also compatible with some Kenmore models.

Left side upper hinge.

Right side upper hinge.

NOTE: This part also requires software update kit CJT30000002. DO NOT INSTALL WITHOUT UPDATING SOFTWARE. Call for more information.

The Compressor is an OEM part for LG refrigerators. As the primary component that circulates refrigerant to chill the refrigerator and freezer compartments, it is crucial for proper cooling operation. The compressor works with the condenser fan and evaporator coil to regulate temperatures inside the refrigerator.

Causes of a faulty compressor can include gradual breakdown of motor windings, loss of refrigerant pressure over time, or failure of electrical components vital to operation.

Symptoms of a bad compressor are:

• Elevated fridge/freezer temperatures unable to be maintained
• Frost patterns indicating poor or insufficient cooling
• Abnormal vibrations or sounds upon compressor cycling
• Error codes displayed regarding cooling performance

It is also compatible with Sears/Kenmore refrigerator models.


This overload protector is a compressor safety device that helps stop compressor damage by interrupting power during electrical overload or overheating. It restores normal operation once conditions return to safe levels. What it does:

• Detects electrical overloads or excess heat at the compressor and temporarily cuts power to prevent motor damage
• Common symptom: compressor runs briefly then stops, or refrigerator cools intermittently
• Works with the compressor start system to protect against burnout and electrical faults
• Passive mechanical/electrical device—no user controls

• Disconnect power to the appliance before accessing the compressor or electrical components
• Handle terminals and mounting carefully to avoid bending or damaging connections

A PTC thermistor assembly that senses temperature and provides the control board with accurate temperature feedback to help regulate heating and cycling. Replacing a faulty thermistor restores reliable temperature monitoring for safe, consistent operation. What it does:

• Monitors temperature and sends a signal to the appliance control so heating and cycles can be adjusted.
• Helps prevent overheating by enabling proper control of the heating system.
• Common symptoms of a failing thermistor: incorrect or inconsistent temperatures, heating that won't start or won't stop, extended cycle times, or temperature-related error codes.
• Works as the OEM-designated temperature sensing/feedback component for compatible LG units.

• Disconnect power to the appliance before starting any repair.
• Handle the assembly carefully; avoid pulling on wires or connectors—replace in the same orientation.
• May require basic hand tools and access panels.

This PTC cover is the protective housing that shields a PTC sensor/assembly from debris and physical damage, helping maintain reliable sensor performance and prolong component life in the appliance. What it does:

• Protects the PTC sensor or PTC assembly from dust, impact, and accidental contact
• Helps prevent shorting or intermittent sensor signals caused by contaminants
• Supports proper positioning and mounting of the PTC component
• Can help address symptoms such as visible sensor damage, exposed wiring, or intermittent operation related to a compromised sensor housing

• Disconnect power to the appliance before starting any repair
• Remove the outer panel(s) as needed to access the PTC location; handle surrounding wiring and components carefully
• Replace only with the correct OEM cover to ensure proper fit and protection

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This condenser assembly replaces the condenser wiring and support used in compatible refrigerators to restore proper condenser connections and airflow. It helps re-establish electrical routing and secure mounting so the cooling system can run reliably. What it does:

• Replaces damaged or corroded condenser wiring and associated mounting hardware
• Restores electrical connection between condenser components and the control circuitry
• Helps resolve symptoms such as cooling loss, intermittent compressor operation, or visible wiring damage
• Maintains proper condenser positioning for adequate airflow and heat dissipation

• Disconnect power and unplug the appliance before starting work
• Inspect surrounding components (fan, compressor, terminals) for related damage
• Use manufacturer-recommended torque and routing to avoid pinched wires

The Heater Sheath is an OEM replacement part for LG refrigerators. This component is responsible for defrosting the evaporator coils, preventing frost buildup that can impair the refrigerator's cooling efficiency. The heater sheath ensures that the defrost cycle runs effectively, maintaining optimal performance and energy efficiency of the refrigerator.

Causes of a bad heater sheath can include electrical malfunctions, wear and tear over time, or damage to the heating element itself. These issues can result in the heater sheath failing to activate, leading to frost accumulation.

Symptoms of a bad Heater Sheath include:

• Frost or ice buildup on the evaporator coils
• The refrigerator or freezer section not cooling properly
• Longer defrost cycles or the refrigerator running continuously
• Water leaks inside the refrigerator from excess frost melting

This OEM LG part is also compatible with Sears/Kenmore models.

This magnet-activated switch is a small sensor that tells the appliance when a door or lid is open or closed. Replacing a faulty switch restores proper lighting, door-ajar alerts, and safety interlocks for normal operation.

• Senses a nearby magnet to report door/lid open/closed status to the control
• Helps control interior lights, alarms, fans, and dispenser/ice interlocks on applicable units
• Failure symptoms can include lights staying on or off, false door-ajar beeps, or dispenser/ice disabled
• Common causes: moisture intrusion, damaged leads, or stuck internal contacts

• Disconnect power before servicing
• Access the switch at the door opening (behind trim/control housing or liner, location varies by model)
• Release locking tabs/fasteners, move wiring carefully, and install the new switch in the same orientation
• Restore power and verify operation by bringing a magnet near the switch to toggle

The MOTOR, DC is an OEM part for LG refrigerators. It is a direct current electric motor responsible for operating components related to cooling and airflow, such as the condenser fan and cooling fan. Efficient airflow circulation is critical for pulling heat away from refrigerated compartments and maintaining even temperatures throughout the fridge.

Causes of a bad motor can include excess dust buildup over time inhibiting proper fan rotation, worn motor brushes, or damaged motor windings affecting current flow.

Symptoms of a bad direct current motor include:

• Abnormally warm refrigerator temperatures
• Louder than usual operating sounds
• Lack of air coming from ventilation areas
• Visible buildup of frost or condensation inside the fridge

Replace yours today with this genuine OEM LG part to restore optimal cooling performance. This OEM LG part is also compatible with Sears/Kenmore.

A replacement cover motor that powers the refrigerator's dispenser cover, allowing the door to open and close so you can access ice and water. Replaces a worn or failed motor to restore normal dispenser cover operation. What it does:

• Drives the dispenser cover mechanism so the cover opens when dispensing and closes when idle
• Helps keep the dispenser sealed to reduce drafts and prevent pests or debris from entering
• Stops or fails to move when worn, causing a stuck, slow, or noisy dispenser cover
• Works with the dispenser linkage and gears to coordinate cover motion with user controls

• One cover motor

• Disconnect power to the appliance before beginning any repair
• Remove dispenser trim and access panel per your model's service instructions to reach the motor
• Handle gears and linkage carefully; ensure proper alignment during reassembly and test cover operation before finishing

Damper motor support secures the damper motor assembly inside the refrigerator, keeping the air-control damper aligned so it opens and closes correctly. Replacing a damaged support restores proper airflow control and reduces noise. What it does:

• Secures and positions the damper motor assembly so the air-control damper moves smoothly.
• Keeps the motor and damper aligned to help prevent rattling, grinding, or loose motor noise.
• Supports consistent airflow between compartments to assist with even cooling.
• Resolve damper movement problems like the damper not opening or closing fully.

• Disconnect power to the appliance before starting work; remove food and shelves as needed for access.
• Remove the interior access panel to reach the damper assembly; handle plastic tabs and clips gently to avoid breakage.
• Align the motor and damper during reassembly and secure all fasteners; test damper operation before replacing panels and shelving.

This damper motor support replaces a broken or warped mount for the refrigerator's air damper assembly. It holds the damper motor and door securely so the system can meter freezer air into the fresh food compartment.

• Secures and aligns the air damper motor/door within the duct
• Helps ensure proper opening/closing of the damper to regulate airflow and temperature
• Damage can contribute to a warm or too-cold refrigerator and inconsistent temperatures
• May cause clicking or buzzing from the damper area or a visibly loose assembly

• Disconnect power to the refrigerator before servicing
• Access the damper behind the fresh food compartment duct/cover; remove shelves as needed
• Note wiring and orientation; transfer the existing damper motor and door to the new support and reuse fasteners
• Ensure the door moves freely and seals before reassembly; restore power and verify airflow

The Door Bracket is an OEM part for LG refrigerators. This bracket supports the refrigerator door by providing stability and ensuring proper alignment during opening and closing. It plays a crucial role in maintaining the door’s secure fit, which is essential for maintaining the internal temperature and efficiency of the appliance.

Common causes of a bad door bracket include wear and tear from frequent use, impact damage, or corrosion due to moisture.

Symptoms of a bad door bracket include:

• The refrigerator door not closing properly
• The door sagging or being misaligned
• Unusual noises when opening or closing the door
• Gaps in the door seal leading to temperature inconsistencies

This OEM LG part is also compatible with Sears/Kenmore.

Keep your refrigerator interior bright and protected with this lamp cover — a clear/diffusing lens that shields the bulb while spreading light evenly for better visibility of stored food. What it does

• Protects the interior light bulb from contact, splashes, and accidental breakage
• Diffuses and softens the light for more even illumination inside the fridge
• Replaces cracked, yellowed, or missing lens that can cause glare or uneven lighting
• Fits the OEM mounting points for a secure, stable installation

• Disconnect power to the appliance before attempting any replacement
• Often removes by hand or with a fingertip push; have a screwdriver nearby if necessary
• Handle carefully to avoid scratching or cracking the lens during installation
• If glass fragments are present, clean out the area and wear gloves/eye protection

The Compressor Run Capacitor is an OEM part for LG refrigerators. It plays a critical role in the operation of the refrigerator's compressor by providing the necessary electrical boost to start and maintain the compressor's operation.

Causes of a bad compressor run capacitor can include electrical surges, overheating, or simply wear and tear over time. When the capacitor fails, it can no longer deliver the required electrical charge, which impacts the compressor's ability to start and run efficiently.

Symptoms of a bad compressor run capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual humming or clicking noises from the compressor area
• The refrigerator cycling on and off frequently

This OEM LG part is also compatible with Sears/Kenmore models.

Power cord assembly that restores the appliance's connection to household mains. Replaces a damaged or worn cord to help stop power loss, sparking, or intermittent operation and restore a safe power feed. What it does:

• Provides the main electrical connection from the wall outlet to the appliance so internal components receive line voltage.
• Replaces cords with visible damage, frayed insulation, exposed wires, or broken plug prongs.
• Can resolve symptoms such as no power, intermittent power, sparks at the plug, or breaker trips caused by a faulty cord.
• Restores the original style of power connection and strain-relief routing for a secure fit.

• Always disconnect power at the wall before attempting service.
• Basic hand tools may be required; secure the cord firmly with the appliance's strain relief and tighten screws.

This fan motor assembly circulates air across the evaporator coils to keep temperatures even inside the refrigerator. Replacing a worn or noisy motor restores proper airflow for consistent cooling performance.

• Drives the evaporator fan to move chilled air through the cabinet and vents
• Helps maintain stable temperatures and reduces frost from stagnant air
• Common symptoms: weak or no airflow, loud or intermittent fan noise, temperature fluctuations, refrigerator section warmer than expected
• Failures may result from worn bearings, moisture exposure, or an open motor winding

• Disconnect power before servicing; wear cut-resistant gloves and eye protection
• Access the fan behind the interior rear panel; remove shelves/drawers as needed and avoid bending evaporator fins
• Note wire connector orientation and mounting order; transfer any reusable hardware from the original assembly as needed
• After reassembly, verify the fan spins freely and confirm operation before reloading the compartment

This lamp cover assembly protects and diffuses the interior light so the appliance illuminates evenly while shielding the bulb from spills and impact. It restores a finished look and helps keep the light working safely. What it does:

• Shields the interior light bulb from food, moisture, and accidental contact
• Diffuses light for more even illumination inside the compartment
• Prevents direct bulb exposure that can cause glare or damage
• Replaces cracked, yellowed, or missing lens that reduces light output

• Disconnect power to the appliance before servicing to avoid shock
• Handle the lens carefully to avoid scratches or cracking during install
• Typically secures with simple clips or screws; have a screwdriver handy
• Avoid touching the bulb with bare hands

This ice maker lever is the mechanical arm that controls ice production by interacting with the ice maker's on/off and level-sensing mechanism. Replacing a broken or missing lever restores proper operation and helps prevent overfilling or no-ice conditions.

• Acts as the ice maker's shut-off arm to regulate ice production
• Lowers to allow ice making; raises to stop when the bin is full
• Common symptoms: ice maker won't stop making ice, no ice when arm is stuck up, broken/missing lever, lever won't stay in position
• Helps ensure consistent, reliable ice production control

• Disconnect power and shut off water before service
• Remove the ice bin to access the ice maker; gently release the lever from its pivots/linkage
• Note lever orientation; transfer and reuse any original springs, clips, or fasteners
• Reinstall components, restore power, and verify free up/down movement of the arm

The Ice Maker Assembly is an OEM replacement part for LG refrigerators. It contains the complete ice-maker.

Causes of a bad Ice Maker Assembly can include issues with proper ice ejection, ice cube size or shape inconsistencies, decreased ice production over time, mineral or sediment buildup affecting performance, or wear and tear from extended use.

Symptoms include:

• Incomplete or inconsistent ice filling of the ice tray
• Cracked, pitted, or misshapen ice cubes
• Ice cubes not ejecting from the tray properly
• Slowed or ceased ice production

This OEM LG ice maker assembly is also compatible with some Kenmore refrigerator models.

This sensor PCB assembly detects and relays sensor signals to the appliance control system, restoring accurate sensor feedback and communication when the original sensor board fails or malfunctions. Designed as a direct replacement board. What it does:

• Reads sensor inputs and converts them to signals the main control board can interpret.
• Replaces a failed or intermittent sensor board that causes incorrect readings or sensor-related error codes.
• Can resolve symptoms such as unexpected sensor faults, control errors, or appliances not responding to sensor changes.
• Matches the OEM board function; verify model compatibility before ordering.

• Always disconnect power before servicing to avoid shock or shorting the board.
• Use ESD precautions and handle the PCB by its edges to prevent static damage.
• Ensure all connectors are fully seated and the board is mounted in the original orientation.

The Temperature Sensor is an OEM part for LG refrigerators. Also known as a thermistor, is responsible for sensing the temperature changes and providing the necessary feedback to the refrigerator's control board. It helps maintain accurate and consistent temperature levels, ensuring optimal food preservation and efficient cooling.

Causes of a faulty temperature sensor can include wear and tear over time, damage due to electrical issues or exposure to extreme temperatures, or sensor calibration issues. These factors can result in temperature inconsistencies, inaccurate readings, or improper cooling performance of the refrigerator.

Symptoms of a bad temperature sensor may include:

• Incorrect temperature readings on the control panel
• Temperature fluctuations inside the refrigerator
• Overcooling or inadequate cooling of food items

This OEM LG part can also be used on Kenmore/Sears appliances.

The Water Valve is an OEM part for LG refrigerators. This valve controls the flow of water to the refrigerator's ice maker and water dispenser, ensuring a steady and regulated supply.

Causes of a bad water valve can include wear and tear over time, mineral deposits from hard water clogging the valve, electrical issues, or physical damage from mishandling. These problems can result in the valve failing to open or close properly.

Symptoms of a bad water valve include:

• No water dispensing from the refrigerator
• The ice maker not producing ice
• Leaks around the valve area
• Unusual noises when the valve is operating
• Low water pressure or flow

This OEM LG part is also compatible with Sears/Kenmore models.

The Water Filter is an OEM replacement part for LG refrigerators. It is designed to remove impurities, contaminants, and unwanted particles from the water supply, ensuring that the water dispensed and used for ice making is clean and fresh.

Symptoms of a need to replace the water filter:

• Unpleasant taste or odor in the water or ice
• Decreased water flow from the dispenser
• Discoloration or sediment visible in the dispensed water

Causes of a faulty water filter can include general usage over time, exposure to high levels of contaminants in the water supply, or physical damage or clogging of the filter media.

This OEM LG part is also compatible with some Kenmore refrigerator models.
