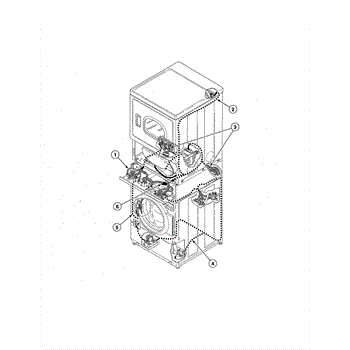

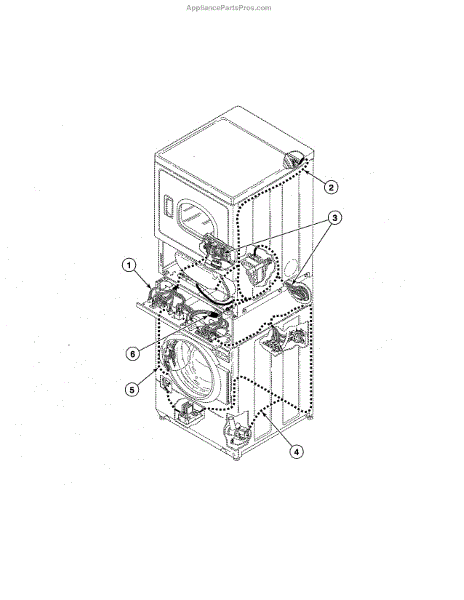

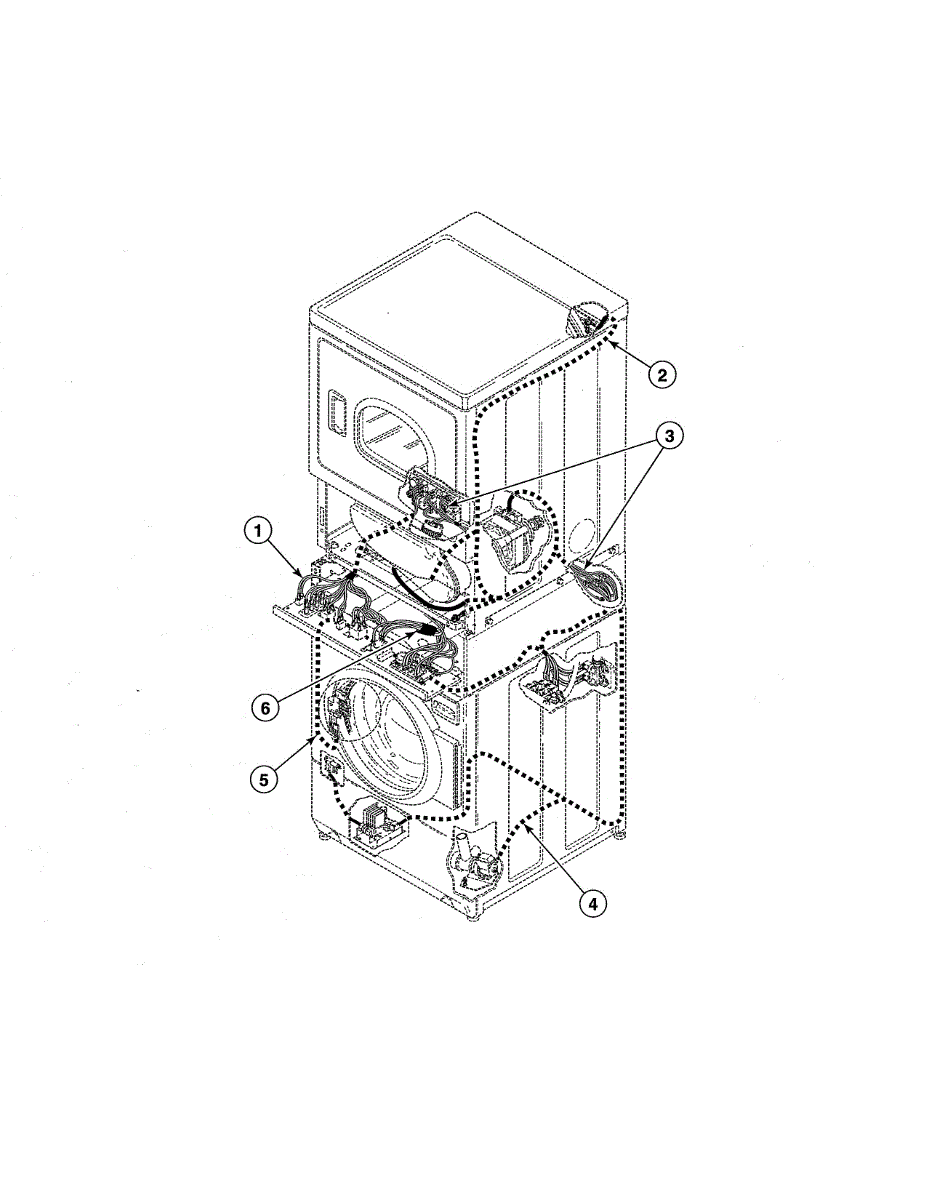

Parts for Alliance CTSA7AWN: Wire Harness / Wires Parts

Parts for Alliance CTSA7AWN: Wire Harness / Wires Parts

Location on Diagram
Part Description
Price & Availability
1
By: Speed Queen
Part Number: 801326P

Fix washer control issues with this control harness assembly. Resolves electrical failures and connection problems in laundry centers. DIY installation.

More
$112.56

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
2A
By: Speed Queen
Part Number: 511325P
$100.56

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
2
By: Speed Queen
Part Number: 511322P
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

NI02
By: Speed Queen
Part Number: 122P4P

Porcelain touch-up paint for dryers, washers, and laundry centers. Repairs small chips, scratches, and worn spots on enamel surfaces. Single bottle.

More
$48.37

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
3
By: Speed Queen
Part Number: 801324P

This control harness assembly routes power and signals between the washer/dryer control electronics and the machine's switches and components, restoring reliable electrical connections and control responsiveness. What it does:

  • Carries power and control signals to the main control board and user interface
  • Replaces damaged, pinched, or burnt wiring that can cause intermittent or no response from controls
  • Helps stop erratic cycles, unresponsive buttons, or failure to start when caused by a faulty harness
  • Provides factory-style connector plugs and wire routing for correct fit and function
What's included:
  • One control wiring harness assembly
Install notes:
  • Disconnect electrical power (unplug or switch off breaker) before starting any work
  • Take photos of existing harness routing and connector positions to aid reinstallation
  • Route harness as original, secure with existing clips/fasteners, and ensure all connectors fully seat
  • Handle pins and connector ends carefully to avoid bending or contamination; replace panels and fasteners before testing

More
$109.46

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
4
By: Speed Queen
Part Number: 802274P

Replace a faulty motor wire harness if your laundry center won't start, stops mid-cycle, or shows electrical errors. Moderate DIY repair in 1-2 hours.

More
$141.16

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
5
By: Speed Queen
Part Number: 802351P
$151.37

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
6A
By: Speed Queen
Part Number: 511323
$31.35

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
6
By: Speed Queen
Part Number: 511324P

This electrical cable connects various components to the washer's main control system, running through the cabinet to secondary components. Replace it when electrical functions fail intermittently, the washer doesn't respond to controls, or you notice burned or damaged wiring.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
