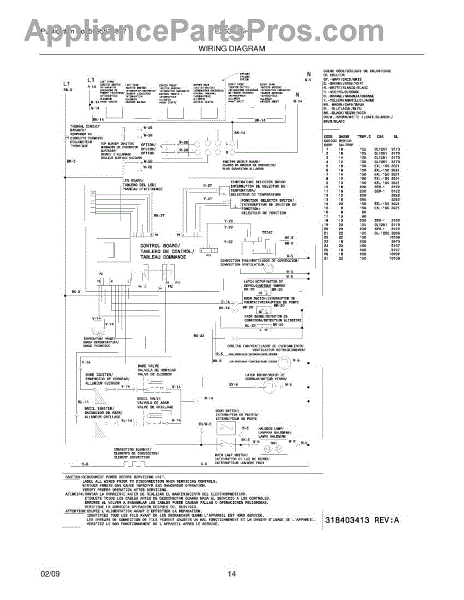

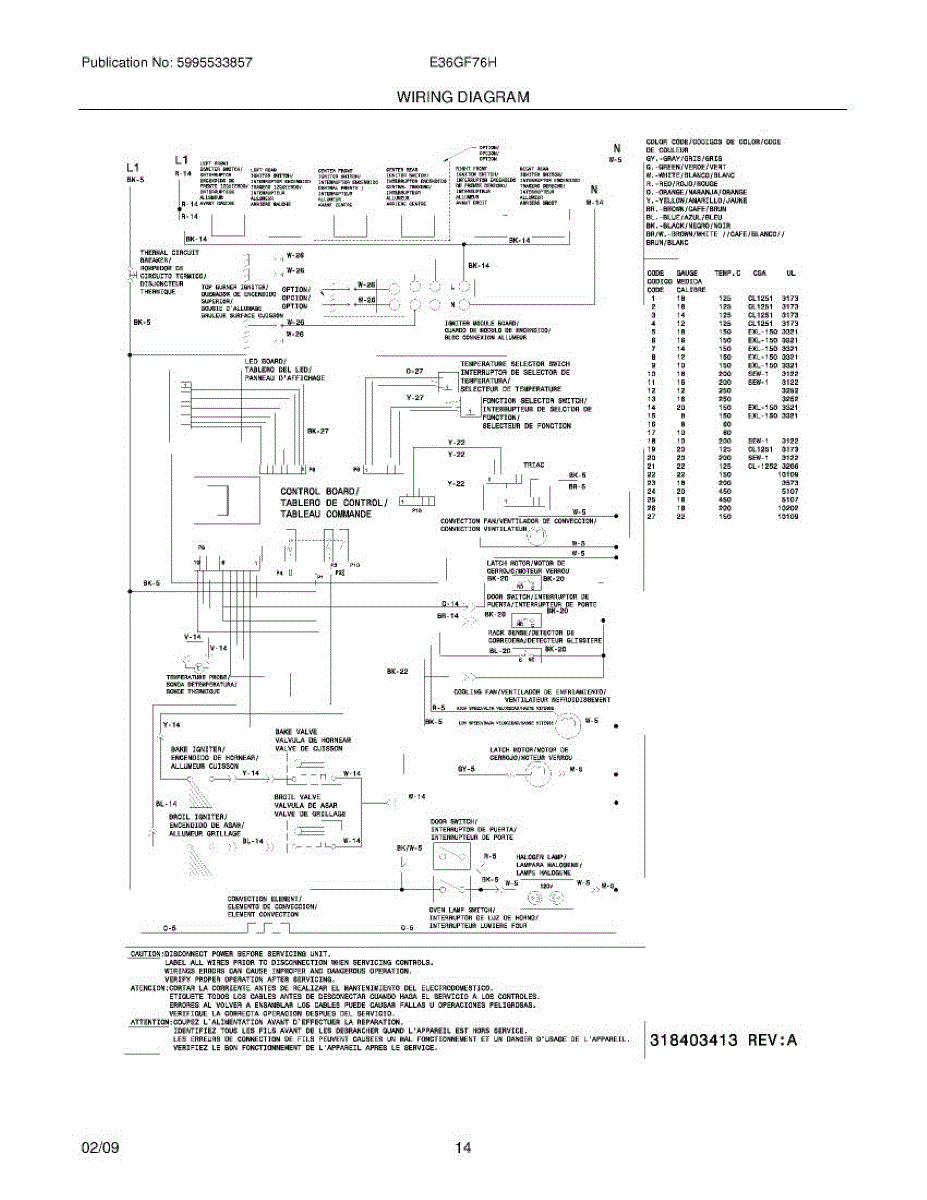

Parts for Electrolux E36GF76HPS2: 12 - Wiring Diagram Parts

This wiring harness connects the appliance's electrical components so controls and motors receive power and signals for normal operation. Replacing a damaged harness restores reliable electrical connections and helps prevent intermittent faults. What it does:

• Routes power and signal wires between control board, motors, switches, and sensors
• Replaces frayed, burnt, or broken wiring that can cause intermittent operation or loss of function
• Stops connection-related symptoms such as no power to components, unexpected shutdowns, or control failures
• Prevents potential arcing from damaged connectors when installed correctly

• Disconnect all power to the appliance before beginning disassembly to avoid shock or injury
• Take photos of original routing and connector positions to aid reassembly
• Route harness to avoid pinching, sharp edges, or heat sources and secure with original clips or fasteners
• If connectors are corroded or damaged, replace them with the correct OEM harness rather than splicing

Replacement mounting screw for ovens and ranges. Secures panels, brackets, and components. Order a new screw if yours is stripped, missing, or damaged.

Mounting screw for electric range and wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged during repair.

Mounting screw for electric range, oven, or wall oven assembly. Secures internal components and panels. Replace if stripped, missing, or damaged.

Mounting screw for ranges, ovens, and cooktops. Secures panels, brackets, or internal components. Replace if missing, stripped, or damaged.

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

Specs: 8 - 18 x 0.500

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

Specially formulated cleaner for ceramic glass and smooth cooktops. Removes cooked-on food, grease, and spills without scratching. Verify fit by model.
