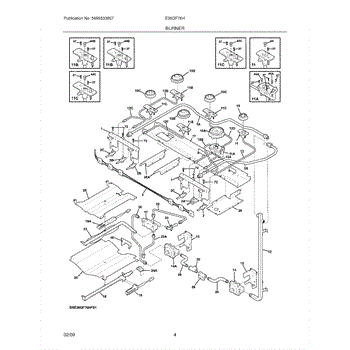

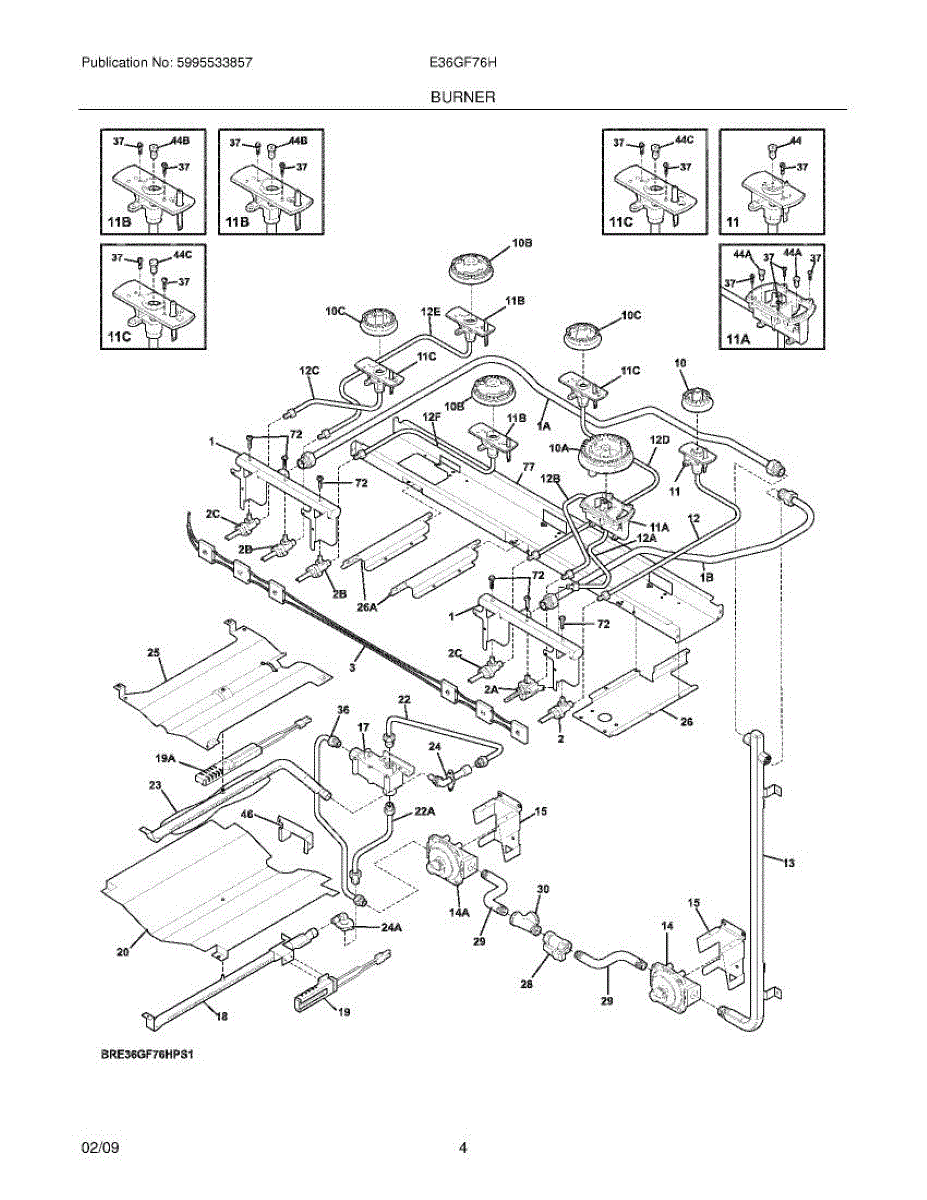

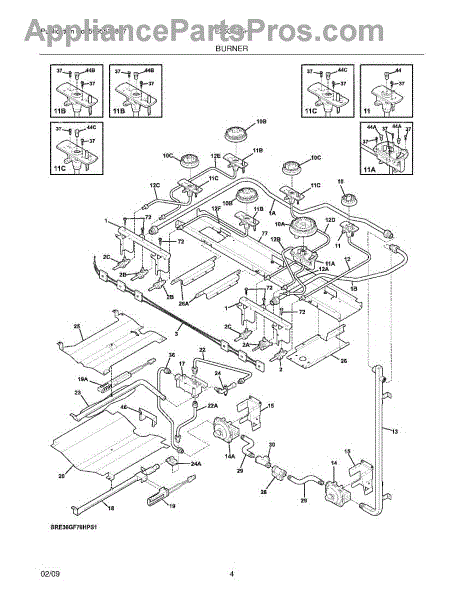

Parts for Electrolux E36GF76HPS2: 05 - Burner Parts

Replace your range's gas manifold if it's cracked, corroded, or leaking. This manifold distributes gas to the burners and installs inside the cooktop.

Replace a faulty top burner valve if your cooktop burner won't ignite, flame is too low, or gas won't shut off. Moderate DIY repair in 30-45 minutes.

Fix a burner that won't light, won't stay lit, or has uneven flames with this top burner valve. Controls gas flow to individual burners on gas cooktops.

Burner base includes orifice and ignitor.

Gas pressure regulator for cooktop burner systems. Mounts to the manifold to control fuel flow. Replace if cracked, leaking, or showing wear.

Fixes oven not heating or slow to heat issues. Controls gas flow to burner for safe ignition. Common repair for delayed heating or no heat problems.

Fix delayed oven ignition or gas odor with this spark electrode. Creates the spark that lights your oven burner. DIY repair in under 1 hour.

Oven won't light or ignites with a loud pop? A faulty igniter is usually the cause. Simple DIY fix—disconnect two screws and wire nuts to replace.

This baffle directs cold air inside the refrigerator to help maintain even temperatures and protect stored food. It replaces a damaged or broken deflector to restore correct airflow and cooling performance. What it does:

• Guides cold air from the evaporator toward fresh-food or freezer compartments
• Helps prevent uneven cooling and localized warm spots
• Reduces frost buildup caused by disrupted airflow
• Restores proper circulation when cracked, warped, or missing

• Disconnect power to the appliance before starting any repair
• Typically installs with clips or screws; retain fasteners from the original part
• Handle with care to avoid cracking plastic tabs during removal or installation

Lower baking element that installs in the bottom of your range oven cavity. Replace if cracked, warped, broken, or no longer heating evenly during use.

This elbow is an angled connector used to route appliance tubing or hose in tight spaces. Replacing a cracked or leaking elbow restores a secure, sealed connection and proper flow, helping prevent kinks, drips, and water damage.

• Provides a compact change of direction for appliance tubing or hose
• Helps maintain proper flow and reduces the chance of kinking
• Seals the joint to help prevent drips and leaks
• Common symptoms: visible cracks, mineral staining or moisture at the joint, puddling under the unit, or reduced/intermittent water flow

• Disconnect power and shut off the water supply before servicing
• Relieve line pressure and place towels/containers to catch residual water
• Prepare tubing with a clean, square cut; install per your model's connection style and avoid over-tightening compression fittings
• Restore water/power and check all connections carefully for leaks

This water inlet valve controls water flow to the refrigerator's ice maker and water dispenser, restoring normal dispensing and ice production when the valve is faulty or leaking. What it does

• Opens and closes to allow water into the ice maker and dispenser as commanded by the refrigerator.
• Stops water flow to prevent overfilling; a failed valve can cause no water, slow flow, or continuous filling.
• Commonly linked to symptoms such as no ice production, weak or no water from the dispenser, or visible leaks at the valve.

• One water inlet valve assembly.

• Disconnect power and shut off the water supply before starting work.
• Relieve line pressure and have towels ready for residual water when disconnecting fittings.
• Inspect and replace any worn water line fittings or gaskets; tighten connections to manufacturer torque—do not overtighten plastic fittings.

The Screw is an OEM part for Frigidaire ranges and cooktops. This part secures the burner head in place, ensuring proper alignment and functioning of the burner.

Causes of a bad burner head screw can include loosening due to repeated heating and cooling cycles, damage from impact or mishandling, or simply wear and tear over time.

Symptoms of a loose or missing burner head screw include:

• Uneven or irregular flame pattern on the burner
• Burner head not sitting flush or properly aligned
• Burner head wobbling or moving during use
• Potential gas leaks if the burner head is not securely fastened

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Burner base includes orifice and ignitor.

Secures gas valve assemblies and mounting brackets to your range. Replace if screw is stripped, missing, or corroded to keep valve hardware stable.

This wiring harness connects the appliance's electrical components so controls and motors receive power and signals for normal operation. Replacing a damaged harness restores reliable electrical connections and helps prevent intermittent faults. What it does:

• Routes power and signal wires between control board, motors, switches, and sensors
• Replaces frayed, burnt, or broken wiring that can cause intermittent operation or loss of function
• Stops connection-related symptoms such as no power to components, unexpected shutdowns, or control failures
• Prevents potential arcing from damaged connectors when installed correctly

• Disconnect all power to the appliance before beginning disassembly to avoid shock or injury
• Take photos of original routing and connector positions to aid reassembly
• Route harness to avoid pinching, sharp edges, or heat sources and secure with original clips or fasteners
• If connectors are corroded or damaged, replace them with the correct OEM harness rather than splicing

Replacement #8 x 0.500 inch screw for securing panels, trim, and brackets in appliances. Needed when original fasteners are stripped, lost, or missing.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head
