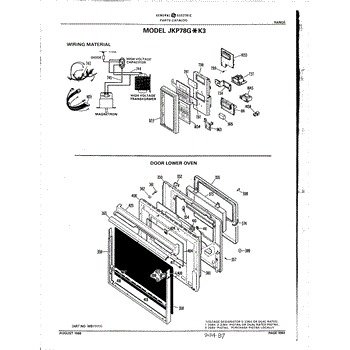

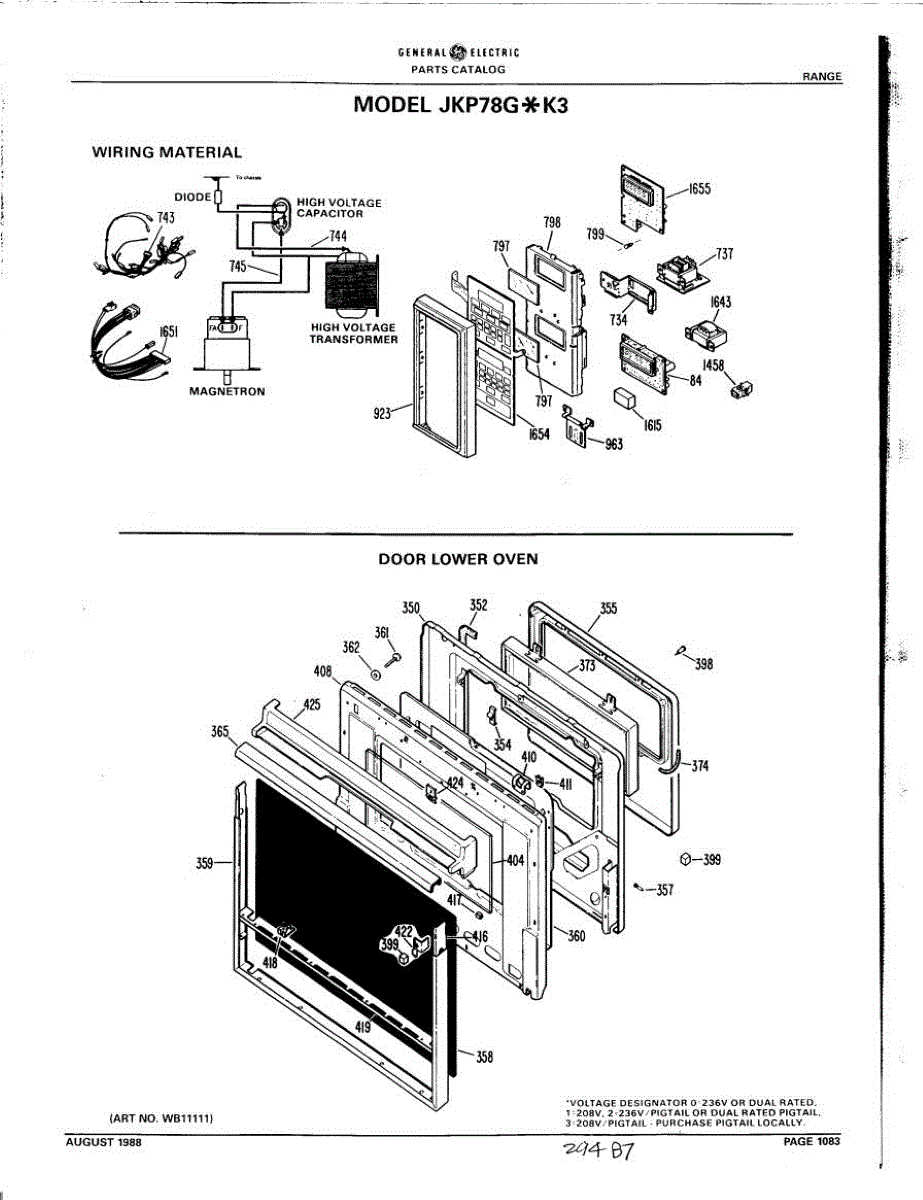

Parts for Ge JKP78GXK3: 01 - Wiring Material Parts

Seals oven door to contain heat and maintain cooking temperatures. Replace when frayed, flattened, or leaking heat. Confirm fit with your model number.

Inner door panel for electric ovens and ranges. Replaces cracked, damaged, or broken inner door panels. Installs between door glass and exterior panel.

Includes 12 screws.

Includes 12 washers.

This part has been discontinued and is no longer available.

Oven door clip secures the door panel in place. Replace if door rattles, becomes loose, or panel shifts. Verify fit with your model number.

Package of 12

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Lead wire harness for electric ranges and wall ovens. Connects internal electrical components. Replace if wire is frayed, damaged, or connection is loose.

Secures components to your appliance chassis for a rattle-free fit. Replace missing, stripped, or corroded screws to keep panels and brackets aligned.

This part has been discontinued and is no longer available.

This high-voltage transformer steps up household current to power your microwave's magnetron tube. It converts standard household voltage to the high voltage needed to generate microwaves for cooking. Replace this transformer if your microwave doesn't heat food, makes loud humming noises, or repeatedly blows fuses.

Microwave not heating or heating unevenly? A failed magnetron is the likely cause. This high-voltage tube generates microwave energy to cook food.

This microwave high-voltage capacitor stores and releases energy in the high-voltage circuit to power the magnetron. Replacing a failed capacitor helps restore proper heating and protects other components in the high-voltage system.

• Works with the transformer and high-voltage diode to supply the magnetron with the required voltage
• Failure may result in the unit running but not heating
• Shorted capacitors can blow the internal fuse or trip a breaker; opens may cause loud humming or buzzing
• Visible swelling or leakage on the capacitor body are common failure signs

• Unplug the microwave; capacitors can retain a dangerous charge even when unplugged—discharge using an appropriate, insulated method before servicing
• Note wire positions and terminal orientation; transfer any mounting hardware from the original part
• Mount securely and route wires to avoid pinching

Microwave not heating or humming loudly? The high-voltage diode converts AC to DC for the magnetron. Repair takes 30-45 minutes with basic tools.

The Probe Thermistor is an OEM replacement part for GE wall ovens and ranges. Located inside the oven cavity, this temperature-sensitive probe precisely monitors interior heat to safeguard against overcooking.

Causes of a faulty thermistor involve exposure to excessive cooking temperatures, moisture infiltration from spills or steam, or basic failure due to old age.

Symptoms of an inadequate probe thermistor include:

• Inaccurate temperature readings and baking inconsistencies
• Oven temperature exceeding desired setting risking fire

This OEM GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.
