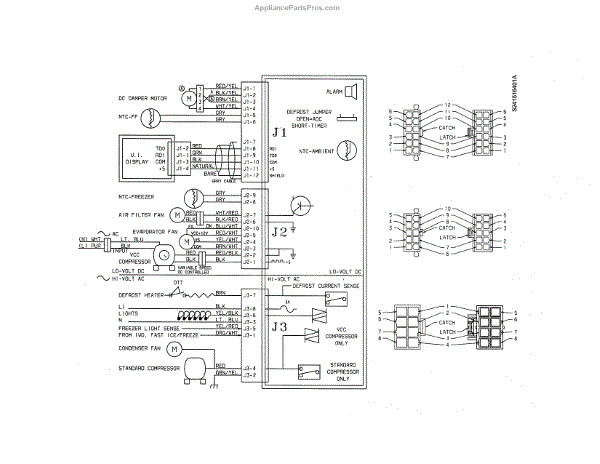

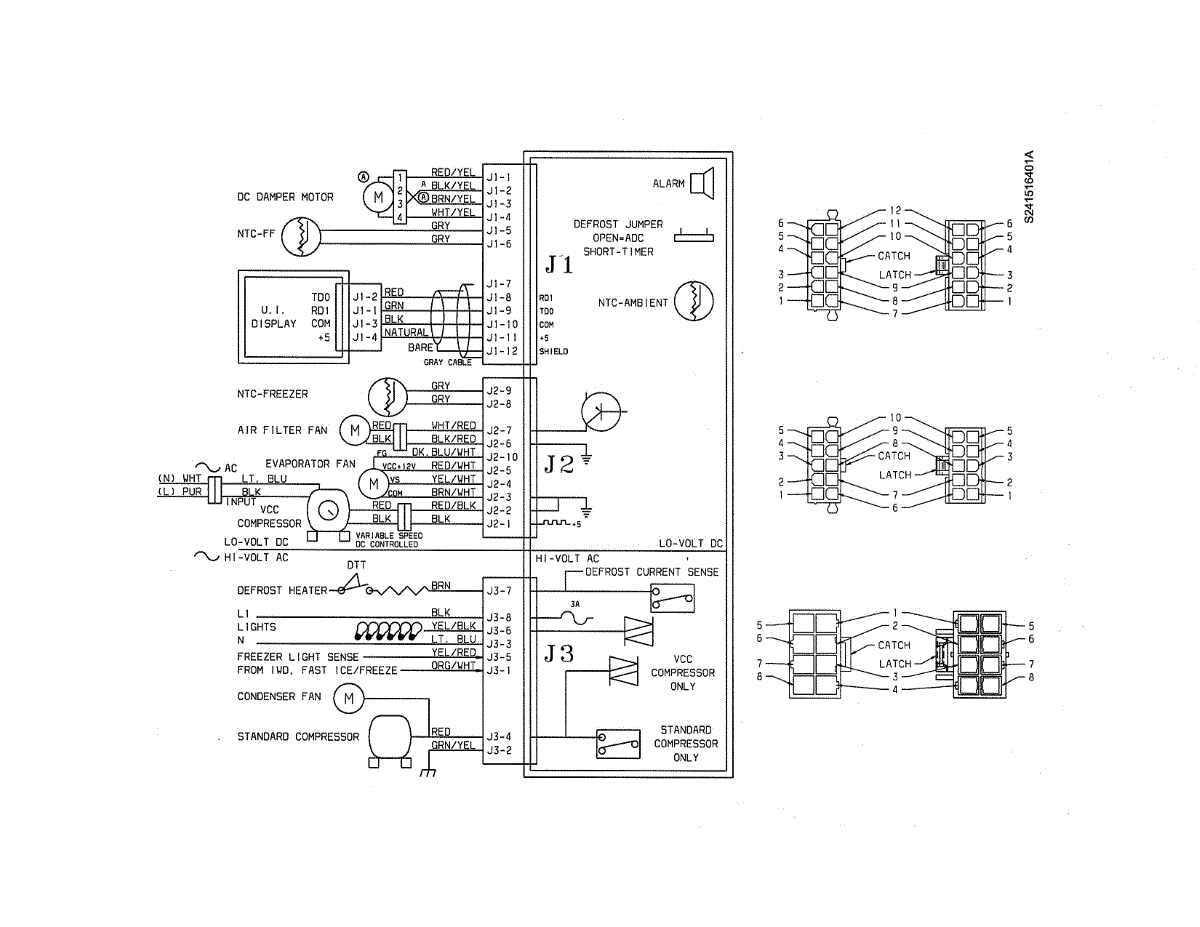

Parts for Kenmore 253.44359403 (25344359403, 253 44359403): Wiring Schematic Parts

The Wiring Harness is an OEM part for Frigidaire refrigerators. It connects various electrical parts within the refrigerator, ensuring proper communication and voltage.

A bad wiring harness can be caused by wear and tear, damage, or electrical issues. Signs of a faulty wire harness include malfunctioning or non-functional parts, intermittent electrical problems, or loose connections.

Symptoms of a bad wiring harness can include:

• Intermittent electrical issues or power loss
• Burnt or melted wires
• Visible damage or wear on the wire harness

Replace your worn or damaged wiring harness with this genuine OEM part to restore your refrigerator. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


Fix frozen water dispenser issues with this dispenser heater kit. Prevents ice buildup in the fill tube and restores water flow to your refrigerator.

Color: White

Secures refrigerator grille or trim to cabinet, preventing rattles and gaps. Replace when broken or missing to restore proper panel alignment. Verify fit with your model number before ordering.

The Frigidaire Touch-Up Paint is white in color in a .6 fl oz bottle. For almond order 5303321320. For black order 5303321321.

The Touch Up Paint is an OEM part for Frigidaire appliances. Whether you're dealing with scratches, chips, or other minor cosmetic damage, this touch-up paint provides an easy and effective solution for maintaining the appearance of your appliance. It's designed to adhere well to metal surfaces, offering durability and resistance to further wear and tear.

Over time, appliances can accumulate minor surface damage from regular use, cleaning, and accidental impacts. Using the Touch Up Paint not only improves the aesthetic appeal of your appliance but also helps protect exposed areas from rust and corrosion, which can extend the life of the appliance.

Symptoms of needing Touch Up Paint include:

• Visible scratches or chips on the appliance's surface.
• Areas of rust or corrosion that need to be covered after treating the rust.
• The desire to maintain or improve the appliance's appearance for aesthetic reasons or to maintain its value.

Touch-up paint for appliances to cover scratches, chips, and worn areas on exterior surfaces. Restores appearance of refrigerators, ranges, and more.

Touch-up paint in bisque color for appliance exterior surfaces. Covers chips, scratches, and worn spots on refrigerator doors, range panels, and more.

Service data sheet for your refrigerator. Provides technical specifications, wiring diagrams, and troubleshooting info. Replace if lost or damaged.

Protects wiring harness edges in your refrigerator from wear and abrasion. Replace if cracked, broken, or missing to prevent wire damage and insulation.

This is a push on John Guess design elbow used to connect two 5/16" plastic lines together.

Replacement insulation foam block for refrigerators. Installs inside cabinet walls to maintain temperature efficiency. Order when original is missing, damaged, or compressed from wear.

Ice won't dispense or gets jammed? This ice bucket assembly stores and feeds ice to your dispenser. Restores smooth dispensing in about 20 minutes.

The Icemaker Assembly is an OEM part for Frigidaire refrigerators. This assembly is responsible for producing and dispensing ice cubes, ensuring that you always have a steady supply of ice for your beverages or food storage needs.

Causes of a bad Icemaker Assembly include mechanical wear and tear that affects the ice ejector arms or the heating element that loosens the ice, and electronic failures that impair the control module's ability to regulate the ice-making process.

Symptoms of a bad Icemaker Assembly include:

• Failure to produce ice
• Producing small or misshapen ice cubes
• Leaking water in the freezer compartment
• Unusual noises during the ice-making cycle

Fits many Frigidaire side-by-side refrigerators where the icemaker mounts to the back wall of the freezer compartment.

If you experience an issue with the arm hitting the shelf, you may also need to replace the shelf due to manufacturer changes; part number 241691701,
