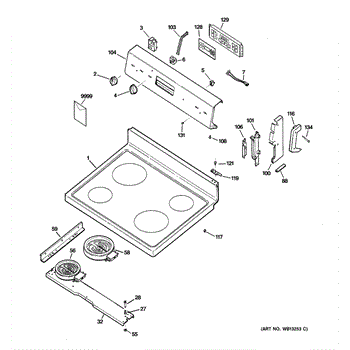

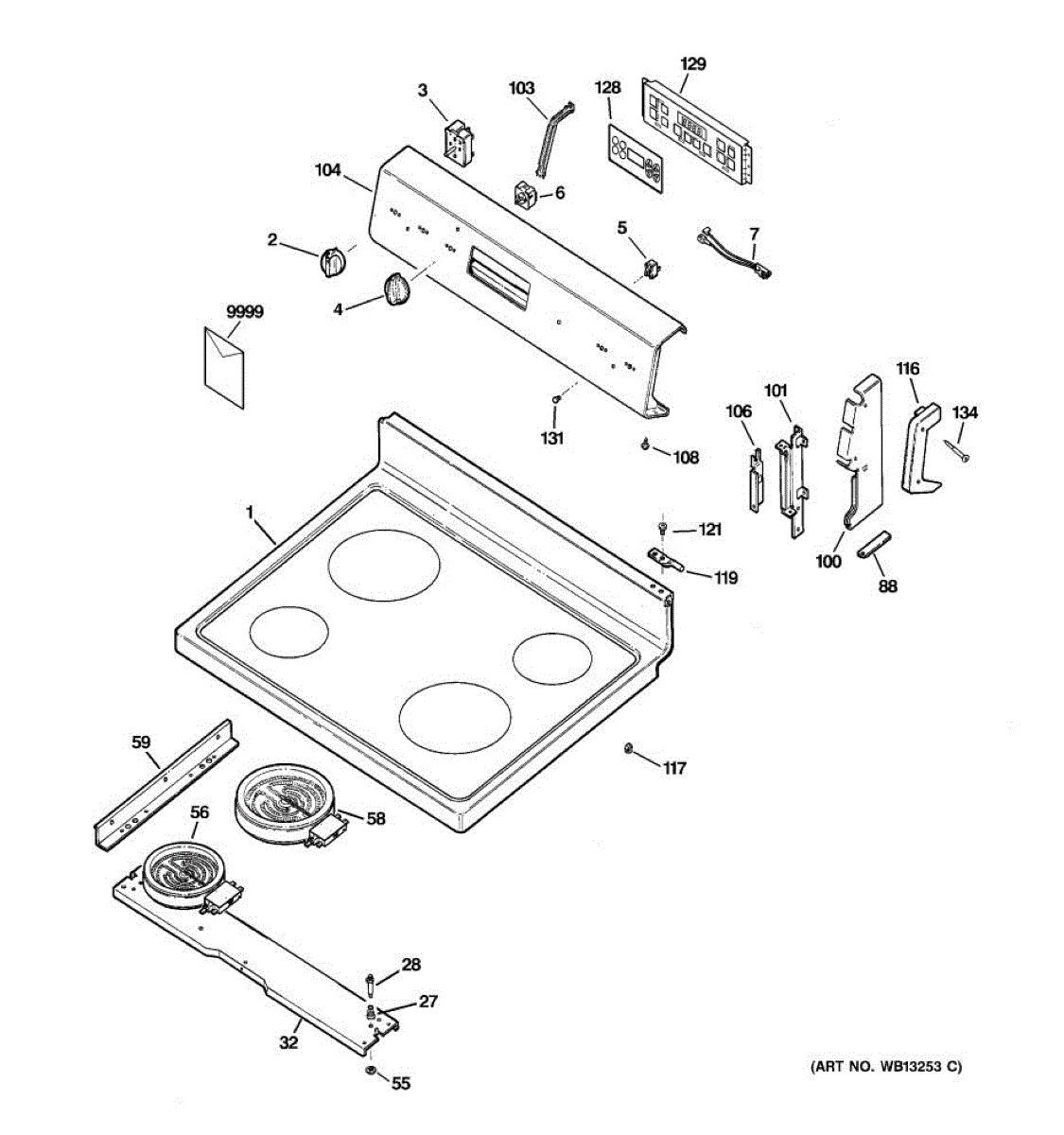

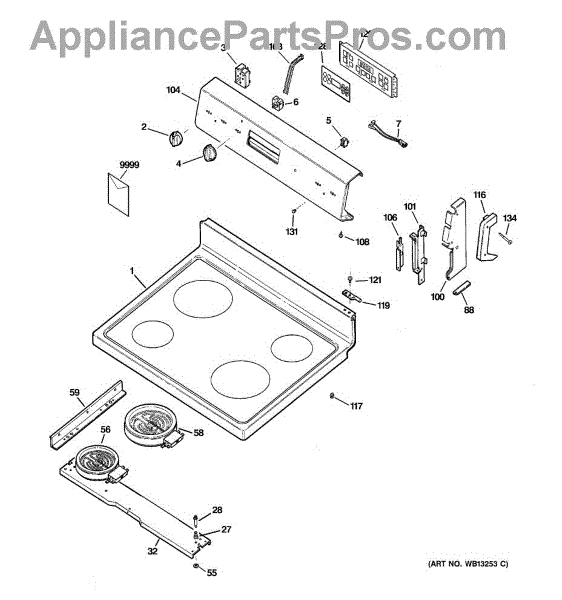

Parts for Ge RB800SJ1SA: 01 - Control Panel & Cooktop Parts

The Infinite Control Switch is an OEM replacement part for GE electric ranges. It controls the heat output of the surface burners.

Causes of a faulty switch can include failures in the circuitry from extended and repetitive use over time. Exposure to liquid splatters or spills can also impact component wiring.

Symptoms of a bad infinite control switch include:

• Unresponsive or incorrectly functioning control buttons/dials
• Inability to turn on desired cooking elements
• Erratic temperature regulation and heating performance
• Repeated resetting or power intermittence issues

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Range Surface Burner Control Switch is an OEM part for GE ranges. This switch manages the temperature of the surface burners on your range, providing the ability to adjust the heat level. Whether you're simmering sauces or boiling water, the control switch ensures precise temperature management, enhancing your cooking experience.

The causes of a faulty burner control switch often include prolonged use leading to wear on the electrical contacts, exposure to moisture causing short circuits, or physical damage from impact or excessive force when turning the knob.

Symptoms of a bad surface burner control switch:

• The burner not turning on or off
• Inability to adjust the heat level, with the burner staying at one temperature regardless of the knob setting.
• Intermittent burner function

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement control knob restores a secure, easy-to-grip control for a range or oven user interface. It provides a straightforward way to select settings and regain full manual control of the appliance's controls. What it does

• Replaces a missing, cracked or worn knob so you can accurately set burner or oven controls
• Provides a tactile, easy-turn grip for precise selection of heat or function
• Snaps onto the control shaft for a firm fit and reliable operation
• Helps eliminate slipping or incomplete selection caused by damaged knobs

• Disconnect power (and gas if applicable) before servicing controls to avoid injury.
• Knob typically pulls straight off the control shaft; align splines and push on until seated.
• If the knob is tight or stuck, gently wiggle while pulling—avoid prying on surrounding panels.
• Verify correct orientation and function before restoring power and normal use.

This pilot lamp is the control-panel indicator light for a cooking appliance. It illuminates when a surface burner or oven circuit is energized, giving a clear visual cue that heat is active. What it does

• Lights to indicate an active surface burner or oven circuit
• Restores proper "heat on" indication on the control panel
• Common failure signs: indicator light does not turn on; intermittent/flickering illumination

• 1 pilot lamp

• Disconnect power at the breaker before servicing
• Access the rear of the control panel/console to reach the lamp
• Note wire positions and transfer them one at a time to the new lamp
• Secure the lamp, reassemble, restore power, and test for proper illumination

The Medium Haliant Element is an OEM part for GE cooktops. This radiant heating element is located beneath the ceramic cooktop surface and provides a medium-sized heating area for cooking various dishes. This element measures 6 Inches.

Causes of a bad haliant element can include electrical issues such as short circuits, wear and tear from regular use, or physical damage from impacts or overheating.

Symptoms of a bad medium haliant element include:

• The element not heating up or only heating partially
• Inconsistent or uneven heating
• The cooktop displaying error codes related to the heating element
• Visible damage or discoloration on the element

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Large Haliant Element is an OEM replacement part for GE ranges/cooktops. This haliant burner element is 8 inches in diameter. The element lies underneath the stovetop and will need to be replaced if it stops heating. 8-inch 2100 watt. Includes limiter

Causes of a bad halogen element can include cracked or damaged ceramic material, broken support coils, or malfunctioning heating coils.

Symptoms of a bad halogen element include:

• Element not heating up properly or unexpectedly shutting off
• Burned-out coils or melting/warping of the protective, reflective dish

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

This right-side end cover restores the finished trim and protects the exposed edge of the appliance where panels meet. It improves appearance and helps shield internal components from dust and contact. What it does

• Replaces a cracked, broken, loose or missing right-side end cover that leaves an exposed edge
• Provides a finished trim piece for a cleaner appliance appearance
• Helps protect internal components and wiring behind the panel from incidental contact and debris
• Keeps adjacent panels aligned and reduces movement or rattling at the cabinet edge

• Disconnect power to the appliance before beginning any repair
• Removal may require unscrewing or unclipping adjacent trim pieces; keep hardware for reassembly
• Align cover to the correct orientation (right side) and engage clips or fasteners fully before tightening
• If mounting hardware is damaged or missing, replace with OEM-specified parts for a secure fit

This right-hand end plate is a direct-replacement body panel that restores proper support and alignment to the appliance's exterior components. It helps maintain a secure fit and appearance after damage or wear. What it does:

• Replaces a bent, cracked, or corroded right-side end plate to restore panel alignment
• Provides mounting/support for adjacent trim and components to prevent gaps or sagging
• Stops rattling or vibration caused by a loose or damaged end plate
• Helps maintain a finished exterior look and proper sealing where panels meet

• One right-hand end plate

• Disconnect power (and water, if applicable) before beginning any repair
• Use appropriate hand tools; avoid overtightening fasteners to prevent panel distortion
• Handle edges carefully — panels and sheet metal can be sharp
• Test fit and align panels before fully tightening all screws

This mounting screw secures appliance components to the chassis for a tight, rattle-free fit. Replacing a missing, stripped, or corroded fastener helps keep panels, brackets, or burner assemblies properly aligned and secure.

• Fastens designated parts to the appliance frame or mounting points
• Helps maintain proper alignment of panels, trim, brackets, or burner assemblies
• Restores hold when the original screw is worn, rusted, or lost
• Symptoms include loose or wobbly components, rattling/vibration, or visible gaps

• Disconnect power; allow all surfaces to cool. For gas units, also shut off the gas supply.
• Use the correct driver/bit; avoid cross-threading.
• If mating threads or clip/nut are damaged, repair or replace them before installing.
• Tighten until secure; do not overtighten to prevent stripping.

This right-side black end cap finishes and secures the end of a trim, rail or channel to restore proper fit and appearance. It prevents sharp edges and keeps the assembly aligned for reliable operation. What it does:

• Covers and protects the exposed end of a trim, rail or channel to reduce sharp edges and wear
• Helps hold the trim/rail in place so shelves, drawers or doors stay aligned and operate smoothly
• Stops rattling or movement caused by a missing or broken end cap
• Restores OEM appearance where the original end cap is cracked, warped or lost

• One right-side black end cap

• High-level replacement; typically snaps or slides into position without special tools
• Remove power or secure appliance parts as needed before working in the area
• Inspect mating trim/rail for damage and replace if worn to ensure proper fit

This hinge pin links the oven door hinge to its mounting point, creating the pivot that lets the door open and close smoothly. Replacing a worn or missing pin can restore steady door movement and a consistent seal.

• Serves as the pivot point for the door hinge
• Helps maintain proper door alignment and closing pressure
• Wear or damage may show as a loose, sagging, or misaligned door
• May help address squeaks, binding, or difficulty latching the door

• Disconnect power; for gas ranges, also shut off the gas supply
• Support or remove the door to access the hinge
• Note hinge orientation; remove the old pin and install the new pin securely
• Inspect the hinge/bracket for wear; lubricate only if specified by the manufacturer

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

The Overlay is an OEM replacement part for GE ranges and ovens, designed to provide a clear, durable interface for the appliance's control panel. The overlay is a protective and decorative film that labels each function and control on the electronic control board of your range or oven. It allows users to select settings and modes accurately.

Common causes of a bad overlay include frequent cleaning using harsh chemicals that degrade the material, exposure to high heat or direct sunlight resulting in fading or warping, and physical damage from impacts or scratches that may occur during cleaning or general use.

Symptoms of a bad overlay include:

• Difficulty in selecting the correct settings due to faded or missing labels.
• The appearance of the control panel looks worn or unattractive, affecting the overall look of your kitchen.
• Moisture infiltration into the control panel, potentially causing electrical issues.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Control Oven TO9 is an OEM part for GE ranges. This part manages the oven's various functions, including temperature regulation, cooking modes, and timer settings. It serves as the central interface for the user to control the oven's operations, ensuring precise and reliable cooking performance.

Causes of a bad control module can include electrical surges, general wear and tear, or physical damage from impacts or spills.

Symptoms of a bad control oven module include:

• Unresponsive or malfunctioning buttons and dials
• Incorrect temperature readings or inconsistent heating
• Display not functioning properly
• Oven not turning on or shutting off unexpectedly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This indicator light lens covers the control-panel lamp opening, diffusing the light and protecting the hole from debris and contact. Replace a missing or damaged lens to restore a clean, finished look and clear on/off indication.

• Provides a finished cover for the indicator lamp opening on the panel
• Diffuses the light for clearer visibility
• Shields the opening from dust, moisture, and accidental contact
• Common signs to replace: lens is cracked, missing, discolored, or won't stay seated

• Disconnect power at the breaker before servicing
• Access the control panel as required for your model (remove knobs/screws if needed)
• Lens typically snaps in; some models use a rear retainer—transfer any clip or seal
• Align with the lamp and press evenly; do not force or overtighten fasteners

Cerama Bryte Cooktop Cleaner is a special cleaner designed specifically for ceramic glass and smooth-top cooking surfaces. It easily removes cooked-on foods, spills, or grease while leaving your cooktop looking like new. This product contains no abrasives or harsh chemicals, so it won’t scratch or damage your delicate cooktop surface.

To use the cleaner effectively, all you need to do is spray it onto the surface and then scrub it with a clean damp cloth. Use circular motions for best results. The product can also be used to remove baked-on foods from grates and drip pans on your stovetop. For tougher stains, let the cleaner sit for a few minutes before wiping it away.
