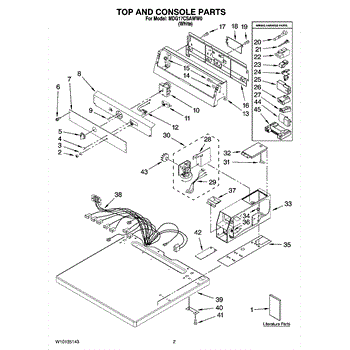

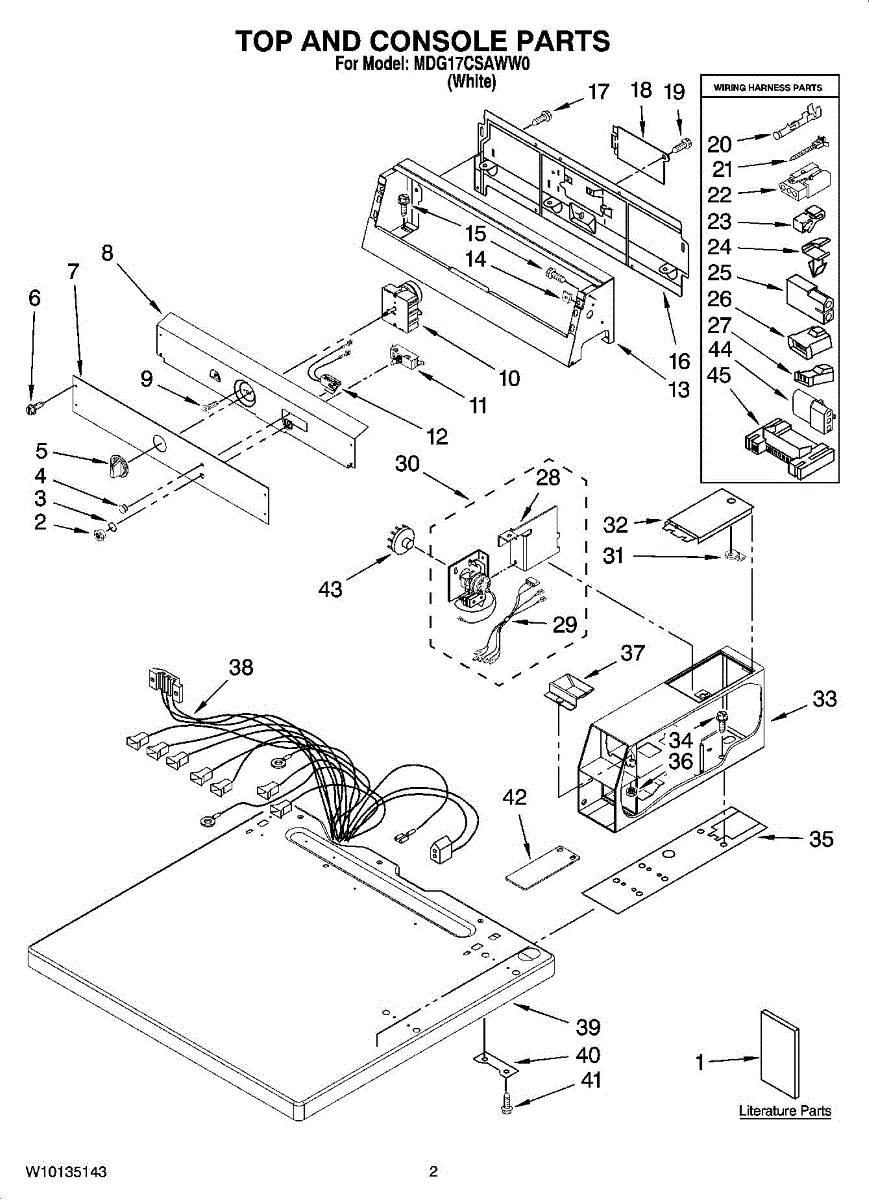

Parts for Whirlpool MDG17CSAWW0: 01 - Top And Console Parts

Pilot light not visible or broken lens? This control panel lens cover protects the indicator bulb and diffuses light. Simple snap-in replacement part.

Fix a dryer that won't start on certain settings or changes cycles unpredictably with this cycle selector switch. Lets you choose the operating cycle.

Dryer won't start when you press the button? This push-to-start switch restores one-press starting. Simple repair that reconnects the motor circuit.

Replace your dryer's interior light assembly when the bulb burns out or housing cracks. Restores visibility inside the drum. Verify fit with your model number.

Replace worn, stripped, or missing 8-18 x 3/8 machine screws that secure control panels, trim pieces, and brackets on your appliance. Restores tight fit.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

This cap or cover installs on your dryer to protect internal components and maintain a finished appearance. Replace if cracked, broken, or missing.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

For mating terminal use [AP31136300].

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

The dryer grounding clip is a small metal fastener that maintains a secure electrical ground connection between components inside your dryer. A proper ground is essential for safe operation and helps protect against electrical shock or appliance damage. Replace this part if it is bent, corroded, or missing, especially if you are experiencing intermittent electrical issues or completing a repair that requires re-grounding internal parts.

Secures dryer wiring to the cabinet to prevent rubbing and interference. Replace if your wire retainer clip is broken, missing, or damaged.

2-position wire connector for dryers. Replaces damaged, melted, or corroded connectors in electrical wiring harnesses. Essential for restoring connections.

Wire harness for dryers. Connects electrical components inside the cabinet. Replace if wires are frayed, connectors are damaged, or harness is broken.

Timer not advancing or cycle stuck? This timer harness assembly restores reliable control signals between your dryer timer and main wiring system.

Inner door panel insert for front-load washer door assembly. Provides structural support and finished interior surface. Replace if cracked or damaged.

Case cushion for dryers. Installs on the exterior cabinet to provide vibration dampening. Replace if your cushion is cracked, worn, or missing.

Replace your dryer's top panel if it's cracked, dented, or damaged. This panel covers the top of your dryer cabinet and provides access to components.

6 Pin 30 minute

3 pin 60 minute

Dryer won't power on or trips breaker? This terminal block plug connects power to your dryer's electrical system. Common fix for power issues.

This motor connector housing is the molded body that holds the motor's wire terminals for a secure, insulated connection. Replacing a cracked or heat-damaged housing helps restore reliable motor operation and prevent intermittent power issues.

• Organizes and insulates the motor's wiring terminals
• Locks the harness to the motor for a firm electrical connection
• Helps reduce loose contacts, arcing, and heat damage at the plug
• If the housing is failing, you may see intermittent or no motor operation, the machine stopping mid-cycle, or visible melting/discoloration at the motor connector

• Disconnect power; also shut off gas supply
• Note wire positions; transfer terminals into the new housing one at a time to maintain orientation
• Inspect terminals and wiring; replace any burnt or loose terminals before reassembly
• Ensure the connector seats fully on the motor and the harness is secure; restore power and test
