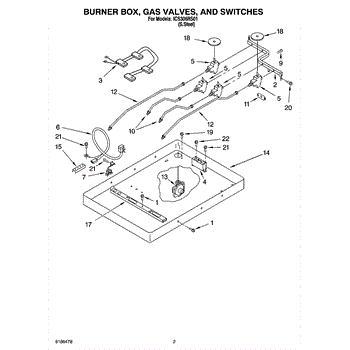

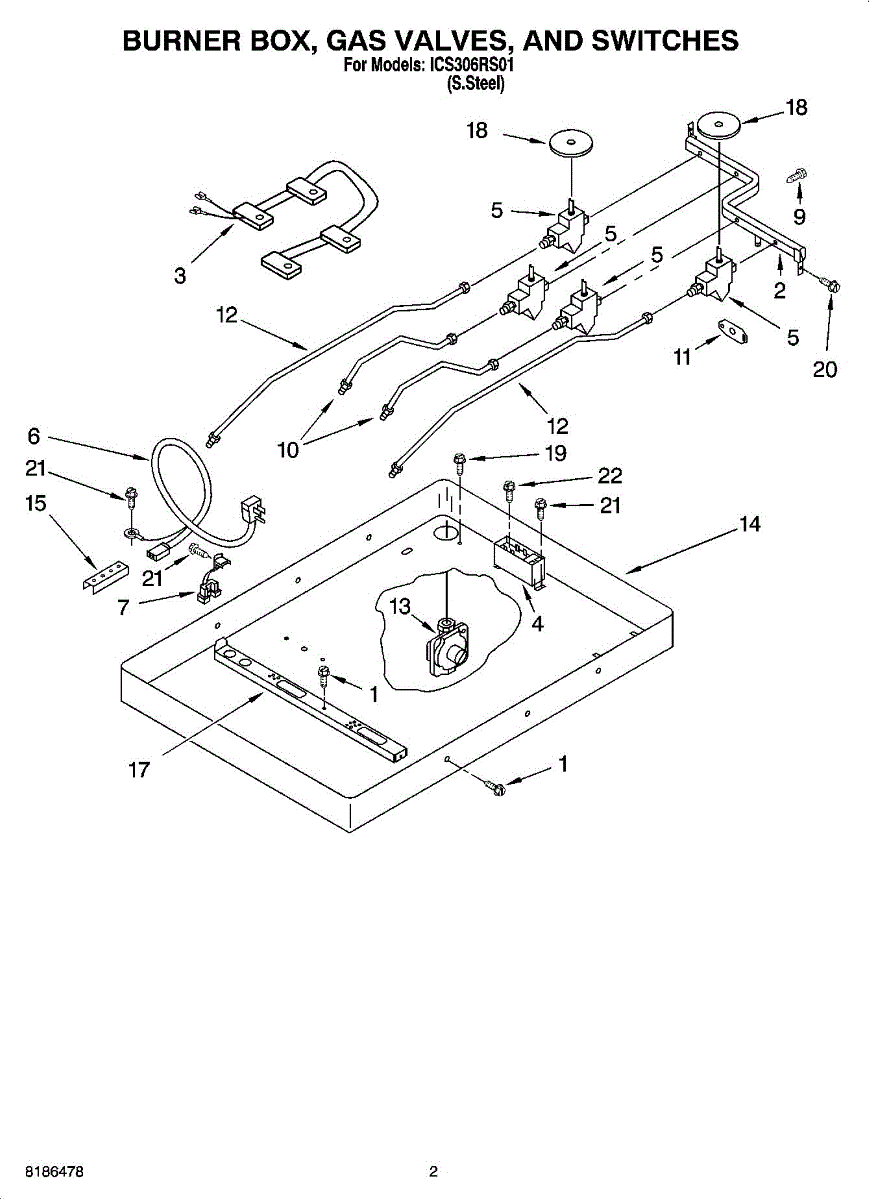

Parts for Whirlpool ICS306RS01: 02 - Burner Box, Gas Valves, And Switches Parts

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This switch harness is the factory wire assembly for a bank of four control switches. It links the switches to the appliance wiring so the controls operate reliably and deliver power to the circuits as intended.

• Connects four control switches in the panel to the appliance's main wiring harness
• Ensures proper routing of power through each switch circuit
• Typical symptoms: a function won't start or works intermittently when a switch is turned
• Visual clues: brittle/melted insulation, darkened connectors, or arcing at the switch bank

• Disconnect power at the breaker or unplug the appliance before servicing; verify no voltage is present
• Access the control area per your model's procedure
• Photograph or label wire positions; move connectors one at a time to the new harness
• Route and secure away from sharp edges and hot surfaces; verify all terminals are tight before reassembly

The Whirlpool spark module is an OEM replacement part responsible for controlling the ignition and sparking of the gas burners in a Whirlpool range or cooktop. The spark module is typically located behind the control panel or near the burners, and it generates the electrical sparks needed to ignite the gas for cooking.

Causes of a bad module can include electrical surges, physical damage, or simply wear and tear over time.

This part fixes the following symptoms:

• Gas burners fail to ignite or have weak or inconsistent sparks
• Continuous sparking even after the burner is lit
• No spark at all when attempting to ignite the burners
• Unresponsive or non-functional burner control knobs
• Visible damage, such as burn marks or corrosion, on the spark module

The Whirlpool spark module can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement gas burner valve controls gas flow to a large surface burner, restoring proper flame control and reliable heating for gas ranges. Designed to match OEM fit and function for direct replacement. What it does

• Regulates gas flow to a large cooktop burner so the flame lights and holds steady
• Restores normal heat output when a burner won't light or produces a weak/uneven flame
• Works with the cooktop's control knob to adjust flame size safely and predictably
• Helps stop intermittent gas flow that can cause poor cooking performance

• Turn off the appliance's gas supply and electrical power before starting work.
• Replace only with the exact part; follow OEM instructions.
• Check all connections for proper seal after installation; test operation at low flame first.

This small burner valve controls gas flow to a single cooktop burner, restoring reliable ignition and flame control. Use when a burner won't light, has weak or uneven flame, or fails to respond to the control knob. What it does

• Regulates gas flow to the burner for proper ignition and flame adjustment
• Replaces a worn or leaking valve that can cause no flame or low/irregular flame
• Helps restore consistent heat output and safe burner operation
• Works with the range's control knob mechanism to open and close gas flow

• One small burner gas valve

• Disconnect power and shut off the household gas supply before servicing
• Only install on compatible appliances; follow OEM diagram and torque specs when available
• If you smell gas during testing or installation, stop.

Location: Right rear & right front.

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model

Gas valve shaft seal.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

Includes 7 spuds.
