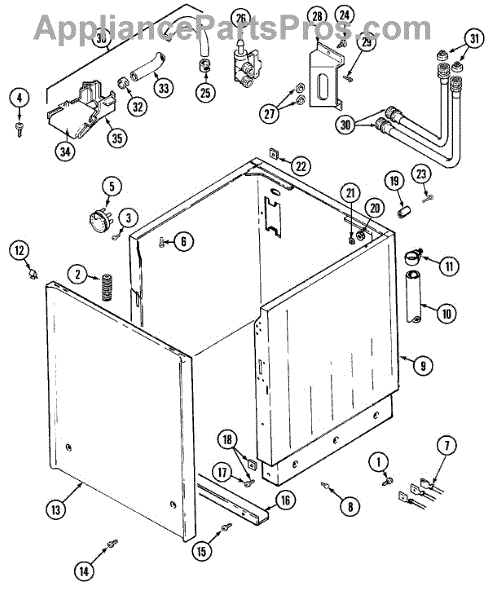

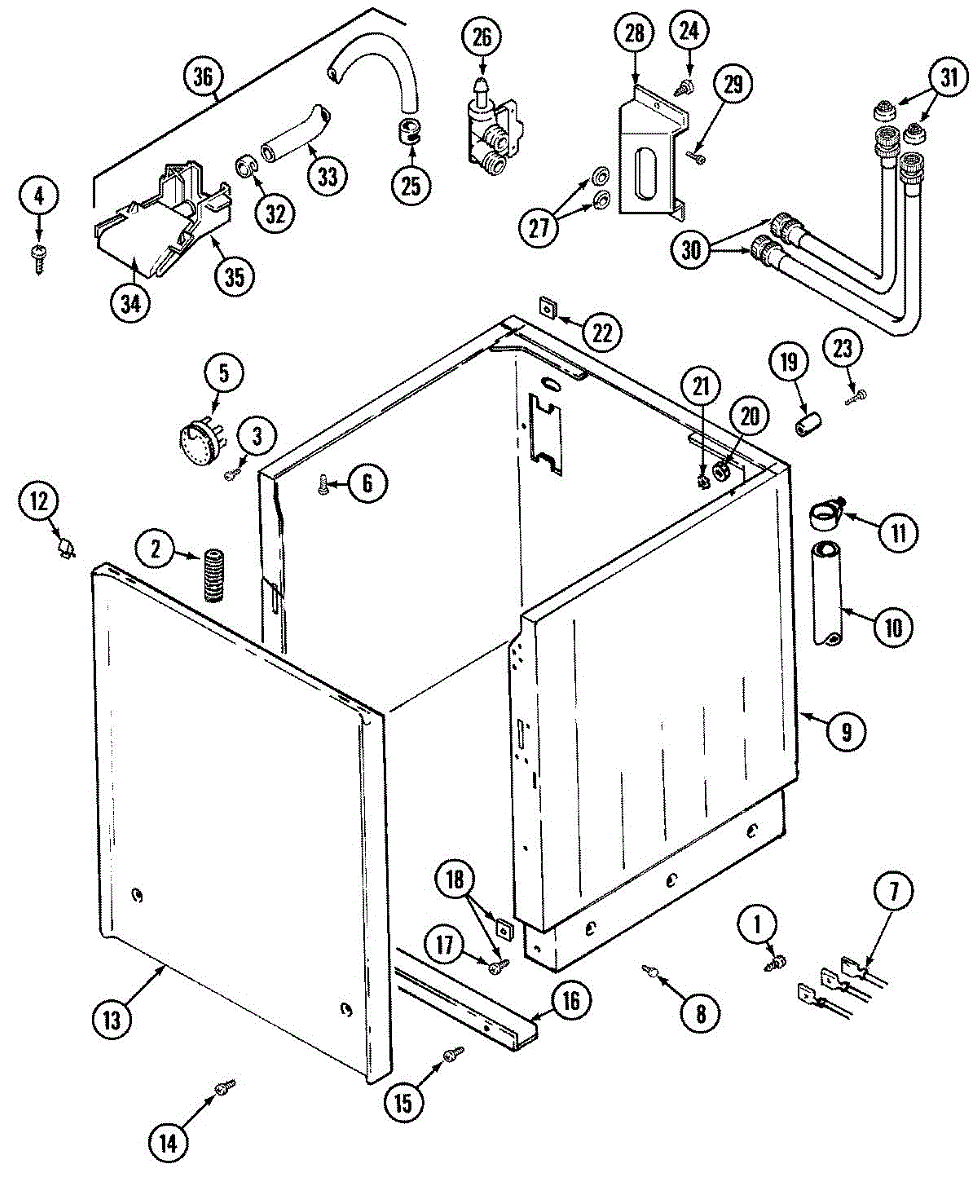

Parts for Maytag LSE7806BCE: 02 - Cabinet Parts

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

A single pop rivet used to secure sheet-metal parts and small brackets on appliances for a permanent, vibration-resistant hold. Replaces missing or damaged rivets to restore proper attachment without welding. What it does:

• Provides a permanent blind-rivet fastening point for panels, brackets and trim.
• Replaces rivets that are sheared, loose or missing and prevents rattling or misalignment.
• Ideal where a solid, tamper-resistant join is required and screws aren't suitable.
• Works with a compatible pop-rivet tool for quick installation.

• Drill out the old rivet carefully; use the proper size hole for the replacement rivet.
• Use a dedicated pop-rivet tool and wear eye protection during installation.

Spesc: #12 pozi - drive

Size: 90 inches long. To order hose extension use 12001585. To order siphon break use 76660.

This hose clamp secures a flexible hose to its fitting to help prevent leaks and hose blow-offs during operation. Replace a rusted, stripped, or distorted clamp to restore a tight, reliable seal at the connection point.

• Applies clamping force around a hose to hold it on a barb or stub fitting
• Commonly used on washer drain and tub-to-pump hose connections
• Helps stop drips at the joint and prevents the hose from slipping off
• Typical failure signs: leaking at the connection, clamp won't tighten, visible rust, broken/warped band

• Unplug the appliance and turn off water supply; expect some residual water
• Seat the hose fully on the fitting; place the clamp just behind the bead/barb
• Tighten until snug and secure; do not overtighten to avoid damaging the hose
• Run a short test cycle and recheck for leaks at the connection

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This 12-14 x 1/2 screw is a factory fastener used to secure appliance panels, brackets, and components. Replacing a missing or stripped screw restores a tight fit, reduces rattling, and keeps parts properly aligned for reliable operation.

• Secures panels, brackets, and internal components to their mounting points
• Replaces damaged, rusted, or missing hardware
• Helps stop vibration and rattling caused by loose fasteners
• Restores proper alignment and stability of covers or assemblies

• Disconnect power and, if applicable, shut off gas/water before servicing
• Match the original screw's location and length; replace one at a time
• Start threads by hand to prevent cross-threading; tighten snugly without over-torquing
• Reinstall any original washers, clips, or spacers used with the screw

Screw kit for front panel.

This replacement screw fastens trim, panels and small components to restore secure attachment and reduce rattling or movement. Use when a screw is missing, stripped, or damaged to keep parts aligned and operating quietly. What it does:

• Secures panels, brackets and trim to appliance assemblies
• Prevents vibration, rattling and misalignment caused by missing or damaged fasteners
• Replaces lost or stripped screws that can allow gaps or loose parts
• Helps maintain safe, stable operation by keeping components properly fastened

• Disconnect power (and water if applicable) before accessing interior panels
• Use the proper screwdriver or driver bit to avoid stripping the head
• Align parts before tightening and tighten until snug—do not overtighten
• Replace only with the correct OEM part to ensure proper fit and function

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Water Inlet Valve is an OEM part for Whirlpool washing machines. It controls the flow of water into the washer during the filling cycles, ensuring the proper amount of water is used for washing and rinsing clothes. This valve plays a critical role in the overall performance and efficiency of the washing machine.

Causes of a bad water inlet valve can include mineral deposits or debris clogging the valve, electrical failure, or wear and tear from regular use.

Symptoms of a bad water inlet valve include:

• Washer not filling with water
• Slow filling or no water flow
• Leaking water from the valve area
• Washer not advancing through cycles properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This small retaining clip secures components in place inside the appliance, helping prevent movement, vibration, and premature wear. Replace a bent, fatigued, or missing clip to restore a solid, factory-tight hold.

• Holds panels, brackets, or tubing securely in their mounts
• Helps maintain alignment to reduce rattles, rubbing, or intermittent issues
• Common signs of failure: missing clip, loose fit, buzzing/vibration, parts that won't stay seated
• Restores proper retention after service, transport, or vibration-related fatigue

• Disconnect power and shut off gas/water before servicing
• Note the original clip's orientation; remove with needle-nose pliers
• Seat the new clip fully—do not over-bend; spring tension provides the hold
• Test operation before reassembly

Size: 6 foot long. Washers not included. This is one hose, for a set with washers order 285363. For inlet hose screen use 285452A and for inlet hose washers use 285448A

Hose washer and plastic insert for inlet hose. To order separately: for washer use WPY013783, for strainer use WP22002960.

This hose clamp secures a rubber or plastic hose to its fitting to maintain a tight, leak-resistant seal. Replace a worn or missing clamp to stop drips and keep appliance water connections secure.

• Fastens a hose to a barb or port to prevent leaks
• Helps keep hoses from slipping off due to vibration or pressure
• Restores proper sealing when a clamp is rusted, bent, or stripped
• Common symptoms: water dripping at a hose joint, loose hose connection, or a clamp that won't tighten

• Disconnect power and shut off the water supply before servicing
• Place a towel to catch residual water when removing hoses
• Position the clamp just behind the hose barb/bead and secure with the appropriate tool
• Restore water and power, then run a quick check for leaks at the connection

This upper injector directs incoming water cleanly into the washer tub during fill and rinse. Replacing a cracked or clogged injector restores proper water delivery, helps prevent splash-back, and supports consistent wash performance.

• Channels inlet water into the tub from the upper injection point
• Helps prevent splash-back and backflow at the tub ring area
• Promotes even water spray for detergent/softener flushing as designed
• Common failure symptoms: water dripping or spraying from the fill area, leaks down the cabinet, slow/erratic fill, or visible cracking/mineral buildup on the injector

• Disconnect power and turn off both hot and cold water supplies before servicing
• Access the injector at the top/tub ring area; remove top or cabinet panels as required per model
• Transfer and secure the fill hose and clamps; ensure a fully seated connection
• Restore water and power, run a fill test, and check all connections for leaks

This washer injector (lower) forms the bottom half of the fill injector assembly, channeling incoming water cleanly into the tub. A damaged injector can cause leaks or spray at the tub ring during fill. What it does:

• Directs fill water into the tub through the injector assembly
• Seals with the upper injector to prevent splashback
• Common symptoms: leaking or spraying during fill, water on floor near the top/front during fill, visible cracks/warping on the injector
• Restores a clear, sealed water path for proper filling

• One lower injector

• Disconnect power and shut off water supply before servicing
• Access may require lifting the top or removing the cabinet to reach the injector at the tub ring
• Transfer any reusable clamps/retainers; align with the upper injector for a proper seal
• Run a short fill and inspect for leaks after installation
