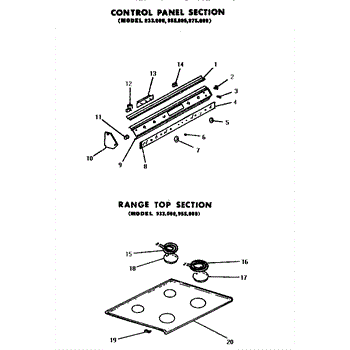

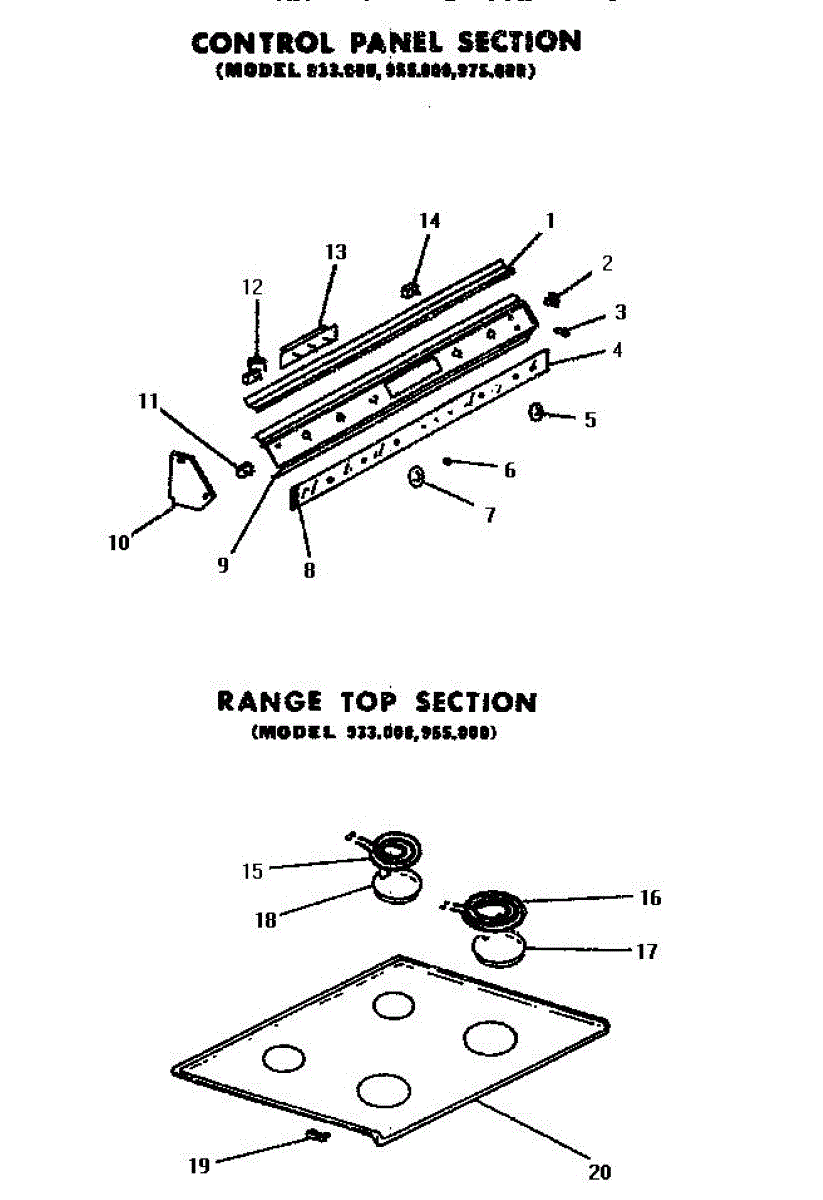

Parts for Amana 933.000: 02 - Control Panel And Range Top Parts

This surface burner infinite switch sits behind the knob and regulates power to the cooktop/range element. Replacing a failed switch restores accurate heat settings so the burner can turn on, modulate properly, and shut off as expected.

• Regulates on/off cycling of the surface element to achieve the selected heat level
• Sends power to the burner based on knob position
• Common failure symptoms: burner won't heat, only runs on high, won't shut off, or heats erratically
• Knob turns but the burner does not respond

• Disconnect power at the breaker before servicing; surface elements operate at high voltage
• Pull off the knob and remove the control panel/backguard as needed to access the switch
• Transfer wires one at a time from the old switch to the matching terminals on the new switch
• Align the shaft to fit your knob, reassemble the panel, restore power, and test operation

This 6-inch surface coil element restores reliable heat to one burner on your electric range. Replace a burned-out or damaged coil to bring back consistent, even heating for everyday cooking.

• Provides cooking heat for a 6-inch burner position on electric ranges/cooktops
• Helps resolve a burner that won't heat or heats intermittently
• Addresses uneven heating or visible hot spots on the coil
• Replaces elements with visible breaks, blistering, or burned terminals

• Disconnect power at the breaker and allow the cooktop to cool completely before servicing
• For plug-in coil models: lift the element, pull straight out of the receptacle, and remove from the support/drip pan
• Align the new element's terminals with the receptacle, push firmly until fully seated, and set into the support
• Inspect the receptacle and wiring for heat damage and replace any compromised components before use

This 8-inch surface burner element delivers heat on an electric cooktop or range. Replacing a worn or open element restores even heating on the burner zone and reliable response to temperature settings.

• Heats the 8-inch cooking zone when the surface control is turned on
• Helps maintain consistent pan temperature for boiling, simmering, and frying
• Common symptoms: burner won't heat, heats unevenly or intermittently, visible blistering/breaks in the coil, or scorch marks at the terminals
• Replacing a damaged element can prevent further damage to the receptacle/terminal block

• Disconnect power at the breaker and allow the unit to cool completely
• Handle the element by the bracket; avoid bending the coil
• For plug-in setups, pull the old element straight out and firmly seat the new one; for wired connections, move wires one at a time to the matching terminals and secure properly
• Inspect the receptacle/terminal block and wiring; replace if burnt or loose before restoring power

The Stove Top Drip Pan is an OEM replacement part for Whirlpool ranges. It is the shallow metal pan located below the stove burner elements that collects grease and food particles. The drip pan helps direct spills and drips away from the burner area to the bottom drawer for easy cleanup.

Symptoms of a bad drip pan include:

• Grease or food spilling below the burners outside of the pan
• Burner elements showing signs of corrosion or damage from drips
• The drip pan no longer fitting properly or securely in place

Causes can be warping or damage of the drip pan over time due to exposure to heat. Dents and structural changes compromise its ability to direct drips properly.

This OEM replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

If you require a compatible 6-inch drip bowl, suggest considering our WPW10196406 model for a perfect fit. For a black option include the 6-inch W10290353RW and 8-inch WPW10290350 models.

The Top Burner Receptacle Kit is an OEM part for Whirlpool ranges and cooktops designed to provide a reliable electrical connection between the stove's top burners and the power source. This kit typically includes receptacles, wire terminals, and mounting hardware necessary for the installation, ensuring that each burner receives the proper electrical current to heat efficiently.

Causes of a bad top burner receptacle can include corrosion due to spills or moisture, physical damage from heavy use, or natural wear and tear over time.

Symptoms of a bad Top Burner Receptacle Kit include:

• A burner that doesn't heat up
• Intermittent heating or fluctuating temperatures
• Visible signs of damage or corrosion on the receptacle
• Sparks or short circuits when attempting to use a burner

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
