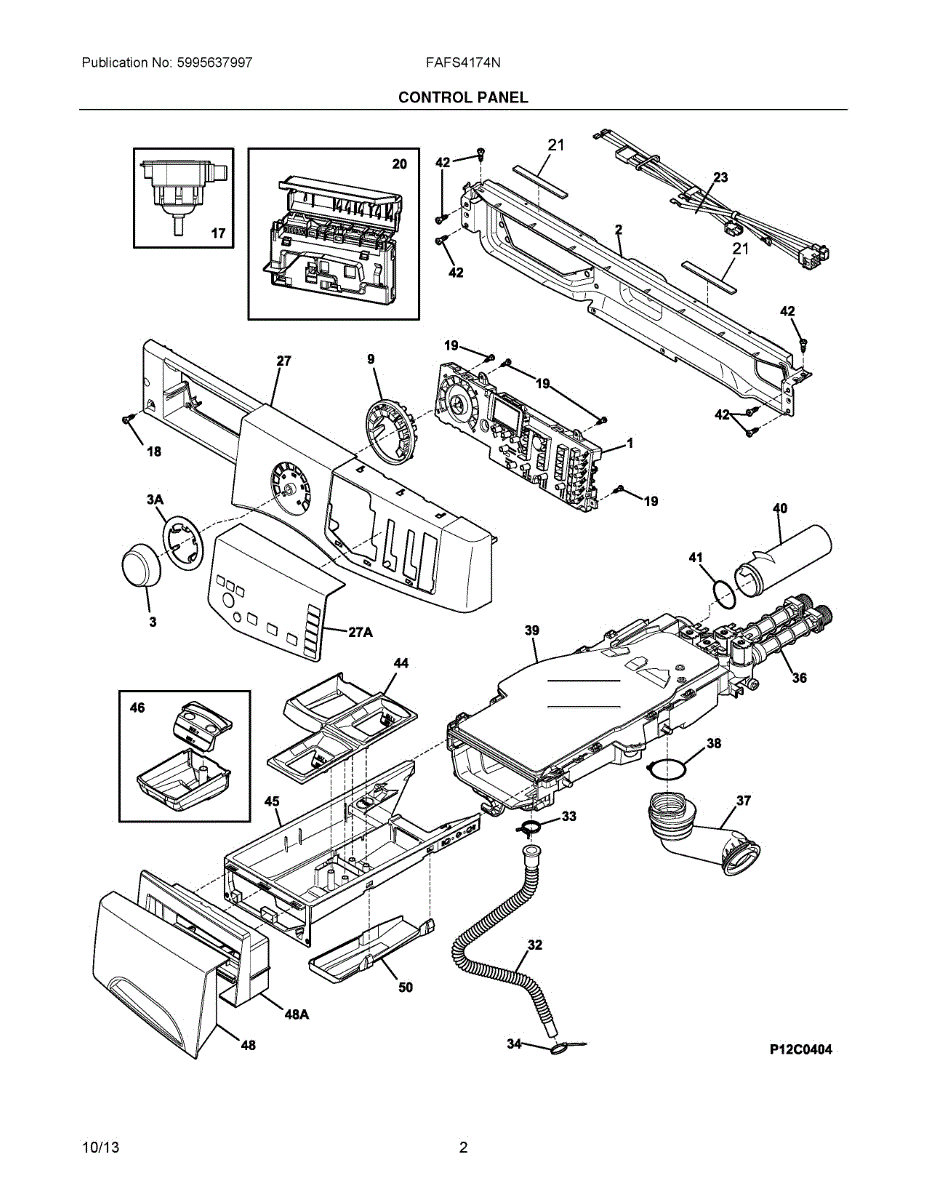

Parts for Electrolux FAFS4174NR1: 02 - Control Panel Parts

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

Mounting bracket for washer and laundry center models. Secures components in place during operation. Replace if cracked, bent, or broken to restore stability.

Fix a washer that won't fill, overfills, or shows E35 error code with this water level pressure switch. Moderate DIY repair takes about 1-2 hours.

This vane screw secures the internal drum baffle (vane) to the drum, keeping loads turning properly and preventing rattles or snags. Replace a missing or stripped screw to restore a tight, stable baffle during cycles.

• Fastens the drum baffle/lifter (vane) to the rotating drum
• Helps maintain proper tumble and load turnover
• Common symptoms: loose or wobbly baffle, rattling or clunking noises, items catching on a raised baffle edge, or a baffle that detaches
• Visual cues: missing screw or stripped/damaged threads at the baffle mounting holes

• Disconnect power before servicing; shut off gas
• Access the baffle from inside the drum; align holes and start the screw by hand to avoid cross-threading
• Tighten firmly but do not overtighten to prevent stripping the drum or cracking the baffle
• Start all screws before final tightening to seat the baffle evenly

This main electronic control board regulates the appliance's functions and user interface so your appliance runs cycles and responds to commands. Replacing a failed board restores control and normal operation. What it does:

• Receives input from the control panel and sensors to manage cycles and timing
• Controls power to motors, valves, heaters, and other subsystems
• Updates display and responds to user commands when buttons or touch controls are used
• Can stop operation or cause error codes if the board is faulty or intermittently failing

• One replacement control board

• Disconnect all power before starting; electrical shock hazard if power remains connected
• Handle the board carefully and avoid static discharge; use ESD protection if available
• Verify this part number matches the service tag/parts list for your appliance before installing

Wire harness assembly for washers. Connects electrical components inside the machine. Replace if wires are frayed, damaged, or connections are loose.

Secures hoses to pumps, tubs, and valves preventing leaks. Replace if worn, loose, or causing drips during cycles. Confirm fit with your model number.

Secures and organizes wires inside your appliance. Replace if broken, loose, or missing to prevent wire damage. Verify fit with your model number.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.

This is a water inlet valve that controls the flow of hot and cold water into the washing machine tub during the fill cycle. It is an electrically operated solenoid valve that opens and closes based on signals from the control board. Replace this valve if your washer is not filling with water, filling slowly, leaking from the back, or continuing to fill when it shouldn't be.

Connects the detergent dispenser to the wash tub in your washer. Replace if cracked, leaking, or causing water damage to other components during cycles.

Secures hoses to fittings, preventing leaks in water and drain lines. Replace when connections loosen or leaks appear. Verify fit with your model number.

Rubber O-ring seal prevents water leaks at hose connections and fittings. Replace when worn or cracked to restore tight seal and stop dripping. Verify fit.

This factory 8-18 screw secures appliance panels, brackets, and components. Replace missing or stripped hardware to restore a tight, rattle-free assembly and dependable operation.

• Fastens components to frames, brackets, and covers
• Replaces missing, damaged, or rusted screws
• Helps reduce looseness, vibration, and rattling noises
• Restores proper alignment of panels and assemblies

• Disconnect power before servicing; shut off gas/water if applicable
• Start the screw by hand to avoid cross-threading; use the proper driver
• Tighten snugly—do not overtighten to prevent stripping metal or plastic

This small cup fits inside the washer's dispenser drawer and holds liquid detergent, releasing it into the wash drum at the appropriate time during the cycle. It is designed to meter out the correct amount of detergent for optimal cleaning. Replace if the cup is cracked, warped, or missing, or if detergent is not dispensing properly during the wash cycle.

The dispenser drawer frame houses and supports the detergent, bleach, and fabric softener compartments in your washing machine's top or front panel. Replace if the frame is cracked, warped, or if dispensers leak or don't properly release cleaning products during wash cycles.

This conveyor mechanism moves the dispenser drawer smoothly in and out of your washing machine during operation. It ensures proper alignment and movement when the drawer opens and closes to add detergent and fabric softener. If your dispenser drawer sticks, won't open properly, or has become misaligned, this conveyor component needs replacement.

Metal sheet-metal screw secures panels, brackets, and internal components. Replace when missing, stripped, or damaged to restore proper fit.

Seals hot and cold water connections to your washer's dispenser. Replace if you notice leaking at the inlet assembly. Confirm fit with your model number.

Dissolves odor-causing residue and mildew buildup in washing machine tubs. Use every 30 washes to maintain freshness. Verify fit with your model.
