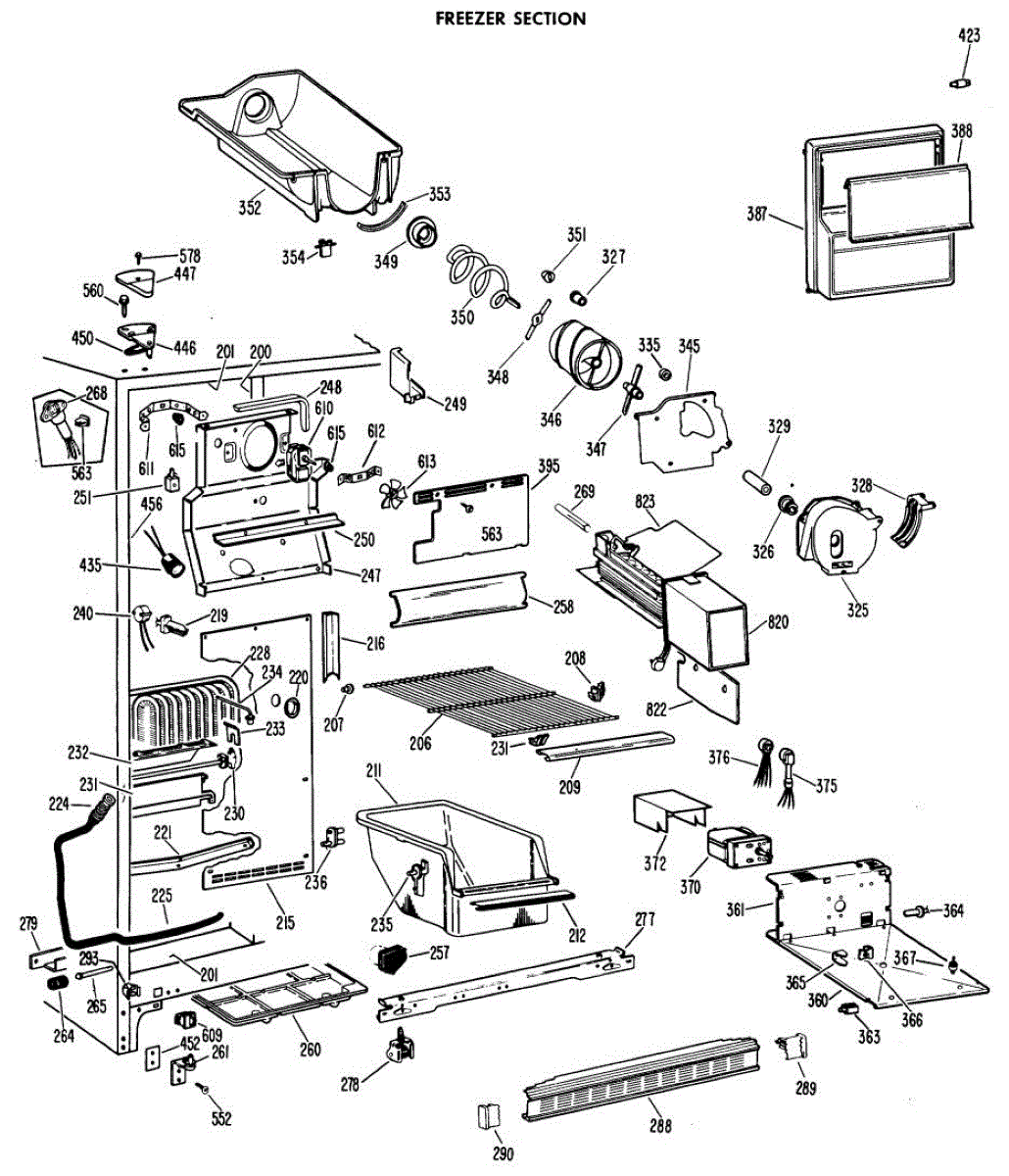

Parts for Ge CSX24DFB: 02 - Freezer Section Parts

This shelf support secures an interior refrigerator shelf in place so food items stay level and storage remains organized. It replaces a cracked or worn support to restore proper shelf seating and stability. What it does

• Holds a refrigerator shelf or shelf trim in the correct position to prevent sagging or tipping
• Restores stable support for glass or wire shelving that no longer stays seated
• Helps eliminate shelf movement that can cause items to slide or spill
• Works where a broken, chipped, or missing support prevents proper shelf alignment

• Disconnect power to the appliance before starting any repair and empty the shelf area
• Remove the affected shelf or trim to access the support; reinstall shelf to confirm correct seating
• Use basic hand tools as needed and avoid forcing parts to prevent further damage
• Replace all affected pieces for consistent shelf alignment

A direct-fit basket handle that restores a secure grip for removing and carrying refrigerator baskets. Replaces a cracked, broken or missing handle so baskets slide out and lift easily. What it does:

• Provides a strong gripping point to pull, lift and carry refrigerator baskets
• Restores safe basket removal when the original handle is damaged or missing
• Reduces slipping or hand-catching from jagged, broken plastic
• Fits the basket mounting points for a snug, stable fit

• Disconnect power to the appliance or unplug the refrigerator before installing when applicable
• Remove the basket or drawer if needed to access mounting points; keep small fasteners organized
• Use basic hand tools; avoid excessive force when seating the handle to prevent damage

Open - 55, close - 35

This mechanical defrost timer controls the refrigerator's automatic defrost cycle, clearing frost from the evaporator and helping maintain stable temperatures. Replacing a faulty timer restores regular defrost intervals to prevent frost buildup and inconsistent cooling.

• Cycles the system between cooling and defrost at set intervals to remove frost from the evaporator coils
• Heavy frost on the freezer back wall or evaporator cover may indicate a failed timer
• Fresh food section warming while the freezer seems cold, or unit stuck in defrost with no cooling
• Compressor runs continuously or never restarts; timer does not advance as expected

• Disconnect power before servicing to avoid electrical shock
• Access location varies by model; commonly in the control housing, behind the kick plate, or at the rear near the compressor
• Photograph or label wiring and transfer wires one at a time to the matching terminals
• Mount securely, restore power, and confirm normal cooling/defrost operation

This hinge assembly replaces a worn or damaged refrigerator door hinge to restore proper door alignment and smooth opening and closing. Install this part to stop door sag, rubbing, uneven gaps, or noisy operation. What it does:

• Supports and guides the door during opening and closing for stable operation
• Restores proper door alignment to eliminate sagging or uneven gaps
• Stops rubbing, scraping, and binding that can prevent the door from sealing
• Reduces squeaks or rough movement caused by a damaged hinge

• Always unplug the appliance and turn off the water supply before starting work
• Support the door and remove contents to prevent damage while replacing the hinge
• Use basic hand tools; align the door carefully and tighten fasteners securely but do not overtighten

This rear wheel roller replaces a worn or damaged drawer/glide wheel to restore smooth movement and reduce sticking or noise. Durable molded construction fits the rear guide position to help support and steady the sliding drawer or bin. What it does

• Supports and guides the appliance drawer or bin for smooth in-and-out motion
• Replaces cracked, chipped, or worn rear wheel that causes binding or catching
• Helps reduce squeaks and uneven movement from a damaged roller
• Restores proper alignment and load support at the rear glide point

• One rear wheel (roller)

• Disconnect power and remove the drawer/bin per your owner's manual before replacing the wheel
• Typically installs by snapping or sliding into the rear glide bracket; basic hand tools may be needed
• Inspect mating tracks or brackets for damage and clean debris before installing the new wheel

This replacement crusher dispenser housing restores the outer housing that supports the ice crusher and dispenser chute, helping the dispenser operate smoothly and keep ice contained while in use. What it does:

• Replaces cracked or broken dispenser housing that can allow ice to jam or fall out
• Provides the proper mounting surface for the crusher and chute to align ice flow
• Helps reduce noise and rubbing caused by a misaligned or damaged housing
• Restores the dispenser's outer enclosure for a finished appearance and safe operation

• Disconnect power to the refrigerator before starting any repair.
• Remove ice bin and dispenser components as needed to access the housing; keep track of fasteners.
• Inspect adjacent seals, gaskets and mounting clips and replace if damaged.
• Handle plastic parts carefully to avoid cracking; reassemble components to factory alignment.

Includes 12 washers.

Includes 12 retainer rings.

This pivot is the replacement pivot piece that supports and guides a refrigerator door or sliding drawer, restoring proper alignment for smooth opening and closing. Fits original equipment pivot points. What it does:

• Supports the weight of a door or drawer and keeps it aligned on its track
• Guides smooth opening and closing and prevents binding or sagging
• Restores proper contact and seal when a worn pivot causes misalignment
• Helps reduce noise from loose or worn pivot points

• Disconnect power to the appliance before beginning any repair
• Access may require removing interior panels, trim, or the drawer/door per model instructions
• Handle carefully to avoid scratching sealed surfaces; replace worn fasteners if needed
• If alignment issues persist after replacement, check related hinges, tracks, and mounting hardware

The Drive Cup is an OEM part for GE refrigerators. This part engages with other parts to drive the ice out of the molds and into the storage bin.

Causes of Drive Cup failure can range from physical wear and tear from regular use, which may lead to cracks or deformities in the part, to accumulation of frost or ice that hinders its movement.

Symptoms of a malfunctioning Drive Cup include:

• The ice maker fails to eject ice properly, leading to clogs or jams within the system.
• Unusual noises during the ice-making cycle, which could indicate that the drive cup is not engaging correctly with other components.
• Decreased efficiency in ice production, as the mechanism struggles to operate smoothly.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

According to GE you must also replace part number WR17X4341 auger when replacing this part.

Replacement bucket seal that fits around the refrigerator ice bucket to restore a snug fit and help keep ice contained while reducing frost, spills and water pooling. What it does

• Seals the ice bucket to the cabinet/shelf to help keep ice from spilling or shifting.
• Reduces frost build-up and melting around the ice bin area.
• Helps prevent minor water pooling from melting ice.
• Restores proper fit so the bucket sits flush and operates as intended.

• Disconnect power to the appliance before beginning any service.
• Remove the ice bucket and carefully peel out the old seal; clean the mounting surface of ice, debris and residue.
• Press the new seal into place, making sure it is fully seated and oriented correctly around the bucket.

Includes 12 clips.

This boot auger motor drives the auger inside the ice dispenser boot to move ice from the bin to the dispenser chute. Replaces a failed motor to restore normal ice dispensing and reduce jams. What it does:

• Rotates the auger inside the dispenser boot to push ice forward for dispensing
• Helps prevent ice buildup by moving packed cubes during dispense cycles
• Stops working when motor windings or gears fail, causing no ice to dispense or intermittent dispensing
• Works with the dispenser drive and auger assembly to transfer ice from the bin to the chute

• One boot auger motor

• Disconnect power to the appliance before starting any repair
• Access typically requires removing the freezer/refrigerator door trim and dispenser housing; follow OEM service instructions
• Inspect related components (auger, coupler, wiring) and replace if damaged

This part has been discontinued by the manufacturer and is no longer available.

Includes 12 screws. Size: 8-18 ab.

Package of 12

The Evaporator Fan Motor Kit is an OEM part compatible with GE refrigerators. It is a critical component responsible for circulating air and maintaining proper airflow within the refrigerator's evaporator system, ensuring efficient cooling and temperature regulation. It features a shaft that measures 3/8 of an inch and two right-side terminals. Notably, the motor no longer comes with harness wires, which must be obtained separately for installation.

Symptoms of a faulty evaporator fan motor include:

• Inconsistent or inadequate cooling in the refrigerator or freezer compartments
• Warm spots or temperature fluctuations within the refrigerator
• Excessive frost buildup or ice accumulation in the freezer

Causes of a bad evaporator fan motor can include wear and tear over time, electrical issues or short circuits, or physical damage from foreign objects or improper maintenance.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore refrigerator models.

The Evaporator Fan Blade is an OEM component for GE freezers and bottom-mount refrigerator designs. Located inside the freezer compartment, this fan blade spins to circulate cold air evenly throughout the storage space.

Causes of a faulty evaporator fan blade include natural fatigue from running year-round. Freezers exposed to humid environments may experience faster corrosion.

Symptoms include:

• Abnormal sounds like knocking or clunking from inside the walls
• cold spots developing in certain freezer areas
• Higher power bills from inefficient temperature regulation
• Frost or ice patches forming on evaporator coils

This part is also compatible with some brands like Hotpoint, RCA, and Kenmore.
