Parts for Thermador PDR366ZS: 02 - Pdr366 Control Panel Parts

This display is the user interface module that shows cycle status, settings and error indicators so you can read and control the appliance from the front panel. It restores visible feedback and menu information for normal operation. What it does

• Provides the visible display for cycle progress, timers and selected options
• Shows error codes and status messages to help identify issues
• Works with the appliance control board to update settings and user inputs
• Restores readable display after a failed or cracked panel

• Disconnect power to the appliance before starting work to avoid shock or damage
• Replacement typically requires removal of the front control or console panel; handle the display lens and ribbon connectors carefully
• Keep screws and small fasteners organized for reassembly

The Spark Ignition Switch is an OEM part for Bosch ranges and cooktops. It controls the ignition of surface burner flames by emitting an electrical spark when activated.

Causes of a bad switch can be general wear and fatigue over thousands of start cycles. Exposure to moisture, dust or metal debris could also damage electrical components internally.

Symptoms of a bad spark ignition switch include:

• Burners failing to light even when valves are turned on
• Intermittent or irregular lighting of some burners
• No electrical sparks emitted from the ignition electrode

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This rotary potentiometer converts shaft rotation into an electrical signal the control board can read, providing precise position feedback for user selections. Replace it if inputs become erratic, jump between settings, or the control stops responding.

• Provides rotary position feedback to the electronic control
• Enables accurate selection and adjustment of functions or setpoints
• Wear or damage can cause drifting, dead spots, or incorrect readings
• Intermittent or no response to input is a common failure symptom

• Disconnect power before servicing
• Access the control/console area to reach the component
• Note shaft orientation and any connector positions; transfer exactly to the new part
• Handle electronics with ESD care and verify smooth, full-range operation after reassembly

This temperature display assembly provides the front display used to show oven temperature and user feedback, restoring a clear, readable temperature readout and control indications. What it does:

• Displays current oven temperature and control/status information on the front panel
• Replaces cracked, dim, faded, or non-responsive temperature display components
• Helps resolve symptoms like unreadable characters, intermittent or blank temperature readout, or incorrect display feedback
• Interfaces with the control board to present user temperature and mode information

• Disconnect power to the appliance before starting any repair to avoid shock or damage
• Handle the display and any attached ribbon cables or connectors carefully to avoid damage
• Installation typically requires removing the control panel or oven door trim to access the display assembly
• After installation, restore power and verify the display shows temperature and control information correctly

A replacement selector knob that lets you turn and choose appliance settings smoothly and safely. Restores a damaged, loose, or missing control knob so you can change cycles and temperatures with confidence. What it does:

• Fits onto the control shaft to select functions, cycles, or heat levels
• Replaces cracked, stripped, or worn knobs that won't stay set or slip during use
• Stops erratic control feel and restores a positive detent or indexed rotation
• Works with the matching control shaft shape

• Disconnect power to the appliance before servicing
• Align the knob splines with the control shaft and push straight on until fully seated
• If knob is stiff, check for debris on the shaft; do not force or hammer the knob into place

This fixing kit provides the mounting hardware needed to secure appliance components and panels during repair, helping restore proper fit and reduce vibration or movement after service. What it does:

• Supplies the hardware used to fasten panels, brackets, or assemblies in place
• Helps eliminate loose or rattling parts caused by missing or damaged fasteners
• Restores correct alignment of secured components after repair
• Useful when replacing internal assemblies that require new or replacement fasteners

• Disconnect power and water before beginning any repair
• Use the correct tools and follow OEM instructions or service manual steps
• Keep all small parts and fasteners away from children and pets

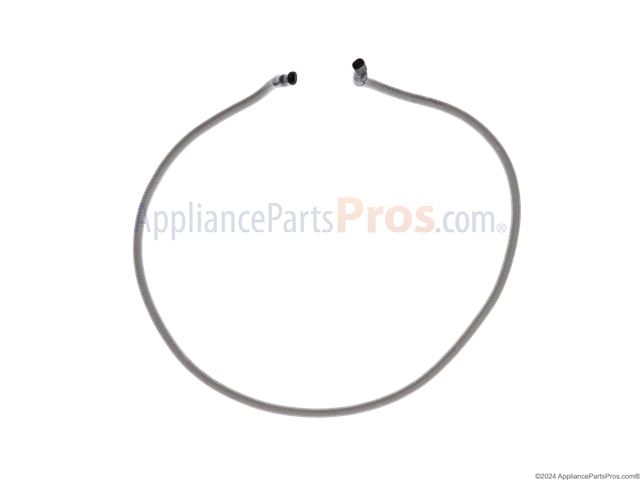

The Wire is an OEM part for Bosch ranges and ovens. It serves as the critical electrical pathway that connects various components within the appliance, enabling power distribution and communication between different systems.

Causes of a malfunctioning Wire can range from exposure to high temperatures over time, which can degrade the wire insulation and lead to short circuits, to physical damage from impact or improper installation. Rodent activity can also contribute to chewed or damaged wiring.

Symptoms of a bad Wire in a range or oven can include:

• Certain cooking functions or modes not working correctly
• Error codes related to electrical or communication issues
• Flickering or malfunctioning oven lights or displays
• Burning smells or visible damage to the wiring insulation

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This Wire is an OEM part for Bosch ranges. As an essential component of the appliance's electrical system, this wire ensures secure connections between various electrical components within the range. Its durable construction and precise design contribute to reliable power distribution and safe operation.

A common issue with a faulty Wire involves wear and tear over time, leading to wire fraying, exposure, or damage. Exposure to heat or physical strain can also compromise its integrity, potentially causing electrical malfunctions within the range.

Symptoms of a malfunctioning Wire may include:

• Inconsistent power supply to the range
• Non-functional heating elements or components
• Visible damage, such as fraying or exposed wires

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

Igniter wire, 29 inches orange in color.
