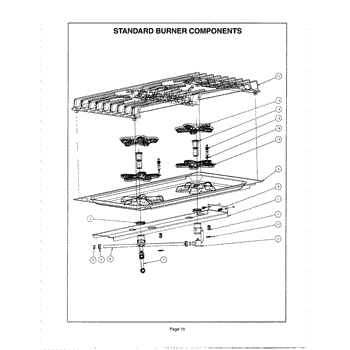

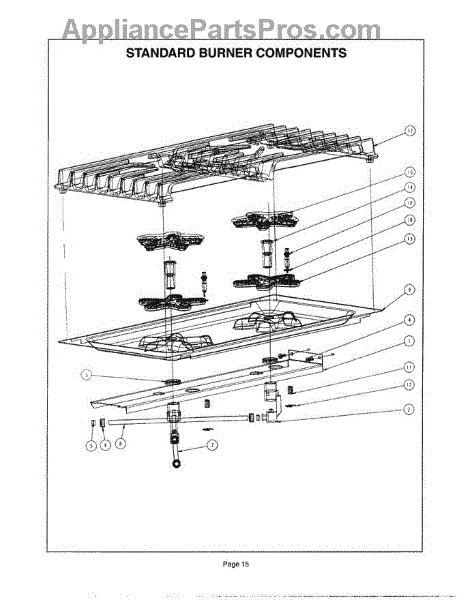

Parts for Thermador PDR366ZS: 14 - Standard Burner Parts

This replacement jet holder fits the 15,000 burner on gas cooktops and ranges. It supports the orifice and channels gas to the burner head, helping restore a stable flame and consistent heat when the original holder is damaged or corroded.

• Positions and secures the orifice for the 15,000 burner
• Routes gas from the valve/manifold to the burner head
• Helps maintain proper flame shape and output
• Replace if cracked, warped, or corroded; symptoms can include weak or uneven flame, yellowing, or difficulty lighting at that burner

• Shut off gas supply and disconnect power before servicing
• Remove grates, burner caps, and heads; raise or remove the cooktop surface to access the holder
• This holder is specific to the 15,000 burner position; transfer the orifice and any seals as required
• After reassembly, check all gas connections for leaks with a soap-and-water solution and verify burner operation

Used to hold down the jet holder assembly.

This compression sleeve forms the sealing ring for a 5/16-inch tubing compression joint, restoring a watertight connection when used with a matching compression nut and fitting. Ideal for stopping leaks and restoring reliable water lines. What it does:

• Creates the compression seal on 5/16" tubing when installed with a compatible compression nut and fitting.
• Stops leaks or drips at compression-style water connections.
• Used on appliance water lines (ice makers, water inlets) and other 5/16" tubing joints.
• Replaces worn or damaged sleeves that fail to hold a tight seal.

• Shut off the water supply and relieve pressure before working on water lines.
• Inspect and cut tubing squarely; slide the sleeve onto the tube before threading the compression nut and fitting.
• Tighten the compression nut per the fitting manufacturer's instructions and check the joint for leaks.
• Replace the sleeve if damaged or deformed.

This is a compression nut for 5/16-inch tubing. It secures the tubing to a compatible compression fitting to create and maintain a tight, reliable connection.

• Clamps 5/16-inch tubing onto a matching compression fitting when tightened
• Helps restore a secure seal at a leaking or loose compression joint
• Useful when threads are stripped, the original nut is cracked, or the connection won't hold tension
• Common signs include drips at the fitting, inability to tighten, or visible thread damage

• Shut off the supply and allow the system to depressurize before service
• Use appropriately sized wrenches; avoid overtightening to prevent damage
• Inspect the ferrule/olive and tubing end; replace if worn or distorted
• After installation, restore supply and check for leaks at the connection

A 9-inch gas supply tube that routes fuel from the appliance inlet to the control valve/manifold, restoring proper gas delivery for safe, consistent burner operation when tubing is damaged or leaking. What it does:

• Channels gas to the control valve/manifold so burners can ignite and maintain a steady flame.
• Replaces bent, punctured, corroded, or leaking tubing that can interrupt fuel flow.
• Helps address common symptoms such as a gas odor near the appliance, burners that won't light, or low/uneven flames.
• OEM-style replacement designed for the corresponding Bosch gas appliance configurations.

• Shut off the gas supply and electrical power to the appliance before starting any work.
• Use correct fittings and approved thread sealant or gasketing; tighten to OEM-recommended torque if specified.
• After installation, perform a soap-and-water or approved leak test; if you detect a leak, shut off gas.

This replacement tube restores proper routing for liquids or airflow in compatible appliances, helping maintain normal operation and prevent leaks or flow issues. It's a direct-fit part when your appliance requires the OEM tube. What it does:

• Replaces a worn, cracked, or damaged routing tube to stop leaks and restore proper flow
• Guides water, drain, or air where the original tubing was installed to maintain system function
• Helps prevent intermittent failures caused by pinched, split, or brittle tubing
• Matches OEM fit and routing to keep adjacent components aligned

• One replacement tube

• Verify the part number and orientation against the appliance diagram before installing
• Turn off power and water supply to the appliance before starting work
• Use appropriate tools and retainers; avoid kinking or over-bending the tube during installation

This replacement tray restores the original fit and support in your appliance. It provides a stable surface for items and replaces a damaged or missing tray to keep things organized and functioning as intended.

• Provides a secure surface to hold items where the original tray sits
• Restores proper fit so items don't tip, slide, or fall
• Direct replacement for a cracked, warped, or missing tray
• Helps ensure the section operates as designed once the tray is seated correctly

• Disconnect power if accessing internal areas or moving the appliance
• Remove the old tray and clean the supports/rails before installing
• Align with existing guides or tabs and press/slide into place until fully seated
• Verify a level, secure fit before loading items back onto the tray

This is a cooktop burner igniter OEM replacement part for Bosch cooktops and ranges and is sold as an individual part. This part creates a spark that ignites the burner within your cooktop or stovetop and is made of a combination of metal and ceramic.

Causes of a bad ignition plug can include issues with the electronic module, worn electrodes that no longer spark reliably, or damaged wiring.

Symptoms of a bad ignition plug include:

• Gas burners that will not light or remain lit
• Delayed ignition of one or more burners
• Intermittent or no sparking from the ignition plug

This OEM Bosch part is also compatible with Thermador, Gaggenau and some Kenmore models.

The Igniter Mounting Clip is an OEM part for Bosch ranges. It secures the igniter to the range top, ensuring it is properly aligned and stable for optimal ignition performance. The surface igniter is crucial for the ignition of gas burners, facilitating an immediate and safe flame to cook with.

Over time, the Igniter Mounting Clip can succumb to various forms of wear and tear, including corrosion from exposure to moisture, degradation from frequent heating cycles, or physical damage during cleaning or maintenance activities.

Symptoms of a compromised Igniter Mounting Clip include:

• The surface igniter becoming loose or dislodged
• Difficulty in igniting the burner or uneven flames
• Noisy or irregular ignition sounds
• Visible signs of damage or corrosion on the clip

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

The Venturi Gas Tube is an OEM replacement part for Bosch gas cooktop ranges. Its primary function is to ensure an optimal gas/air mixture for consistent and efficient burner combustion, thereby enhancing the overall performance of the cooktop.

Causes involve normal wear of internal components from continuous heating and cooling cycles. Corrosion damage may also disrupt the venturi tube over time.

Symptoms of a faulty venturi gas tube include:

• Unstable or hard-to-control flame levels
• Potential issues shifting burner flames out of their intended position
• Safety risks including carbon monoxide from improper fuel/air balance

This OEM Bosch part is also compatible with Thermador, Gaggenau and some Kenmore models.
