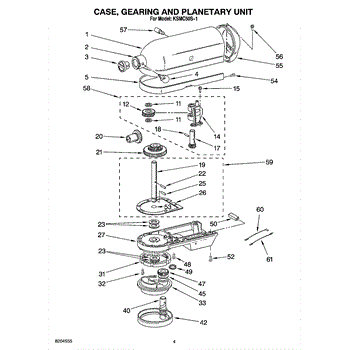

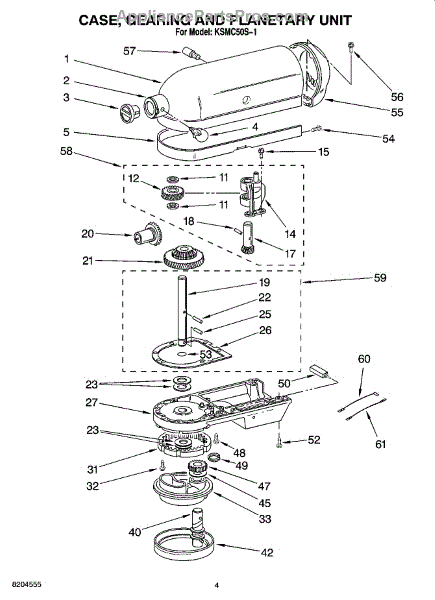

Parts for Kitchenaid KSMC50S-1: 03 - Case, Gearing, And Planetary Unit Parts

Parts for Kitchenaid KSMC50S-1: 03 - Case, Gearing, And Planetary Unit Parts

Location on Diagram
Part Description
Price & Availability
2
Product photo
By: Whirlpool
Part Number: 4159709

Secures attachments to the front hub of your mixer. Replace if loose, cracked, or attachments wobble. Verify fit with your model number.

More
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

3
5.0 (11)
By: Whirlpool
Part Number: W11831059
$11.02

IN STOCK
Ships Today Guaranteed
Add to Cart
4
Best Seller
Product photo
5.0 (25)
By: Whirlpool
Part Number: WP9709194

Replacement thumb screw for stand mixer power hub. Secures beater, whisk, and dough hook attachments. Replace if cracked, broken, or missing.

More
$19.95

IN STOCK
Ships Today Guaranteed
Add to Cart
11
Best Seller
Product photo
5.0 (2)
By: Whirlpool
Part Number: WPW10323373

Spacer washer maintains proper spacing between mixer gearcase components. Replace if cracked, worn, or missing to restore correct alignment and operation.

More
$8.56

IN STOCK
Ships Today Guaranteed
Add to Cart
12
Best Seller
Product photo
4.9 (114)
By: Whirlpool
Part Number: WPW10112253

Mixer won't turn or jams at high speed? The worm gear drives the planetary assembly. Common fix when stripped or worn. Video guide available.

More
$19.31

IN STOCK
Ships Today Guaranteed
Add to Cart
14
Product photo
5.0 (2)
By: Whirlpool
Part Number: W11082541

This bearing supports a rotating shaft or assembly inside the appliance, reducing friction for smooth, quiet operation. Replacing a worn bearing restores proper alignment and helps prevent noise and premature wear on connected parts.

  • Provides a low-friction surface for smooth rotation
  • Helps keep the rotating component centered and stable
  • Reduces vibration and operating noise
  • Common failure signs: grinding/squealing, wobble or play, rough or intermittent rotation
What's included: 1 bearing Installation notes:
  • Disconnect power; also shut off water or gas supply if applicable
  • Access the assembly per your model's service information and note part orientation before removal
  • Inspect the shaft/hub and any spacers or seals for wear; replace related worn components
  • Seat the bearing squarely—do not force; apply only manufacturer-specified lubricant if called for in service literature

More
$15.59

IN STOCK
Ships Today Guaranteed
Add to Cart
15
By: Whirlpool
Part Number: 680363
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

17
Best Seller
Product photo
5.0 (6)
By: Whirlpool
Part Number: WP240210-2

Replaces a worn or stripped shaft-and-pinion assembly in your stand mixer. Installs in the geartrain to transfer motor rotation to driven components.

More
$16.95

IN STOCK
Ships Today Guaranteed
Add to Cart
18
Best Seller
Product photo
4.9 (8)
By: Whirlpool
Part Number: WP9705444

Secures the worm gear and drive shaft in your stand mixer. Replace if the pin is missing, bent, or has fallen out, preventing proper rotation.

More
$8.56

IN STOCK
Ships Today Guaranteed
Add to Cart
19
Best Seller
Product photo
5.0 (2)
By: Whirlpool
Part Number: WP240026

This is the center vertical shaft that sits inside the stand mixer's gear housing and transfers rotational power from the motor to the mixing attachments. It is a metal shaft that supports and drives the planetary gear assembly. Replace this part if the mixer's beater or whisk wobbles excessively, fails to rotate, or if the shaft shows visible wear or damage.

More
$5.95

IN STOCK
Ships Today Guaranteed
Add to Cart
20
Best Seller
Product photo
4.7 (31)
By: Whirlpool
Part Number: W11192794

Attachment hub not spinning or grinding noise? This hub gear kit restores power transfer to mixer attachments. Advanced repair requiring full disassembly.

More
$45.30

IN STOCK
Ships Today Guaranteed
Add to Cart
21
Best Seller
Product photo
4.7 (31)
By: Whirlpool
Part Number: W11192794

Attachment hub not spinning or grinding noise? This hub gear kit restores power transfer to mixer attachments. Advanced repair requiring full disassembly.

More
$45.30

IN STOCK
Ships Today Guaranteed
Add to Cart
22
Best Seller
Product photo
4.8 (33)
By: Whirlpool
Part Number: WP9707223

Mixer makes growling noise but beater won't spin? This steel retaining pin locks drive components in place. Moderate repair; disassembly required.

More
$8.56

IN STOCK
Ships Today Guaranteed
Add to Cart
23
Best Seller
Product photo
5.0 (3)
By: Whirlpool
Part Number: WPW10323378

Hardware washer/spacer used in KitchenAid stand mixer assembly. Provides proper component spacing and secure mounting.

More
$14.95

IN STOCK
Ships Today Guaranteed
Add to Cart
25
4.9 (7)
By: Whirlpool
Part Number: W11762673
$2.95

IN STOCK
Ships Today Guaranteed
Add to Cart
26
4.9 (62)
By: Whirlpool
Part Number: W11805888

Seals the planetary gear case to prevent grease leaks. Replace if oil appears around the outer case or after opening the mixer for repairs. Confirm fit.

More
$29.41

IN STOCK
Ships Today Guaranteed
Add to Cart
31
Product photo
5.0 (3)
By: Whirlpool
Part Number: W11340106

This genuine replacement gear is a drivetrain component that transfers motor rotation to a mating mechanism inside your appliance. Replacing a worn or stripped gear restores smooth, reliable motion and helps prevent damage to adjacent parts.

  • Meshes with adjacent gear(s) or a shaft to drive an internal mechanism
  • Worn or rounded teeth can cause slipping, skipping, or no movement
  • Intermittent or stalled movement can indicate a stripped or damaged gear
What's included: One gear Install notes:
  • Disconnect power (and shut off water/gas if applicable) before servicing
  • Access the assembly; note orientation and timing marks
  • Transfer any spacers, keys, or retaining clips from the old gear
  • Seat the new gear fully and verify smooth manual rotation before restoring power

More
$10.79

IN STOCK
Ships Today Guaranteed
Add to Cart
32
Product photo
5.0 (2)
By: Whirlpool
Part Number: 103994
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

40
Best Seller
Product photo
5.0 (3)
By: Whirlpool
Part Number: WP243368

Replace a worn, bent, or broken agitator shaft in your stand mixer. This shaft connects attachments to the planetary mechanism for proper operation.

More
$23.61

IN STOCK
Ships Today Guaranteed
Add to Cart
42
Best Seller
Product photo
4.6 (5)
By: Whirlpool
Part Number: WP240285

This planetary drip ring fits around a stand mixer's planetary assembly to cover the gap below the gearcase and help catch grease residue, restoring a clean, finished look where the beater hub meets the mixer head.

  • Mounts at the base of the mixer head around the planetary housing
  • Helps deflect incidental gearbox grease residue away from the bowl area
  • Covers the seam between housing and planetary for a clean, finished appearance
  • Replace if bent, cracked, loose, missing, or if you notice grease spotting beneath the planetary
What's included: One planetary drip ring. Install notes:
  • Unplug the mixer and remove the bowl and attachments
  • Gently pry off the old ring; clean the seating surface of debris or residue
  • Align and press the new ring evenly until fully seated; avoid deforming the ring or striking the gearcase
  • On some models, access may require lowering/removing the planetary
Note: This ring is a trim/deflector piece and not a fluid seal. Persistent oil leakage indicates separate gearcase service.

More
$13.95

IN STOCK
Ships Today Guaranteed
Add to Cart
45
Product photo
By: Whirlpool
Part Number: 3180160
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

47
Best Seller
Product photo
5.0 (3)
By: Whirlpool
Part Number: W11133645

Fix grinding noises and stripped gears in your stand mixer. This pinion drive gear transfers motor power through the gear train for smooth mixing.

More
$8.56

IN STOCK
Ships Today Guaranteed
Add to Cart
48
Best Seller
Product photo
5.0 (1)
By: Whirlpool
Part Number: WP3400025

Machine screw with 10-24 thread fastens motor housing, gearcase, and internal brackets in stand mixers. Replace stripped or missing screws to restore secure assembly and reduce vibration.

More
$2.93

IN STOCK
Ships Today Guaranteed
Add to Cart
49
By: Whirlpool
Part Number: 4159614
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.

50
By: Whirlpool
Part Number: 241287-1
$69.95

IN STOCK
Ships Today Guaranteed
Add to Cart
52
By: Whirlpool
Part Number: WP9708653

Genuine 10-24 thread screw secures panels, brackets, and assemblies in stand mixers. Replace when stripped, missing, or corroded for proper fit.

More
$2.93

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
53
Best Seller
Product photo
4.8 (19)
By: Whirlpool
Part Number: WP67500-55

Seals the center shaft to prevent grease and liquid leaks in your stand mixer. Replace when you notice grease leaking down the shaft. Confirm fit by model.

More
$8.56

IN STOCK
Ships Today Guaranteed
Add to Cart
54
Product photo
By: Whirlpool
Part Number: WP313808

Size: 6-32 x 9/32 inch.

More
$7.56

IN STOCK
Ships Today Guaranteed
Add to Cart
56
Product photo
5.0 (1)
By: Whirlpool
Part Number: WP241877

This 6-32 machine screw fastens brackets, panels, and internal components in your appliance. Replacing a missing or stripped screw restores a secure, rattle-free fit and keeps assemblies properly aligned during normal operation.

  • Secures components to frames, brackets, or covers
  • Helps maintain proper alignment of panels and hardware
  • Replaces missing, damaged, or stripped fasteners
  • Common signs: loose/rattling panels, misaligned parts, or a screw that won't tighten
What's included: One screw Install notes:
  • Disconnect power (and water, if applicable) before servicing
  • Match thread and length to the original fastener; reuse any washers if present
  • Start threads by hand to avoid cross-threading; tighten snugly without overtightening
  • Use the driver that matches the head style on your original screw
Specs:
  • Thread size: 6-32 (machine screw)

More
$2.93

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
57
Product photo
By: Whirlpool
Part Number: 243342

Protects and secures hinge or pivot pins on mixer attachments. Replace if cracked, broken, or missing to prevent metal wear and keep pins properly seated.

More
$42.70

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
58
Best Seller
Product photo
4.9 (96)
By: Whirlpool
Part Number: WP240309-2

Mixer beater stopped rotating or making noise? This worm gear and bracket assembly transfers motor power to attachments. Moderate DIY repair with video.

More
$42.95

IN STOCK
Ships Today Guaranteed
Add to Cart
59
Best Seller
Product photo
4.9 (10)
By: Whirlpool
Part Number: 4160474

Fix oil or grease leaking into your mixing bowl with this center shaft kit. Includes shaft, seal, and gasket. Moderate DIY repair for experienced users.

More
$17.23

IN STOCK
Ships Today Guaranteed
Add to Cart
60
By: Whirlpool
Part Number: W11821371
$4.91

Out Of Stock

Usually ships within 4 - 14 days

Add to Cart
61
By: Whirlpool
Part Number: 4176247
Not available

This part is discontinued by the manufacturer and is no longer available for purchase.
