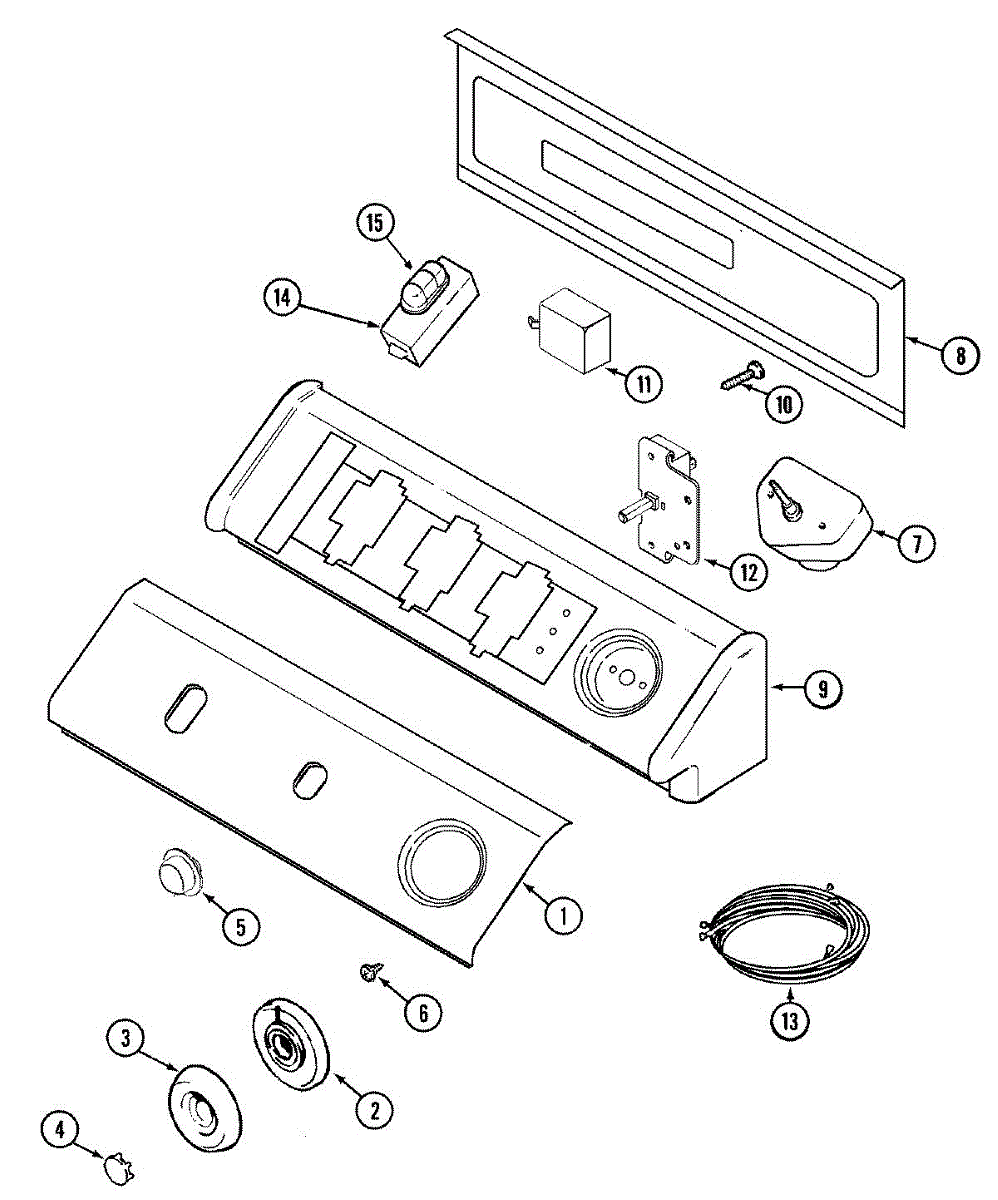

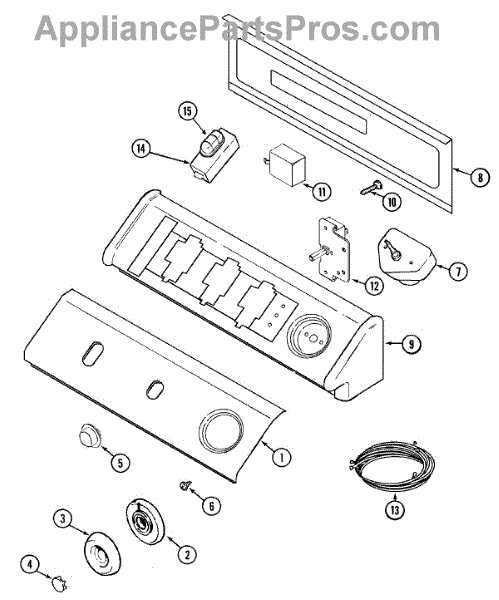

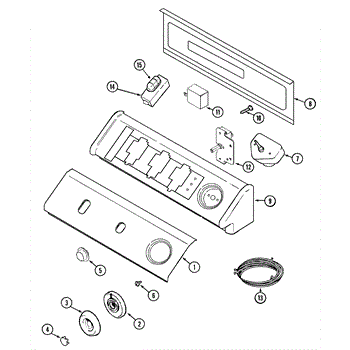

Parts for Maytag MDE5000AYW: 03 - Control Panel Parts

This is a genuine replacement mounting screw used to secure appliance components and panels. It restores proper fit and prevents movement that can cause noise or misalignment. What it does:

• Fastens panels, brackets, and small components in place
• Helps stop rattling or vibration caused by loose hardware
• Restores secure attachment after stripped or missing fasteners
• Matches OEM thread and head style for correct fit

• Use the correct driver to avoid stripping the head
• Tighten until snug; do not overtighten to prevent damage
• Disconnect power to the appliance before accessing internal components
• Replace matching screws in the area for consistent fit

The Timer Knob Skirt is an OEM part for Whirlpool dryers. It serves as the decorative and functional ring around the timer knob, providing a clear and easy-to-read display for selecting drying cycles and settings. The skirt ensures that the timer knob remains securely in place and enhances the overall appearance of the dryer control panel.

Over time, the timer knob skirt can become damaged or worn out due to regular use, accidental impacts, or exposure to harsh cleaning agents. When the skirt is compromised, it may affect the functionality and aesthetics of the dryer controls.

Symptoms of a bad timer knob skirt include:

• Difficulty in turning the timer knob
• The timer knob becoming loose or falling off
• Inaccurate or unclear cycle selection markings
• Cracks, breaks, or discoloration of the skirt

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Timer Knob is an OEM replacement part for Whirlpool dryers. It allows users to set cycle durations with smooth, intuitive adjustment.

Symptoms of a faulty timer knob include:

• The timer knob does not turn or is difficult to turn.
• The timer knob is missing

Causes of a bad timer knob can include loose or stripped internal gears from an extended operation or impact damage during loading/unloading clothes.

Note: This is the center portion of the knob only. For the complete knob assembly, the cap and skirt must also be purchased.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Timer Knob Insert is an OEM replacement part for Whirlpool dryers. This is a cap located on the timer knob on the control panel. Color: White. This is the timer knob cap only. For the complete assembly, you must also order the knob and skirt.

Causes of timer knob Insert failure can include cracked plastic from years of repeated turning motions. Wear on components also occurs due to extensive lifetime usage cycles.

Symptoms of a faulty timer knob insert include:

• Knob becomes loose, detached or inoperable for timings scrolling
• Cracks appear exposing internal timer parts

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The dryer timer controls the sequence and duration of each cycle. When its contacts or motor fail, the dryer may not start, advance, or shut off. Replacing the timer restores accurate cycle control and automatic advance.

• Sequences power through timed contacts to run motor, heat, and related circuits
• Advances the dial and stops the dryer at the OFF position
• Provides cycle timing for selected settings
• Common symptoms of a failing timer: cycle won't advance, won't start on certain settings, runs too long or won't shut off, only one cycle works

• Unplug the dryer before servicing
• Access the control console; label or photograph wire positions
• Move wires to the new timer one at a time, mount the timer, and reinstall the knob/panel
• Test cycle advance and shutoff after reassembly

Screw: 8-16 x 3/8 inch.

Color: White.

Screw: 8-16 x 3/8 inch.
