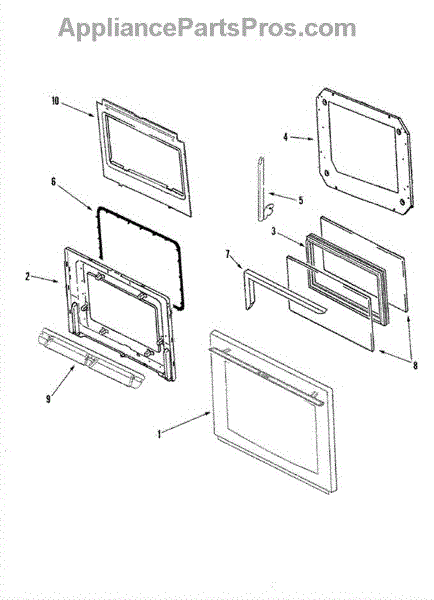

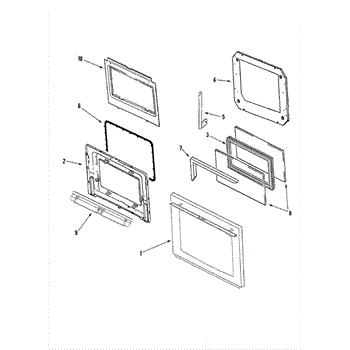

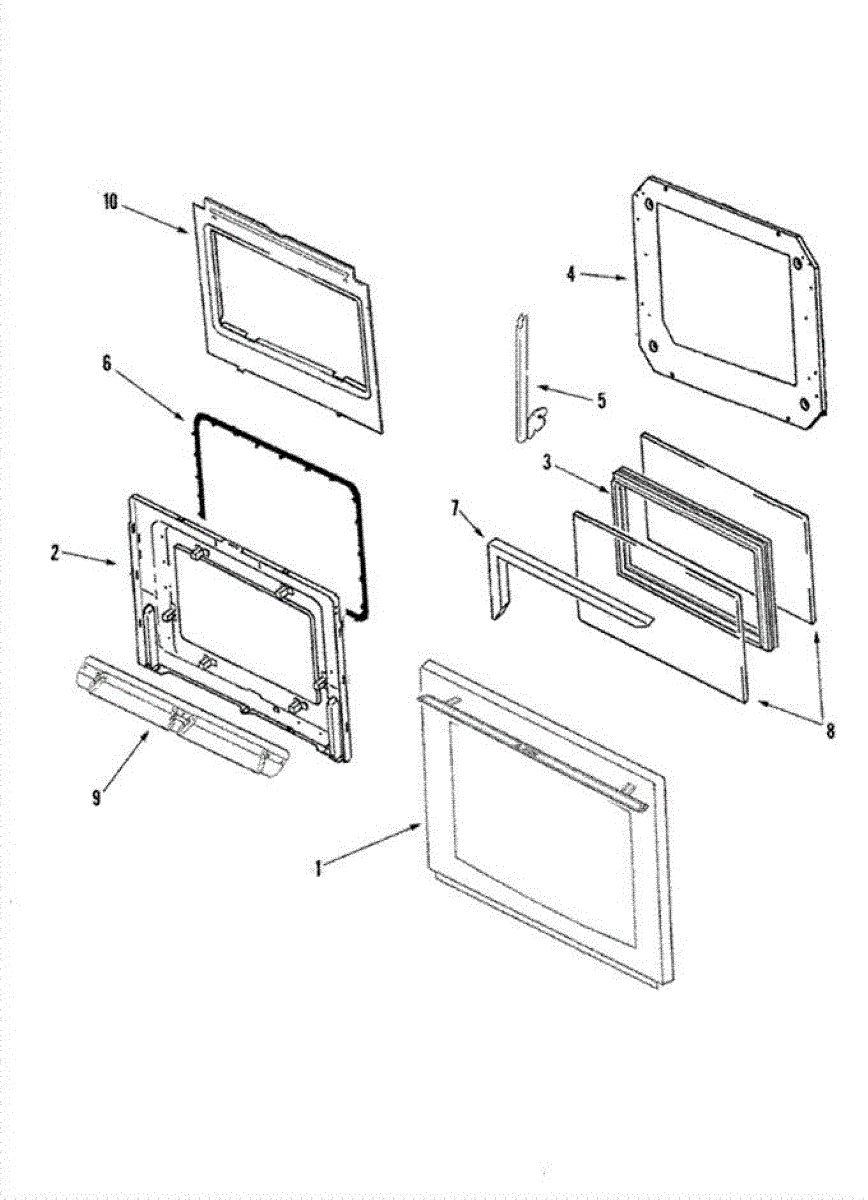

Parts for Jade RJDO3003A: 03 - Door Parts

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This hinge supports and controls the movement of your oven door so it opens smoothly and closes tightly. Replacing a worn hinge restores proper door alignment and sealing to help the oven heat efficiently and safely. What it does:

• Supports the oven door and regulates opening/closing tension and angle
• Helps keep the door fully closed to maintain temperature and engage any door switch
• Replace if the door sags, won't stay closed, opens too quickly, or binds/squeaks
• A weak or bent hinge can cause heat loss and longer preheat times

• 1 door hinge

• Disconnect power; for gas ranges, also shut off the gas supply
• Remove the door per your model's instructions; secure hinge arms with locks or pins if applicable
• Unfasten and replace the hinge using the existing mounting points and hardware
• Adjust per your service instructions if needed

Restore a tight, heat-holding seal around your oven door. This replacement door gasket helps keep heat and moisture inside the oven for more consistent temperatures and reliable cooking performance. What it does

• Seals the gap between the oven door and front frame to contain heat and vapor
• Helps the oven reach and maintain set temperatures for even baking and roasting
• Reduces heat escape that can cause longer preheat times or temperature swings
• Replaces seals that are torn, frayed, flattened, or leaking heat around the door

• 1 oven door gasket

• Disconnect power and allow the oven to cool completely before servicing
• Open the door and remove the old gasket by releasing its retaining clips; note orientation
• Start at the top center and press the new gasket into place evenly—do not stretch it
• Close the door and check for a uniform seal all around; readjust as needed

The Oven Inner Door Glass is an OEM part for Whirlpool ovens. The glass component is specially tempered to withstand high heat inside the oven cavity.

Size: 20 5/8 inches x 13 1/8 inches. For the glass measuring 22 3/8 inches x 14 inches order 74004857

Causes of a bad oven inner door glass can include small cracks or chips developing from regular door openings/closings, or microscopic defects that enlarge under repeated thermal cycling. Damage from accidental impacts is also possible.

Symptoms of a bad Oven Inner Door Glass include:

• Reduced visibility into the oven due to fogging, steam, or condensation buildup
• Cracks or fractures compromising the structural integrity of the glass
• Leaks or seal failure allowing heat to escape from around the door frame

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

A genuine replacement screw used to secure components on compatible Whirlpool appliances. This small fastener restores proper assembly and helps stop loose panels, trim, or internal parts from rattling or shifting during operation. What it does:

• Secures panels, brackets, or components to restore proper fit and reduce vibration noise
• Replaces missing or stripped fasteners that cause parts to sit unevenly or move during cycles
• Helps maintain safe, stable appliance operation by keeping components fastened

• Use the matching screwdriver or bit to avoid stripping the head; do not force a damaged screw
• Hand-start threads before using a driver to prevent cross-threading
• Replace any additional corroded or damaged screws with matching fasteners for best fit
• Disconnect power and follow appliance-specific safety steps before accessing internal parts
