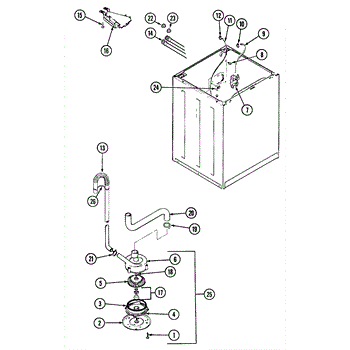

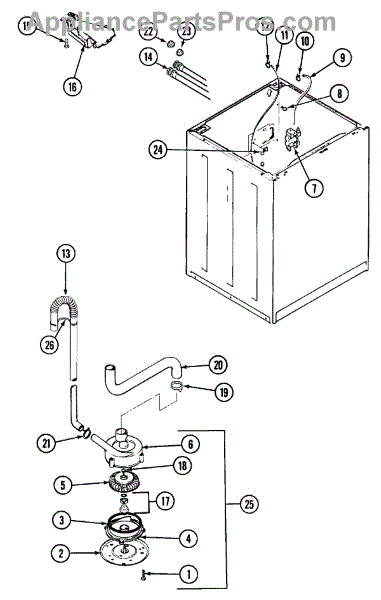

Parts for Magic Chef W209KVC: 03 - Motor & Pump Parts

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

The Screw is an OEM part for Whirlpool appliances that is responsible for securing various parts in place. The screw ensures a tight and secure fit, preventing any loose parts. A bad screw can occur due to wear and tear or accidental damage. If the screw becomes stripped, rusted, or lost, it can lead to instability or even malfunction of the affected parts.

Symptoms of a bad screw include:

• Loose or wobbly parts.
• Components not securely fastened.
• Difficulty in assembling or disassembling the appliance.
• Rattling or unusual noises during operation.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This part has been discontinued by the manufacturer and is no longer available.

The Drain Pump Assembly is an OEM part for Whirlpool washing machines. This component is responsible for efficiently removing water from the washer's tub during the drain cycle. It plays a crucial role in ensuring that the washing machine operates smoothly by pumping out dirty water, thereby preparing the machine for the rinse and spin cycles.

Over time, drain pumps can become clogged or fail due to debris build-up, wear and tear from regular use, or electrical malfunctions. When the drain pump is compromised, it can lead to water drainage issues, affecting the overall performance of the washing machine.

Symptoms of a bad drain pump assembly include:

• Water not draining from the washer
• Unusual noises such as grinding or humming during the drain cycle
• The washer stopping mid-cycle or displaying error codes related to drainage
• Visible leaks from the pump area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cabinet top clip is a small plastic retainer that secures the appliance's top/cabinet to the chassis, keeping the cabinet aligned and preventing movement or rattling. It restores a flush fit between the cabinet and body. What it does:

• Secures the top/cabinet panel to the appliance frame so the cabinet stays in place
• Prevents the cabinet from shifting, vibrating, or sitting unevenly
• Helps stop gaps that can let dirt or moisture into cabinet seams
• Common symptom: loose, rattling, or misaligned cabinet top or trim

• One cabinet top clip

• Always disconnect power before servicing the appliance
• Remove necessary trim or panels to access the cabinet clip; a screwdriver or trim tool may be needed
• Replace broken or worn clips with matching parts only; inspect surrounding fasteners for damage

This water valve kit regulates the flow of hot and cold water into your appliance during fill. Replace a weak, leaking, or stuck valve to restore consistent fills and proper shutoff, resolving common no-fill, slow-fill, or seeping issues.

• Controls incoming water to achieve correct fill levels and temperature mix
• Addresses no fill, slow/partial fill, or water seeping into the tub when off
• Replaces valves that are electrically failed or mechanically clogged/sticking

• Disconnect power and shut off both water supplies before servicing
• Have towels ready; relieve hose pressure and note wire/hose locations (take a photo)
• Transfer any mounting parts from the original valve if required; avoid overtightening plastic fittings
• Restore water slowly, check for leaks, and run a test fill

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This flume hose kit replaces the flexible hose that routes water from the dispenser/fill flume into the washer tub. Restoring a tight, unobstructed hose helps prevent leaks and ensures detergents, bleach, and softener are carried into the wash.

• Directs fill/dispenser water from the flume to the tub during wash and rinse
• Restores proper flow so dispenser compartments empty correctly
• Helps prevent leaks caused by splits, brittleness, or loose connections
• Typical symptoms: water on the floor, dispenser not draining, weak flow into tub, musty odor near dispenser

• Disconnect power and shut off water supply before servicing
• Access the dispenser/flume area by removing the top or control panel per your model
• Note hose routing; transfer and secure clamps; avoid kinks and rub points
• Run a quick fill/rinse to check for leaks at both connections after installation

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This pressure switch hose carries air from the washer tub to the pressure switch so the machine can sense and control water level. Replacing a damaged hose restores proper fill control and prevents level-sensing errors. What it does:

• Channels air/vacuum from the tub to the pressure switch so the control can detect water level.
• A cracked, pinched, or collapsed hose may cause overfilling, underfilling, failure to advance cycles, or continuous fill.
• Restores accurate water-level sensing when replacing a worn or damaged hose.

• Disconnect power to the appliance before servicing to avoid shock or injury.
• Remove and replace the hose carefully; avoid kinks, sharp bends, or pinched routing that can impair sensing.
• Use the factory-style connection points and clamps; ensure both ends are seated securely.
• After installation, run a test fill or diagnostic cycle to confirm correct water-level operation and no leaks.

This washer drain hose routes wastewater from the drain pump to your standpipe or laundry tub. Replacing a cracked or kinked hose restores reliable draining and helps prevent leaks during the spin/drain cycle.

• Connects the washer's drain outlet to the household standpipe or laundry tub
• Molded bend helps position the hose correctly and reduces kinking
• Typical symptoms: water leaking at the back or onto the floor while draining
• Visible splits, soft spots, brittleness, or abrasion on the hose
• Slow or incomplete draining caused by kinks or internal blockage

• Disconnect power and move the washer to access the rear; shutting off water is recommended as a precaution
• Place towels or a shallow pan to catch residual water when removing the old hose
• Transfer and reuse existing clamps/brackets if required; fully seat and secure connections, and route the hose to avoid kinks or rubbing
• Insert the outlet end properly into the standpipe or tub per your model's instructions, then run a quick drain/spin to check for leaks

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.

Size: 5 foot long. Rubber fill hose used on most automatic washing machines. Two hoses used per machine.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Washer Tub to Pump Hose is an OEM part for Whirlpool washing machines. This hose connects the washer tub to the drain pump, facilitating the proper drainage of water from the tub during the wash and spin cycles.

Causes of a bad tub to pump hose can include wear and tear from frequent use, blockages from lint or debris, and damage from overloading the washer or mishandling during maintenance.

Symptoms of a bad tub to pump hose include:

• Leaks during the wash or spin cycles
• Water not draining properly from the washer
• Visible cracks, holes, or wear in the hose
• Unusual noises during the drain cycle

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Hose Clamp is an OEM part for Whirlpool appliances. It secures hoses in place, ensuring a tight connection and preventing leaks in various systems such as washing machines, dishwashers, and refrigerators. This clamp is crucial for maintaining the integrity of the water or air lines it secures.

Causes of a bad hose clamp include wear and tear over time, exposure to water and detergents, or mechanical stress from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Leaks at the hose connection points
• Hoses slipping off the connections
• Visible rust or damage on the clamp
• Reduced appliance efficiency due to leaks

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Drain Pump Assembly is an OEM part for Whirlpool washing machines. This component is responsible for efficiently removing water from the washer's tub during the drain cycle. It plays a crucial role in ensuring that the washing machine operates smoothly by pumping out dirty water, thereby preparing the machine for the rinse and spin cycles.

Over time, drain pumps can become clogged or fail due to debris build-up, wear and tear from regular use, or electrical malfunctions. When the drain pump is compromised, it can lead to water drainage issues, affecting the overall performance of the washing machine.

Symptoms of a bad drain pump assembly include:

• Water not draining from the washer
• Unusual noises such as grinding or humming during the drain cycle
• The washer stopping mid-cycle or displaying error codes related to drainage
• Visible leaks from the pump area

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Affresh Washer Cleaner 3 Pack is an OEM cleaning accessory designed specifically for washing machines. This multipack contains 3 packets of a proven formula that helps eliminate odors from the washer tub, door, gasket, and drain areas. Regular cleaning is important to remove dirt, soap scum, mildew, and other residue that can build up over time and lead to odors. The Affresh tablets contain oxygen-powered enzymes and fresh scent boosters that are released during the cleaning cycle to safely and effectively eliminate musty smells.

This multipack of Green 4.2-ounce tablets ensures you have enough doses for consistent cleaning to keep your washer smelling fresh. As the #1 recommended washer cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and select Kenmore washers.
