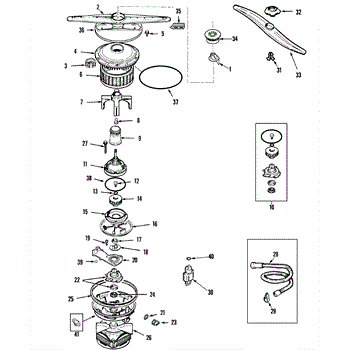

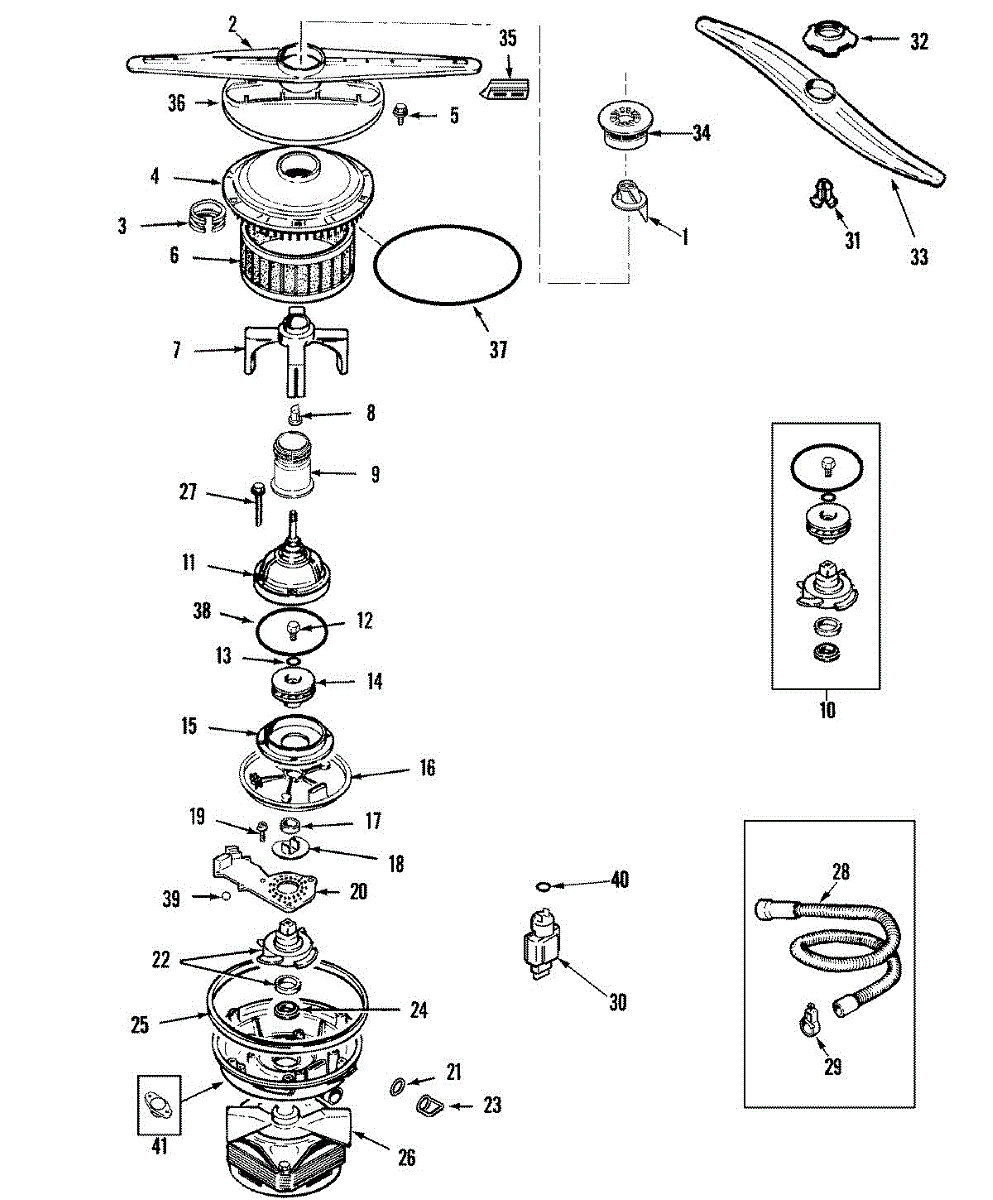

Parts for Maytag MDB7100AWS: 03 - Pump & Motor Parts

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Fix dishes not cleaning or low water pressure in your dishwasher. This nozzle jump up directs water to the spray arm. Easy 5-minute install, no tools needed.

Replacement lower spray arm for dishwashers. Installs at the bottom of the tub to distribute water during wash cycles. Replace if cracked, clogged, or broken.

Traps food debris before it enters the dishwasher pump. Replace when clogged or damaged to restore cleaning performance. Confirm fit by model number.

Support bracket that holds the lower spray arm in place. Replace if cracked, broken, or missing to ensure proper spray arm rotation and alignment.

Includes: Upper and lower impellers, impeller screw with o-ring, motor shaft seal with install tool, and 3 o-rings needed to repair pump.

Dishwasher lower washarm drain pump housing.

Creates a leak-resistant seal between pump components and connections. Replace when you notice water leaking during drain cycles or around fittings.

Fix poor cleaning and broken spray arms with this dishwasher impeller kit. Restores water pressure and quiet operation. DIY-friendly repair.

Replacement handle mounting screw for refrigerators. Secures the door handle to the appliance. Order if your original screw is stripped, missing, or lost.

Note The manufacturer has changed the old spring design. If you have the old spring design replace with Pump module repair package part number 12001489

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.

Includes motor, lower pump housing, both impellers and seals needed for complete installation

Fix dishwasher leaks or drainage issues with this flexible drain hose. Routes wastewater from pump to household drain. Moderate DIY repair, 1-2 hours.

This hose clamp secures a hose connection to prevent leaks and keep your appliance running smoothly. It provides a tight, reliable hold on the hose fitting so water or air stays contained during operation.

• Tightens around a hose and fitting to maintain a secure seal
• Helps stop drips, seepage, or loose connections
• Common fix when you see moisture around a hose joint
• Useful if a clamp is rusted, stretched, or no longer holding tension

• Unplug power and shut off water (if applicable) before servicing
• Note clamp position/orientation before removal
• Use appropriate screwdriver or nut driver to tighten evenly
• Do not overtighten—ensure a snug, leak-free seal without damaging the hose

This part has been discontinued and is no longer available.

Upper wash arm retaining clip.

Snap-in outlet connector that secures the upper spray arm assembly to the dishwasher. Replace if cracked, stripped, or won't hold the arm securely.

Gray plastic cap that threads onto the center of your dishwasher's lower spray arm assembly. Replaces cracked, broken, or missing caps. Hand-tightens.

Color: Gray

The pump O-ring creates a watertight seal around your dishwasher's wash pump assembly located at the bottom of the tub. Replace when you notice water leaking from underneath the dishwasher or reduced wash pressure.

Upper

Part is included in seal kit: part number WP6-915435.

Replace your dishwasher's pump thermostat o-ring seal to prevent leaks and maintain proper water circulation. Essential when you notice water pooling or temperature issues. Verify fit with your model number before ordering.

Specs: No.8X1/2 HEX WASHER HEAD

Dissolves limescale, mineral deposits, and odor-causing residues from dishwasher tub and spray system. Use monthly to maintain peak cleaning performance.
