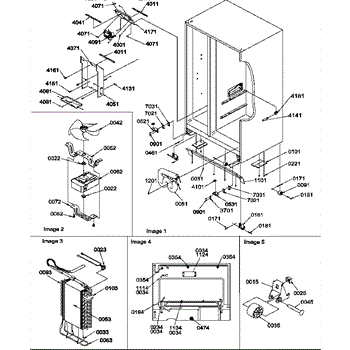

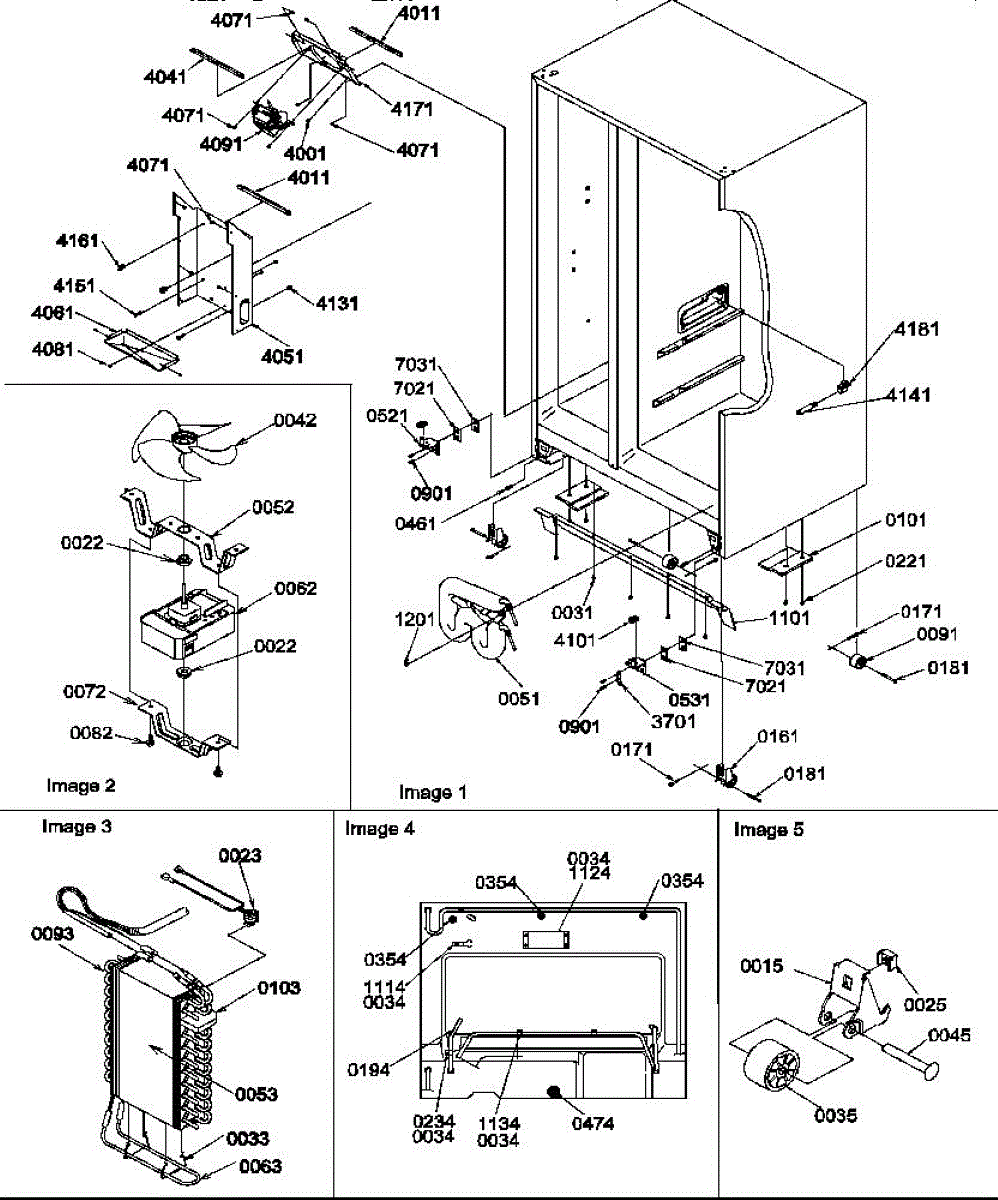

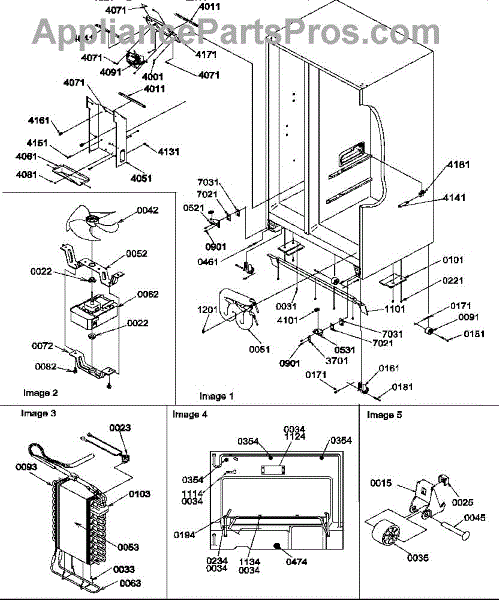

Parts for Amana SRD22TPSE / P1190309W E: 04 - Drain System, Rollers, And Evap Assy Parts

Stops refrigerator fan rattling and buzzing noise. This rubber grommet cushions the fan motor to reduce vibration. Simple DIY fix, takes under 30 minutes.

This defrost thermostat helps control the refrigerator/freezer defrost cycle by sensing evaporator temperature and allowing the heater to run when frost removal is needed. Replaces a failed thermostat to restore normal defrost operation. What it does:

• Closes when the evaporator is cold so the defrost heater can run, then opens when the coil warms to stop defrosting
• Helps prevent excessive frost and ice buildup on the evaporator coil
• Common symptom: visible frost or ice on evaporator, excessive frost buildup, or defrost heater running constantly/ not at all
• Works with the defrost system to maintain efficient cooling performance

• One defrost thermostat

• Disconnect power to the appliance before starting any repair
• Mount on or near the evaporator coil as originally installed; secure wiring away from moving parts
• Inspect the harness and connector for damage; replace if corroded or brittle
• Test for continuity with a multimeter to confirm thermostat function before and after installation

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Supports and enables smooth movement of your refrigerator cabinet. Replace if cracked, broken, or crumbled to restore stable positioning and mobility.

Replace a broken evaporator fan blade causing warm fridge temps or uneven cooling. Restores cold air circulation over the coil for proper frost control.

This small metal fastener secures the roller assembly to the refrigerator's bottom panel, allowing smooth door movement. Located underneath the appliance, it needs replacement if the refrigerator rocks, tilts, or has difficulty rolling when moved.

Fixes frost buildup on evaporator coils and inconsistent cooling. This refrigerator defrost heater melts ice during defrost cycles. 20-minute repair.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Supports and enables smooth movement of your refrigerator cabinet. Replace if cracked, broken, or crumbled to restore stable positioning and mobility.

Machine screw fastens panels, brackets, and components inside appliances. Replace stripped, missing, or loose screws to restore secure assembly.

Panel fastener screw for refrigerators and freezers. Secures cabinet panels, trim, and components. Replace if missing, stripped, or damaged.

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

Size: 8-32 x .312 inch.

This part has been discontinued by the manufacturer and is no longer available.

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

(SOLENOID NOT AVAILABLE MUST ORDER ICE DOOR KIT 12001991)

Cam kit for refrigerator door hinges. Includes black and white cams that install at door bottom and hinge. Replace when cracked, broken, or worn.

Illuminates appliance interior. Replace when burned out or dimming. Verify wattage and base type match your model before ordering. Easy DIY fix.

Includes both shims as seen in the photo

Includes both shims as seen in the photo
