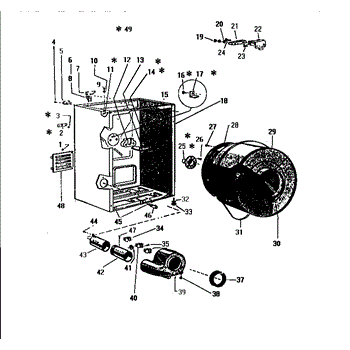

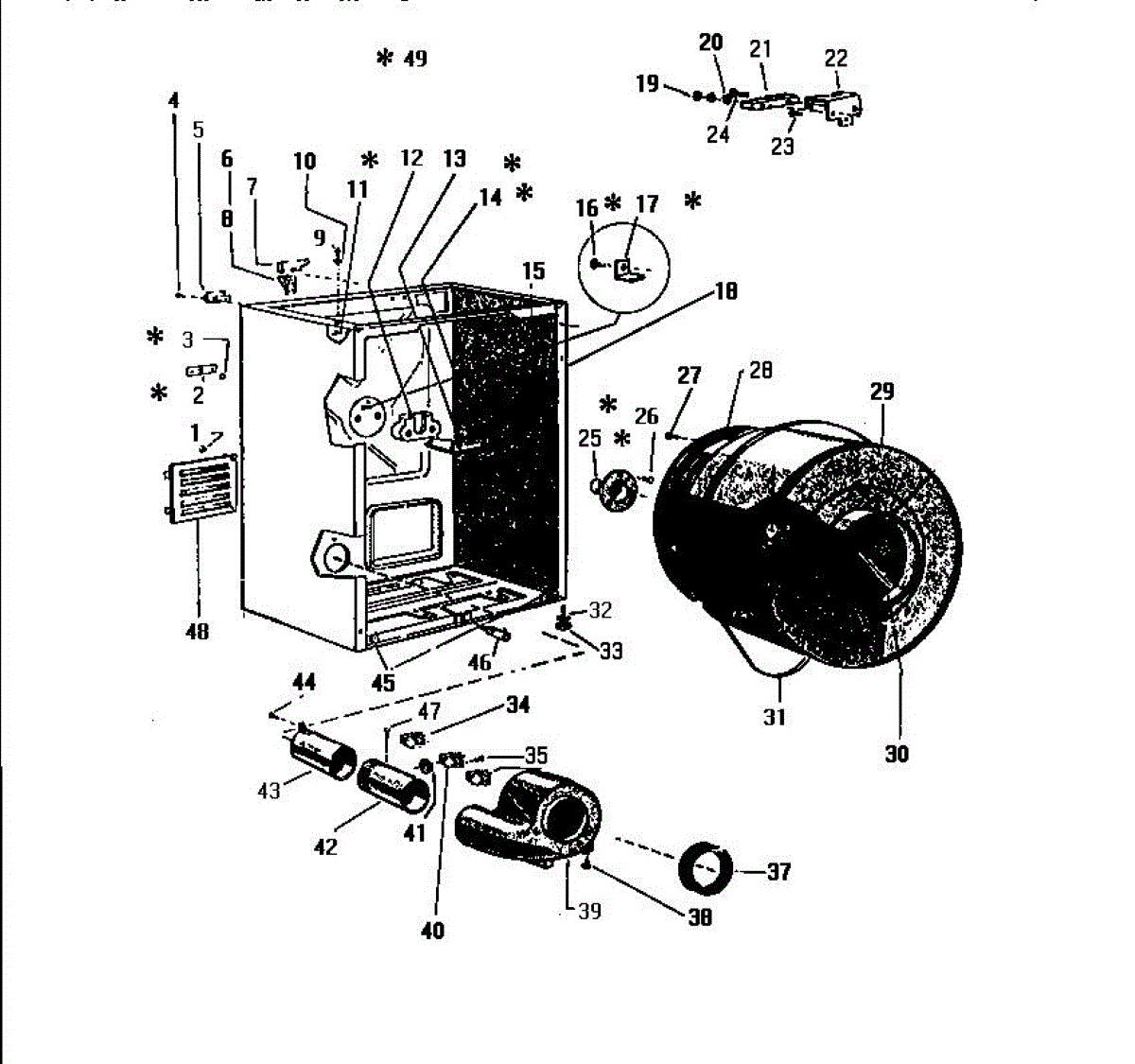

Parts for Frigidaire DE500EDV4: 04 - Drum Parts

For a complete drum bearing and shaft kit order 5303281153.

This is a small metal grounding ball that sits in the rear drum bearing area of the dryer. It helps dissipate static electricity buildup in the drum during operation. Replace this part if you are experiencing excessive static cling on clothes, static shocks when unloading laundry, or if the original ball is missing or worn.

This part has been discontinued by the manufacturer and is no longer available.

Supports the dryer drum for smooth rotation. Replace if your dryer squeals, makes grinding noises, or the drum sags. Verify fit with your model number.

This metal bracket supports the drum bearing at the rear of the dryer, helping to hold the drum in proper alignment as it rotates. It provides a stable mounting point for the bearing assembly that the drum rides on. Replace this bracket if the dryer makes squealing, grinding, or thumping noises during operation, or if the drum wobbles and does not spin smoothly.

Replacement bracket screw for securing internal panels and brackets to your appliance frame. Needed when original screws are stripped, corroded, or missing.

Hex flange nut with 10-32 thread secures components in appliances. Replace if stripped, missing, or damaged. Flange provides broader bearing surface.

The Terminal Block Kit is an OEM part for Frigidaire appliances, typically used for connecting house power to various electrical appliances like ranges and dryers. This kit includes includes screws, nuts, and a unique terminal block. It plays a critical role in the power supply system by providing a reliable connection point for the appliance's main power cord, preventing loose connections and potential electrical hazards.

Symptoms of a bad Terminal Block Kit include:

• Signs of burning or melting at the connection points,
• Flickering power or intermittent operation of the appliance,
• A burning smell from the appliance area.

Causes of terminal block failure often involve loose connections that can lead to arcing and overheating, improper installation, or general wear and tear that degrades the integrity of the electrical contacts.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Dryer drum shaft that supports the drum and connects to the bearing. Replace if worn, damaged, or causing squeaking noises. Verify fit with your model.

A single replacement screw fastener used to secure trim, panels, or internal components. Fits specific Frigidaire appliance locations to restore proper fastening and alignment where factory hardware is missing or damaged. What it does:

• Secures plastic trim, brackets, or metal panels in refrigerators and freezers
• Restores proper alignment and prevents rattling or loose parts
• Replaces stripped, corroded, or lost hardware to maintain appliance function
• Works wherever the original factory screw was specified

• One replacement screw

• Use the correct screwdriver or bit to avoid damaging the screw head
• Do not overtighten; snug until seated to prevent cracking plastic or stripping threads
• Replace only with the exact factory part for proper fit and function
• Unplug the appliance or turn off power first if working near electrical components

Metal heat deflector that mounts near the dryer heating element. Replace if warped, cracked, or damaged to restore proper heat distribution and protect wiring.

Flat-style dryer drum belt wraps around drum and motor pulley to spin clothes. Replace when belt breaks, frays, or drum won't turn. Confirm fit by model.

The Dryer Seal is an OEM replacment part for Frigidaire dryers. It is located at the doorway opening where the drum rotates and helps prevent lint, moisture, and heat from escaping. The seal is a crucial component that ensures efficient drying and heat retention within the dryer drum.

Causes of a bad seal can include wear and tear over time from continuous use or damage due to mishandling. The nylon seal experiences a lot of friction and heat stress with each drying cycle.

Symptoms of a bad seal include:

• Increased drying time as heat escapes
• Excess lint and moisture accumulation inside dryer components
• Visibly worn or cracked seal edges
• Cool air leakage noticed around the door when the dryer is running

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This part has been discontinued by the manufacturer and is no longer available.

This part has been discontinued by the manufacturer and is no longer available.

Supports and allows smooth drum rotation in your dryer. Replace if you hear squealing, grinding, or rattling noises during operation. Verify fit with your model.
