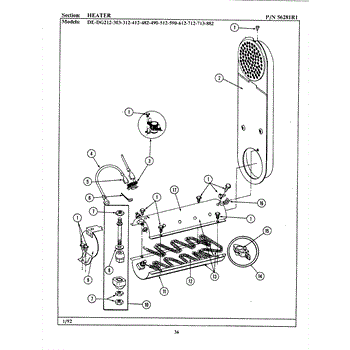

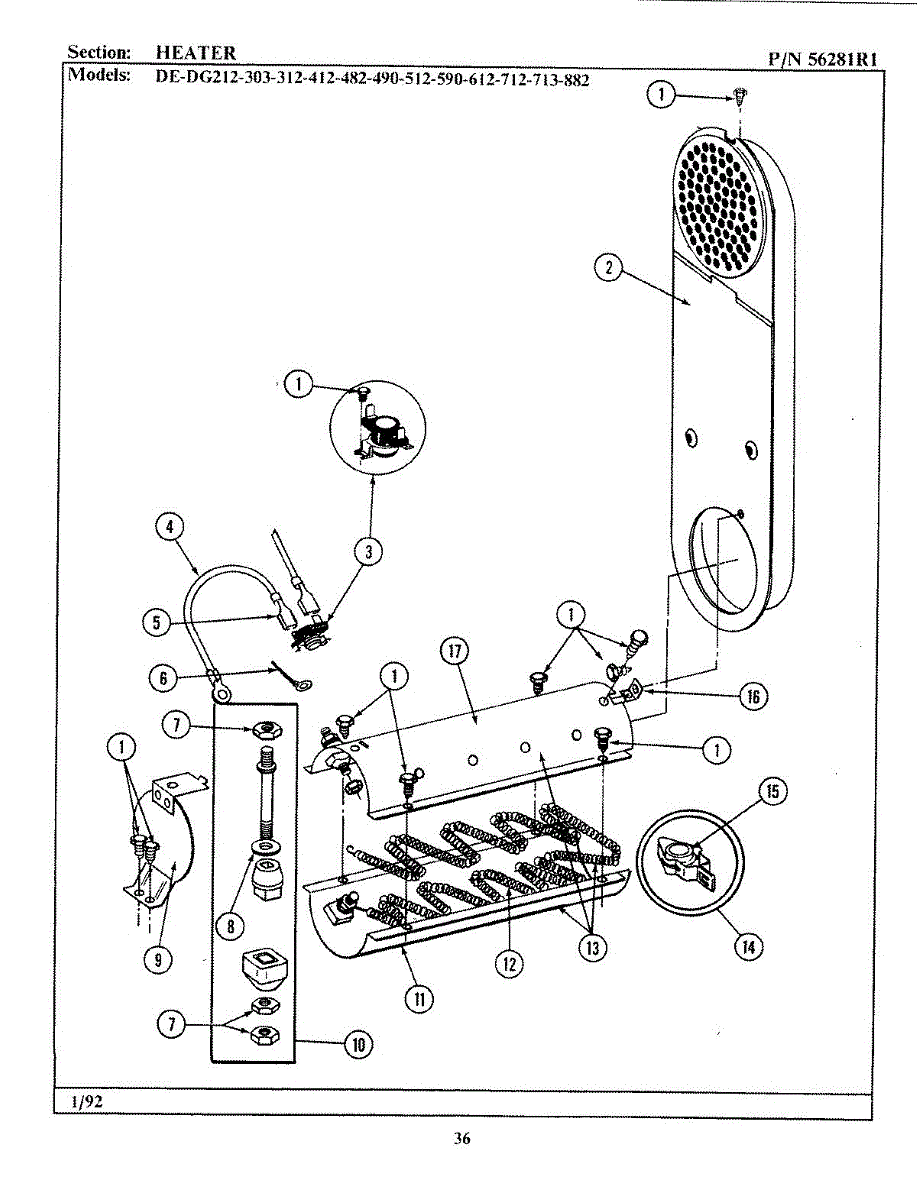

Parts for Maytag DE303: 04 - Heater Parts

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

High limit thermostat, Canadian models only.

The Hi-Limit Thermostat is an OEM replacement part for Whirlpool gas dryers. As a safety device, it monitors internal drum temperatures during cycles to prevent overheating.  If the temperature rises to 200 degrees Fahrenheit, the heating element will cut off. It will resume operation once the temperature drops to 170 degrees Fahrenheit. Featuring two (2) male 1/4" terminals, this thermostat is designed for flush mount installation. Its electric dryer hi-limit thermostat is rated at L200-30F

Causes of a bad hi-limit thermostat can include exposure to excessive temperatures over an extended period. Failure to safely vent moist air outside may cause thermal expansion cutting off electrical control.

Symptoms of a bad hi-limit thermostat include:

• Inability to complete dryer cycles or premature shutoffs
• Flashing error codes or indicators related to heat
• Sudden lack of heat even when dryer functions normally
• Tripping of household circuit breakers during drying

This OEM part is also compatible with brands like Maytag, Amana, and Kenmore models. Replace yours to ensure thermal safety.

This jumper wire links two terminals in the appliance's wiring harness to complete a required circuit. Replace a burnt, broken, or heat-damaged jumper to restore reliable power flow and prevent intermittent operation or arcing at the connection.

• Bridges designated terminals to provide proper continuity per the wiring diagram
• Helps deliver power to the intended component or control
• A failed jumper may cause a component to not energize, no or intermittent heat, or an element/burner that won't operate
• Visible signs of failure include melted insulation, discoloration, or burnt/loose connectors

• Disconnect power at the breaker; turn off the gas supply before servicing
• Follow the tech sheet/wiring diagram; move one connection at a time to the same terminals
• Ensure tight, fully seated spade connections on clean terminals; do not force mismatched sizes
• Route wiring away from sharp edges, moving parts, and hot or high-voltage areas; replace any heat-damaged mating terminals

This part has been discontinued and is no longer available.

Size: 10-32 inch.

Specs: 7/32 INCH

This terminal insulator assembly isolates and supports an electrical connection where it passes through the appliance chassis. Replacing a cracked or heat-damaged insulator helps prevent shorts and restores a safe, reliable connection.

• Electrically insulates a live terminal from the metal cabinet or oven wall
• Provides a secure pass-through/mounting point for the element/wire connection
• Helps prevent arcing, shorting, and localized heat damage at the connection
• Typical symptoms: visible cracks or burn marks on the insulator, tripped breaker, intermittent or no heat due to a compromised connection

• Disconnect power at the breaker or unplug the appliance before servicing
• Access the terminal area; label or photograph wiring to ensure correct reassembly
• Transfer wires one at a time; reuse existing hardware if serviceable and tighten connections securely
• Inspect nearby wire ends/connectors and replace any that are heat-damaged or brittle

208 Volts

The Heater Element is an OEM replacement part for Whirlpool electric dryers. The element provides heat for drying cycles. 240 Volts

Causes of a faulty heater element can include normal wear of internal coils and insulation from repetitive heating. Over-drying of heavy or bulky loads may potentially overwork the element prematurely.

Symptoms of a bad heater element include:

• Inconsistent or excessively long dry times due to inadequate heat
• Damage to other internal components from overwork during compensation
• Risks arise as insulation deteriorates potentially exposing live current

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Heater Assembly Complete is an OEM part for Whirlpool dryers, engineered to generate and maintain the heat necessary for drying clothes efficiently and uniformly. This assembly ensures that your dryer can reach and regulate the desired temperatures without overheating.

Causes of a bad Heater Assembly can stem from normal wear and tear, overloading of the dryer, insufficient maintenance leading to buildup and blockages, or electrical surges that damage the heating components.

Symptoms of a bad Heater Assembly Complete include:

• Clothes taking longer to dry or not drying at all
• The dryer not heating up despite running
• Overheating of the dryer, which could trip safety switches or fuses
• Unusual noises or smells indicating potential electrical issues or burning

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This clip and insulator assembly secures and electrically isolates a component inside a range or wall oven. It keeps the part firmly positioned while preventing shorts and heat damage, supporting accurate, safe appliance operation.

• Holds the designated component against the oven liner or chassis
• Ceramic insulator provides electrical isolation in high-heat areas
• Maintains correct spacing and alignment for reliable performance
• Replaces a missing, bent, or heat-cracked clip/insulator to stop rattles or arcing

• Disconnect power; allow the appliance to cool fully before servicing
• Wear gloves and eye protection
• Access the mounting point; transfer the component into the new insulator and secure with the clip without pinching wires or capillary bulbs
• Restore power and verify proper operation
