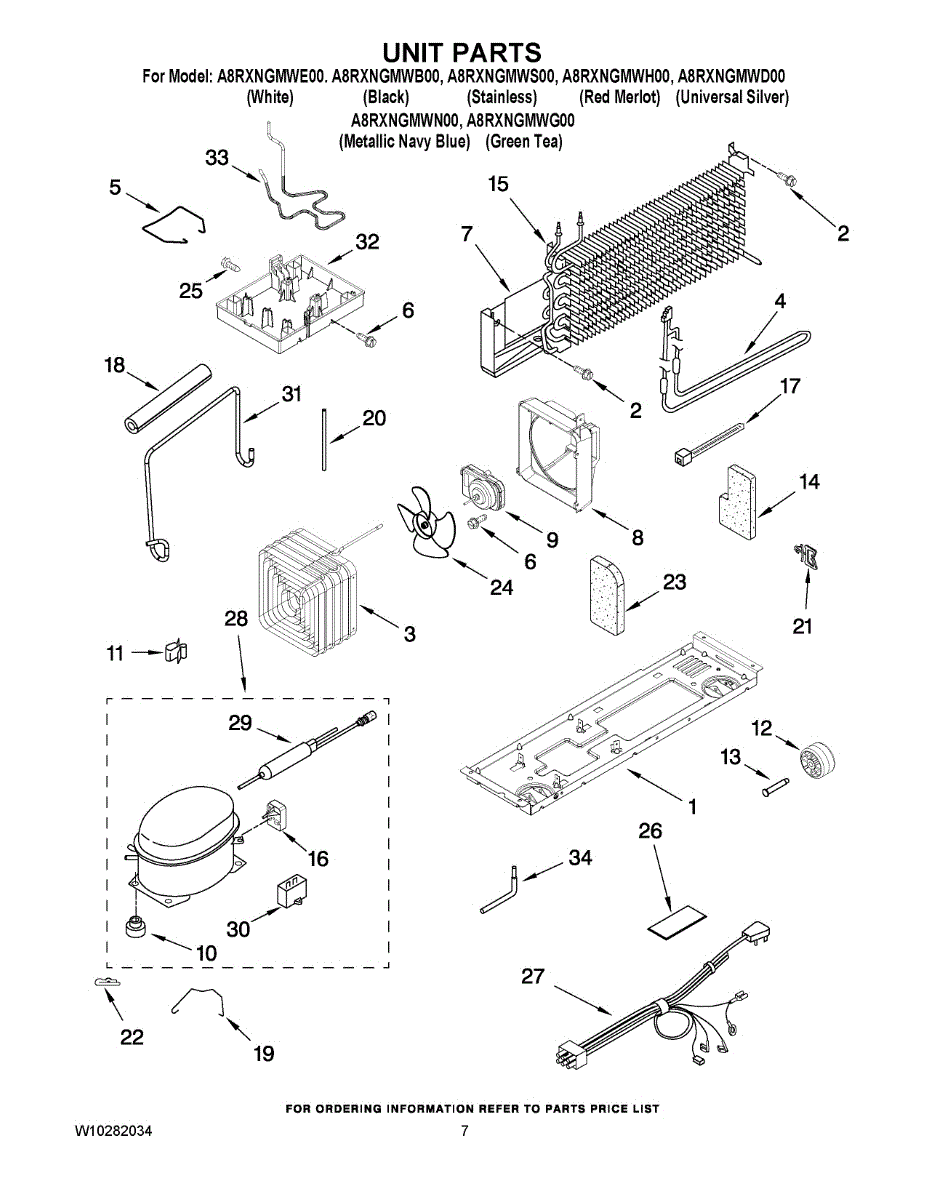

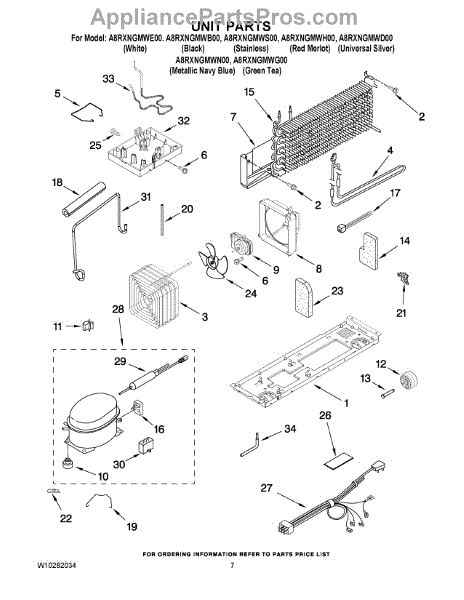

Parts for Maytag A8RXNGMWE00: 04 - Unit Parts

Refrigerator making excessive noise or vibrating? This compressor support plate stabilizes the compressor assembly, reducing vibration and noise issues.

Size: 8-18 x 1/2 inch.

Fix a refrigerator that won't cool properly with a new condenser. This part releases heat from the cooling system. Moderate DIY repair, 1-2 hours.

Fix freezer icing and blocked vents with this defrost heater. Melts frost buildup on evaporator coils during defrost cycle. 30-minute DIY repair.

Mounting screw for refrigerator assembly. Secures internal components and panels. Replace if stripped, rusted, missing, or damaged during repairs.

Air baffle directs airflow in your refrigerator's freezer or fresh food compartment. Replace if cracked, broken, or missing to restore proper air circulation.

Refrigerator not cooling but freezer works? A failed condenser fan motor prevents heat from escaping. DIY repair takes 10-20 minutes with basic tools.

Protective seal grommet for hoses, tubes, or wires passing through refrigerator cabinet. Replaces cracked, worn, or missing grommets to prevent leaks.

This refrigerator roller supports the unit's weight and enables smooth movement for positioning and cleaning. Replace when wheels crack or roll roughly.

Rivet for refrigerators. Secures components and panels inside the cabinet. Replace if rivet is loose, missing, or broken during repair work.

Fix water leaking on the floor or cooling issues with this refrigerator evaporator assembly. Located behind the freezer back panel. Moderate repair.

Fixes refrigerator not cooling or compressor not running. This start relay and overload kit restores cooling when the compressor fails to start. DIY repair.

Secures the compressor to the refrigerator frame. Replace if strap is cracked, broken, or missing to properly mount and stabilize the compressor unit.

This extension is a replacement support piece that helps restore proper alignment and secure fit for the affected appliance component, improving function and preventing binding. It's a small structural part used where a factory extension is required. What it does

• Provides structural support and alignment for the mating part or assembly
• Helps restore smooth movement and prevent rubbing or binding of sliding components
• Addresses symptoms such as loose trim, uneven panels, or a drawer/panel that won't seat properly
• Useful when the original extension is cracked, broken, or missing

• One extension piece as pictured

• Disconnect power (and water if applicable) before beginning any repair
• Basic hand tools are typically required; avoid forcing fasteners or assemblies
• Inspect mating parts for damage and replace any additional worn components for best results

Hex washer head screw for refrigerator panel and component fastening. Replace when screw is stripped, missing, or corroded to secure loose parts.

Fixes intermittent or failed component operation caused by damaged wiring. This harness assembly restores electrical connections between control and components.

Fix a warm refrigerator and freezer or loud rattling noise during operation. This compressor repairs cooling failures from sealed system issues.

Drier tube for refrigerators. Installs in the sealed refrigeration system to remove moisture. Replace if cracked, corroded, or during compressor repairs.

Refrigerator not cooling properly? A clogged filter drier prevents proper refrigerant flow. Requires professional installation due to sealed system.

The Run Capacitor is an OEM part for Whirlpool appliances, designed to provide the necessary electrical charge to start and run the compressor motor. This part attaches to the compressor to aids in maintaining a consistent motor speed and ensuring smooth operation. The run capacitor plays a crucial role in the appliance's electrical system, storing and releasing energy as needed to power the motor.

Causes of a bad Run Capacitor include electrical surges, wear and tear over time, or overheating, which can lead to a failure in providing the necessary start-up energy or maintaining motor speed.

Symptoms of a bad Run Capacitor include:

• The appliance does not start.
• The motor shuts off shortly after starting.
• The appliance is humming but not running.
• Increased energy consumption.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Collects condensation beneath the evaporator coils in your top-mount refrigerator. Replace if cracked, warped, or missing to prevent water leakage.

Size: 1/2 inch.

Size: 5/8 inch.

Size: 3/4 inch.

Size: 3/16 inch.

Size: 1/4 inch.

Size: 5/16 inch.

Size: 3/8 inch.
