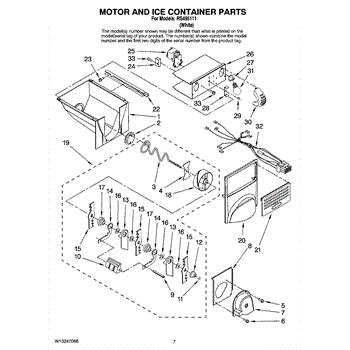

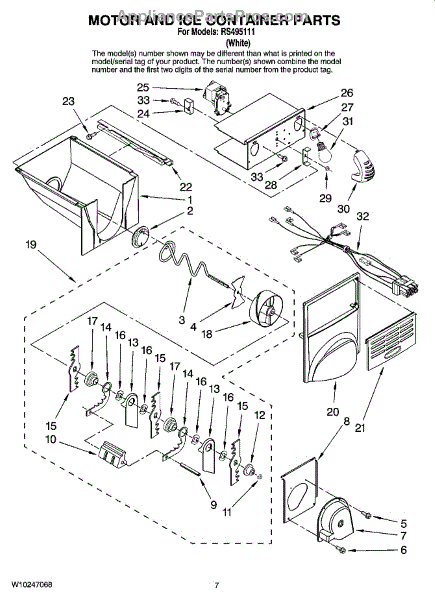

Parts for Maytag RS495111: 05 - Motor And Ice Container Parts

The Ice Crusher Bucket is an OEM part for Whirlpool refrigerators. It serves as a container for holding and crushing ice from the icemaker. The bucket houses the crushing mechanism that breaks down ice cubes into smaller pieces, making it convenient for dispensing crushed ice through the refrigerator's door.

Over time, the ice crusher bucket can become worn out or damaged due to regular use, exposure to moisture, or accidental impact.

Symptoms of a bad ice crusher bucket include:

• The bucket not holding ice properly
• Issues with dispensing crushed ice
• Unusual noises during ice crushing
• Visible cracks or damage to the bucket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This end cap fits on the front of the ice-bin auger. It secures the auger shaft and blade stack inside the ice container so cubes or crushed ice dispense smoothly and the auger stays properly aligned.

• Secures the front of the auger and blades in the ice bucket
• Maintains auger alignment with the drive for reliable ice dispensing
• Helps prevent jams and rattling in the ice container
• Common symptoms of a failed cap: weak/no ice dispense, loose/wobbly auger, grinding or rattling noises, visible cracks or a missing cap

• Disconnect power and remove the ice bin before servicing
• Note the order of blades, spacers, and washers; take a photo for reassembly
• Replace the cap and reassemble in the original order using existing hardware
• Ensure the bin is fully seated and test dispense after restoring power

This replacement screw secures specified refrigerator components—such as covers, brackets, and internal panels—so they stay properly mounted. Replace a missing, stripped, or corroded fastener to restore a tight, rattle-free fit and reliable operation.

• Provides the correct fastener for locations identified in your model's parts diagram
• Helps prevent looseness, vibration, and rattling of panels or brackets
• Replace if the head is stripped, threads are worn, or the screw is missing
• Symptoms can include loose parts, gaps, or noises from movement

• Unplug the refrigerator and shut off water if working near the ice maker or dispenser
• Match length and type to the original; follow your model's parts diagram for placement
• Start threads by hand to avoid cross-threading; tighten snugly without over-torquing, especially into plastic
• Keep track of screw positions; do not mix different screw lengths or styles

A locking nut that secures threaded shafts and fasteners to prevent loosening from vibration and regular use. Fits where a small, self-retaining nut is required to keep components firmly attached. What it does:

• Threads onto compatible studs/bolts to lock assemblies in place
• Resists vibration-related loosening for more reliable operation
• Commonly used on appliance control or mechanical linkages
• Small replacement part that restores secure fastening where the original nut is damaged or missing

• One locking nut

• Turn off and unplug the appliance before accessing internal components
• Match nut thread size and type to the stud before installation
• Use appropriate tools and torque; avoid overtightening which can strip threads

The ice auger and crusher blade crush and shave the ice that dispenses on a refrigerator. This part can be used to repair a refrigerator that is no longer dispensing ice. Sometimes when the ice dispenser malfunctions and makes a loud noise but doesn't dispense cubed or shaved ice, the problem is with the auger and crusher blade. Perform a visual inspection of the auger and crusher blade to ensure no external damage is done to the components.Disconnect the refrigerator from its power source before starting this repair. Open the freezer door to access the ice bucket and dispenser area. The bucket is held in place by fastening clips that can be pushed to remove the bucket. Lay the bucket flat on its back with the auger and blade facing upwards. Remove the old auger and crusher blade by removing the four hex screws. Remove the helix end-cap from the old auger system and replace it with the new one. Repeat these steps in reverse to install the new component.This Whirlpool ice auger and crusher is a genuine OEM product sourced directly from Whirlpool. The part listed is only available individually and is not included with any other parts or original appliances. This part is compatible with Whirlpool, Amana, Kenmore, and Maytag appliances.

This left-side freezer glide helps the freezer drawer slide smoothly and stay aligned, restoring proper drawer movement and preventing binding or sagging. Fits the freezer drawer track and supports normal opening and closing. What it does:

• Guides and supports the freezer drawer on the left side for smooth travel
• Keeps the drawer aligned to prevent scraping, sticking, or uneven movement
• Reduces chatter and wear on the drawer and track from improper seating
• Common symptom: drawer sticks, drags, or drops on one side when opening

• One left-side freezer glide

• Disconnect power before working on the appliance and remove food from the drawer area
• Remove the freezer drawer per the manual to access and replace the glide
• Use basic hand tools as required; avoid forcing parts to prevent breakage

The Light Bulb Socket is an OEM part for Whirlpool refrigerators. It is responsible for housing the bulb that illuminates the interior fridge light. The socket provides a protective casing and stable electrical connection for the light bulb. Its interior components are precisely arranged to safely conduct current to the bulb.

Causes of a bad light bulb socket can include cracks, loose connections, or damaged internal wiring due to regular use over time.

Symptoms of a bad light bulb socket include:

• The fridge interior light failing to turn on
• The bulb burning out quickly
• Flickering or intermittent lighting

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This driver coupling connects the dryer motor to the drum and transfers rotational force so the drum spins. Replacing a worn coupling restores reliable drum rotation and helps stop slipping or intermittent drum movement. What it does:

• Transfers torque from the motor to the drum shaft so the drum turns during operation
• Prevents slipping between motor and drum when intact
• Commonly linked to symptoms like a drum that won't turn, intermittent drum movement, or grinding noises
• Helps stop excessive wear on motor or transmission components when replaced promptly

• One driver coupling

• Disconnect power before beginning any repair to avoid shock or injury
• Verify the drum and motor are accessible; you may need to remove the front panel, belt, or motor assembly depending on model
• Inspect the motor shaft and drum shaft for wear; replace any damaged components to prevent repeat failure
• Use proper tools and follow OEM instructions

A locking nut that secures threaded shafts and fasteners to prevent loosening from vibration and regular use. Fits where a small, self-retaining nut is required to keep components firmly attached. What it does:

• Threads onto compatible studs/bolts to lock assemblies in place
• Resists vibration-related loosening for more reliable operation
• Commonly used on appliance control or mechanical linkages
• Small replacement part that restores secure fastening where the original nut is damaged or missing

• One locking nut

• Turn off and unplug the appliance before accessing internal components
• Match nut thread size and type to the stud before installation
• Use appropriate tools and torque; avoid overtightening which can strip threads

This 40W replacement light bulb restores interior appliance lighting so you can see inside ovens and ranges for checking food without opening the door. Simple, direct fit for compatible appliance light sockets. What it does:

• Provides bright, focused 40W illumination for appliance interiors
• Replaces burned-out or dim bulbs so the interior light turns on when the door is opened
• Helps you monitor cooking progress and oven/range activity safely
• Fits standard appliance light housings designed for a 40W lamp

• Always disconnect power or unplug the appliance before replacing the bulb
• Allow the old bulb and surrounding area to cool completely before handling
• Use a cloth or gloves to avoid skin oils on the bulb; tighten gently—do not overtighten
• Restore power to test operation
